450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery

450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery

450m Multi Functional Drilling Rig

Multifunctional Drilling Machinery

RCF450C Well Drilling Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF450C

Contact Us
Request A Quote
450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery
450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery
Product Details
Name:
RCF450C Water Well Drilling Machine
Drilling Depth:
Max 450m
One-time Advance Length:
6.6m
Weight:
9400kg
Dimension:
5950×2100×2600mm
Engine Brand:
Weichai Engine ( National III )
Engine Power:
110kw
Highlight:

450m Multi Functional Drilling Rig

,

Multifunctional Drilling Machinery

,

RCF450C Well Drilling Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth online Video

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price
Good price RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3 online Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price
Good price 500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine online Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price
Good price 150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption online Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price
Contact Us
Contact Now
Product Description

450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery

Machine Introduction


RCF450C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs with greater pneumatic power play an important role in increasing drilling speed.

Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a low failure rate, is more economical and durable, and has a high overall cost-effectiveness. Our water well drilling rigs have been truly verified by the market and received positive feedback from customers.



Technical Parameters



The weight(T)9.4Drill pipe diameter(mm)Φ89 Φ102
The hole diameter(mm)140-350Drill pipe length(m)1.5m 2.0m 3.0m 6.0m
Drilling depth(m)450Rig lifting force(T)25
One-time advance length(m)6.6Rapid rise speed(m/min)20
Walking speed(km/h)2.5Fast feeding speed(m/min)40
Climbing angles(Max.)30Width of loading(m)2.8
Equipped capacitor(kw)103Hoisting force of winch(T)2
Using air pressure(MPA)1.7-3.5Swing torque(N.m)7000-9500
Air consumption(m³/min)17-36Dimension(mm)5950×2100×2600
Swing speed(rpm)50-135Equipped with hammerMedium and high wind pressure series
The penetration efficiency(m/h)15-35High leg stroke(m)1.6
The engine brandWeichai engine ( National III )


Application

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

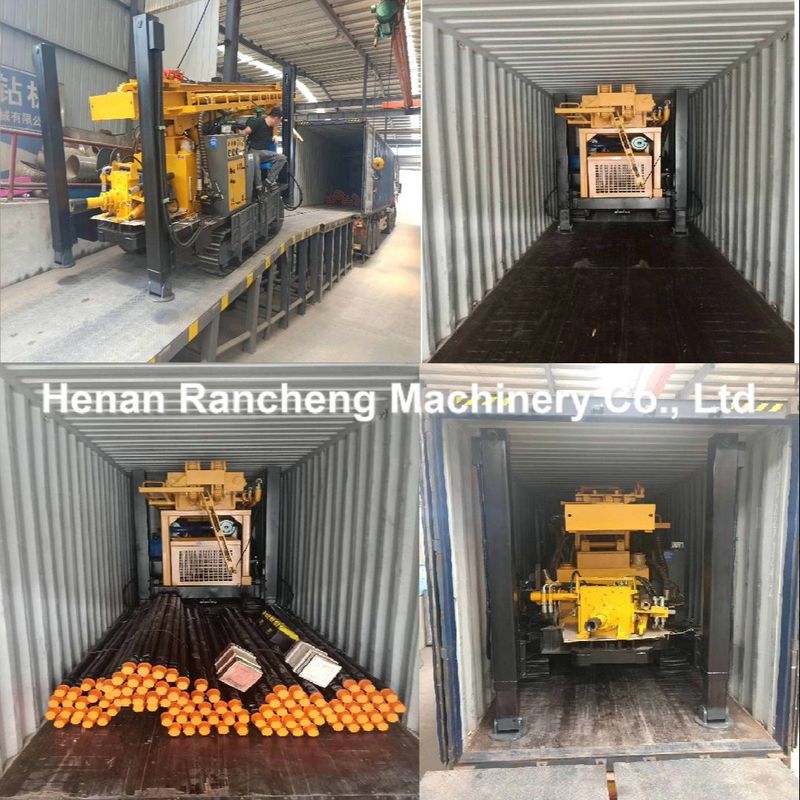

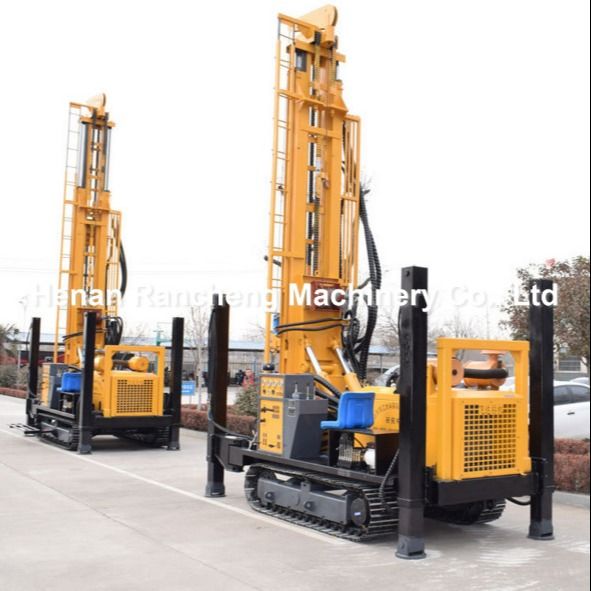

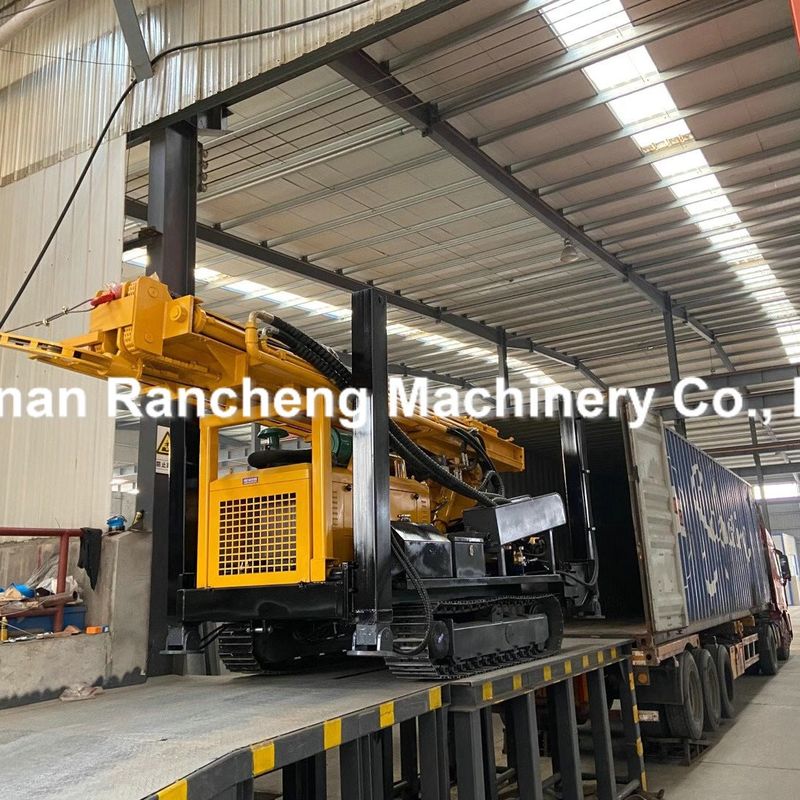

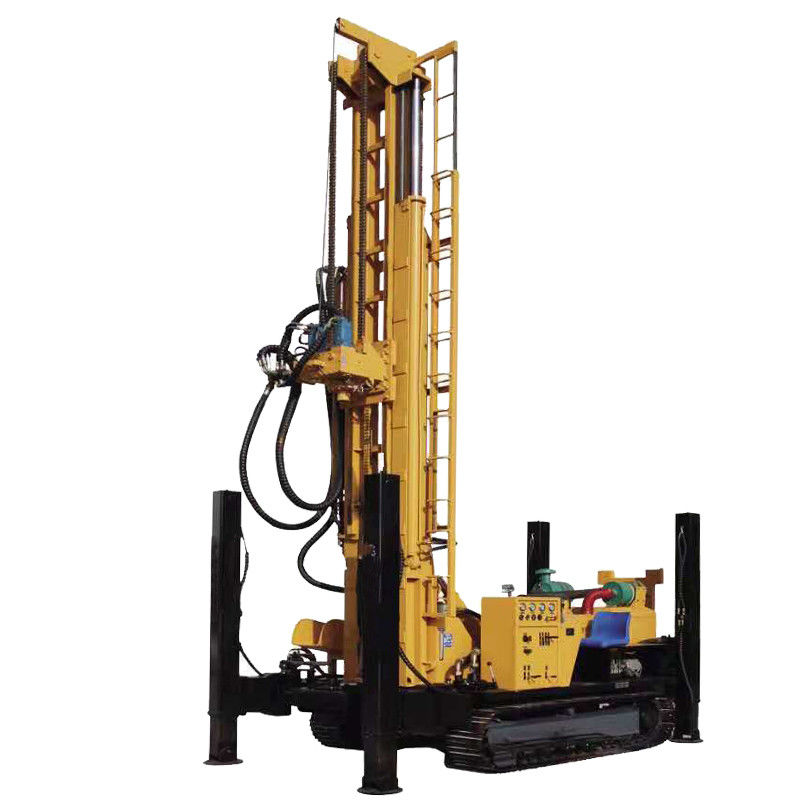

Machine Pictures

450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 0450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 1450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 2

450m Multi Functional Drilling Rig RCF450C Well Drilling Equipment Multifunctional Drilling Machinery 3
