RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup

RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup

Mini Water Well Drilling Machine

Easy Transportation Water Well Drilling Machine

RCF180S Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup
RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup
Product Details
Name:
RCF180S
Drilling Depth:
180m
Lifting Force:
15T
Rotary Speed:
45-65r/min
Diesel Engine:
77.3KW Yuchai Engine
Dimension（L*W*H):
2300×1200×1900MM
Max Torque Of Rotary:
4000-4600Nm
Highlight:

Mini Water Well Drilling Machine

,

Easy Transportation Water Well Drilling Machine

,

RCF180S Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth online Video

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price
Good price RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3 online Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price
Good price 500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine online Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price
Good price 150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption online Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price
Contact Us
Contact Now
Product Description

RCF180S Mini Water Well Drilling Machine for Easy Transportation and Setup


Machine Description


RCF180S mini water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.



Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.


Technical Parameters

Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Feature:

1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.


Image Display

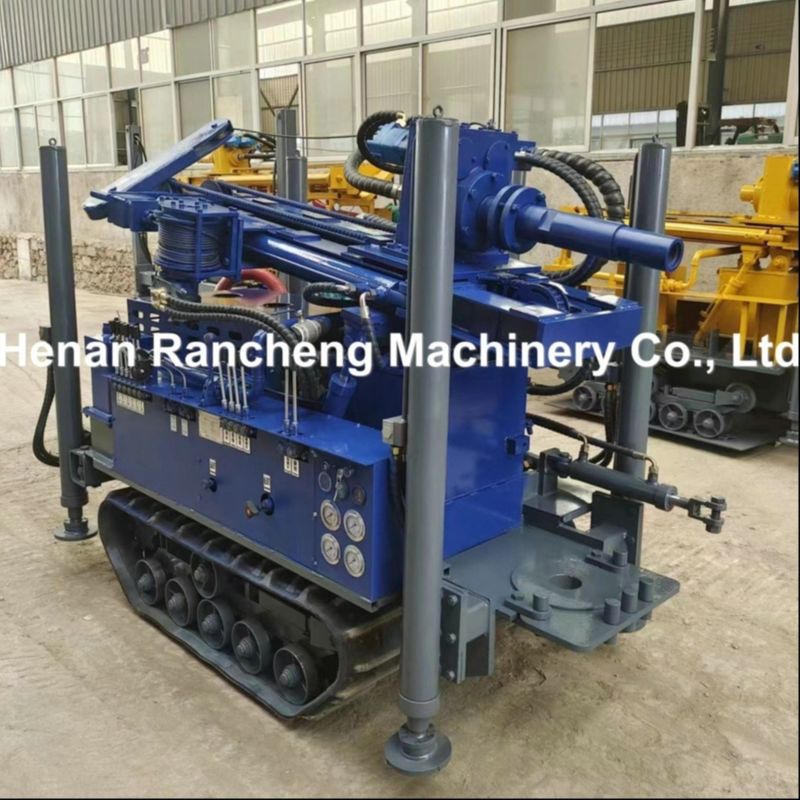

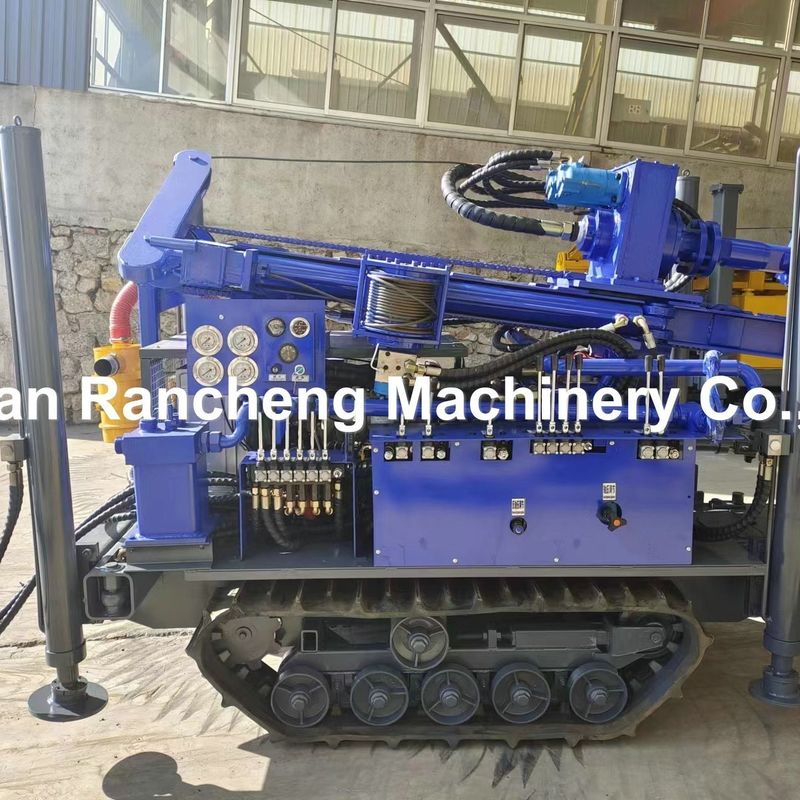

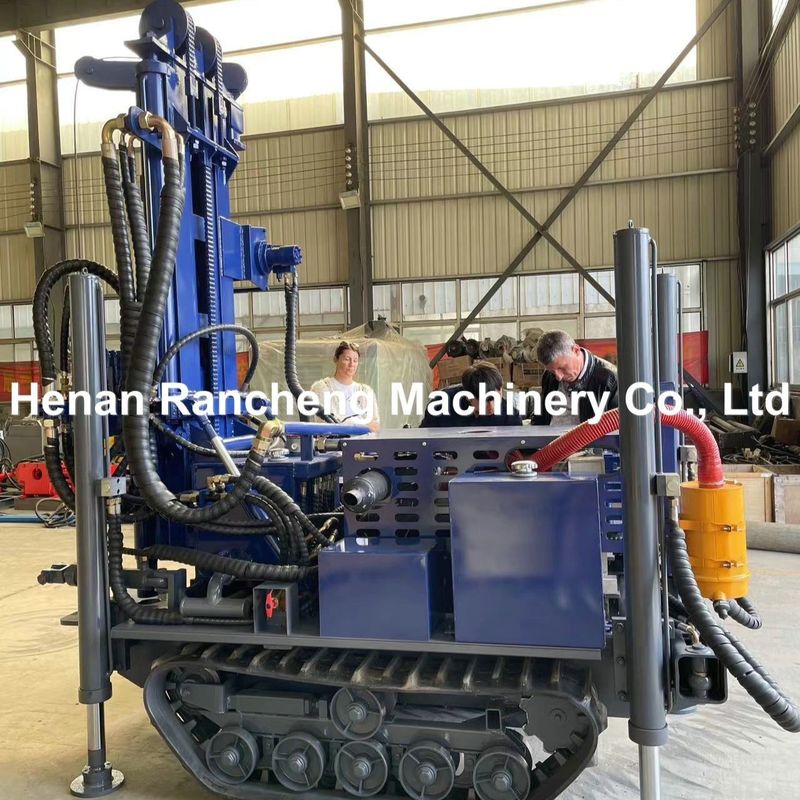

RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup 0RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup 1RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup 2

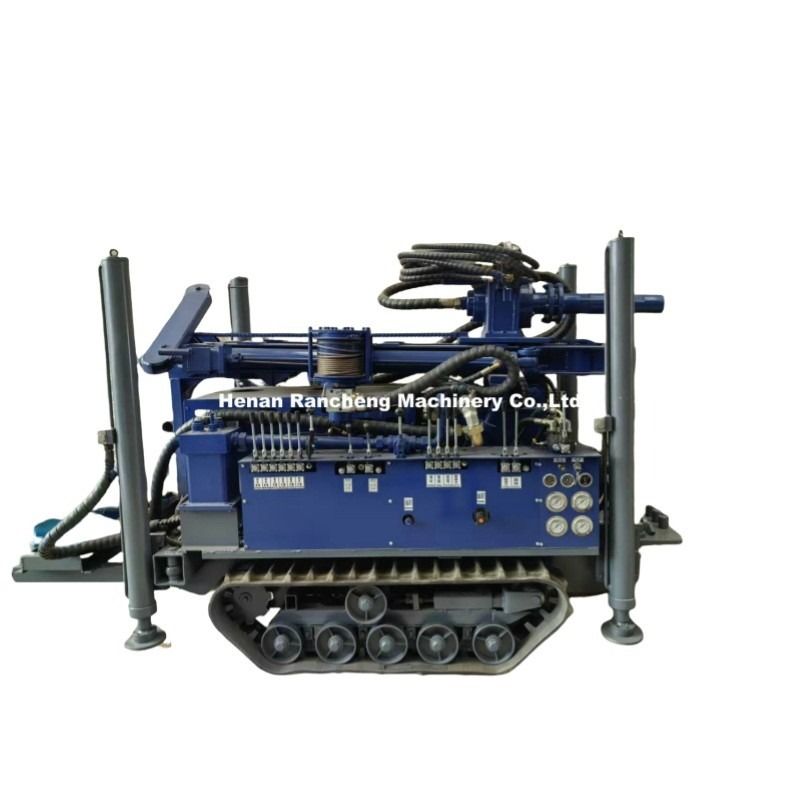

RCF180S Mini Water Well Drilling Machine For Easy Transportation And Setup 3
