Name: 4 Hydraulic Legs 30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCKM-30S
Availability: InStock

Home > products > Solar Pile Driver >

4 Hydraulic Legs 30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine

25HP Solar Pile Driver

30m Deep Solar Pile Driver

4 Hydraulic Legs Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Request A Quote

Product Details

Name:

Solar Pile Driver Equipment

Model:

RCKM-30S

Power:

25HP

Max Depth:

30m

Weight:

1200kg

Hydraulic Legs:

Highlight:

25HP Solar Pile Driver

30m Deep Solar Pile Driver

4 Hydraulic Legs Solar Pile Driver

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

4 Hydraulic Legs 30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine

Product Description

The RCKM-30S small pile drilling rig is designed for small pile foundation projects, including solar photovoltaic pile drilling, nail pile drilling, screw pile drilling, pile drilling and micro foundation pile drilling. This versatile machine is driven by a 25 horsepower diesel engine and can drill holes to a maximum depth of 30 meters with a diameter of 50 to 300 mm.

The equipment adopts a travel system mounted on rubber tracks to ensure easy movement on various terrains. It is equipped with a hydraulic mechanical transmission to ensure efficient power transmission and smooth operation.

The RCKM-30S is ideal for on-site engineering projects, with multi-angle rescue, high precision and excellent durability. It is designed with efficiency in mind, saving time and labor, and is the perfect choice for small piling projects. Its user-friendly design and high adaptability ensure that the operator can easily manipulate the machine in various working conditions to maximize piling efficiency.

Product Specifications

Model	RCKM-30S
Rig weight	1.2t
Dimensions (L×W×H)	230013002200mm
Engine power	25HP
Rotary head torque	3500N.m
Hydraulic oil pump	Single pump
hydraulic loading system	Cylinder chain pressure
Hydraulic working pressure	20Mpa
Way of walking	Crawler gearbox walking
Walking speed	7-15km/h
cooling system	Hydraulic cooler
Carriage travel distance	2.8m
Piling height	1-3m
Borehole diameter	50-300mm
Borehole depth	1-30m
Air consumption	6m3/min
Adapt to rock types	Medium hard rock ,F=8-12
Climbing ability	35°
Hydraulic legs	4

Product Features

1.This machine is capable of drilling up to 30 meters deep with a diameter range of 50-300 mm, making it suitable for various pile-driving tasks.

2.The drilling angle can be adjusted from 45° to 90°, providing flexibility for different drilling needs and ensuring efficient operation.

3. Featuring a high-quality hydraulic system and reliable components, this machine is built to last and offers excellent performance over time.

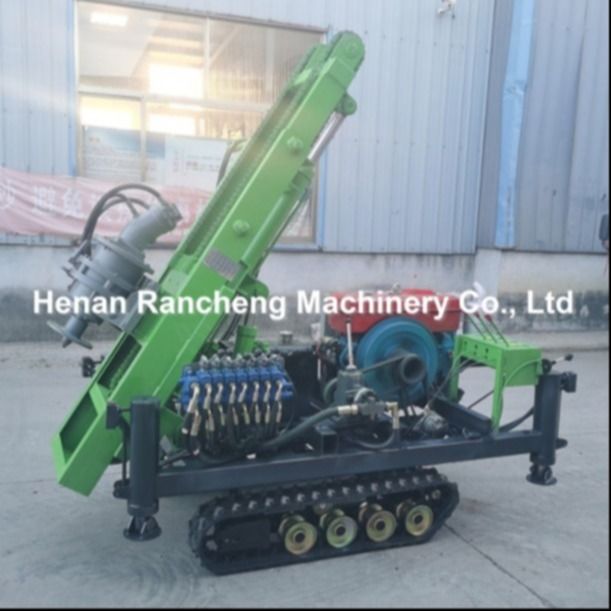

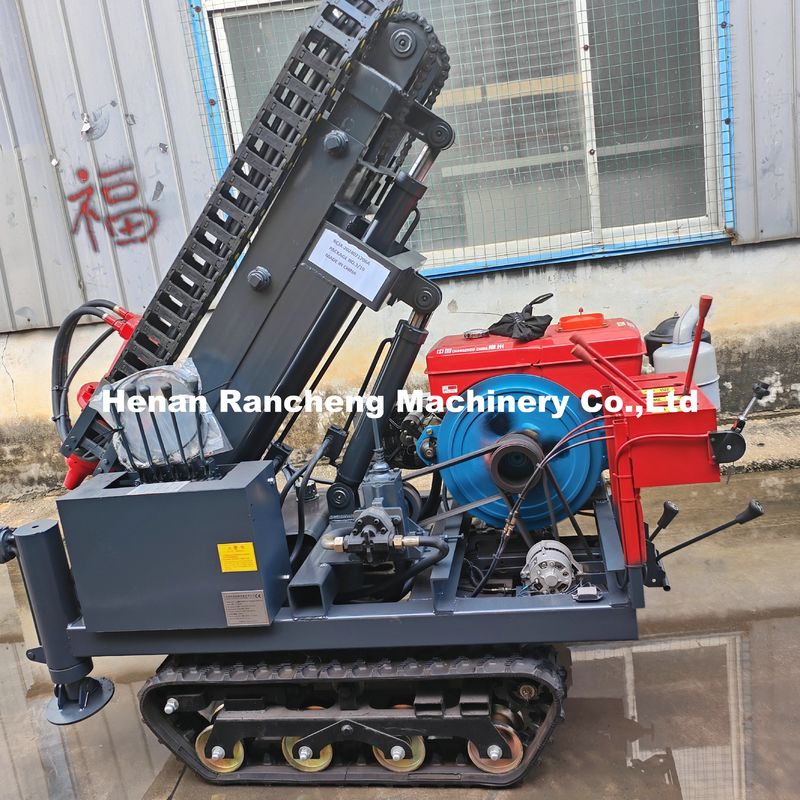

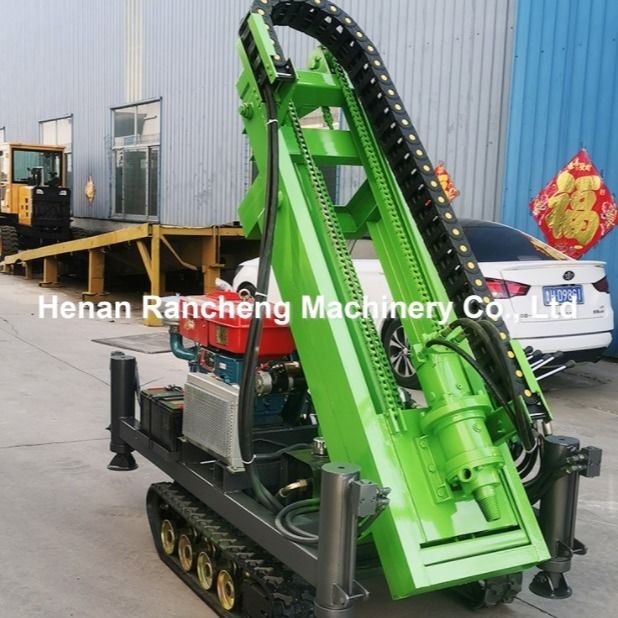

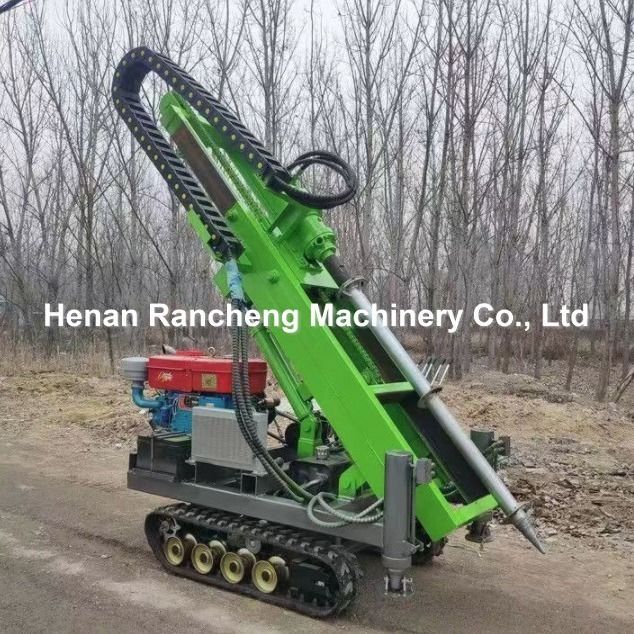

Product Image
4 Hydraulic Legs 30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 0
