RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator

RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator

crawler water well drilling rig

RCF280C crawler water well drilling rig

70kw crawler water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Contact Us
Request A Quote
Product Details
Name:
Crawler Mounted Water Well Drilling Rig
Model:
RCF280C
Color:
Customizable
Diesel Engine:
70KW Yuchai
Bore Depth(m):
280
Bore Diameter(mm):
100-350
Rotary Speed:
40-70r/min
Highlight:

crawler water well drilling rig

,

RCF280C crawler water well drilling rig

,

70kw crawler water well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Max Depth 280m Crawler Mounted Water Well Drilling Rig Machine with 70KW YuChai



Product Description



RCF280C deepwater well drilling rig is a product independently developed by our company. It is one of the most popular products with high drilling speed and strong torque, which greatly improves work efficiency.



The drilling rig adopts the latest model and advanced hydraulic technology, is made of high-quality materials, has strong power and low energy consumption, and is equipped with a quick disassembler to lift the machine to disassemble the drill rod. It is suitable for resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.



Our company's drilling rigs are highly efficient, low in failure rate, durable, and cost-effective. They have been recognized by the market and received positive feedback from customers.



Technical Parameters



Model RCF280C
Bore diameter(Hammer) 100-350mm
Bore depth 280m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4100×1900×2600mm
Weight 7000Kg
Diesel engine 70KW Yuchai engine



Product Advantages



1.Convenient Operation
Full hydraulic control for easy parameter adjustment to suit different drilling conditions.
2.Efficient Connection
Top-drive slewing propulsion lift enables quick drill pipe connection and disconnection, reducing auxiliary time.
3.High Efficiency
Full hydraulic system and top-drive lifting ensure fast drilling and short auxiliary time.
4.Low Cost
DTH drilling technology provides high efficiency and low cost per meter.
5.Portable and Mobile
High outriggers for easy loading and transportation, tracked walking for muddy field movement.
6.Adjustable Axial Pressure
Positive and negative axial pressure adjustment optimizes impactor efficiency during drilling..
7.High Configuration
Famous brand components and hydraulic system, high-strength low-carbon alloy steel frame.
8.Powerful Engine
Equipped with a 75KW Yuchai diesel engine.
9.Strong Lifting Capacity
Design composite tower with 6.6m long stroke and double cylinder lift capacity of 18 tons.

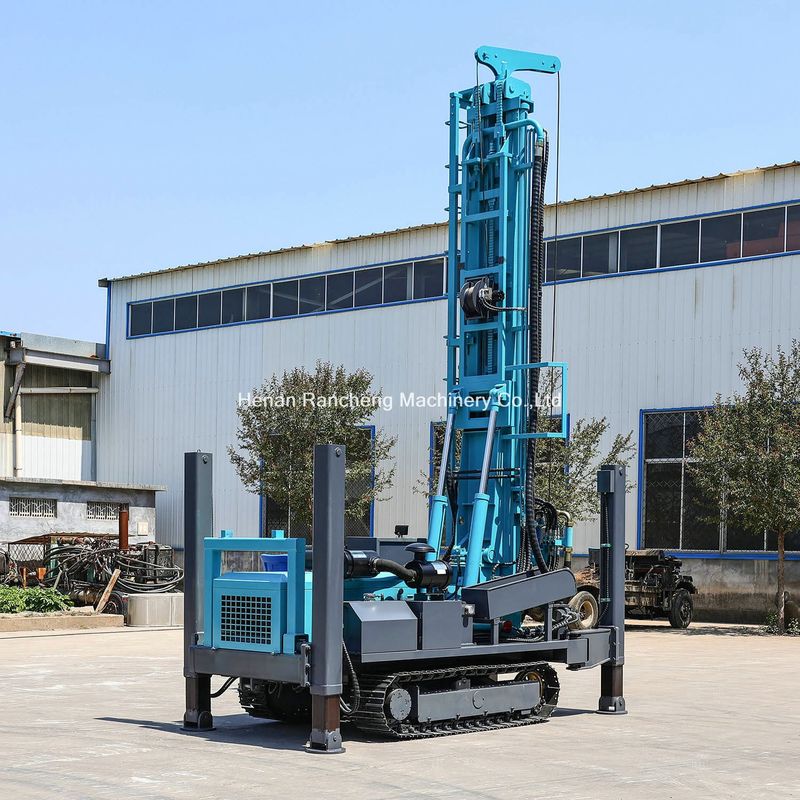

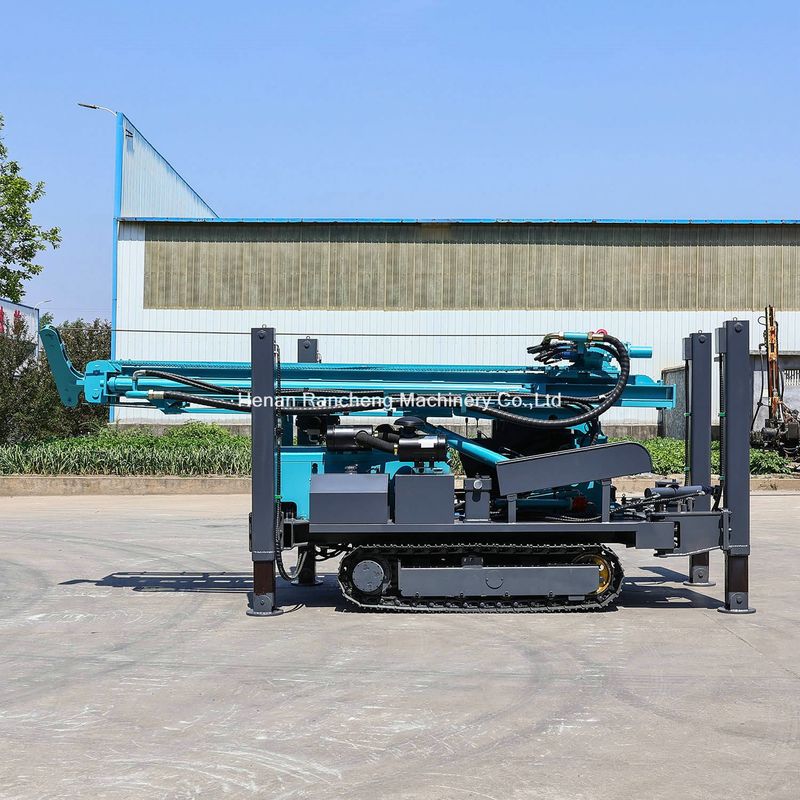

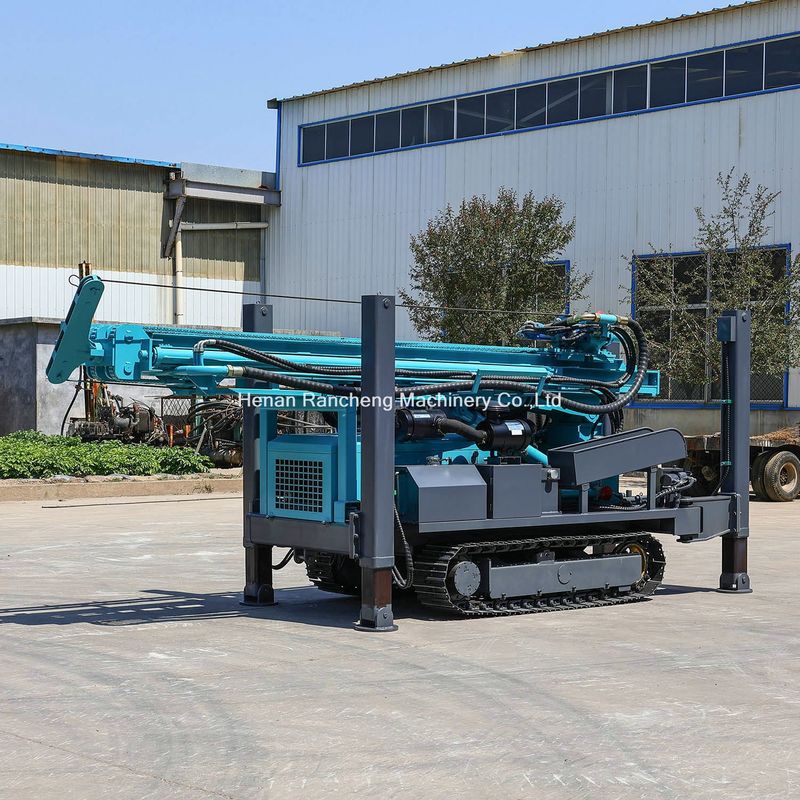

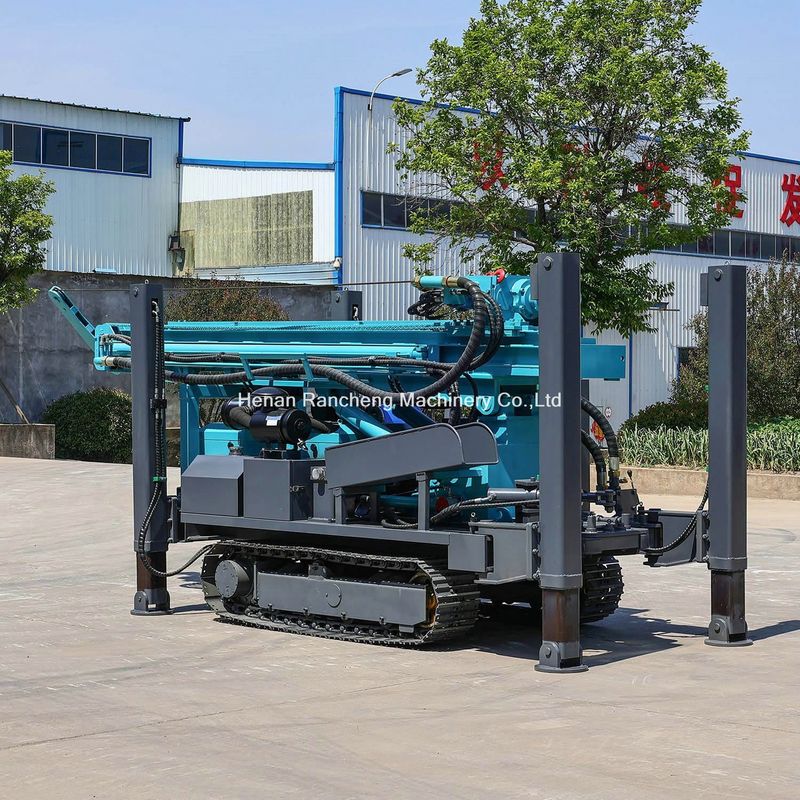

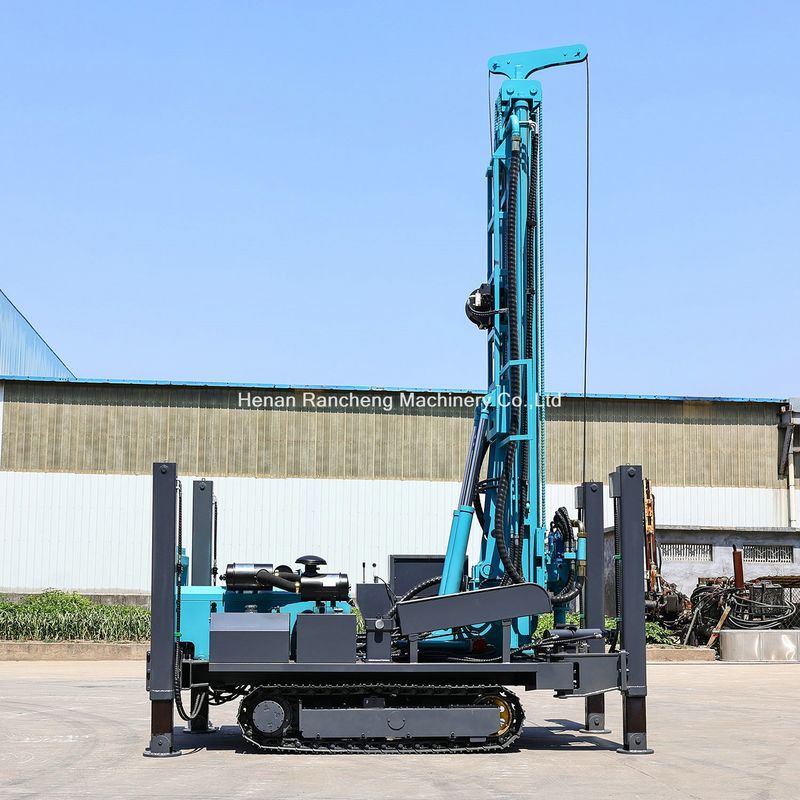

Machine Picture Display



RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator 0RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator 1

RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator 2RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator 3RCF280C Crawler Water Well Drilling Rig Equipped With 70kw Yuchai Diesel Generator 4
