The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm

The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm

RC130Y Solar Pile Driver

400mm Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC130Y

Contact Us
Request A Quote
The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm
The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm
Product Details
Model:
Down The Hole Micro Pile Rig
Name:
RC130Y Solar Pile
Bore Diameter:
400mm(screw)
Host Power:
56Kw Diesel Engine
Climb Ability:
35degree
Highlight:

RC130Y Solar Pile Driver

,

400mm Solar Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Good price Small Hydraulic Pile Driver Drill Depth:20-30m With 32HP Diesel Engine online Video

Small Hydraulic Pile Driver Drill Depth:20-30m With 32HP Diesel Engine

Get Best Price
Good price Small Hydraulic Pile Driver Drill Depth 20-30m With 32HP Diesel Engine online Video

Small Hydraulic Pile Driver Drill Depth 20-30m With 32HP Diesel Engine

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

RC130Y solar pile driver 400mm Bore Diameter down the hole Drilling rig Machine
Machine introduction

The RC130Y is a versatile drilling rig that features top head driving and supports multiple drilling methods, such as mud pump rotary drilling, air DTH (Down - The - Hole) drilling, auger pile drilling, solar pile installation, and PV solar pile ground screwing. It is widely used in different projects due to its adaptability and efficiency.

Technical Parameters

Wind pressure(Mpa) 1.2--2.46
Air consumption(m³/min) 10--20
Drilling diameter(mm) 115---150
Drilling depth(m) down 62m
Once promotion distance(mm) 3000
Drill diameter(mm) 76
Skid compensation(mm) 1200
Maximum lift force(N) 26000
Guide shell lutting(°) up and down total 100
Guide shell swing angle(°) Left and right total 100
Boom lift angle(°) up and down total 70
Boom swing angle(°) 70
Grade ability(°) 30
Chassis ground clearance(mm) 300
Travelling speed(Km/h) 0-2.5
Back to the transit speed(r/min) 0--90
Rotary torque(N.m) 3100
Host Power(kW) 56
For rock 6---20
Total Weight(kg) 4800
Dimension (L * W * H) 5270*1950*2400


Advantages


Advanced Hydraulic Technology : The rig utilizes a new type of hydraulic technology, which results in low consumption and large rotary torque. This makes it more energy - efficient and powerful, while also providing convenient hole deflection capabilities.

Compact Structure and Stable Borehole : The drilling machine has a compact structure, and the mast is equipped with an adjustable compensation function. When drilling, the mast is supported on the ground, ensuring good borehole stability.

Reliable Performance and High Efficiency : The RC130Y hydraulic earth ground screw pile rig is known for its reliable performance and high efficiency. It is suitable for various operating conditions and can reduce costs while improving efficiency.

Multi -Functional : The drilling rig is mainly used for piling anchor, water wells, photovoltaic solar spiral pile, DTH blasting construction, and more, making it a versatile choice for different projects.



Pictures

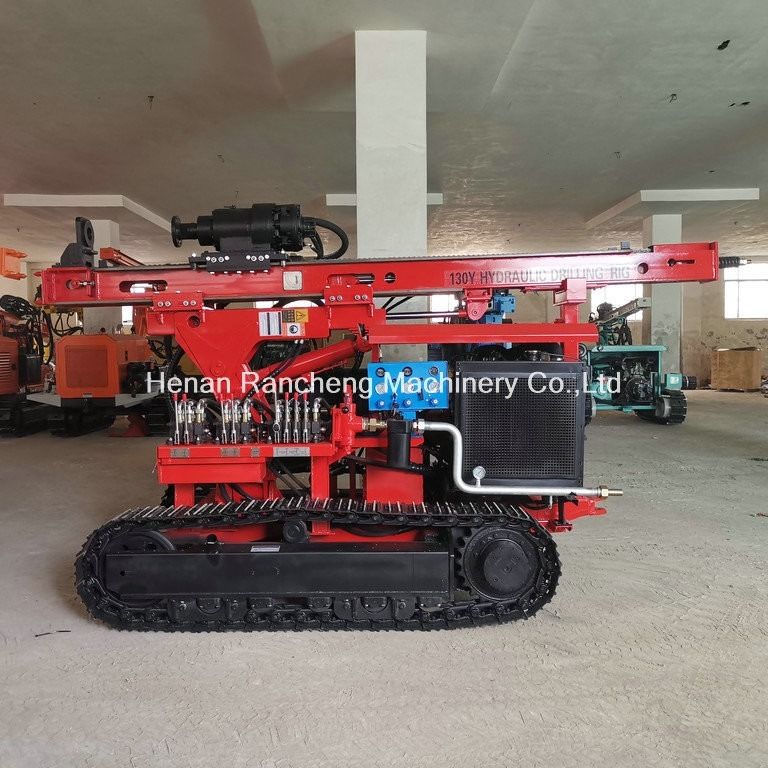

 The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm 0

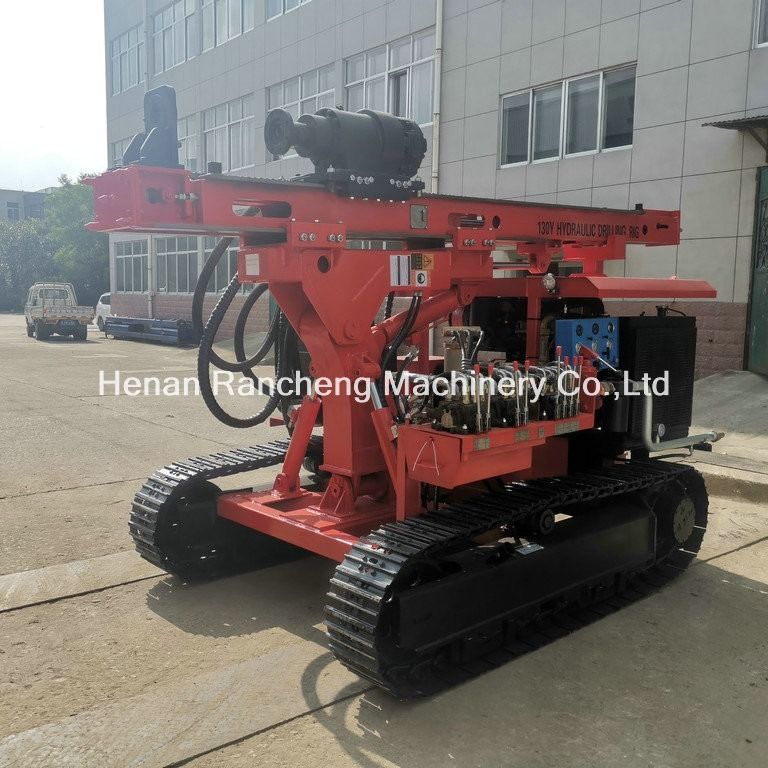

The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm 1

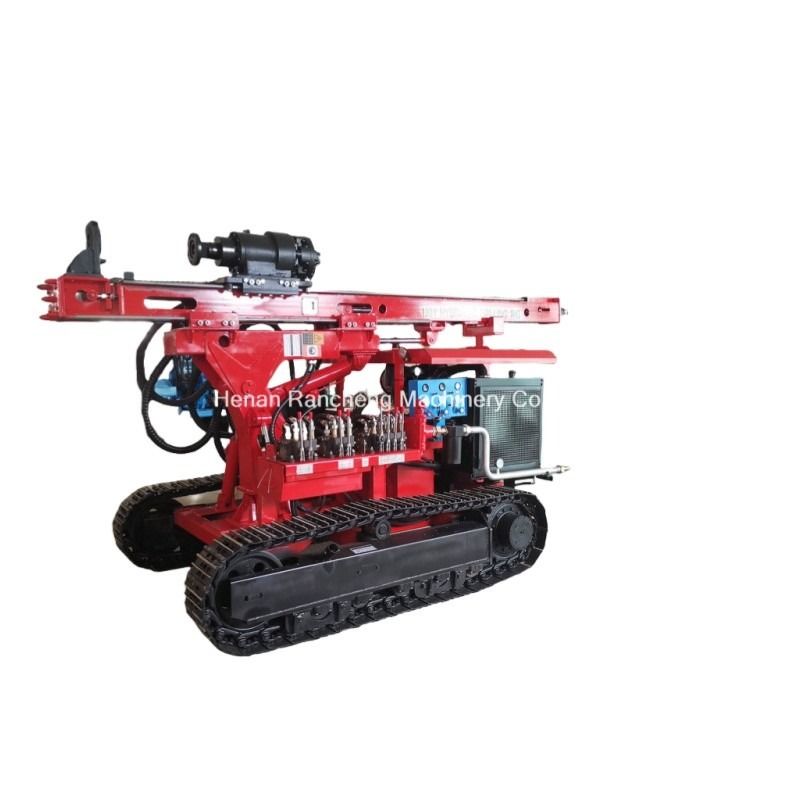

The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm 2

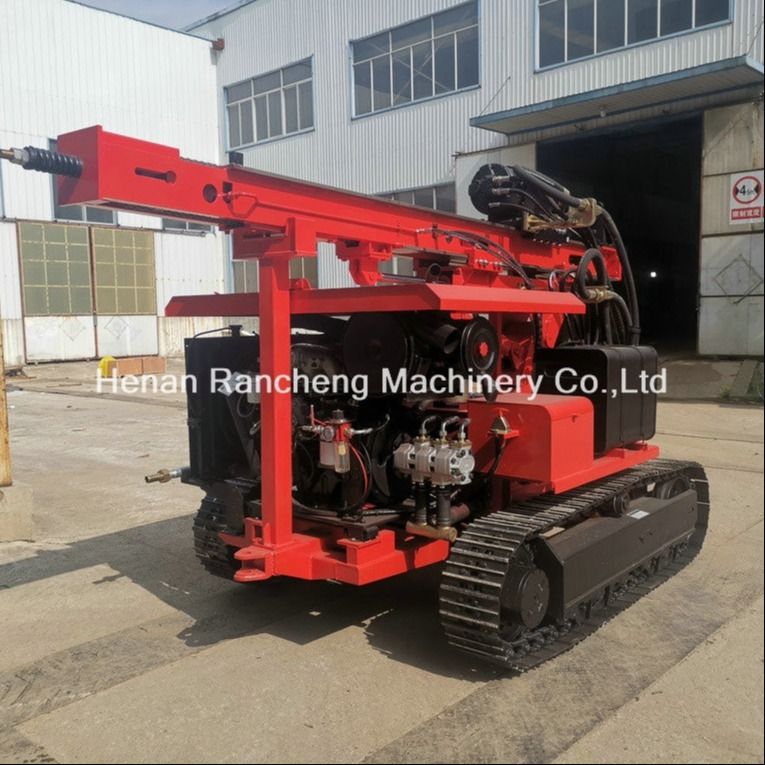

The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm 3
The RC130Y Solar Pile Driver is a down hole drilling rig machine and bore diameter is 400mm 4
