Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF800C
800m Geotechnical Hydraulic Crawler Drilling Machine For Geothermal Air Conditioning
Machine Introduction
The RCF800C is crafted from high - quality materials and features a stylish and compact design. This design not only makes our drilling rigs more efficient with a low failure rate but also more economical and durable, resulting in a high comprehensive cost - performance ratio. Our water drilling rigs have been proven in the real market, as evidenced by the positive feedback from the majority of our customers.
Specification
Model | RC800C |
Drilling way | Both mud pump drilling and air DTH drilling |
Geology drilled | All kind |
Drill system and operation | Hydraulic |
Diesel engine | 154KW Cummins |
Max hole depth | 800m |
Hole diameter |
140-500mm |
Air consumption |
17-42m³/min |
Length of drilling pipe | 1m/2m/3m/6m |
Diameter of drilling pipe |
102/108/114mm |
Total Weight | 13ton |
Dimension (L * W * H) |
6300×2300×2650mm |
Applications
1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life;
5. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump

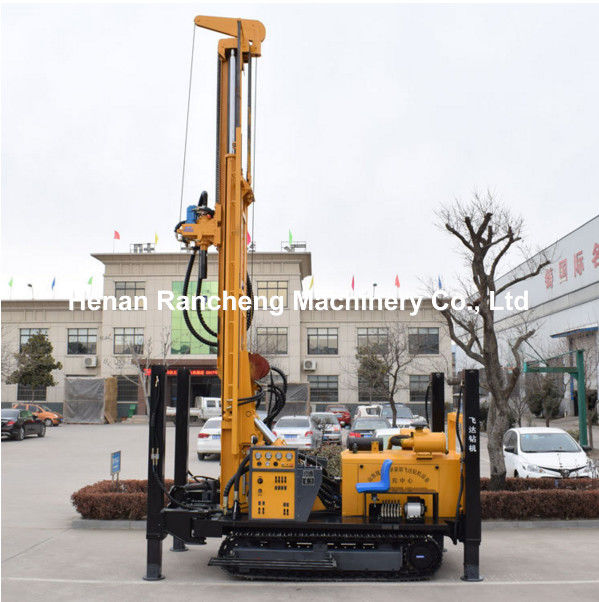

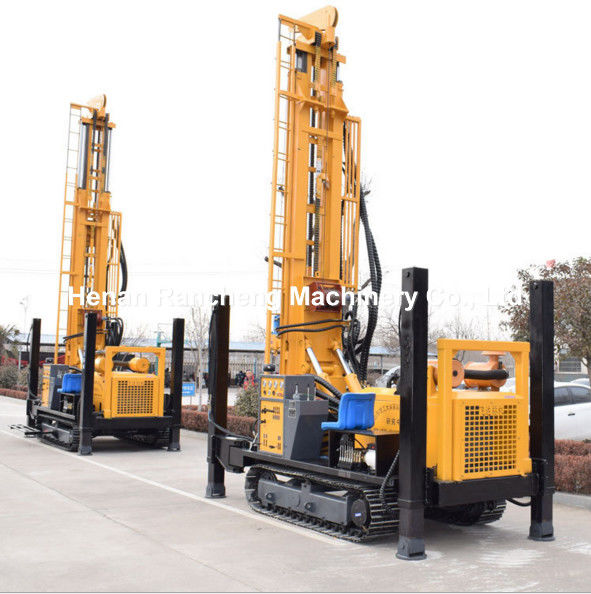

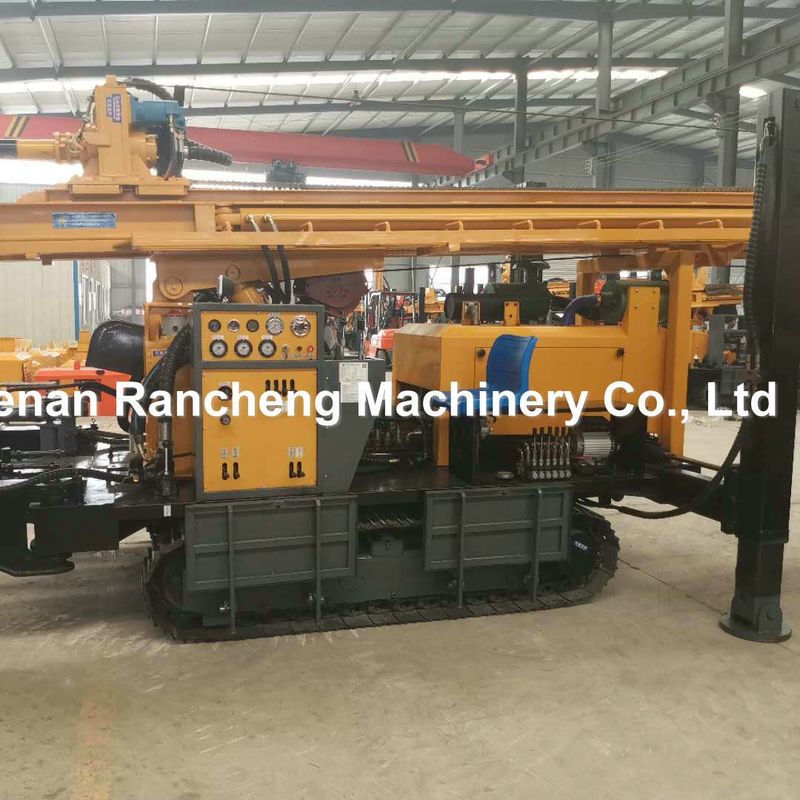

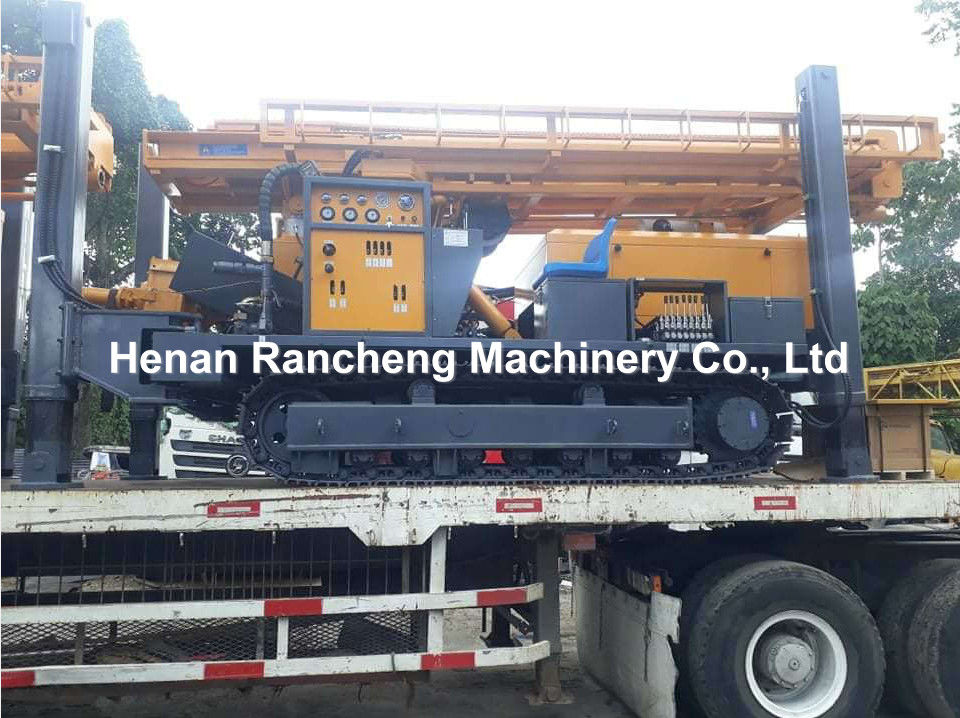

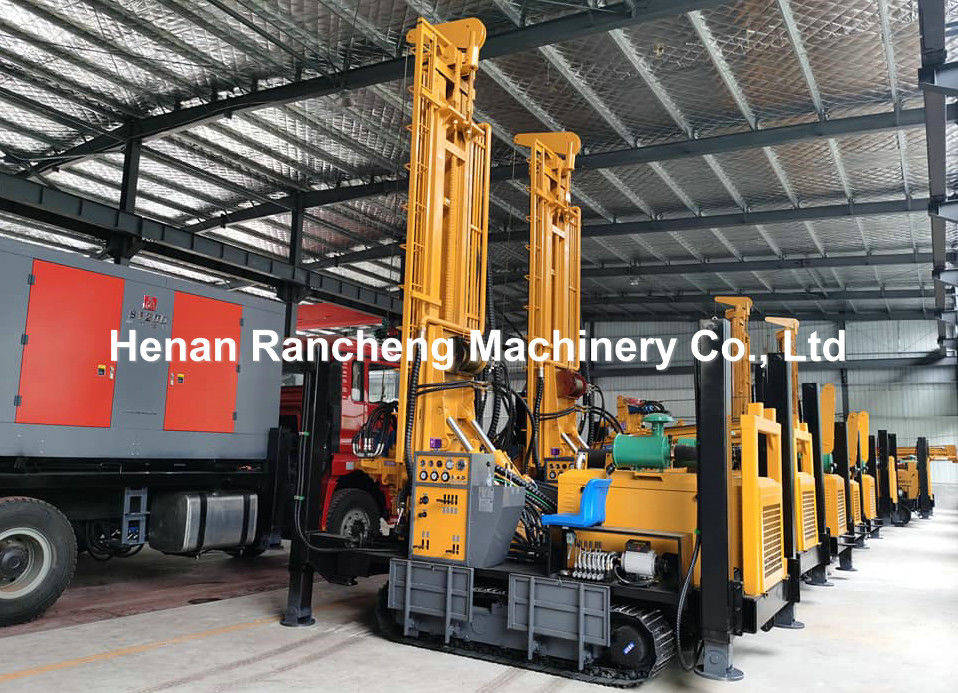

Machine Pictures
