Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine

Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine

Hydraulic Ramming Solar Pile Driver

RC240Y Solar Pile Driver

Groundwork Photovoltaic Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC240Y Solar Pile Driving

Contact Us
Request A Quote
Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine
Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine
Product Details
Name:
Solar Pile Driver
Model:
RC240Y Solar
Impact Frequeney(bpm):
350-800
Impact(j):
1300
Climb Ability(º):
30
Highlight:

Hydraulic Ramming Solar Pile Driver

,

RC240Y Solar Pile Driver

,

Groundwork Photovoltaic Solar Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe online Video

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price
Good price RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine online Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price
Good price Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System online Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine



Machine Introduction



RC240Y crawler hydraulic solar pile driver, hydraulic parts are imported original parts, which greatly improves the performance and stability of the equipment. The unique construction process and climbing mechanism design can be adjusted according to the slope height, suitable for solar engineering construction with a maximum slope of 45 degrees.



This equipment is capable of various photovoltaic construction processes: spiral pile drilling, spiral hole drilling, rock down-the-hole hammer, ramming piles, etc.



Technical Parameters



Impact frequeney(bpm) 350-800
Impact(j) 1300
Hydraulic ramming flow (L/min) 50-110
Max ramming length (mm) 6000
Oil pump 40/40/32
Hydraulic system pressure (Mpa) 25-30
Diesel engine power (KW) 85 Yuchai 4 cylinders
Drilling carriage Pitch angle 120⁰
Drilling boom swing angle 150⁰
Climb ability(º) 30
Crawler Chassis width(mm) 400
Dimension(L*W*H)(mm) 6500*2300*2800
weight(kg) 6500
walk speed(km/h) 3
For rotary drilling
Rotary head torque 13000N.m
Rotary speed 180r/min
Bore diameter(DTH hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min



Air pressure

0.7-1.6Mpa(medium)

1.6-2.46Mpa(high)
Bore diameter(auger) Max 600mm
Bore depth 0-30m
Rotation speed 0-110r/min



Application:



This auger piling rig is widely used for solar ground construction ,solar power station ,anchoring, water wells, water conservancy, power plant open mining, road building and other blasting hole constructions .

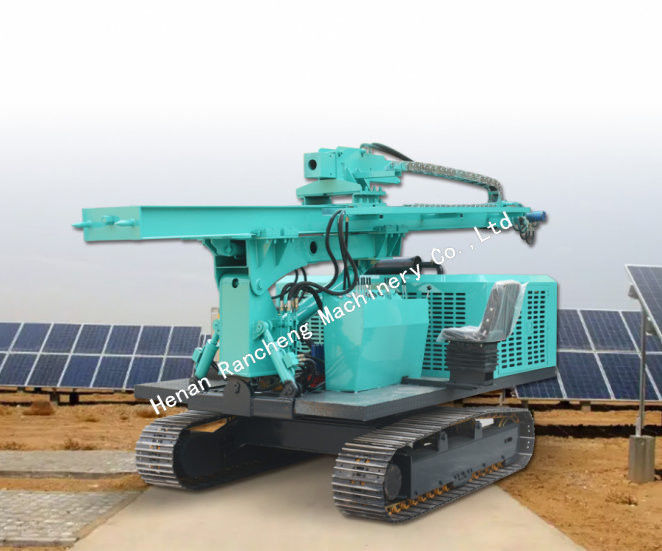

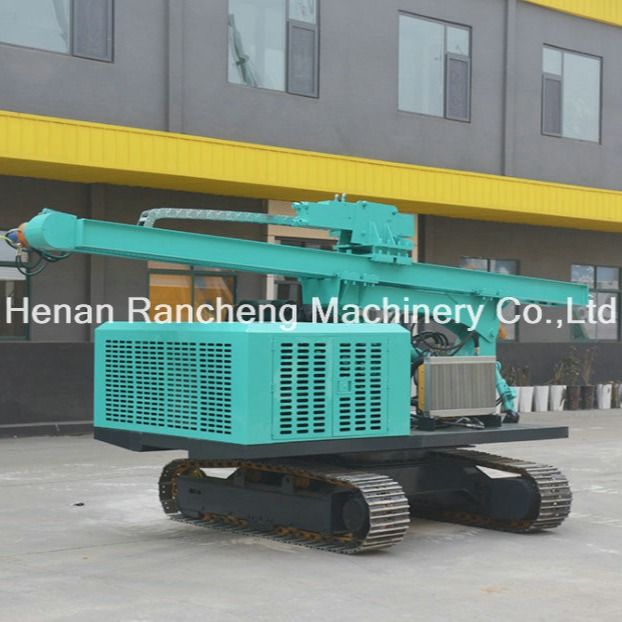

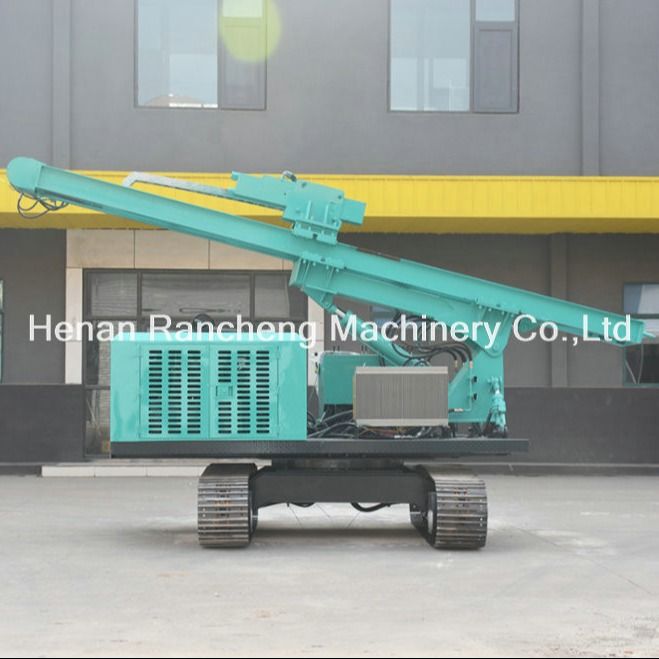

Machine Pictures



Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine 0Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine 1

Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine 2Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine 3Groundwork Photovoltaic Hydraulic Crawler Solar Pile Driver RC240Y Hydraulic Ramming Solar Pile Machine 4
