20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch
Machine Description
The RC185Y hydraulic drilling rig is a versatile and robust machine designed for various foundation and drilling applications. It combines advanced hydraulic technology with multifunctional capabilities, enabling efficient operation in projects such as solar pile installation, water well drilling, geotechnical engineering, and blasthole construction. The rig supports multiple drilling methods, including rotary drilling with a mud pump, down-the-hole (DTH) air drilling, and auger pile drilling, making it adaptable to diverse site conditions.
Key features include a crawler-type chassis for enhanced mobility on rough terrain, a mast with adjustable compensation for improved stability during drilling, and a powerful 84kW engine that ensures high torque and low energy consumption. The rig can achieve drilling depths of 20–100 meters and handle diameters ranging from 100mm to 600mm, depending on the method used. Additional specifications include a maximum climb angle of 35°, a compact design (5300×1970×2620mm), and a weight of 5800kg for easy transportation.
Machine Specifications
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
20-100m |
| Air consumption |
10-26m³/min |
| Air pressure |
0.7-1.6Mpa(medium) |
| 1.6-2.46Mpa(high) |
| Pipe diameter |
76mm/89mm |
| For rock |
F=6-20 |
| Bore diameter(screw) |
Max 400mm |
| Bore depth |
0-30m |
| Screw pipe diameter |
130-400mm |
| Once promotion |
3200mm |
| Skid pitch |
120º |
| The swinging angle of the drilling boom |
Left and right total 50º |
| The swinging angle of the skid |
Left and right total 40º |
| Rotation speed |
0-110r/min |
| Host power |
84Kw |
| Climb ability |
35º |
| Dimension(L*W*H) |
5300*1970*2620mm |
| weight |
5800Kg |
| Walk speed |
0-2.5km/h |
Machine Advantages
1.Advanced Hydraulic System
Delivers high torque and low energy consumption, ensuring powerful yet cost-effective drilling operations.
2.Crawler Mobility & Compact Design
Crawler chassis enhances stability on rough terrain, while its compact size (5.3×1.97×2.62m, 5800kg) simplifies transport and site access.
3.Multifunctional Drilling
Supports rotary, DTH air, auger drilling, and solar pile installation, adapting to projects like water wells, blastholes, and solar farms.
4.Stable Adjustable Mast
Mast with compensation function reduces vibration and improves drilling accuracy, even in challenging conditions.
5.High Efficiency
Powered by an 84kW engine for rapid drilling cycles and reliable performance in harsh environments.
6.Comprehensive Support
Includes lifetime technical guidance, 24/7 remote assistance, and optional on-site engineer dispatch for international projects.

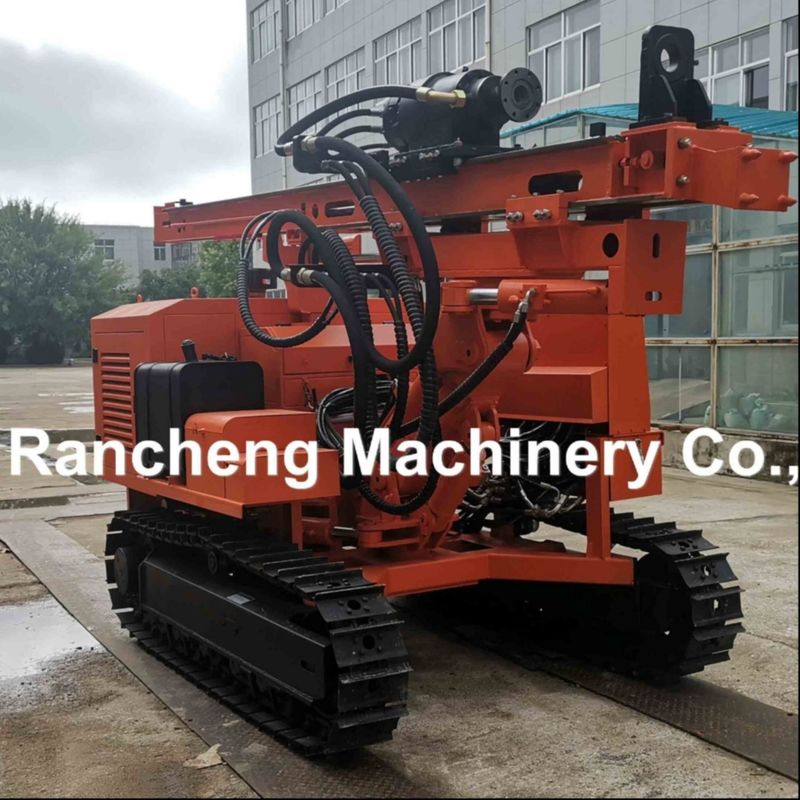

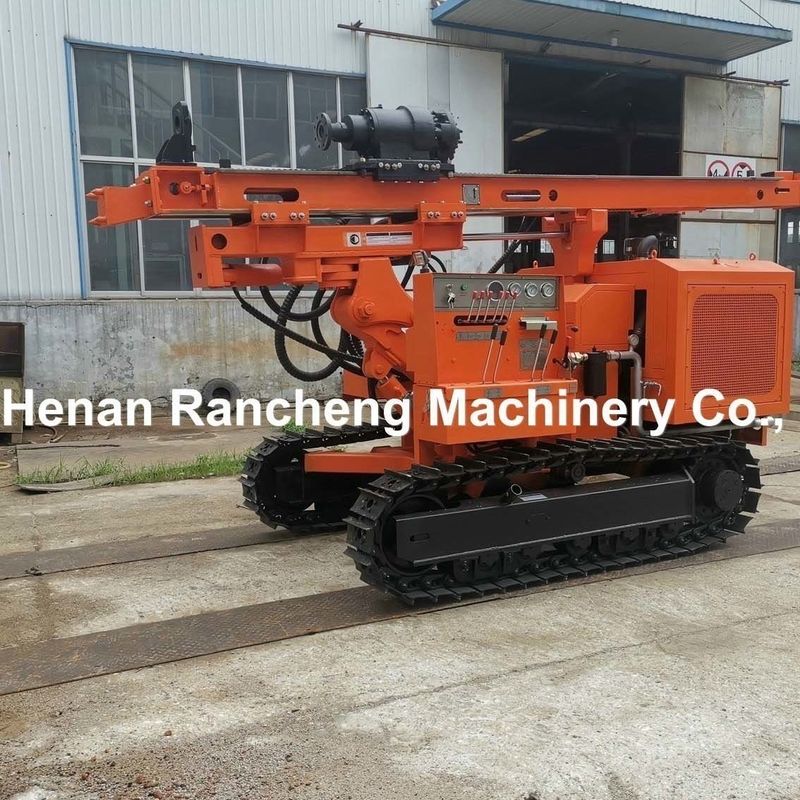

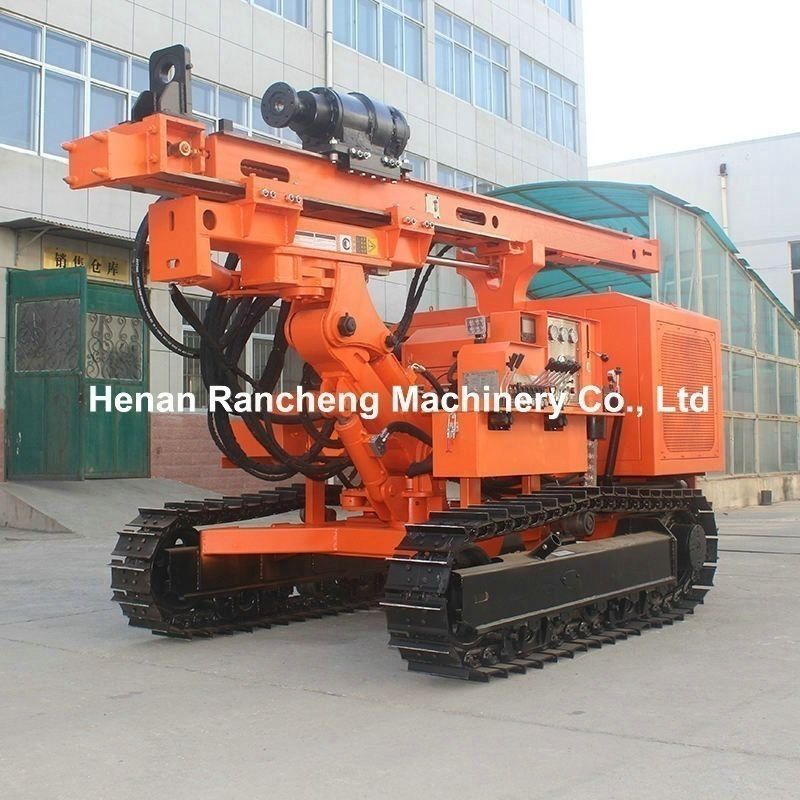

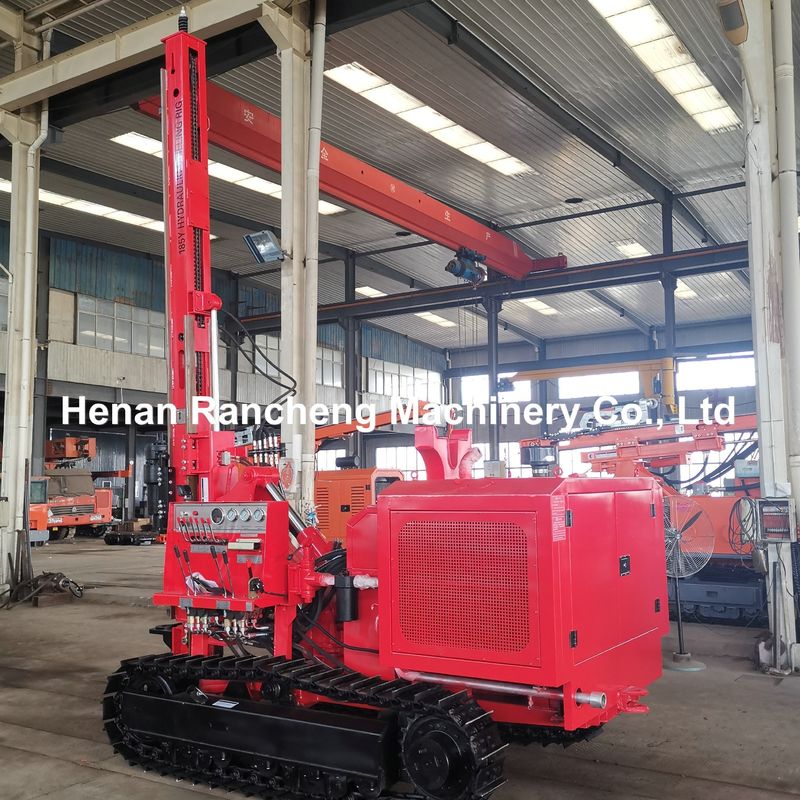

Machine Pictures
