150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine

150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine

Hydraulic Water Well Drilling Rig

Deep Borehole Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150C

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Water Well Drilling Rig
Model:
RCF150C
Bore Diameter(hammer):
90-300mm
Bore Depth:
150m
Air Consumption:
17-31m³/min
Air Pressure:
1.7-2.5Mpa
Pipe Diameter:
76mm/89mm
Highlight:

Hydraulic Water Well Drilling Rig

,

Deep Borehole Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine



Product Description



RCF150C deep water well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.



Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, convenient hole deflection,Made of high-quality materials, stylish and compact design, our drilling rigs are more efficient, with low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.



Technical Parameters



Bore diameter(Hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3500×1700×2250MM
Weight 3700kg
Diesel engine 42KW



Product advantages



1: Small size, light weight, easy installation.
2: It consists of three parts: main machine, pump station and control console.
3: It can be put into production in the original transportation and prospecting tunnels, protecting the overall structure of the mine, and can also drill 0-90 degrees on the ground.
4: The drilling rig is flexible in layout, and the drill rod is mechanized to unscrew, which reduces the labor intensity of workers and improves work efficiency.
5: It adopts a box-type feed rack, clamps the gripper, rotates the power head to drill holes, and pulls the drilling tool with the cylinder.
It eliminates the need for bulky drilling rigs.
6: It has a linkage function, which is centrally controlled by the control console, simple and safe, and can be steplessly adjusted.
7: With the hollow shaft design, the length of the drill rod is not limited by the progress of the drilling rig, and 360° arbitrary inclination drilling can be performed.



Application:



RCF150C 150m small water well drilling machine mainly used for drilling in resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.

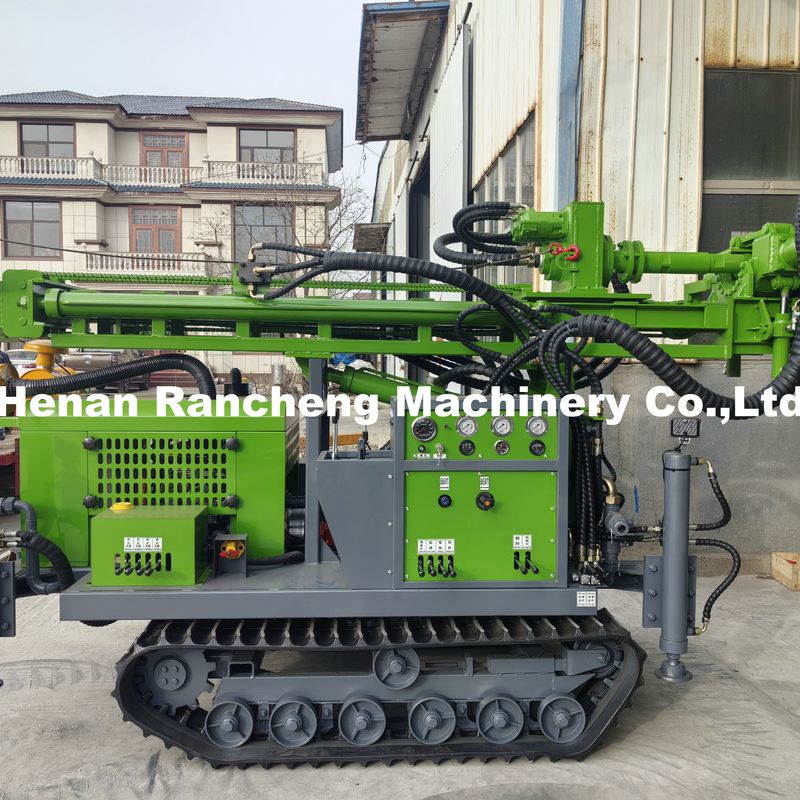

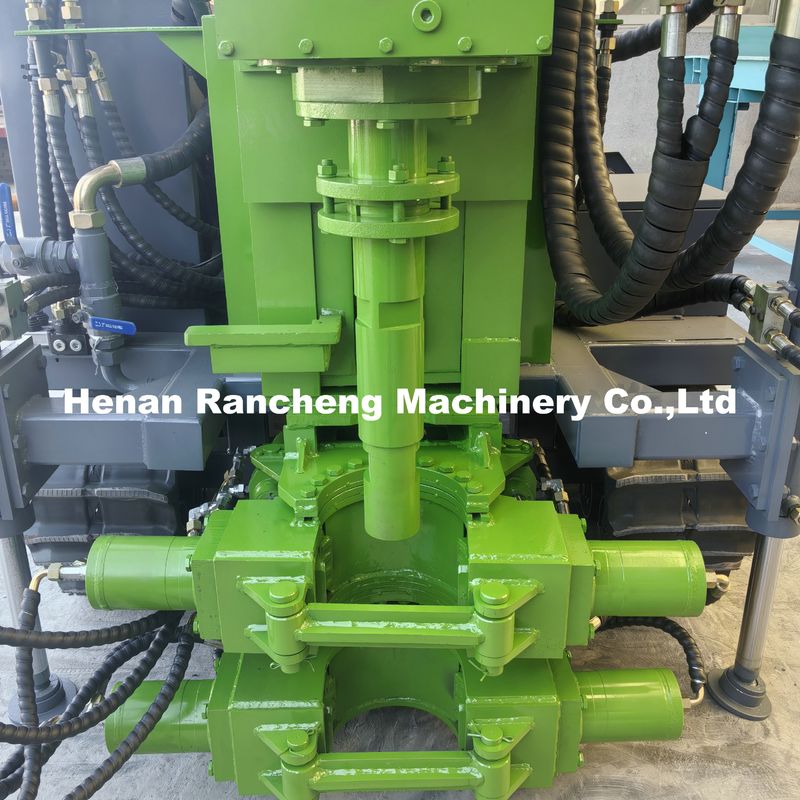

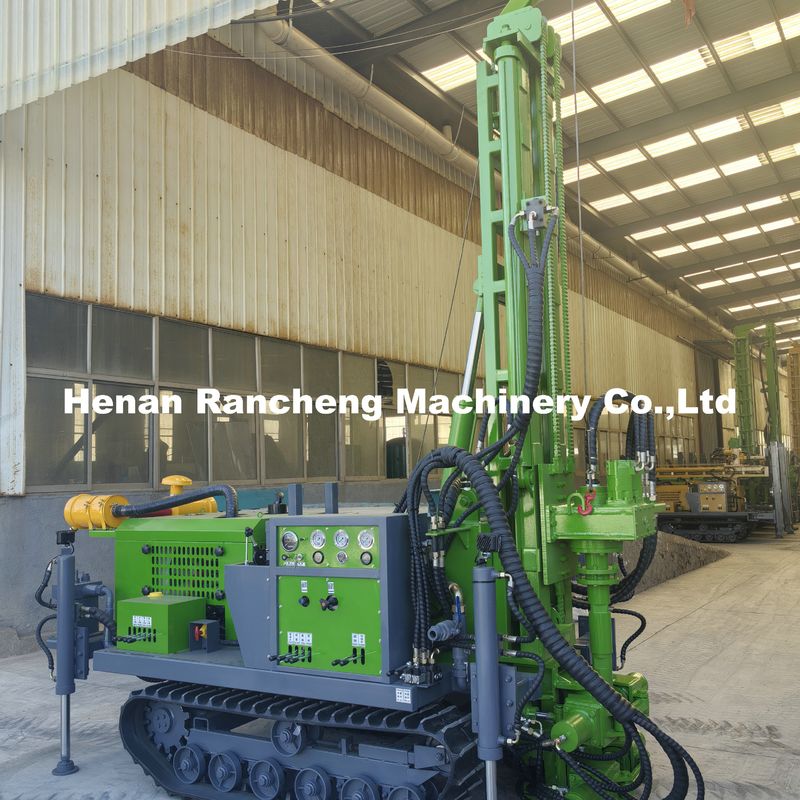

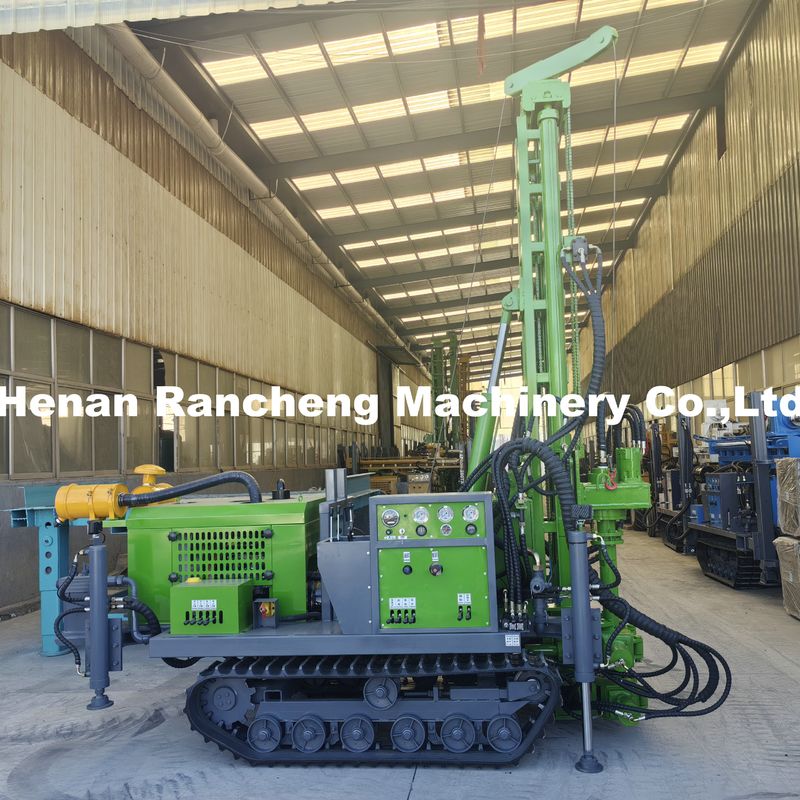

Machine pictures



150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine 0150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine 1150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine 2150M Crawler Mounted Deep Borehole Water Well Drilling Rig Hydraulic Water Well Machine 3
