High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

High performance Water Well Drilling Machine

RCF180S Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Product Details
Name:
RCF180S
Drilling Depth:
180m
Once-time Advance Length:
90-300mm
Rotary Speed:
45-65r/min
Diesel Engine:
77.3KW Yuchai Engine
Max Torque Of Rotary:
4000-4600Nm
RCF180S Mini Water Drilling Machine Is Very Powerful ,it Can Drill Max 180m Depth , This Small Water:
76/89mm
Highlight:

High performance Water Well Drilling Machine

,

RCF180S Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine


Machine Description


The RCF180S is a compact and powerful crawler-mounted water well drilling rig, designed for efficiency and versatility. With a maximum drilling depth of 180 meters and a lifting force of 15 tons, it delivers strong performance despite its small size. Powered by a 77.3KW Yuchai engine, it supports both mud pump and air compressor operations. Its rubber crawler design ensures easy mobility across rough terrains. It is equipped with advanced remote-control technology which supports remote - controlled movement and operation.


Technical Parameters

Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Feature:

1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.


Image Display

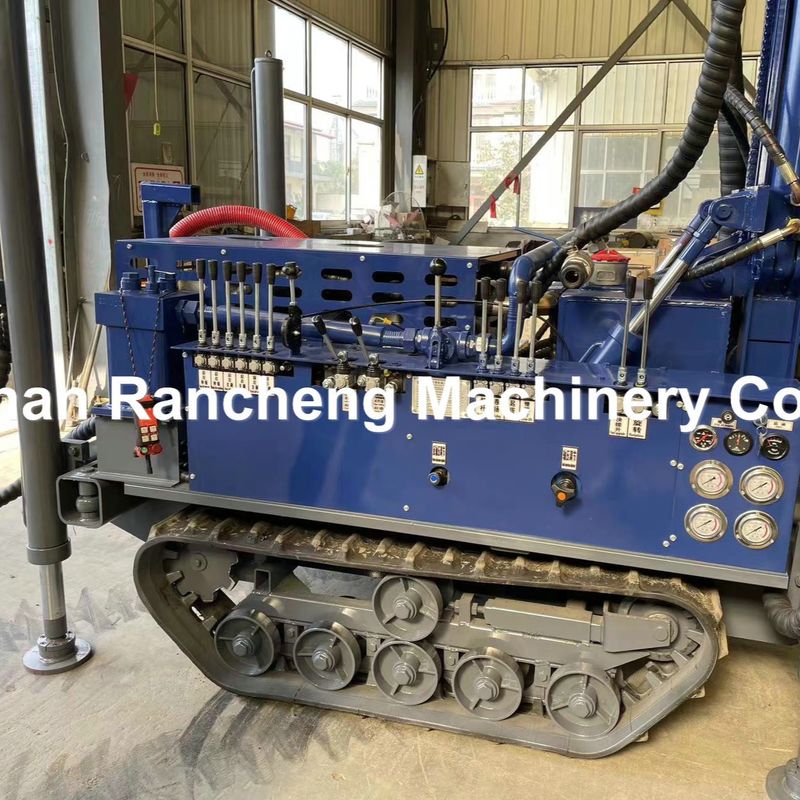

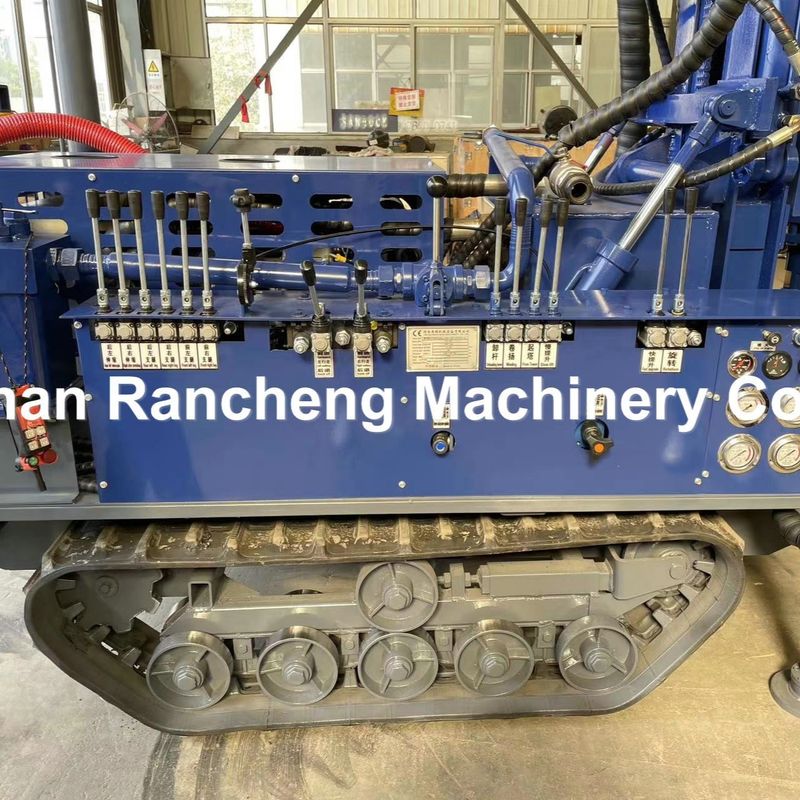

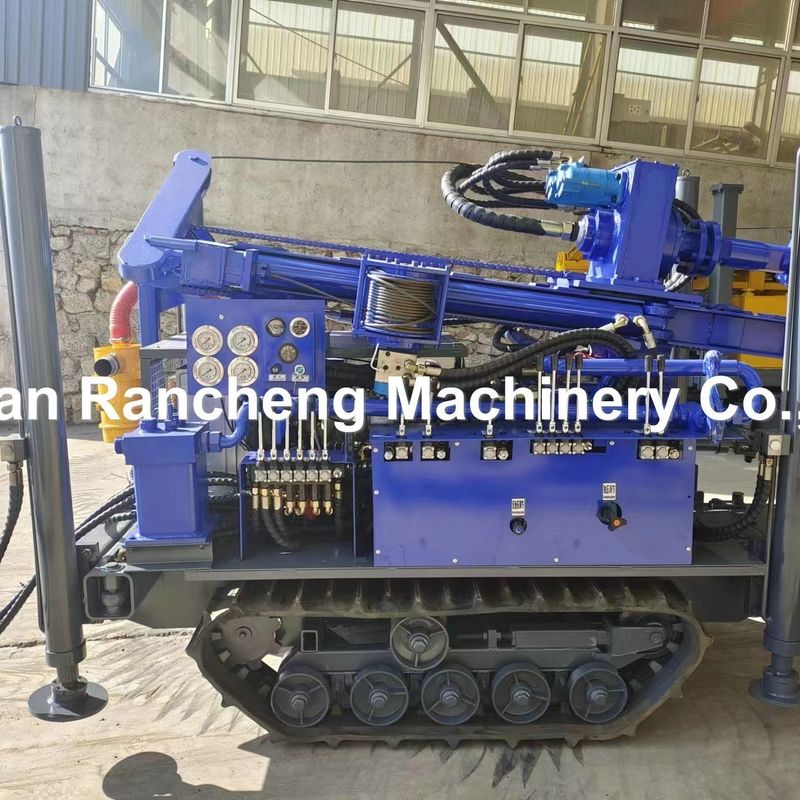

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine 0High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine 1High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine 2

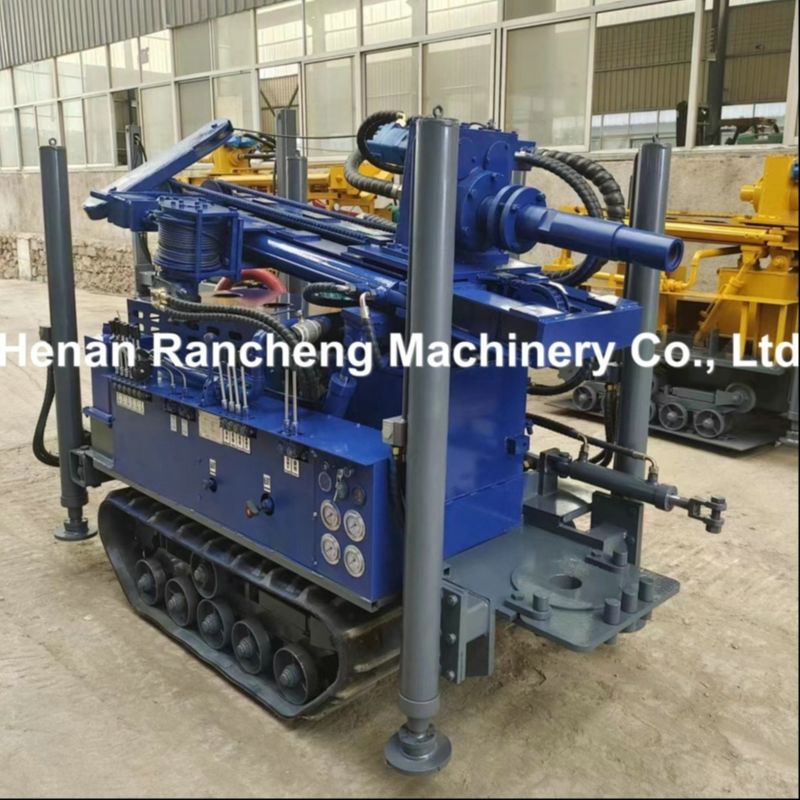

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine 3
