Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCKM-30S
Small Hydraulic Pile Driver Drill Depth:20-30m With 32HP Diesel Engine
Product Description
The RCKM-30S small hydraulic down-the-hole drill is a multifunctional crawler engineering equipment equipped with a 30-horsepower diesel engine. It supports down-the-hole drilling (DTH) and spiral pile drilling, with a maximum drilling depth of 30 meters and a hole diameter range of 50-300 mm. It adopts hydraulic mechanical transmission technology, has efficient shifting, multi-angle adjustment (45° to 90°), high torque (1800N·m) and strong adaptability, and can operate in complex terrains such as swamps and mud. The whole machine weighs 1.2 tons, has a compact size (2300×1300×2200mm), and a climbing ability of 35°. It is suitable for a variety of scenarios such as solar photovoltaic foundation piles, high-speed railway contact network piles, and municipal engineering.
Product Specifications
Model | RCKM-30S |
Rig weight | 1.2t |
Dimensions (L×W×H) | 2300*1300*2200mm |
Engine power | 25HP |
Rotary head torque | 3500N.m |
Hydraulic oil pump | Single pump |
hydraulic loading system | Cylinder chain pressure |
Hydraulic working pressure | 20Mpa |
Way of walking | Crawler gearbox walking |
Walking speed | 7-15km/h |
cooling system | Hydraulic cooler |
Carriage travel distance | 2.8m |
Piling height | 1-3m |
Borehole diameter | 50-300mm |
Borehole depth | 1-30m |
Air consumption | 6m3/min |
Adapt to rock types | Medium hard rock ,F=8-12 |
Climbing ability | 35° |
Hydraulic legs | 4 |
Application
1. One machine for multiple uses: supports down-the-hole drilling (DTH) and spiral pile drilling, suitable for solar photovoltaic pile foundation, high-speed railway contact network pile, municipal engineering and other scenarios, reducing equipment procurement costs;
2. Strong power and high torque: 30 horsepower brand diesel engine with 1800N·m high torque hydraulic power head to ensure fast drilling, hard rock formation (F=8-12) can also work efficiently;
3. Adaptability to complex terrain: rubber crawler chassis and 35° climbing ability, can be flexibly moved in swamps, mud, potholes and other harsh terrains without damaging the road surface;
4. Accurate and efficient operation: the drilling angle is adjustable from 45° to 90°, and the hydraulic mechanical transmission technology realizes convenient shifting, improving construction accuracy and efficiency;
5. Compact and portable design: the whole machine weighs only 1.2 tons and has a compact size (2300×1300×2200mm), which is easy to transport and deploy on small construction sites;
6. Durable and reliable: the thickened steel plate body combined with secondary welding technology ensures stable operation without tilting, extending the life of the equipment;

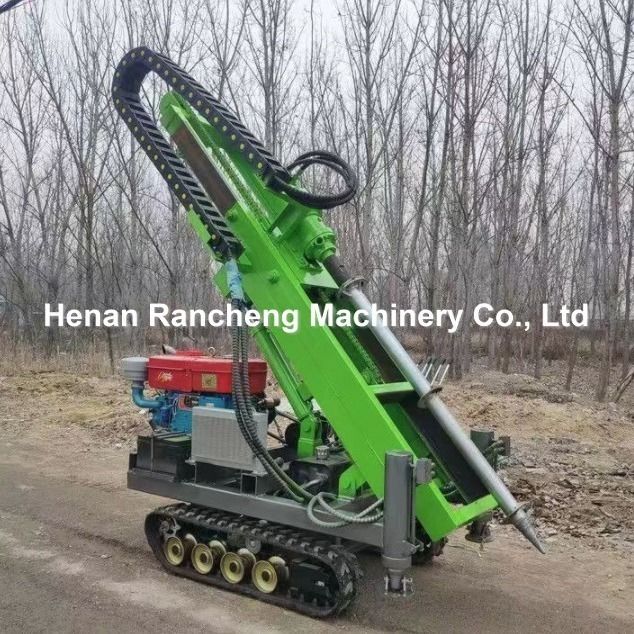

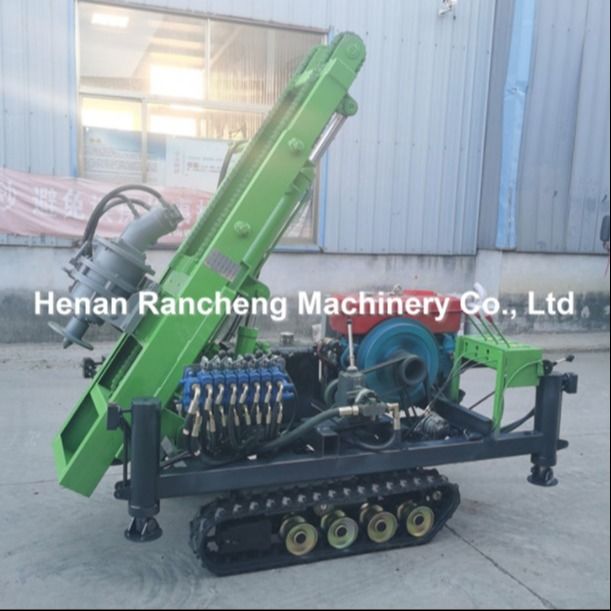

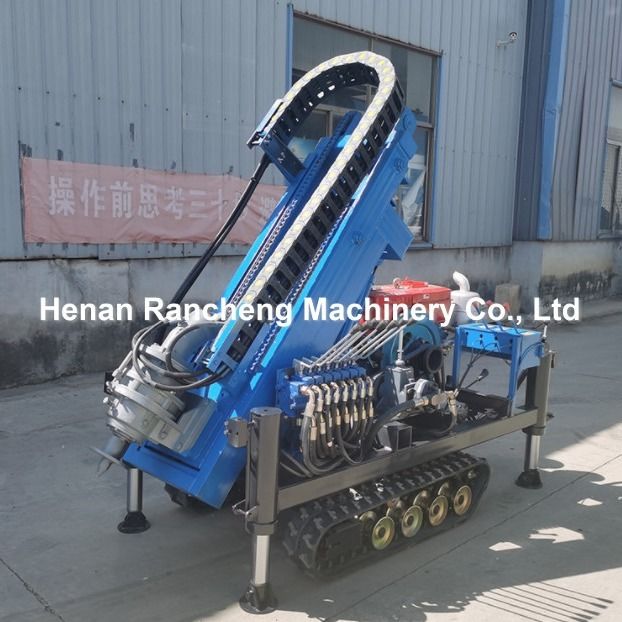

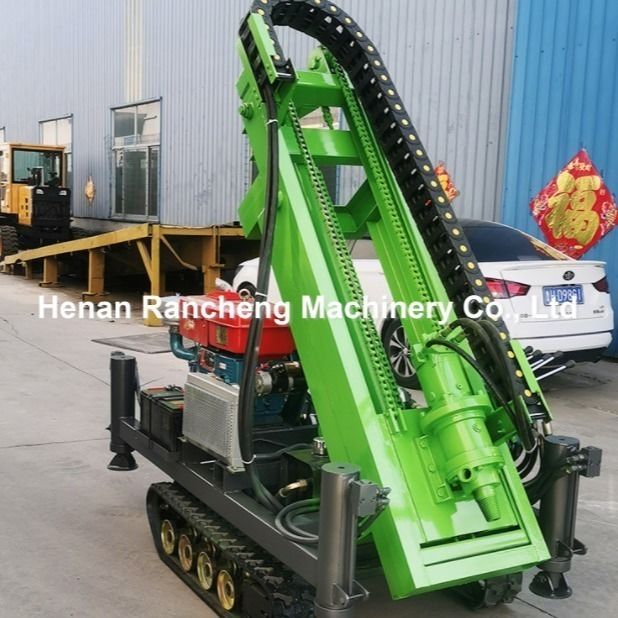

Product Image
