350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine

350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine

91KW Water Well Drilling Rig Machine

350m Water Well Drilling Rig Machine

Crawler Water Well Drilling Rig Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Water Well Drilling Machine
Model:
RCF350C Drilling Rig
Hole Diameter:
350mm
Hole Depth:
350m
Power:
91KW Diesel Engine
Drilling Way:
Both Air Compressor Mud Pump
Highlight:

91KW Water Well Drilling Rig Machine

,

350m Water Well Drilling Rig Machine

,

Crawler Water Well Drilling Rig Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine

Product Description



The RCF350C water well drill is an advanced and reliable piece of equipment designed for a wide range of drilling applications, including irrigation, drinking water, geothermal and industrial wells. Equipped with a powerful 91kW Yuchai diesel engine, it delivers good performance even in the toughest conditions.



The machine features a crawler base, ensuring excellent maneuverability and stability, making it suitable for use on uneven or rugged terrain. Its upper head rotary drive is compatible with both mud pump and downhole pneumatic pump drilling methods, providing the versatility needed to tackle a wide range of geological formations. With a drilling depth of up to 350 meters and handling diameters of up to 350 mm, the RCF350C is suitable for a wide range of drilling projects.



Designed to maximize efficiency and durability, the machine is used for small to large-scale drilling operations, ensuring reliable results in a wide range of applications.


Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation

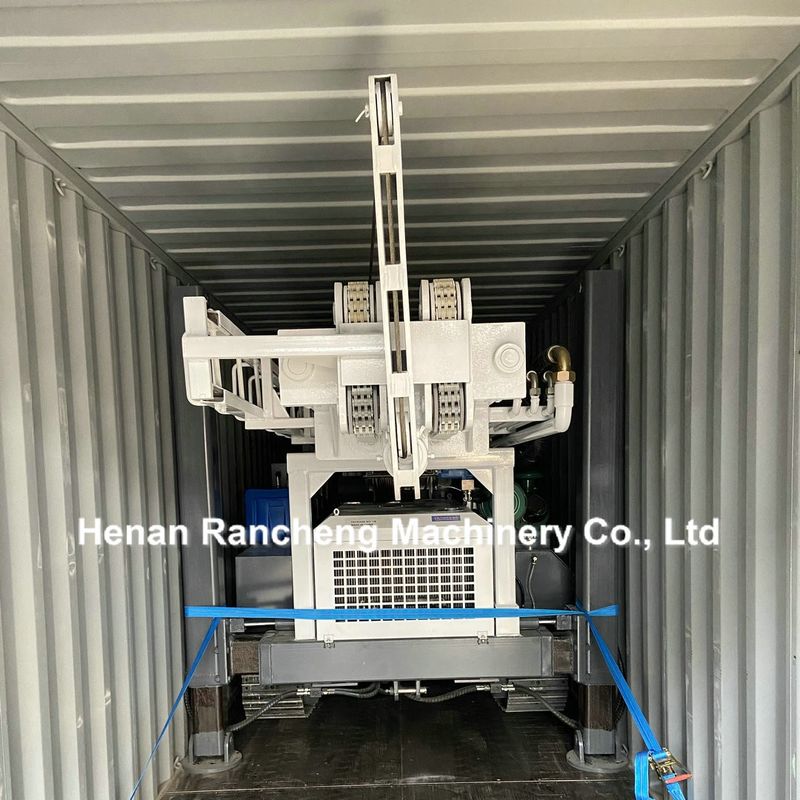

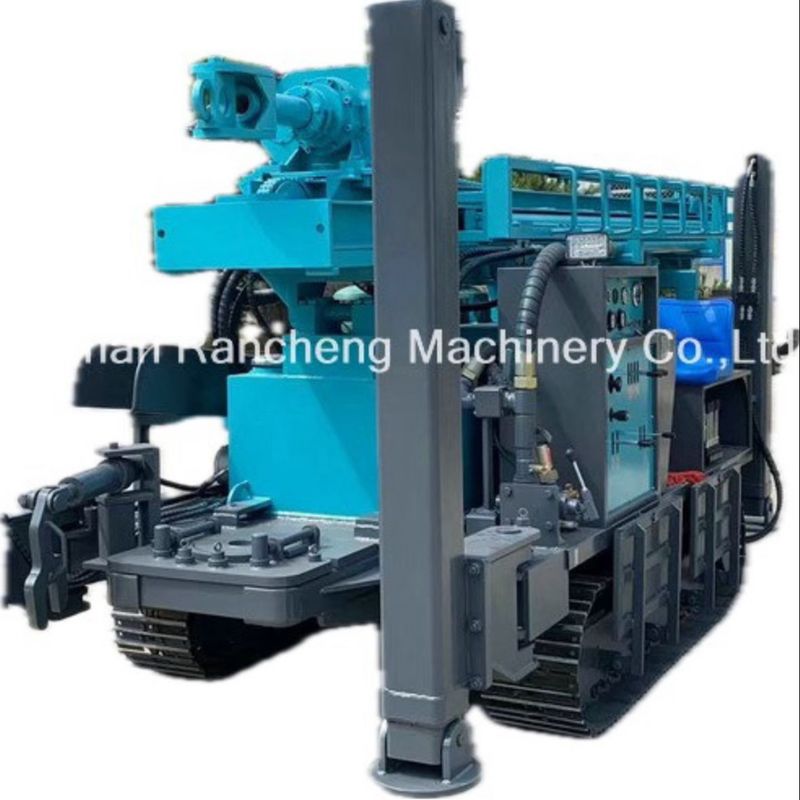

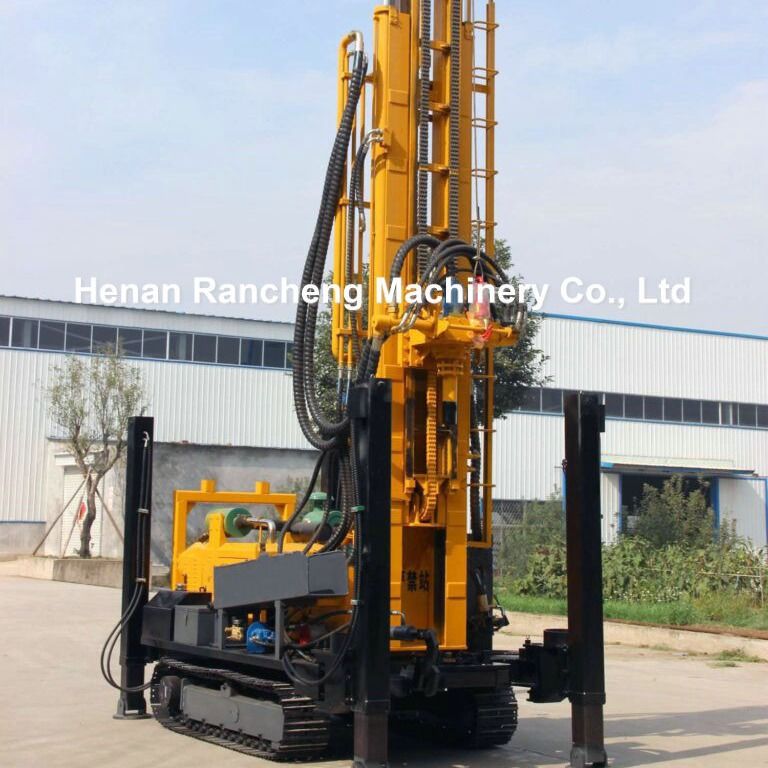

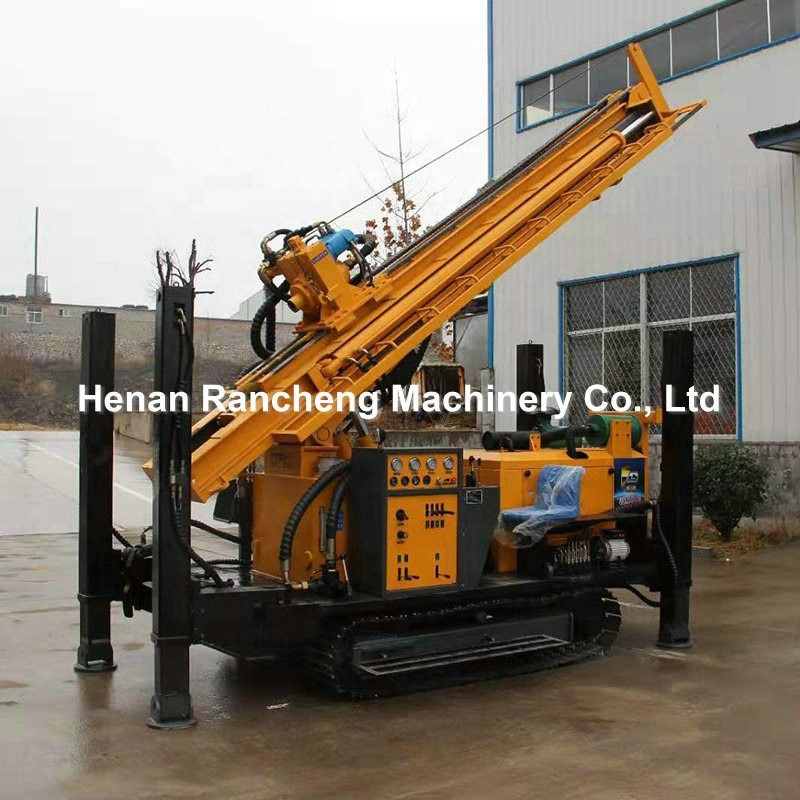

Machine picture display

350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine 0350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine 1
350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine 2
350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine 3
350m Hard Rock Crawler Water Well Drilling Rig Machine 91KW Diesel Engine 4
