Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF500C
Diesel Engine Multi-Functional Water Well Drilling Rig Crawler Mounted Machines With 118KW Yuchai Engine
Product Description
RCF500C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
Technical Parameters
Model | RCF500C | ||
Weight(kg) | 11500 | Drill pipe diameter(mm) | Φ102 Φ108 Φ114 |
The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
Drilling depth(m) | 500 | Rig lifting force(T) | 26 |
One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
Climbing angles(Max.) | 30° | Width of loading(m) | 2.85 |
Equipped capacitor(kw) | 118 | Hoisting force of winch(T) | 2 |
Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7500-10000 |
Air consumption(m³/min) | 17-42 | Dimension(mm) | 6200×2200×2650 |
Swing speed(rpm) | 40-130 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.7 |
The engine brand | Yuchai engine |
Application
The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Our service
1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

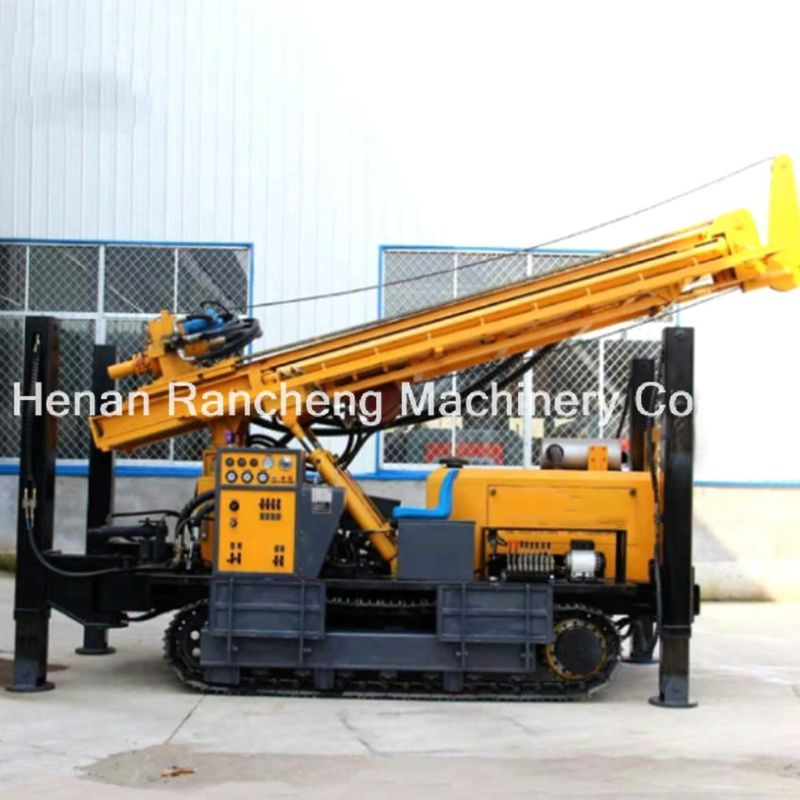

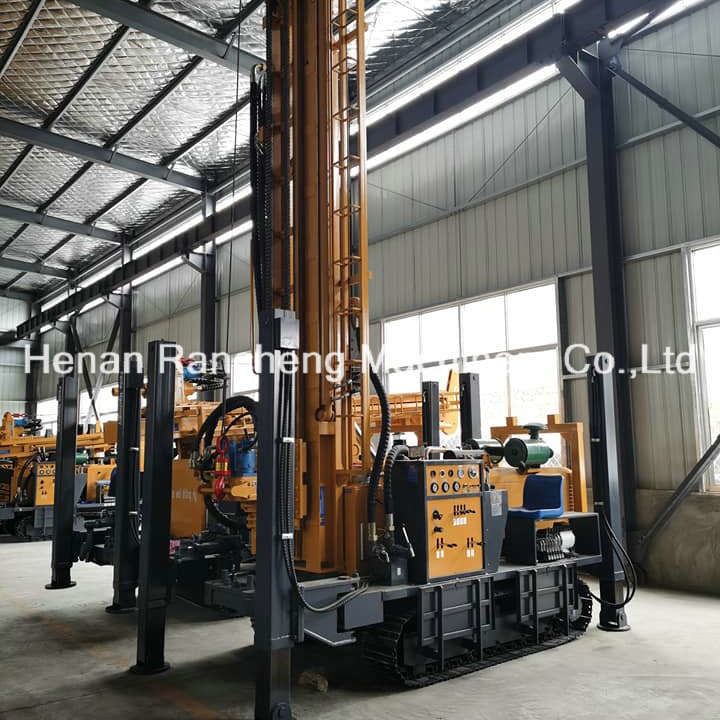

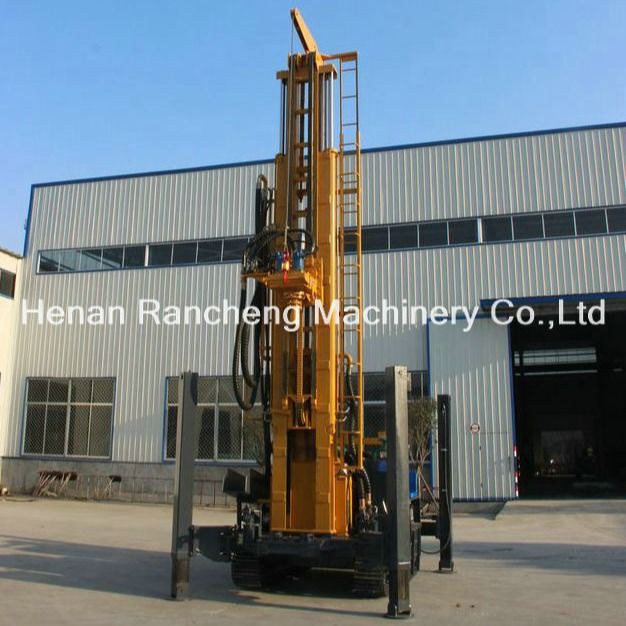

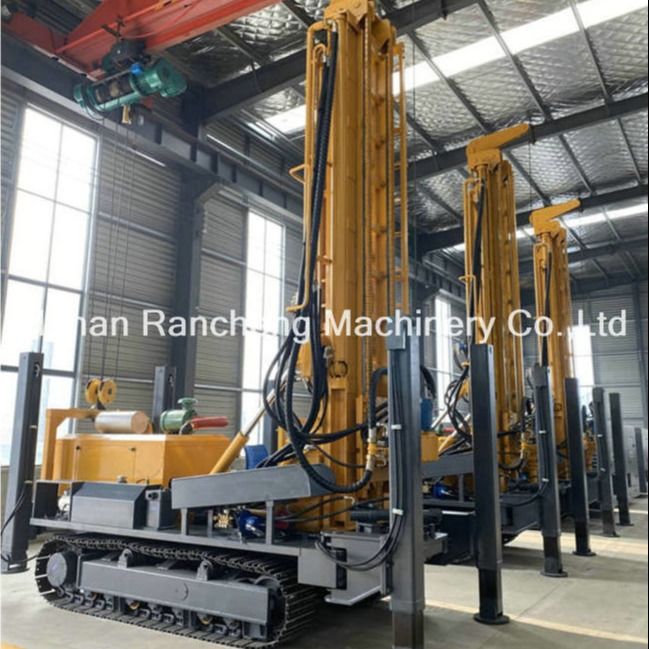

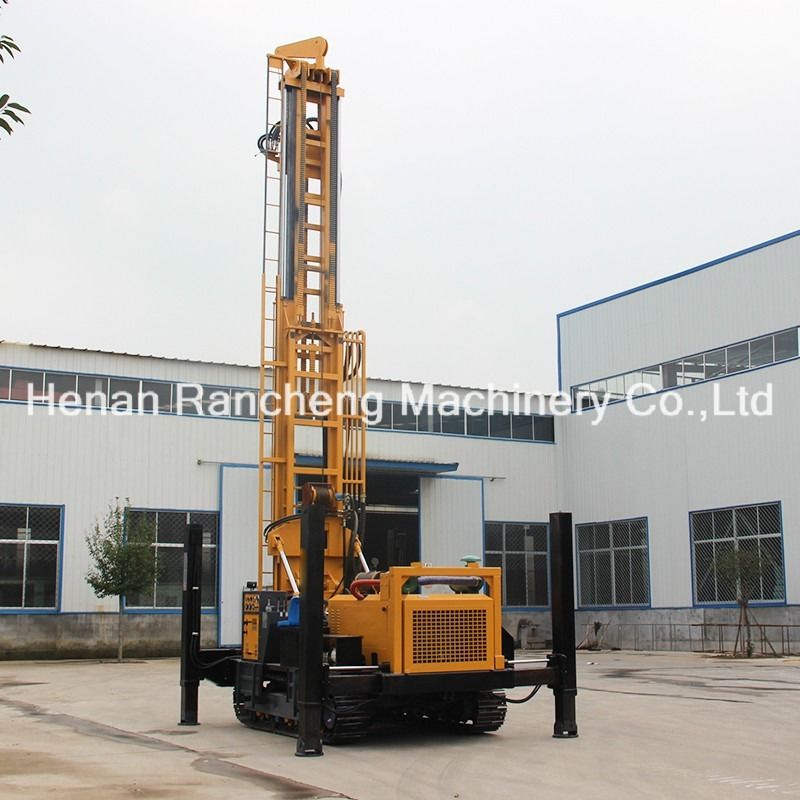

Machine Picture Display
