Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Ramming Head Drilling Rig

Hydraulic Drilling Rig Quotation

RC260Y Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC260Y

Contact Us
Request A Quote
Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe
Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe
Product Details
Name:
Crawler Hydraulic Solar Pile Driver
Model:
RC260Y
Bore Depth:
20 - 100m
Air Consumption:
10-26m³/min
Torque:
7000N.m
Highlight:

Ramming Head Drilling Rig

,

Hydraulic Drilling Rig Quotation

,

RC260Y Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" high container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe online Video

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price
Good price RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine online Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price
Good price Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System online Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe



Product Description



RC260Y-2 crawler hydraulic solar pile driver adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height and is suitable for solar engineering construction with a maximum slope of 45 degrees. The equipment can adapt to various photovoltaic construction processes, including spiral pile drilling, spiral drilling, rock down-the-hole hammer, compacted piles, etc.



The hydraulic components of the solar pile driver are imported original parts, which greatly improves the performance and stability of the equipment;



Product Specifications



Impact frequency(bpm) 450-800
Impact(j) 1000
Skid pitch(º) 120
Boom swing angle(º) left and right total 50
Swinging angle of the skid(º) left and right total 40
Climb ability(º) 35
Dimension(L*W*H)(mm) 6410*1970*2830
Weight(kg) 5800
Walk speed(km/h) 0--2.5
For rotary drilling
Bore diameter(DTH hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure

0.7-1.6Mpa(medium)

1.6-2.46Mpa(high)
Bore diameter(screw) Max 600mm
Bore depth 0-30m
Rotation speed 0-110r/min
Torque 7000N.m



Application:



This auger piling rig is widely used for solar ground construction ,solar power station ,anchoring, water wells, water conservancy, power plant open mining, road building and other blasting hole constructions .



Product Image

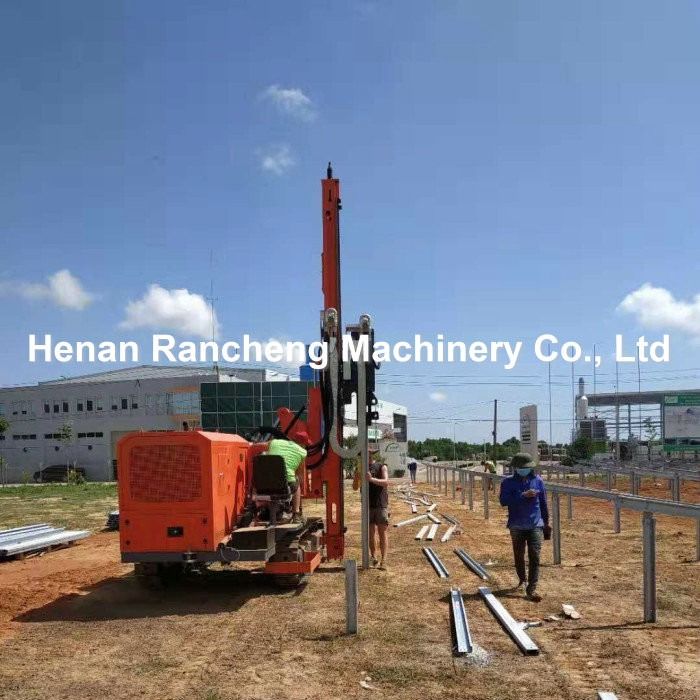

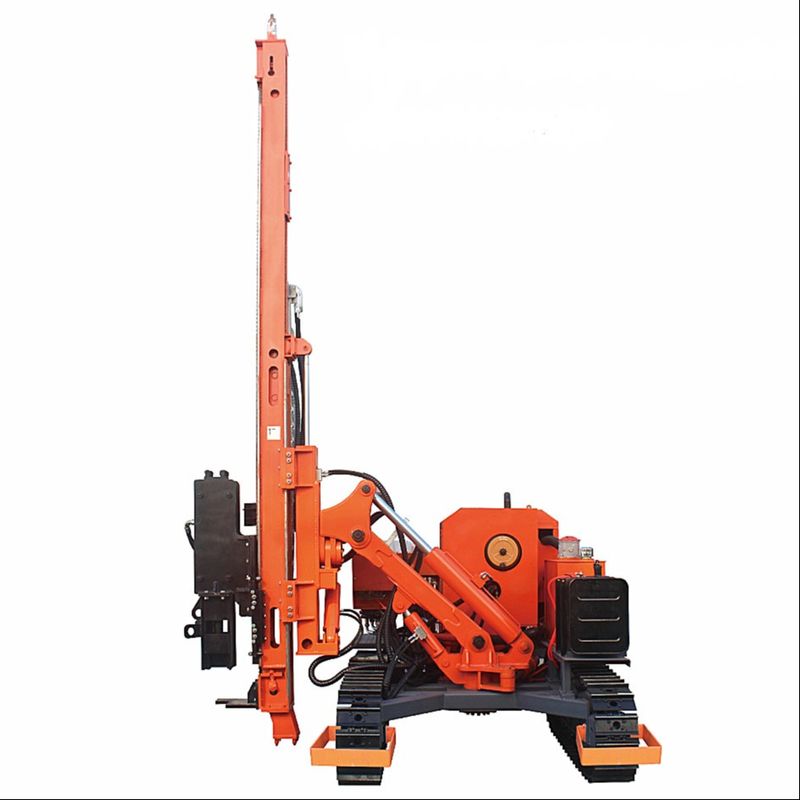

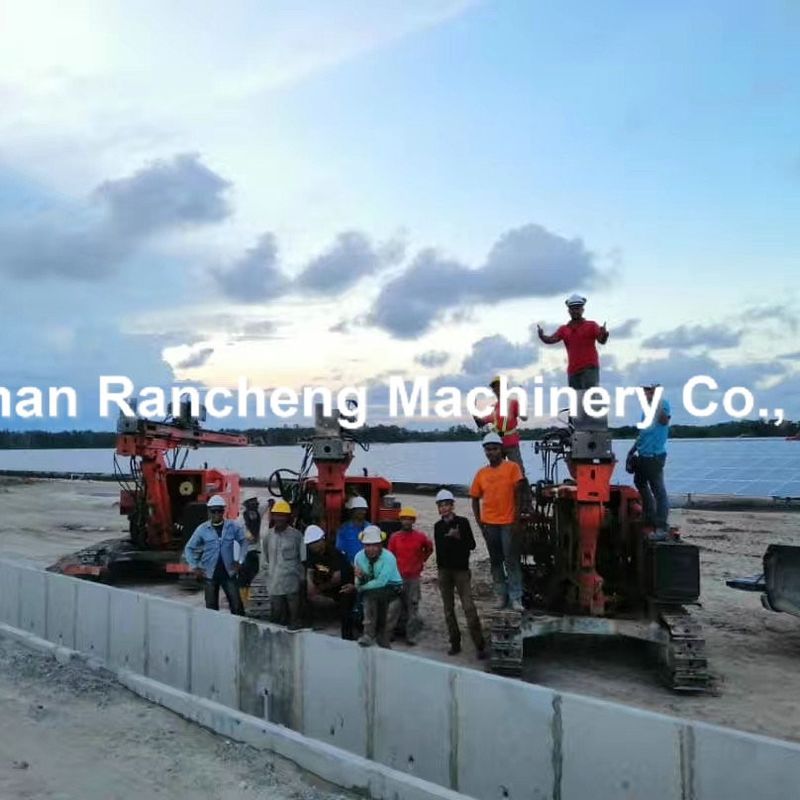

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe 0Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe 1Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe 2

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe 3

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe 4
