RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

28HP Hydraulic Pile Driver

Small Hydraulic Pile Driver

Solar Pile Installation Hydraulic Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Contact Us
Request A Quote
Product Details
Engine Power:
28HP Gasoline Engine
Borehole Depth:
30m
Borehole Diameter:
50-300mm
Rotary Head Torque:
3200N.m
Hydraulic Oil Pump:
Single Pump
Hydraulic Working Pressure:
20Mpa
Highlight:

28HP Hydraulic Pile Driver

,

Small Hydraulic Pile Driver

,

Solar Pile Installation Hydraulic Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description
  • RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine



Product Description


The RCKM-30S pneumatic chain pile driver is a general-purpose, multi-functional machine designed for a wide range of piling and drilling tasks. It is ideal for solar auger pile drilling, auger drilling and DTH (down-the-hole) drilling. This compact and efficient pile driver is particularly suitable for driving solar piles, building highway guardrails and drilling micropiles, providing high precision and reliability in a variety of construction environments.


Product Specifications



Main Technical Parameters
Model:RCKM-30S rubber crawler mounted mini pile driver
Rig weight:1.2t
Dimensions (L×W×H):2300*1100*2300mm
Engine power:28HP gasoline engine
Rotary head torque3200N.m
Hydraulic oil pumpSingle pump
hydraulic loading systemCylinder chain pressure
Hydraulic working pressure20Mpa
Way of walkingCrawler gearbox walking
Walking speed:7-15km/h
cooling systemHydraulic cooler
Carriage travel2.8m
Piling height1-3m
Borehole diameter50-300mm
Borehole depth :1-30m
Air consumption6m3/min
Adapt to rock typesMedium hard rock ,F=8-12
Climbing ability:35°
Hydraulic legs2




Product Features


1.Powerful engine, efficient operation:
RCKM-30S is equipped with a 28 horsepower gasoline engine. It adopts hydraulic mechanical transmission, which is highly efficient, easy to shift gears, and time-saving to operate. The machine adopts a multi-angle driving design, high precision, and is suitable for harsh site conditions.

2.Advanced hydraulic system:
The excavator is equipped with an advanced hydraulic system, which can maintain smooth operation even under harsh conditions. It is driven by a hydraulic motor and adopts a crawler wheel drive device, which has excellent maneuverability and can operate in harsh conditions such as swamps, depressions, and holes.

3.Durability and safety:
The whole machine adopts thickened steel plates, combined with secondary welding technology, which ensures the service life of the machine, and there will be no shaking or tilting during operation, which improves the safety and stability of the workplace.

4.Universal application:
The pile driver has a wide range of applications, including foundation support piles for solar photovoltaic power stations, support piles for high-speed rail contact networks, slope protection piles, and other civil engineering and municipal construction projects.

5.Adaptable to different geological conditions:
The RCKM-30S can drill holes in a wide range of geological conditions, including soil, clay, fill, sand, silt, silty layers and layers containing pebbles, making it a highly adaptable solution for a variety of terrains.

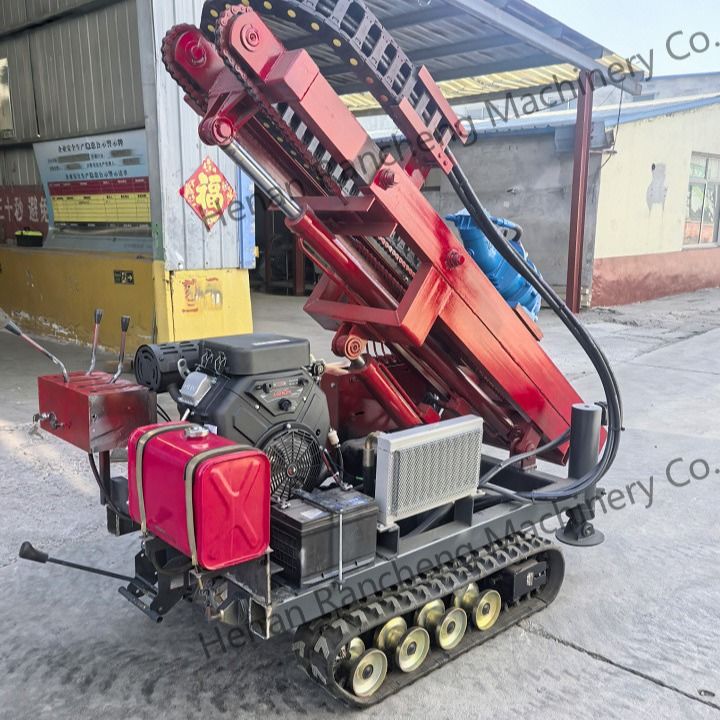

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine 0

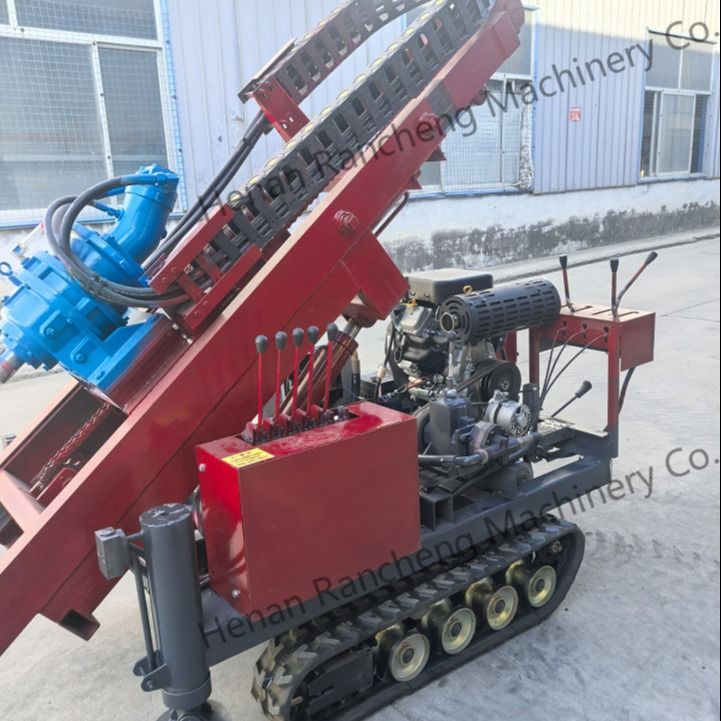

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine 1

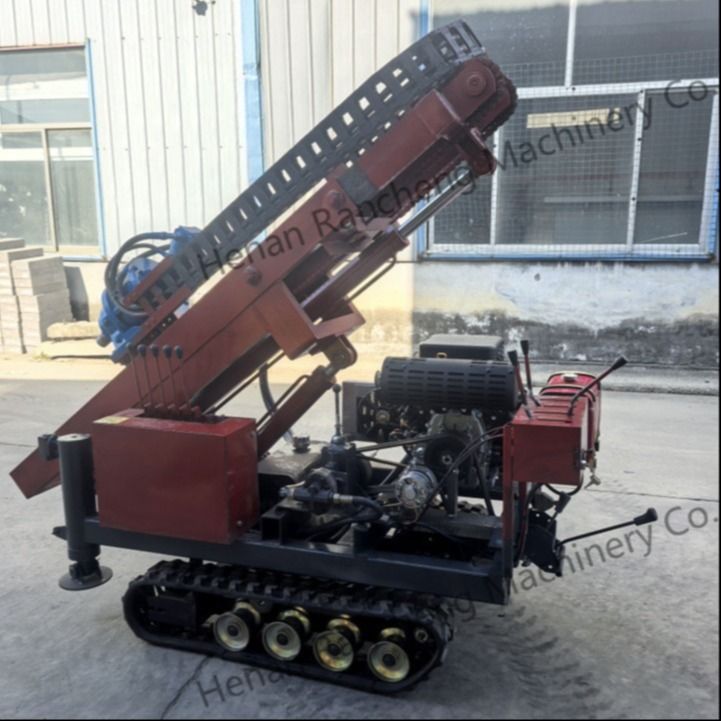

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine 2

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine 3
