Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF350C
350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig
Product Description
RCF350C deepwater water well drilling rig is our self-developed product. This new generation of down-the-hole drilling rig is equipped with stronger air power, which plays an important role in achieving faster drilling speed.
The drilling rig adopts the latest model and advanced hydraulic technology, with low energy consumption, large rotation torque, and convenient hole deviation adjustment. It is made of high-quality materials, with a stylish appearance and compact design, which makes our drilling rig not only more efficient and less prone to failure, but also more economical and durable, with outstanding comprehensive cost performance. Our water well drilling rig has been truly verified by the market and received positive feedback from most customers.
Technical Parameters
Model | RCF350C |
Bore diameter(Hammer) | 140-350mm |
Bore depth | 350m |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1m/2m/3m/6m |
Lifting force | 22T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Fast feeding speed | 50m/min |
Max torque of the rotary | 6200-8500Nm |
Rotary speed | 55-115r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6000×2000×2550mm |
Weight | 8600Kg |
Diesel engine | 91KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Operating system | Full hydraulic operation |
Application
Our water well drilling rigs are mainly used for drilling operations in resource exploration wells, hydrological wells, civil water wells, agricultural irrigation and other projects. Whether it is the location of water sources in underground resource exploration, the excavation of drinking water wells in the field of people's livelihood, or the construction of water sources for farmland irrigation systems, this equipment can play a key role and provide professional support for drilling needs in different scenarios.
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

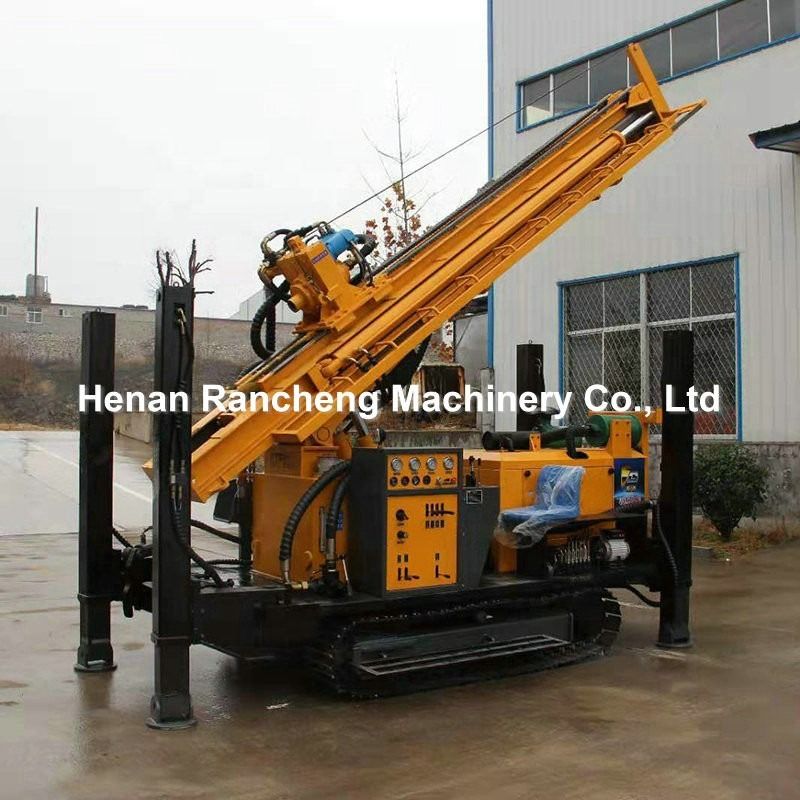

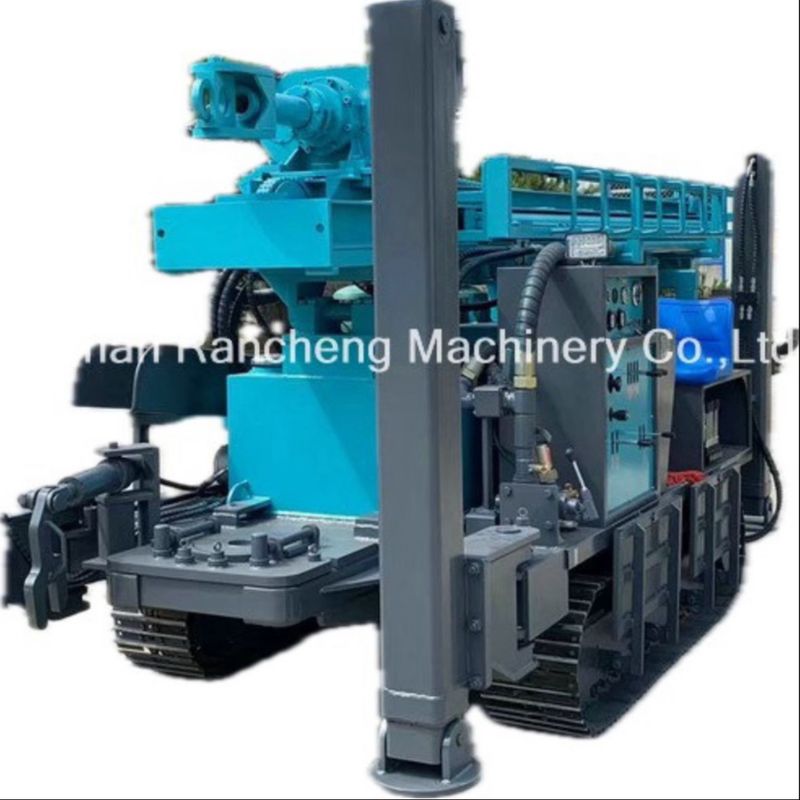

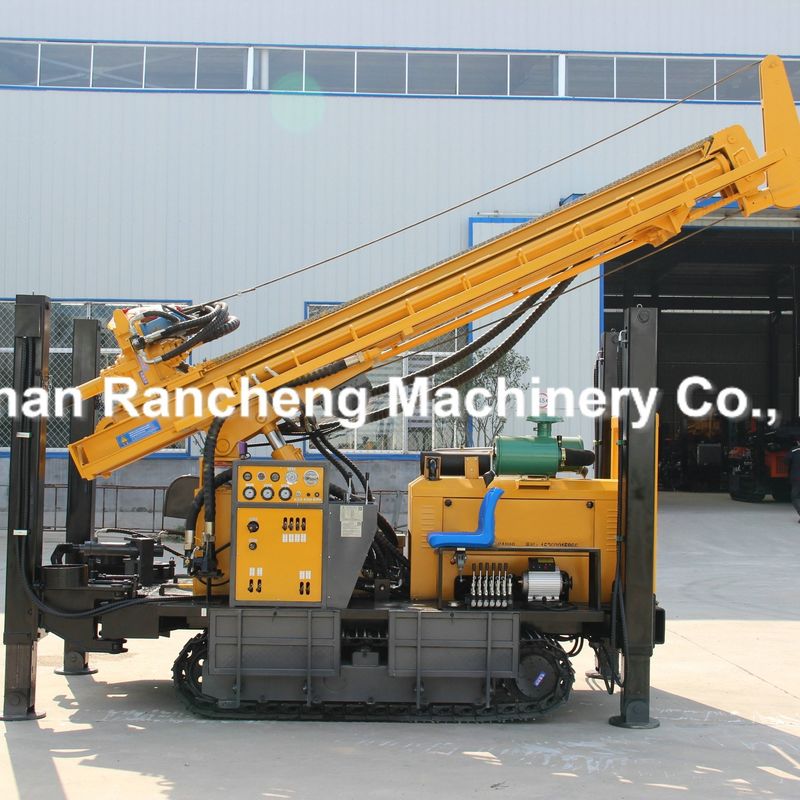

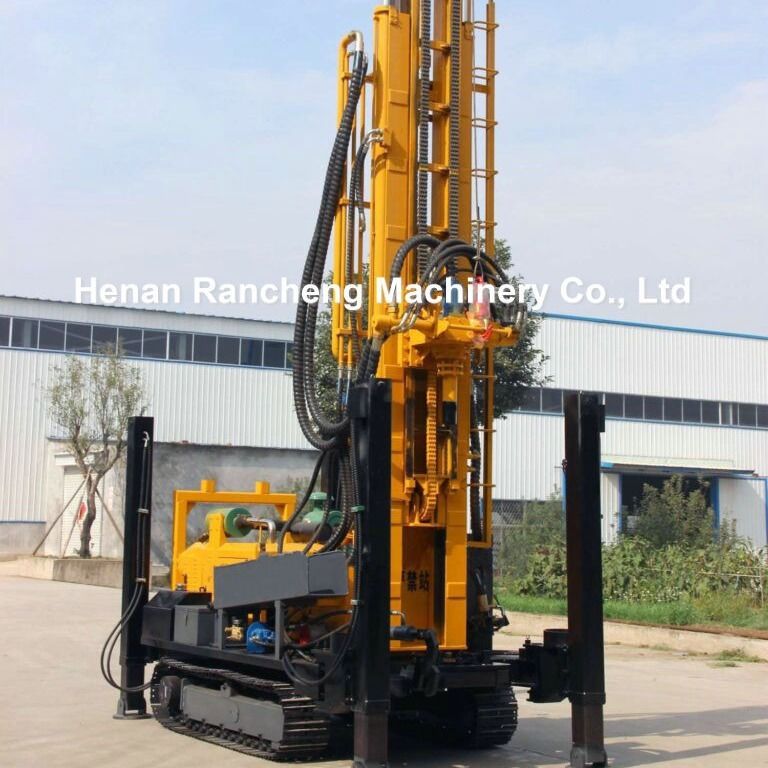

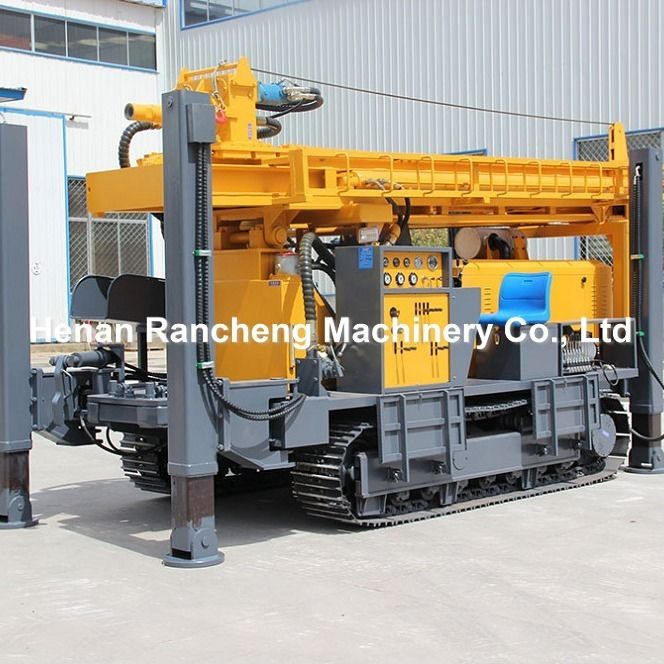

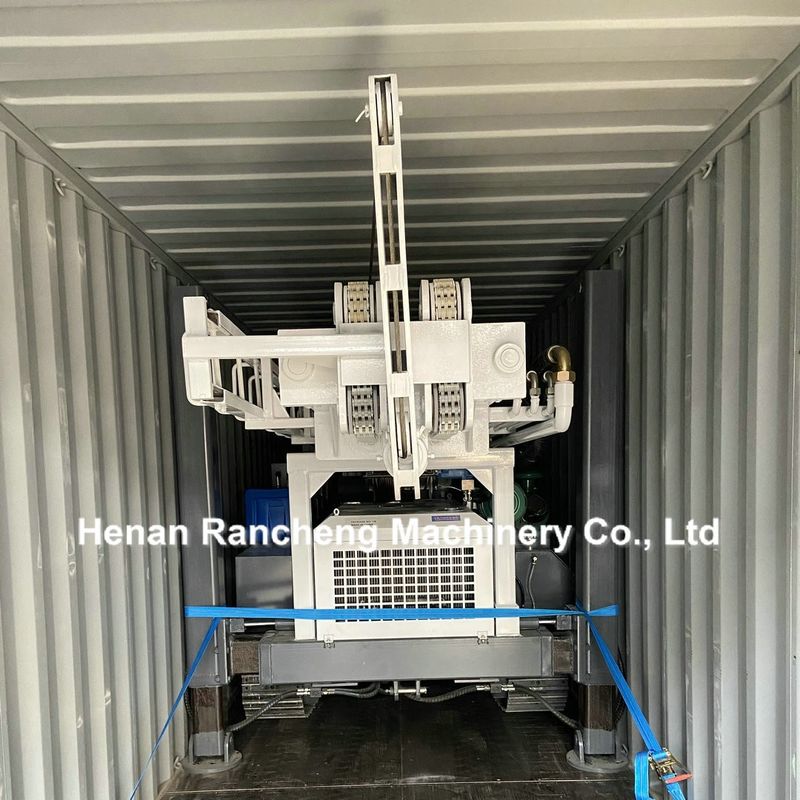

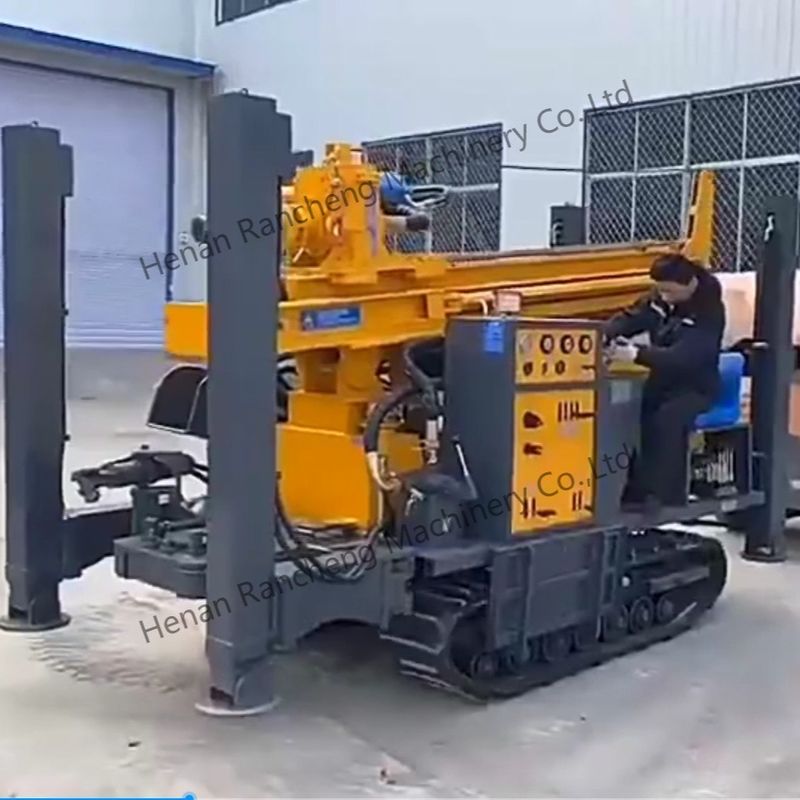

Machine picture display
