Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes

Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes

Crawler Mounted Water Well Drilling Rig

Pneumatic Impact Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260C

Contact Us
Request A Quote
Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes
Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes
Product Details
Name:
RCF260C Water Well Drilling Machine
Drilling Diameter:
90-350mm
Air Consumption:
17-35m³/min
Air Pressure:
1.7-3.0Mpa
Pipe Diameter:
76mm/89mm
Push Force:
4T
Lifting Force:
15T
Highlight:

Crawler Mounted Water Well Drilling Rig

,

Pneumatic Impact Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$25860
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig online Video

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price
Good price RCF800C Water Well Drilling Machine With Precise Angle Adjustment online Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price
Good price 350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig online Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price
Good price Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine online Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price
Contact Us
Contact Now
Product Description

Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes

Machine Description

RCF260C deepwater drilling rig is a product independently developed by our company.
It adopts the latest model and advanced hydraulic technology, with low fuel consumption, high swing torque and convenient wellbore steering. Made of high-quality materials and modern and compact design, it makes the drilling rig more efficient, less prone to failure, economical and durable, and more cost-effective. Our underwater drilling rigs have been recognized by the market, and customer feedback is generally positive.

Technical Parameters

Bore diameter(Hammer) 90-350mm
Bore depth 260m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 15T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of the rotary 4000-5300Nm
Rotary speed 45-70r/min
Mud Pump flow 200L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.85×2.3M
Weight 6500Kg
Diesel engine 70KW FAW engine


Application



Our water well drilling rigs are mainly used for resource exploration, hydrological drilling, civil water wells, agricultural irrigation projects, etc. The new generation of down-the-hole hammers are equipped with stronger pneumatic power, which plays an important role in increasing the drilling speed.





Our Service

Provide 24/7 online chat and phone services to ensure that customers are always available to solve problems and provide support. In addition, lifetime free technical support is provided, allowing customers to enjoy continuous help and guidance during use. For overseas customers, we also provide overseas services and can dispatch engineers to provide support and services as needed to ensure that customers can enjoy high-quality services around the world.

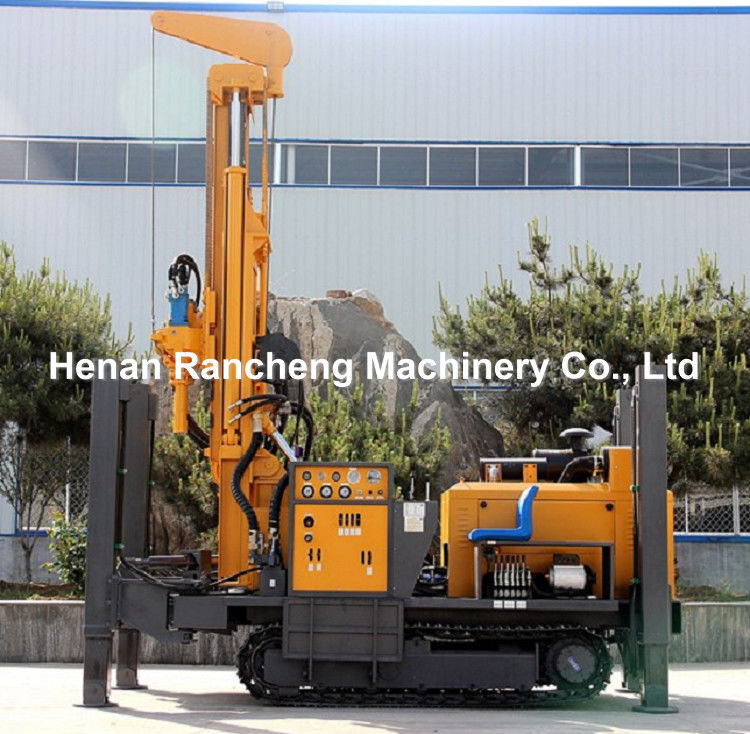

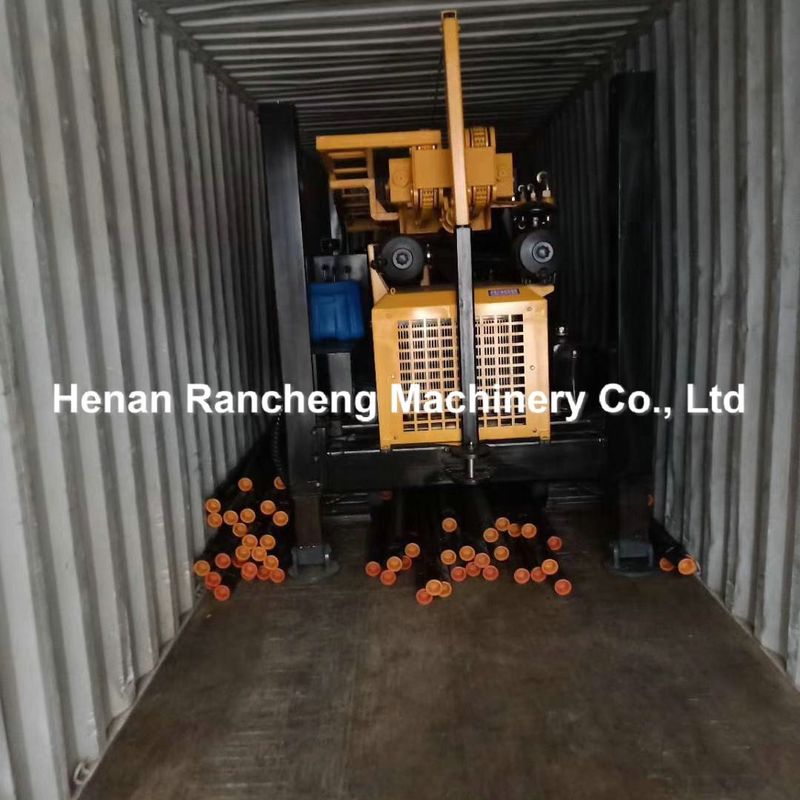

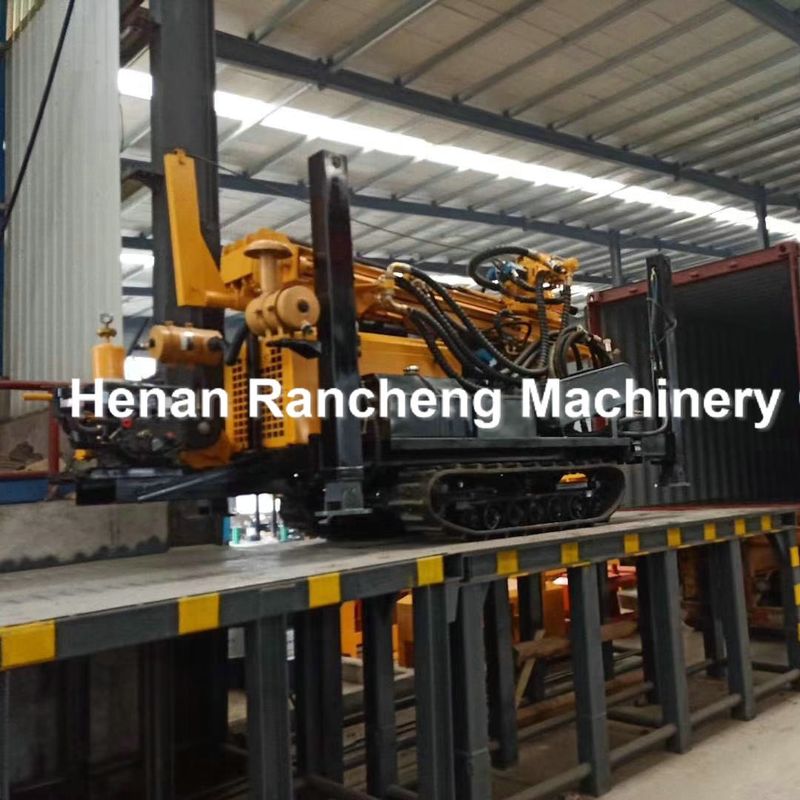

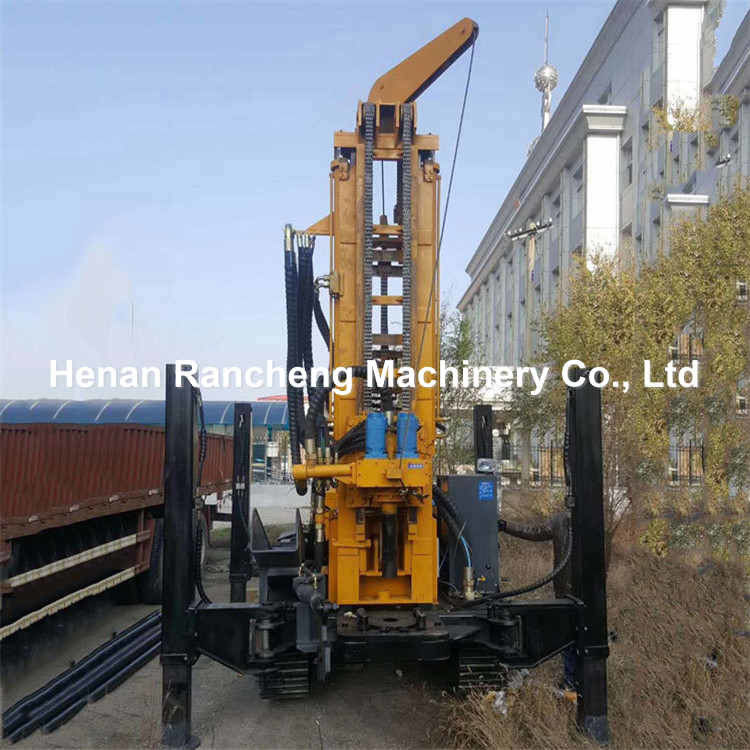

Machine picture display

Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes 0Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes 1Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes 2
Crawler Mounted Water Well Drilling Rig 260m Depth Hydraulic Rock Drill Pneumatic Impact Drilling Machine For Boreholes 3
