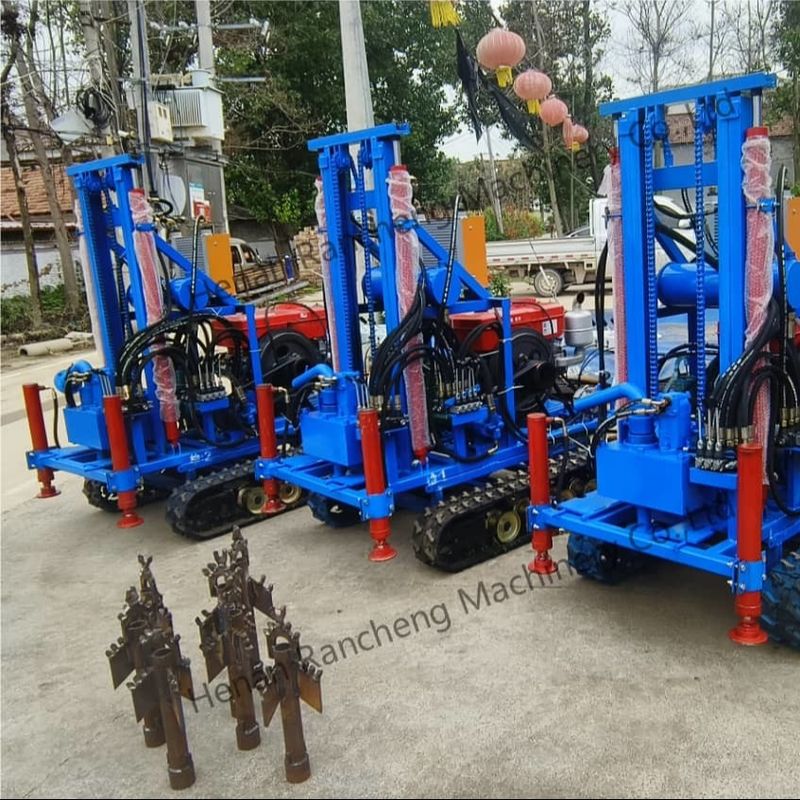

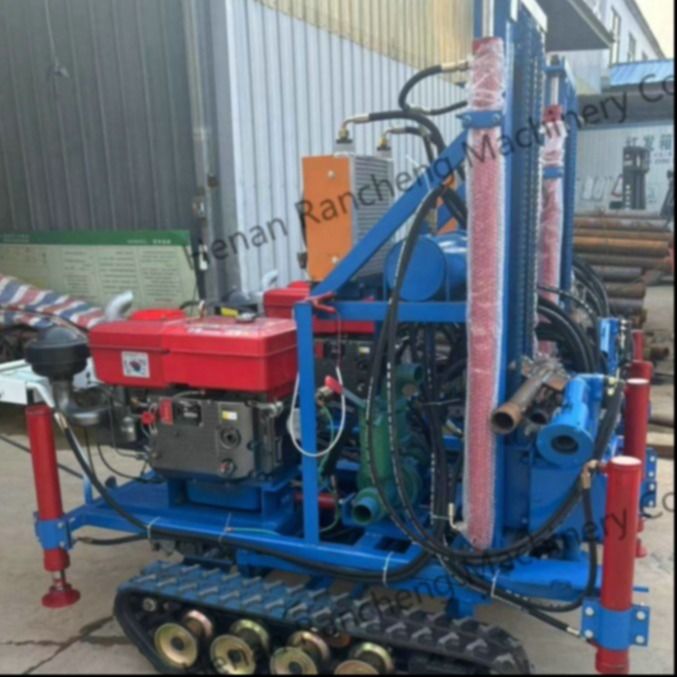

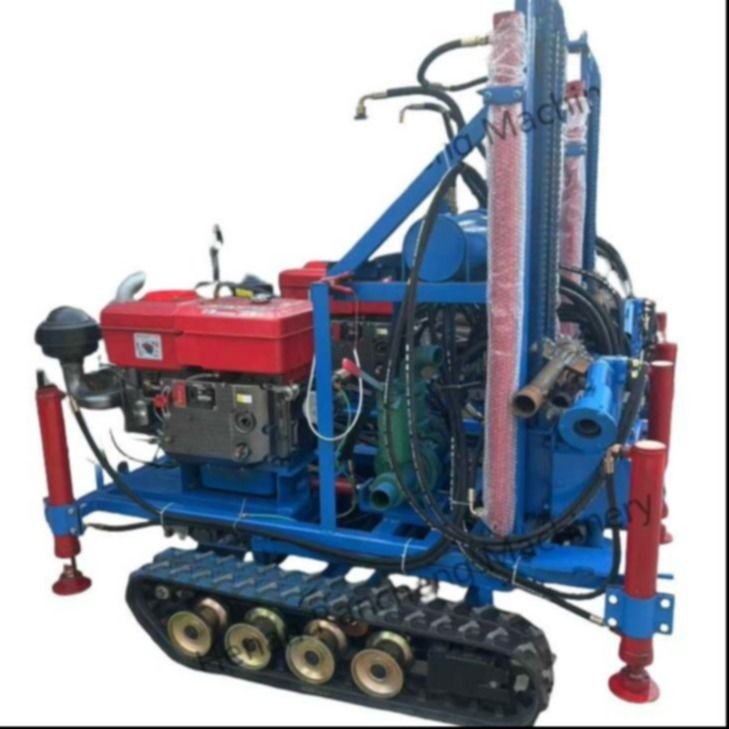

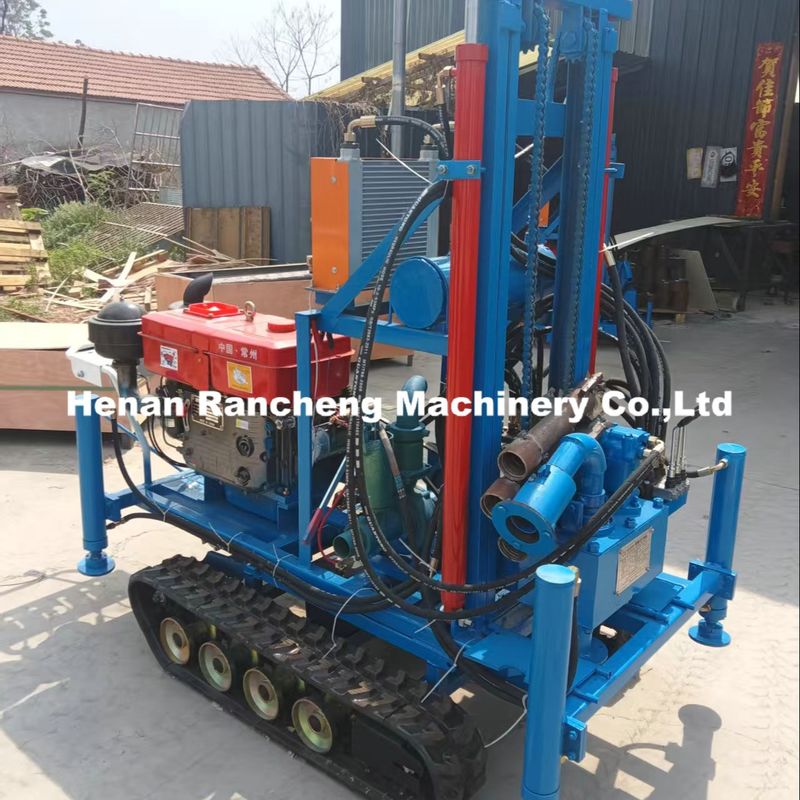

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale
Product Description:
This water well drilling rig can be used in many scenarios, such as geothermal drilling, agricultural irrigation, home courtyards, gardens and other scenarios. Its drilling diameter is between 70 and 450 mm, and the maximum depth can be 160 meters. In addition to drilling wells, it can also be used in pile foundation construction of small buildings such as farms and factories, and the drilling diameter can also reach 450 mm. Whether it is different strata such as sand, soil, clay or soft rock, it can handle it with ease.
Features:
1. Lightweight and energy-saving: The overall weight of the machine is relatively light, which can effectively reduce energy consumption and reduce the cost of use during operation.
2. Unique design: As a patented product, it has a unique design and an optimized drilling structure, which not only ensures the perfection of functions but also simplifies the operation process.
3. Easy to transport and learn: It is very convenient to transport, and the operator can quickly master the use of the machine, shortening the training time.
4. Adapt to a variety of strata: In addition to thicker rock layers, it can be used for drilling operations in sand layers, soil layers, clay layers, soft rocks and other strata, with a wide range of applications.
5. Save manpower: It can be operated by one person, which greatly reduces the labor intensity and reduces the investment in labor costs.
6. High operating efficiency: It has efficient working ability, can quickly complete drilling tasks, and improve work efficiency.
7. Strong durability: While ensuring easy operation, it also has a long service life, which can bring longer use value to users.
Technical Parameters:
| Model of drilling machine |
RCS260C |
| Walking way |
Rubber crawler mounted |
| Drilling machine overall dimension(mm) |
2300*1080*2000 |
| Weight of Drilling machine (kg) |
1000 |
| Drill rod diameter (mm) |
Ø64 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
160 |
| Diesel Motor Power (Hp/kw) |
35HP /25.8KW |
| Drilling method |
Percussive and rotating type |
| Drilling hole diameter(mm) |
Within Ø 450mm |
| Stroke distance (mm) |
2000 |
| Hosting capacity (kg) |
4000KG |
Applications:
The RCS260C portable water well drilling rig is mainly used for geothermal drilling, agricultural irrigation, gardening, water wells and drilling holes, etc., with a depth of up to 160 meters. It can also be used for piling small buildings, such as farms or factories.
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.

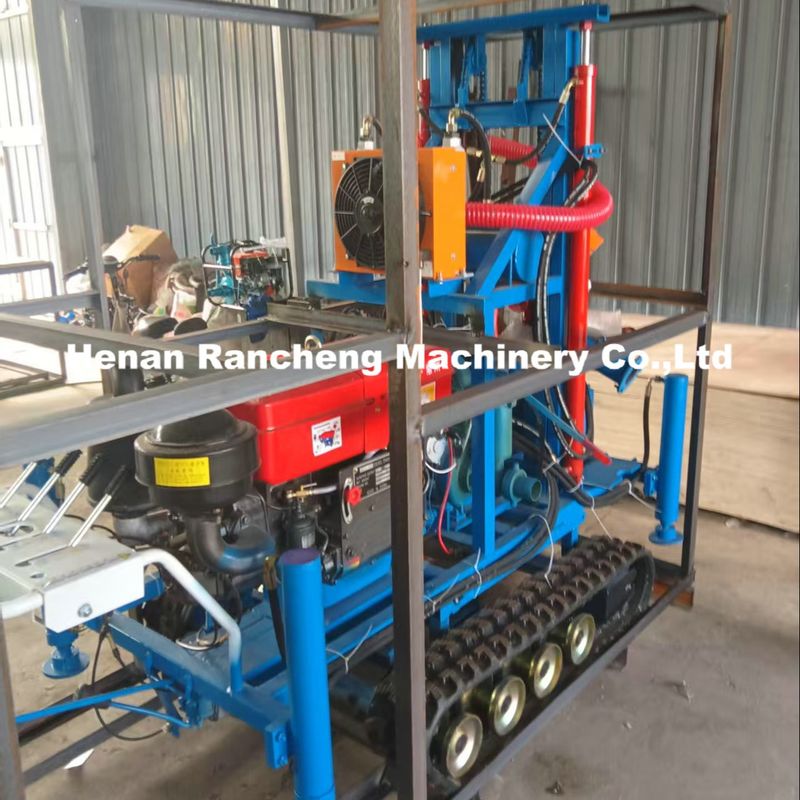

Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
