400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine

400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine

400m Drilling Depth Drilling Rig

DTH Crawler Drilling Rig

Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Contact Us
Request A Quote
400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine
400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine
Product Details
Model:
RCF400C
Bore Depth:
400m
Bore Diameter（hammer）:
140-350mm
Air Consumption:
17-36m³/min
Air Pressure:
1.7-3.5Mpa
Pipe Diameter:
89mm/102mm
Pipe Length:
1.5m/2m/3m/6m
Highlight:

400m Drilling Depth Drilling Rig

,

DTH Crawler Drilling Rig

,

Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig online Video

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price
Good price RCF800C Water Well Drilling Machine With Precise Angle Adjustment online Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price
Good price 350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig online Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price
Good price Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine online Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price
Contact Us
Contact Now
Product Description

400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine



Machine Introduction



RCF400C deepwater drilling rig is a product independently developed by our company.



Adopting the latest model and advanced hydropower technology, low fuel consumption, high torque, convenient drilling steering, high-quality materials and modern compact design, our drilling rig is more efficient, has a lower failure rate, is economical and durable, and has a very high comprehensive cost performance. Our water drilling rig has been actually recognized by the market, and the feedback from customers is positive.

Technical Parameters



Bore diameter(Hammer) 140-350mm
Bore depth 400m
Air consumption 17-36m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1.5m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
Max torque of rotary 6200-9000Nm
Rotary speed 66-135r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2100×2550mm
Weight 9200Kg
Diesel engine 92KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling



Application



The new generation of down-the-hole drills are equipped with enhanced pneumatic power, which plays an important role in increasing the drilling speed. They are mainly used for drilling resource exploration project wells, hydrological wells, civil water wells, agricultural irrigation, etc.

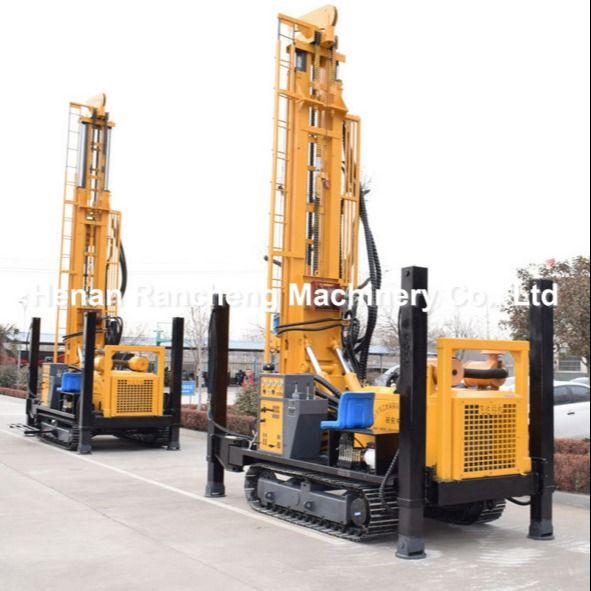

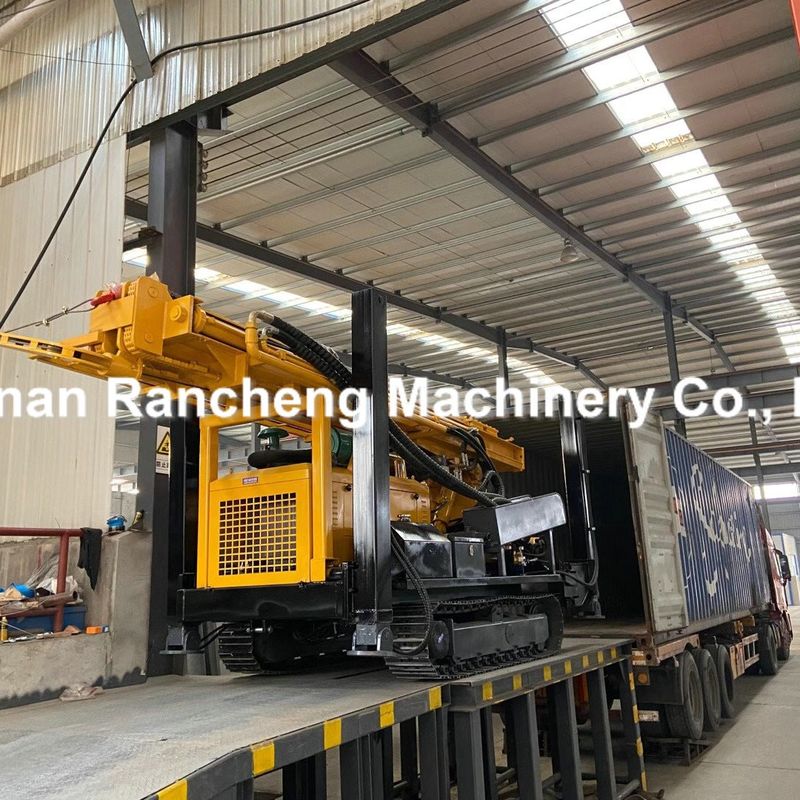

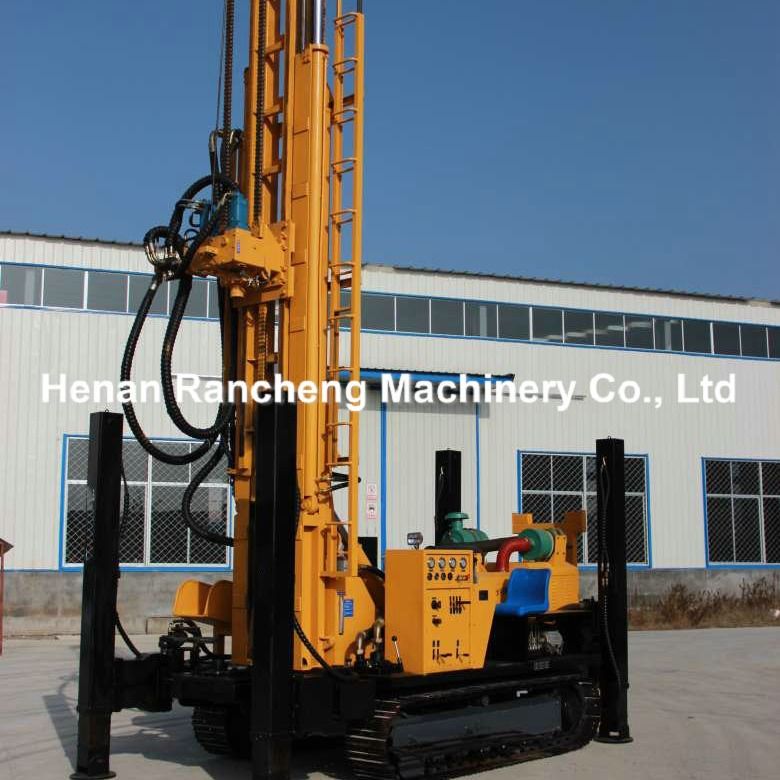

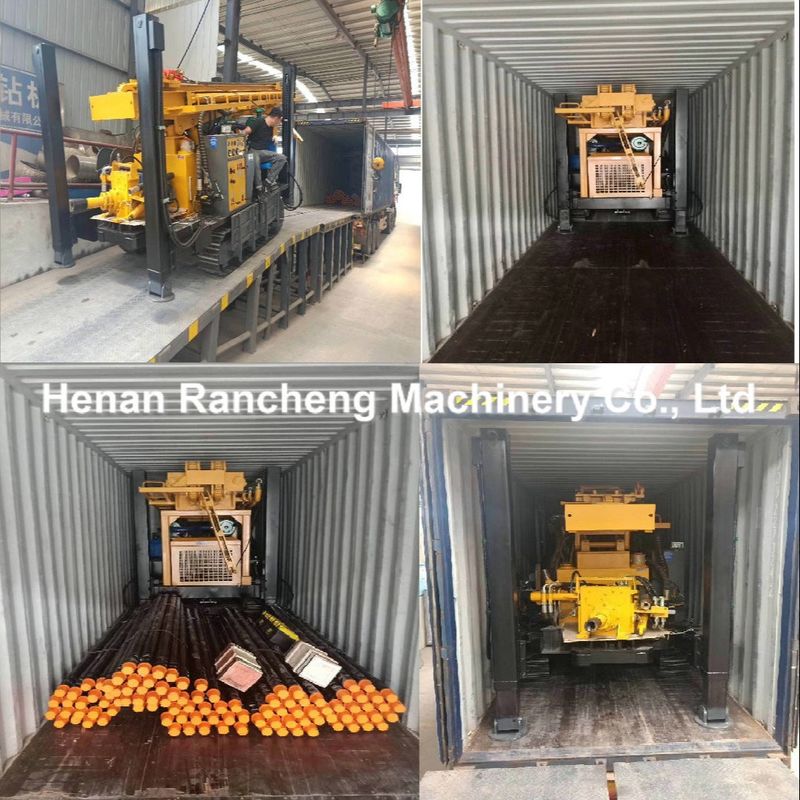

Machine Pictures



400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 0400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 1400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 2

400m Drilling Depth Pneumatic DTH Crawler Drilling Rig For Water Well Drilling Rig Machine Driven By Diesel Engine 3
