Name: 280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF280C
Availability: InStock

Home > products > Water Well Drilling Machine >

280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation

280m Water Well Drilling Rig

Irrigation Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Request A Quote

Product Details

Name:

Full Hydraulic Water Well Drilling Machine

Model:

RCF280C

Bore Depth:

280m

Bore Diameter（hammer）:

100-350mm

Pipe Diameter:

89mm/102mm

Pipe Length:

3m/6m

Max Torque Of Rotary:

7000-9000Nm

Diesel Engine:

75KW Yuchai Engine

Highlight:

280m Water Well Drilling Rig

Irrigation Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T,Western Union

Supply Ability

100sets per Month

RC800C Hydraulic Water Well Drilling Rig for 800m Deep Industrial Use

Get Best Price

Video

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Get Best Price

Video

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

Get Best Price

Video

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Get Best Price

Contact Now

Product Description

280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation

Product Specifications

Attribute	Value
Name	Full Hydraulic Water Well Drilling Machine
Model	RCF280C
Bore Depth	280m
Bore diameter (hammer)	100-350mm
Pipe diameter	89mm/102mm
Pipe length	3m/6m
Max torque of rotary	7000-9000Nm
Diesel engine	75KW Yuchai engine

Product Overview

280m Water Well Drilling Rig | Diesel/Hydraulic Power | CE/ISO Certified | For Village/Irrigation

The RCF280C deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole drilling rig (DTH) plays a key role in improving drilling speed, combined with higher gas output.

The drilling rig adopts the latest model and advanced hydraulic technology, with low power consumption, large rotation torque, not easy to deflect, high-quality materials, stylish and compact design, higher efficiency, lower failure rate, economical and durable, and higher comprehensive cost performance. Our deepwater drilling rigs are widely praised in the market and have received positive feedback from many customers.

Technical Specifications

Parameter	Value
Model	RCF280C
Bore diameter (Hammer)	100-350mm
Bore depth	280m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	89mm/102mm
Pipe length	3m/6m
Lifting force	18T
Lifting speed	3m/min
Feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	7000-9000Nm
Rotary speed	40-70r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	4100×1900×2600mm
Weight	7000Kg
Diesel engine	70KW Yuchai engine

Applications

Our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil water wells, agricultural irrigation projects, etc.

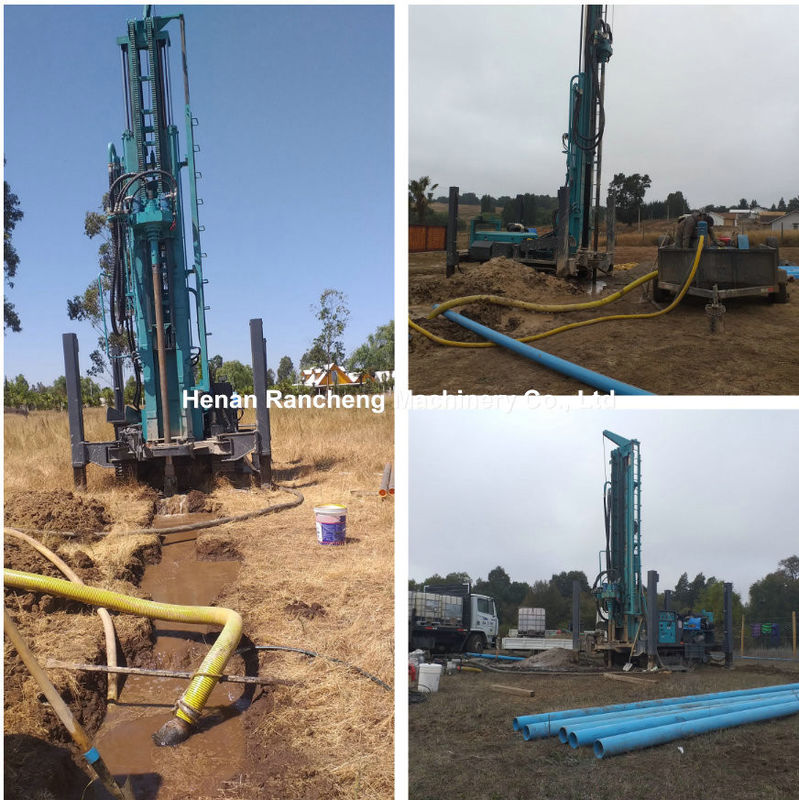

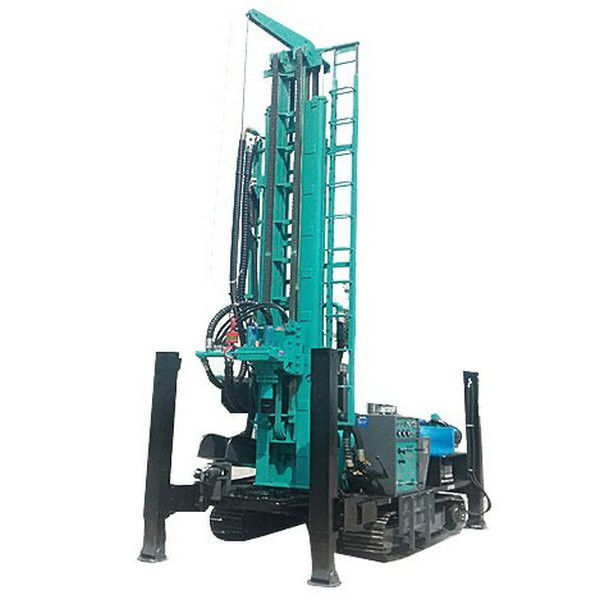

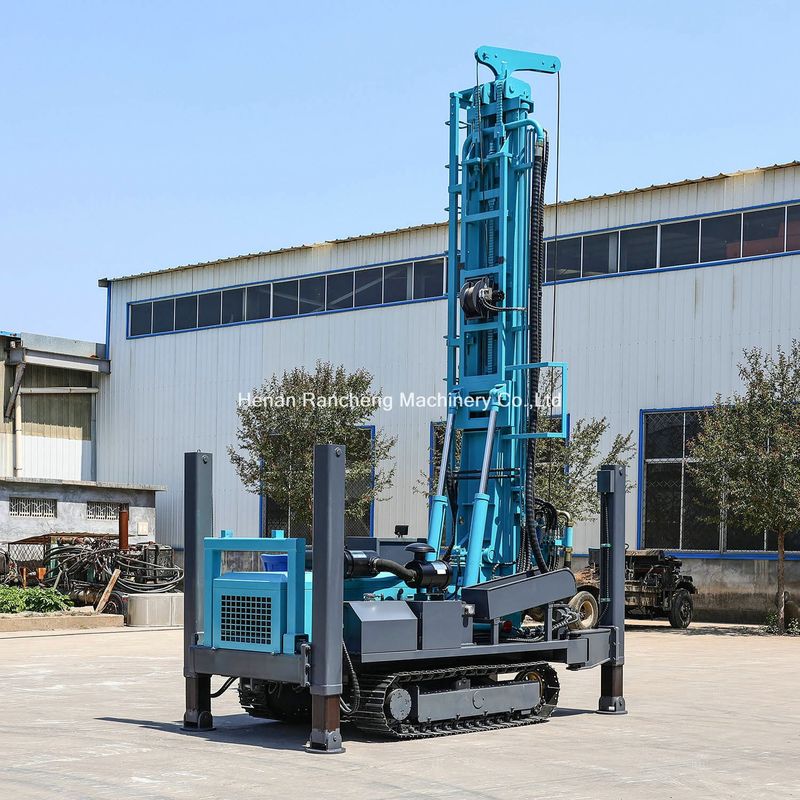

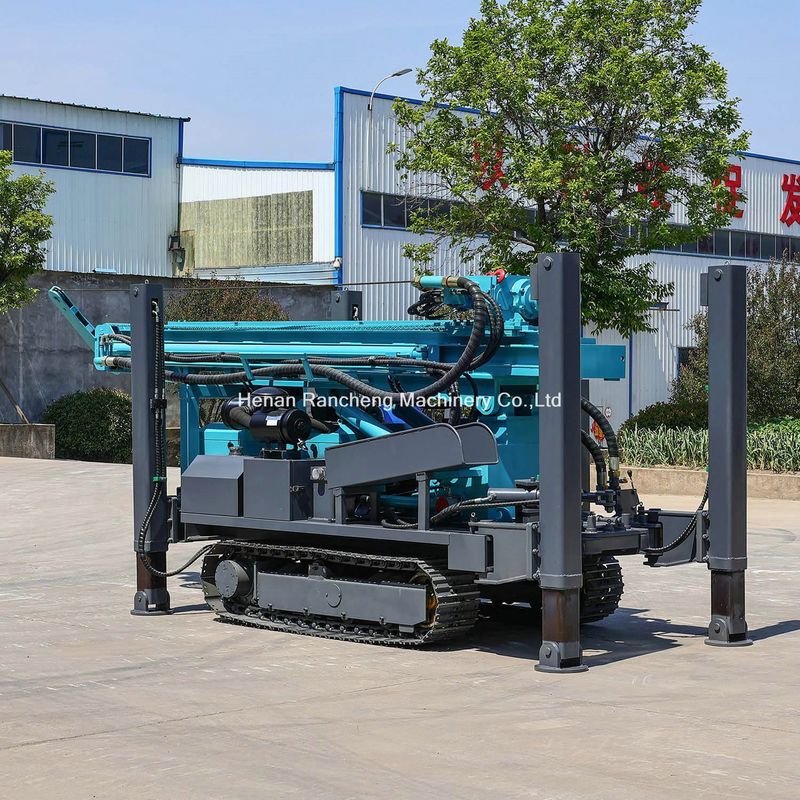

Product Images
