RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

full hydraulic water well drilling rig

400 meter crawler-type drilling rig

water well drilling machine with warranty

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Contact Us
Request A Quote
RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig
RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig
Product Details
Name:
Multi Functional Drilling Rig
Model:
RCF400C
Drilling Depth:
400m
Drilling Dia:
140 - 350mm
Air Consumption:
17-36m³/min
Air Pressure:
1.7-3.5Mpa
Highlight:

full hydraulic water well drilling rig

,

400 meter crawler-type drilling rig

,

water well drilling machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD27000-USD30000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig online Video

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

Get Best Price
Good price 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine online Video

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Get Best Price
Good price 680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine online Video

680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine

Get Best Price
Good price Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery online Video

Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery

Get Best Price
Contact Us
Contact Now
Product Description

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig



Machine Introduction



The RCF400C deepwater well drilling rig is a product independently developed by our company. This next-generation down-the-hole hammer, combined with greater pneumatic power, plays a significant role in increasing drilling speed.



Made of high-quality materials and featuring a sleek and compact design, our drilling rigs offer increased efficiency, reduced failure rates, increased cost-effectiveness, and a superior overall cost-effectiveness. Our water well drilling rigs have received substantial market recognition and positive feedback from our customers.



Technical Parameters



Bore diameter(Hammer) 140-350mm
Bore depth 400m
Air consumption 17-36m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1.5m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
Max torque of rotary 6200-9000Nm
Rotary speed 66-135r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2100×2550mm
Weight 9200Kg
Diesel engine 92KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling



Application



our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

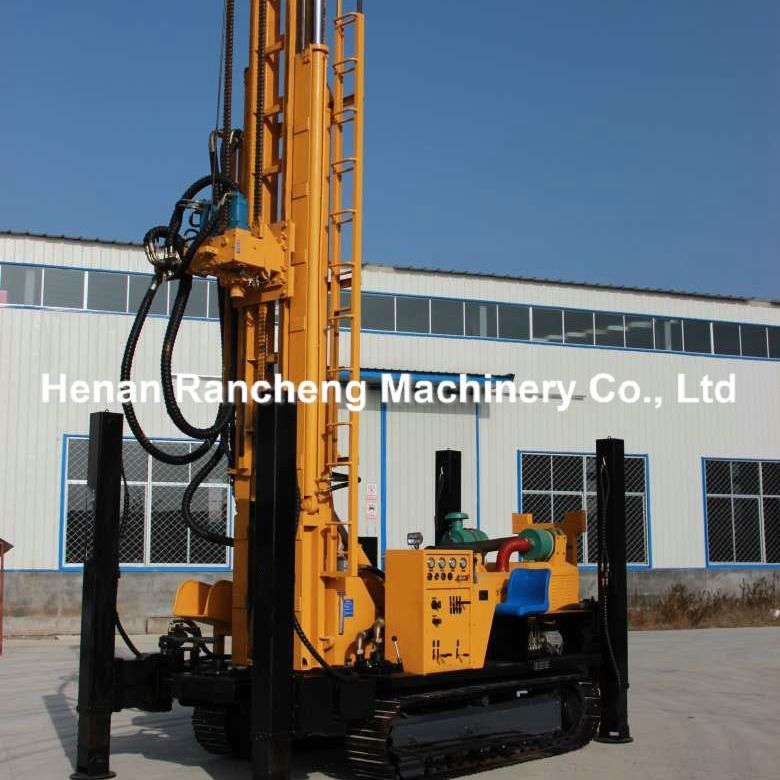

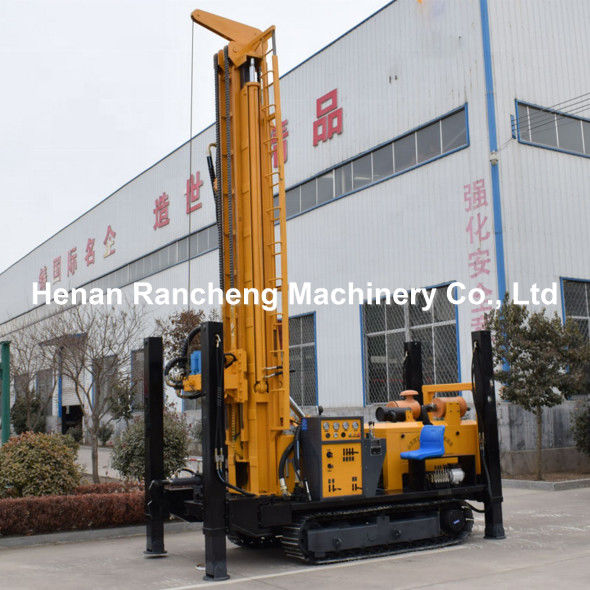

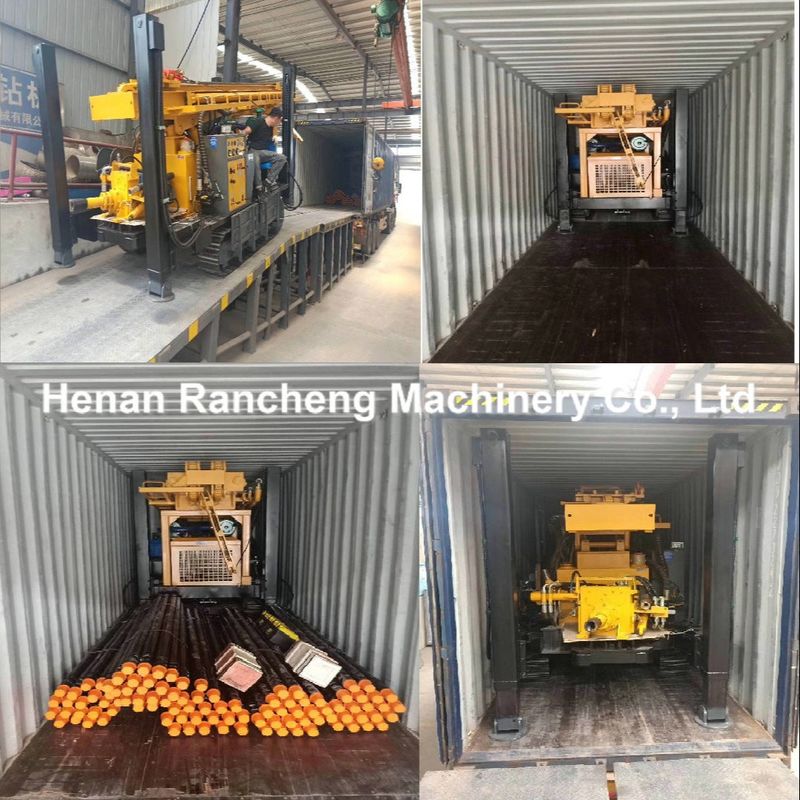

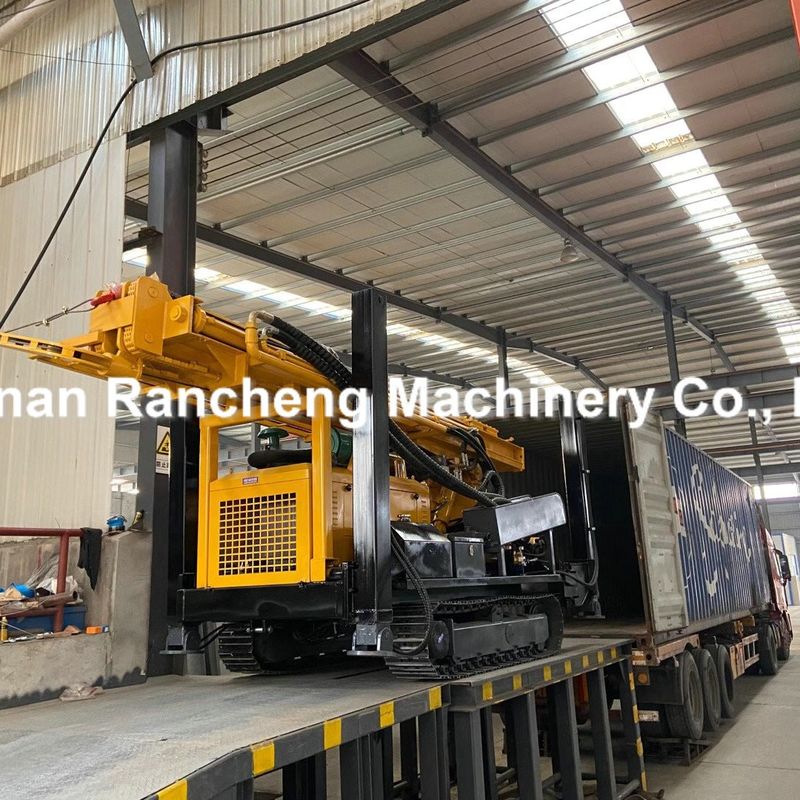

Machine Pictures



RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig 0RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig 1RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig 2
