Mini Solar Pile Driver Hydraulic Guardrail Drilling Rig Pile Driving Equipment
Product Description

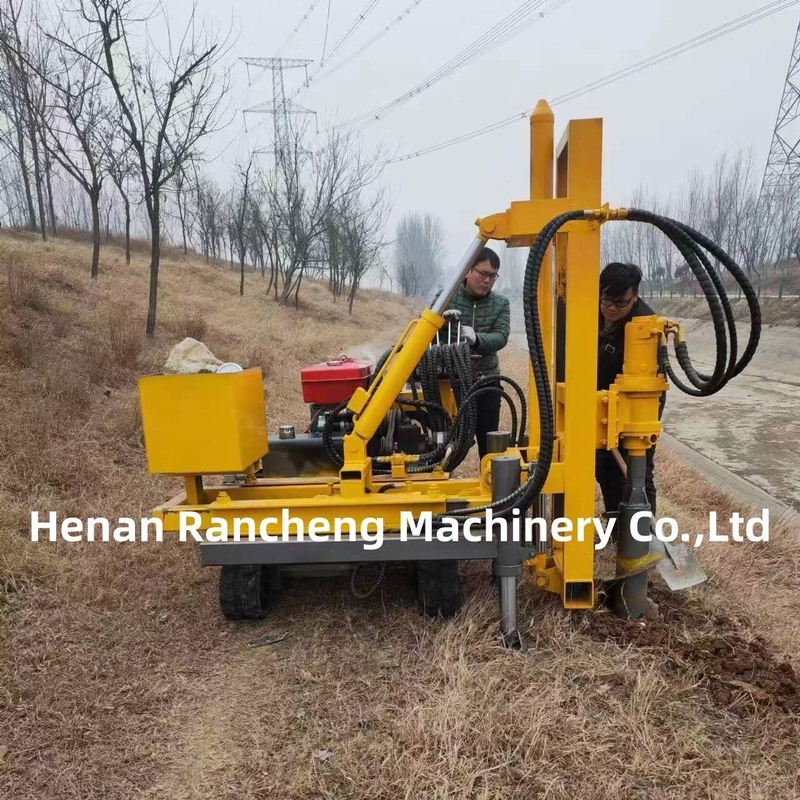

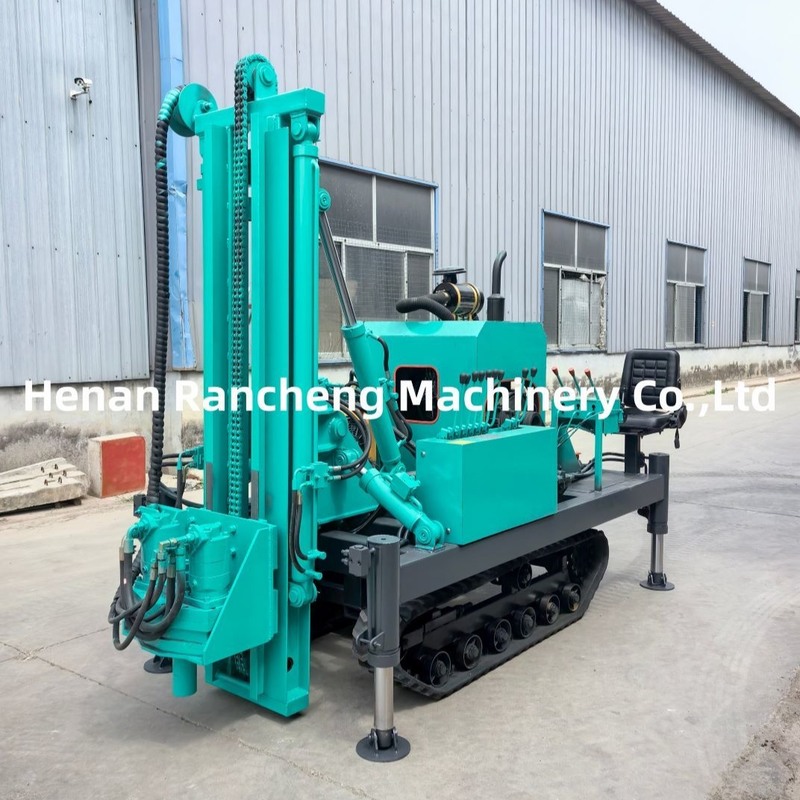

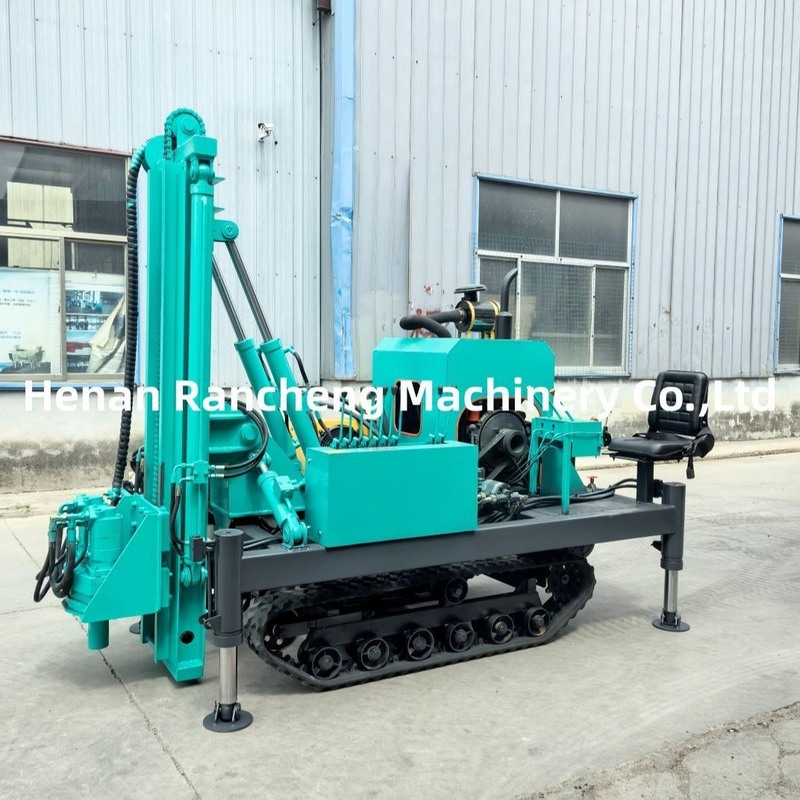

The RCKM-60S Small Hydraulic Guardrail Pile Driver is a specialized machine designed for driving steel guardrail posts along highways. This equipment is lightweight, highly accurate, durable, and energy-efficient, making it suitable for fast and precise guardrail installation.
With its compact structure and advanced hydraulic system, the RCKM-60S delivers stable performance, low fuel consumption, and environmental compliance, ensuring reliable operation even in challenging field conditions. It is the preferred choice for contractors engaged in highway guardrail construction and maintenance projects.
Technical data
| Chassis |
Heavy-duty engineering rubber track chassis |
| diesel engine |
60HP diesel engine, Brand is Weichai 490 engine, Four-cylinder diesel engine |
| Power head |
Dual hydraulic power head/ internal five-star power head(Select one) |
| oil pump |
Double pump 40/40 |
| walking style |
Variable speed box travel |
| Drilling diameter |
50-500mm/ Depth 1m to 10m |
| Pressuized system |
Cylinder chain booster |
| walking speed |
7-15km/h |
| Hydraulic working pressure |
25mpa |
| Cooling system |
electronic radiator |
| Piling height |
1 to 3 meters |
| Slide travel |
3 meters |
| Outrigger |
Four |
| length*width*height |
3400mm*1800mm*2400mm |
| weight |
2.5t |
Product Features
1. Strong Power Source: Equipped with a 60HP Weichai diesel engine that delivers stable torque and fuel efficiency for continuous operation.
2. Compact Design: The rubber track undercarriage provides excellent mobility on narrow streets, uneven terrain, and soft ground.
3. Flexible Drilling Capability: Supports hole diameters from 50mm to 500mm and adapts to various soil types, including clay, sand, gravel, and weathered rock.
4. Low Noise & Low Emission: Suitable for city or residential construction environments with strict noise and environmental limits.
5. Easy Transportation: Lightweight structure reduces shipping and setup time while minimizing logistics cost.
Application
This compact crawler piling rig is suitable for a range of projects, including pile driving for high-speed railway catenary supports, slope protection piles, foundation piles for solar photovoltaic power stations, power grid upgrading, civil construction, new rural development, municipal engineering, and landscape construction. It adapts well to diverse geological conditions, capable of operating in soil layers, clay layers, fill layers, silt layers, sand layers, and even some strata with pebbles.
