Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig

Rubber tracks mining pile driver

Small hydraulic pile driver

Down the hole drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-60S

Contact Us
Request A Quote
Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig
Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig
Product Details
Model:
RCKM-60S
Diesel Engine:
60HP Weichai 490 Engine
Pressuized System:
Cylinder Chain Booster
Walking Speed:
7-15km/h
Hydraulic Working Pressure:
25mpa
Piling Height:
1m To 3m
Highlight:

Rubber tracks mining pile driver

,

Small hydraulic pile driver

,

Down the hole drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$ 8000-10000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig online Video

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig

Get Best Price
Good price Mini Solar Pile Driver Hydraulic Guardrail Drilling Rig Pile Driving Equipment online Video

Mini Solar Pile Driver Hydraulic Guardrail Drilling Rig Pile Driving Equipment

Get Best Price
Good price Rubber Crawler Mounted Solar Pile Driver 25HP Diesel Engine 30m Piling Depth online Video

Rubber Crawler Mounted Solar Pile Driver 25HP Diesel Engine 30m Piling Depth

Get Best Price
Good price Hydraulic Hydrostatic Solar Pile Driver 70KW Engine Power 50mm - 300mm Bore Dia online Video

Hydraulic Hydrostatic Solar Pile Driver 70KW Engine Power 50mm - 300mm Bore Dia

Get Best Price
Contact Us
Contact Now
Product Description

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig

Product Description

The RCKM-60S compact crawler pneumatic pile driver is suitable for solar-powered piling, roadside fence piling, and small pile drilling. It offers a wide range of applications, including solar-powered spiral pile drilling, auger pipe drilling, and down-the-hole drilling.



Powered by a 60-horsepower diesel engine and a hydraulic-mechanical transmission, this machine features high efficiency, easy shifting, multi-angle piling, high precision, durability, and time- and labor-saving features, making it particularly suitable for field construction.

Technical data



Chassis Heavy-duty engineering rubber track chassis
diesel engine 60HP diesel engine, Brand is Weichai 490 engine, Four-cylinder diesel engine
Power head Dual hydraulic power head/ internal five-star power head(Select one)
oil pump Double pump 40/40
walking style Variable speed box travel
Drilling diameter 50-500mm/ Depth 1m to 10m
Pressuized system Cylinder chain booster
walking speed 7-15km/h
Hydraulic working pressure 25mpa
Cooling system electronic radiator
Piling height 1 to 3 meters
Slide travel 3 meters
Outrigger Four
length*width*height 3400mm*1800mm*2400mm
weight 2.5t

Application

This Small crawler piling rig is suitable for high-speed railway contact network support piles, slope protection piles, solar photovoltaic power station foundation support piles, power grid renovation, civil construction, new rural construction, municipal engineering construction, landscaping and other projects. Applicable to various geological conditions. Suitable for soil layer, clay layer, filler layer, clay layer, powder layer, silt layer, sand layer and part of the strata containing pebbles.

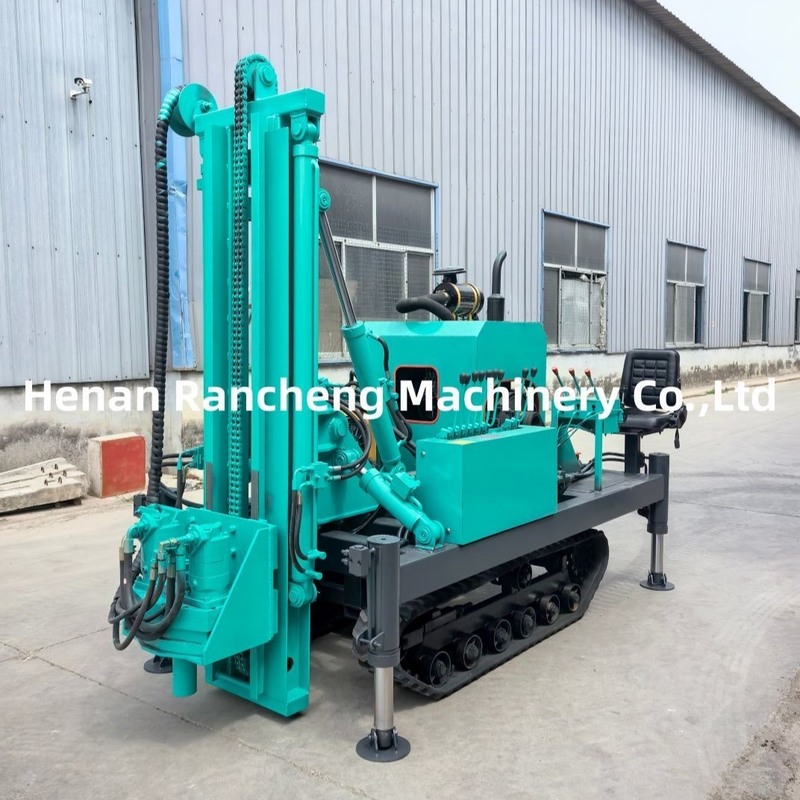

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig 0

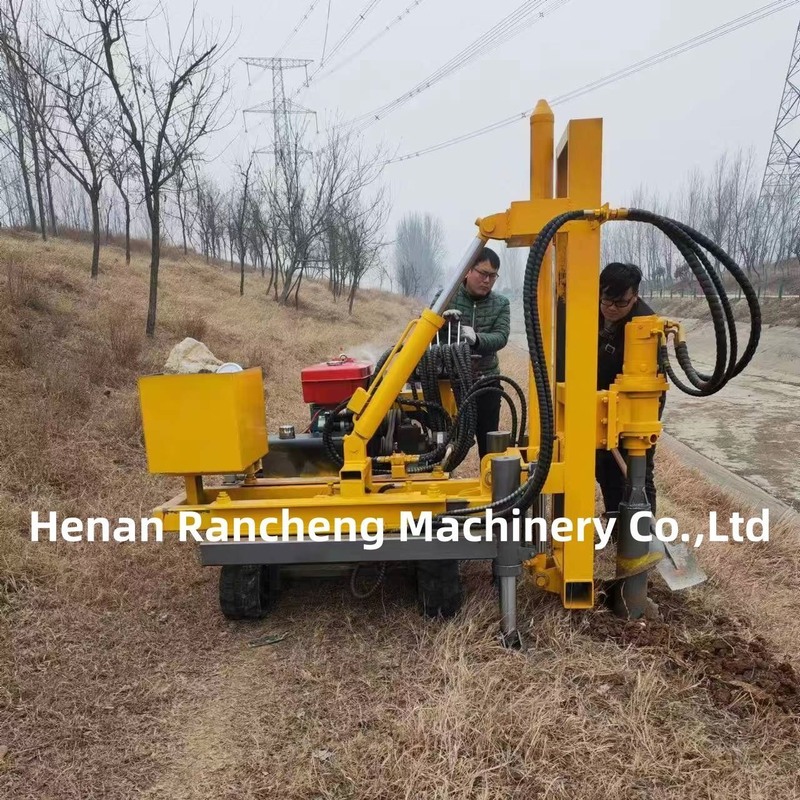

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig 1

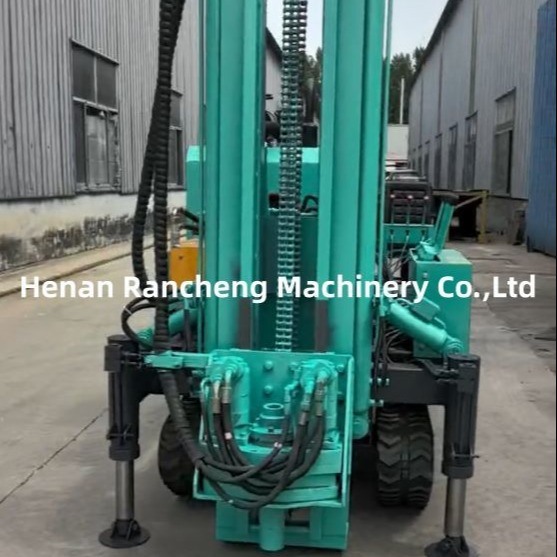

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig 2



Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig 3
