Home > Products > Water Well Drilling Machine >
800-meter fully hydraulic water well drilling rig

800-meter fully hydraulic water well drilling rig

800-meter hydraulic water well drill

fully hydraulic well drilling rig

water well drilling machine with warranty

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Contact Us
Request A Quote
800-meter fully hydraulic water well drilling rig
800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig 800-meter fully hydraulic water well drilling rig
Product Details
Name:
Water Well Drilling Machine
Model:
RCF800C
Geology Drilled:
All Kind
Drill System And Operation:
Hydraulic
Max Hole Depth:
800m
Hole Diameter:
140-500m
Diesel Engine:
154KW Cummins
Dimension:
6300×2300×2650mm
Highlight:

800-meter hydraulic water well drill

,

fully hydraulic well drilling rig

,

water well drilling machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine online Video

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

Get Best Price
Good price 800-meter fully hydraulic water well drilling rig online Video

800-meter fully hydraulic water well drilling rig

Get Best Price
Good price RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm 1.7-2.5Mpa Air Pressure online Video

RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm 1.7-2.5Mpa Air Pressure

Get Best Price
Good price Upgrade RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm For Water Borehole Drilling online Video

Upgrade RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm For Water Borehole Drilling

Get Best Price
CONTACT US
Contact Now
Product Description
800-meter Fully Hydraulic Water Well Drilling Rig

This drilling rig is a high-performance piece of equipment specifically designed for deep-hole drilling. It employs a fully hydraulic drive system with a high-torque power head and feed structure at its core. Speed and pressure are infinitely adjustable, adapting to complex geological conditions such as hard rock.

The entire machine is centrally controlled by electro-hydraulic mechanisms and equipped with a hydraulic automatic unhooking system, ensuring safe and efficient operation. The equipment uses a modular or vehicle-mounted chassis, facilitating flexible deployment in various harsh environments. It is widely applicable to large-scale projects such as deep water wells, geothermal energy, and mineral exploration, making it an ideal piece of equipment for achieving efficient and reliable deep-hole drilling operations.

Technical Specifications
Model RC800C
Drilling Method Both mud pump drilling and air DTH drilling
Geology Drilled All kinds
Drill System and Operation Hydraulic
Diesel Engine 154KW Cummins
Max Hole Depth 800m
Hole Diameter 140-500mm
Air Consumption 17-42m³/min
Length of Drilling Pipe 1m/2m/3m/6m
Diameter of Drilling Pipe 102/108/114mm
Total Weight 13 ton
Dimensions (L × W × H) 6300 × 2300 × 2650mm
Key Features
  • The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
  • The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
  • It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
  • Big power ensures deep drilling capability

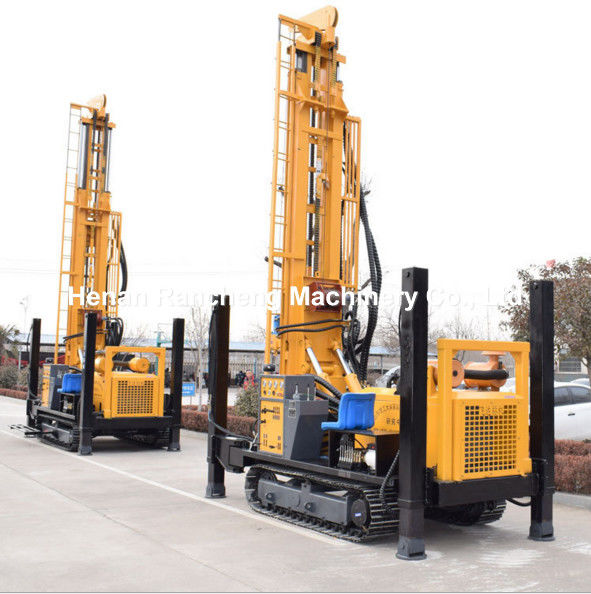

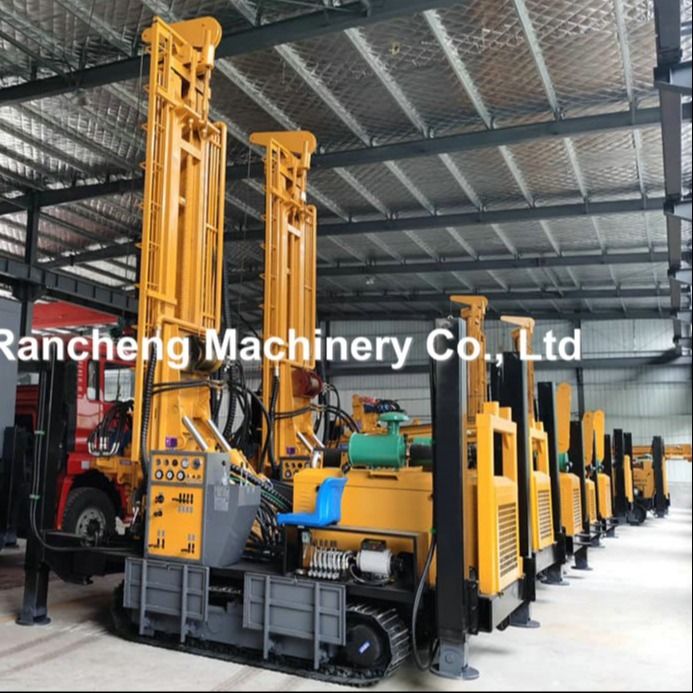

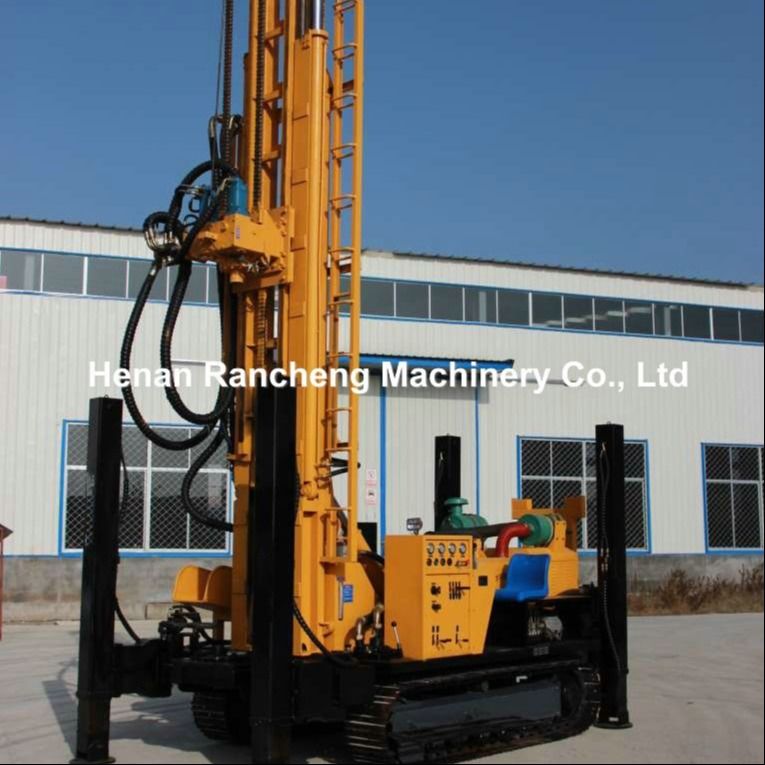

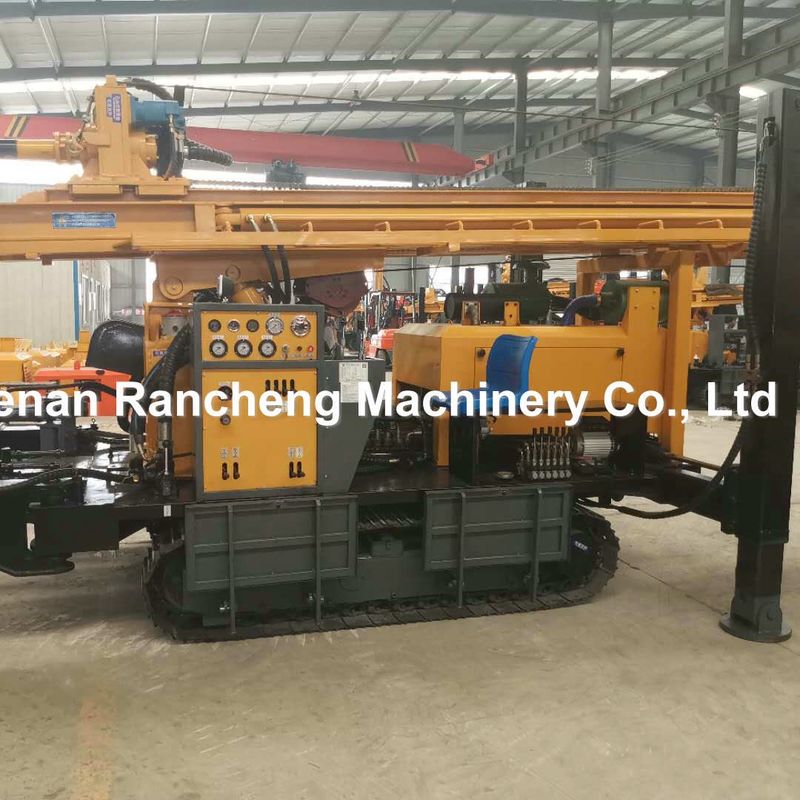

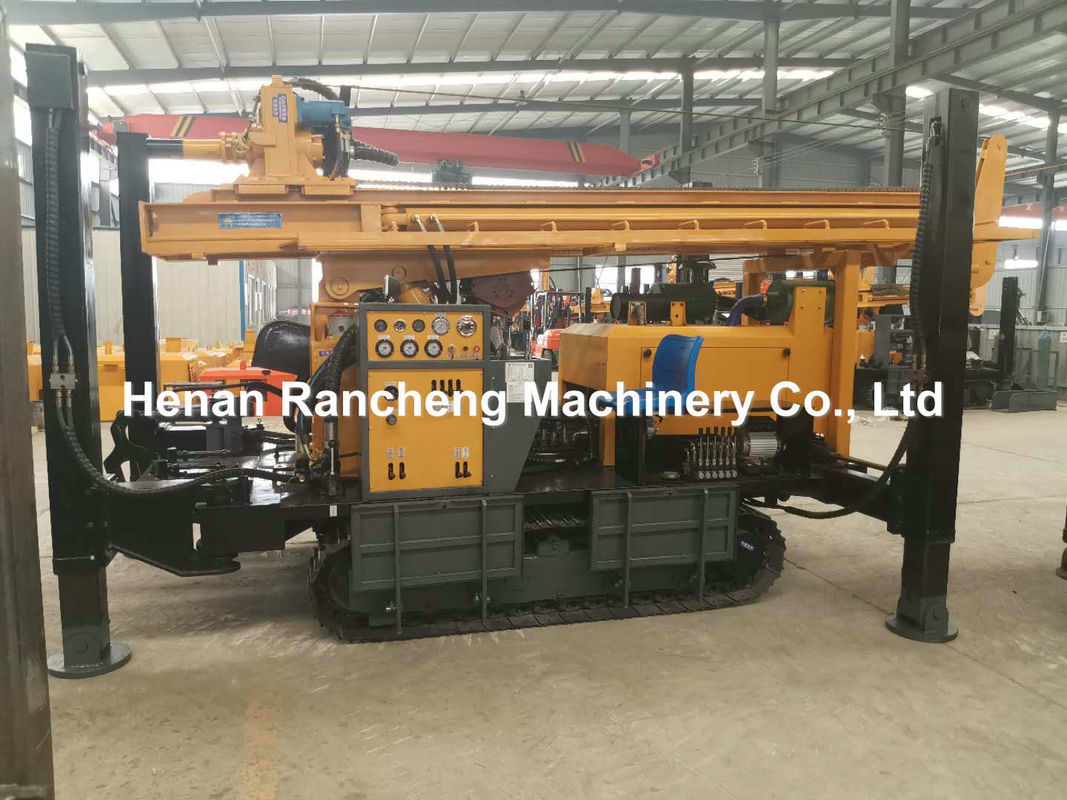

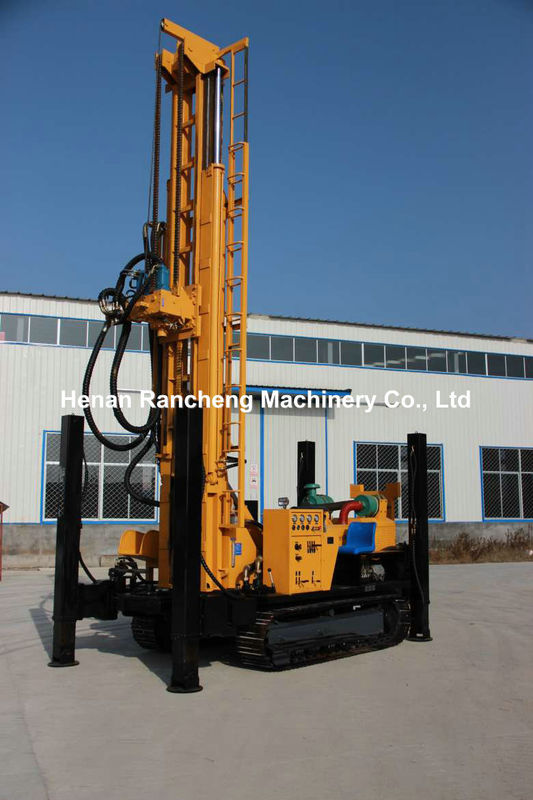

Machine Gallery
800-meter fully hydraulic water well drilling rig 0 800-meter fully hydraulic water well drilling rig 1 800-meter fully hydraulic water well drilling rig 2 800-meter fully hydraulic water well drilling rig 3
