RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

hydraulic crawler water well drilling rig

350 meter depth water well drill

RCF350C water well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters
RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters
Product Details
Name:
Borehole Water Well Drilling Machine
Model:
RCF350C
Bore Depth:
350m
Borehole Diameter:
350mm
Weight:
8600kg
Travel Speed(km/h):
2.5km/h
Highlight:

hydraulic crawler water well drilling rig

,

350 meter depth water well drill

,

RCF350C water well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price online Video

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price
Good price 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig online Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price
Good price RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters online Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price
Good price RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale online Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price
CONTACT US
Contact Now
Product Description
RCF350C Hydraulic Crawler Water Well Drilling Rig
Maximum drilling depth of 350 meters with 350mm diameter capability
Product Overview
The RCF350C hydraulic deep well drilling rig is a premium top-drive drilling equipment designed for water well drilling in complex terrains. This versatile rig supports both mud pump and air compressor drilling methods, making it an ideal solution for demanding water well drilling projects.
Key Features
  • Crawler-type chassis for superior mobility in rugged terrain
  • Advanced hydraulic system for precise control and stable operation
  • Robust and durable construction for harsh working conditions
  • Multiple safety features including emergency stop and automatic locking
  • User-friendly interface suitable for operators of all experience levels
  • Comprehensive functionality for various complex terrain applications
Technical Specifications
ParameterSpecification
ModelRCF350C
Bore Diameter (Hammer)140-350mm
Bore Depth350m
Air Consumption17-35m³/min
Air Pressure1.7-3.5Mpa
Pipe Diameter89mm/102mm
Pipe Length1m/2m/3m/6m
Lifting Force22T
Lifting Speed3m/min
Feeding Speed0.5-5m/min
Fast Lifting Speed30m/min
Fast Feeding Speed50m/min
Max Torque of Rotary6200-8500Nm
Rotary Speed55-115r/min
Hoist Lifting Capacity2T
Mud Pump Flow450L/min (option)
High Hydraulic Leg1.5m
Feeding Efficiency10-35m/h
Travel Speed2.5Km/h
Climb Ability30°
Dimensions (L×W×H)6000×2000×2550mm
Weight8600Kg
Diesel Engine91KW Yuchai Engine
Drilling MethodAir compressor or mud pump drilling
Operating SystemFull hydraulic operation
Service & Support
24/7 online chat and phone support
Lifetime free technical support
Overseas service with on-site engineer support available

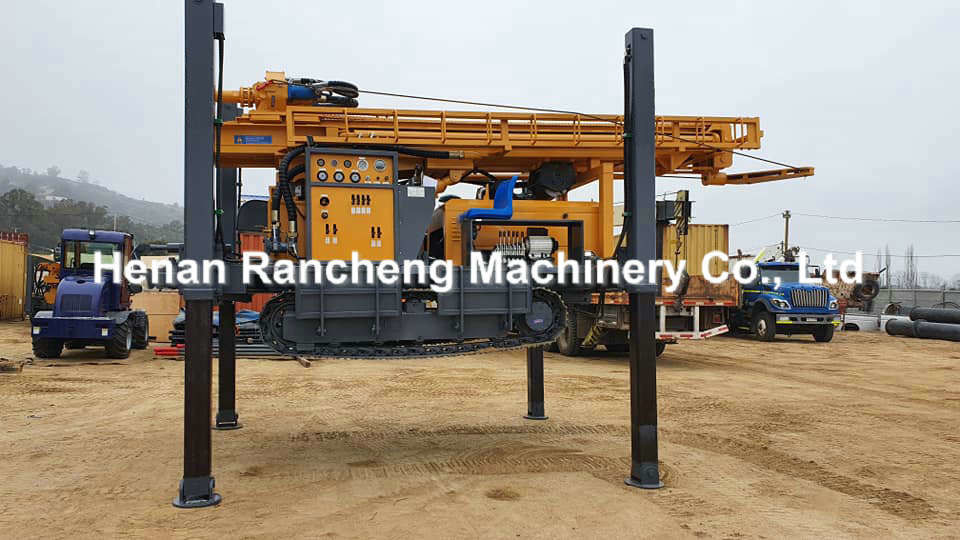

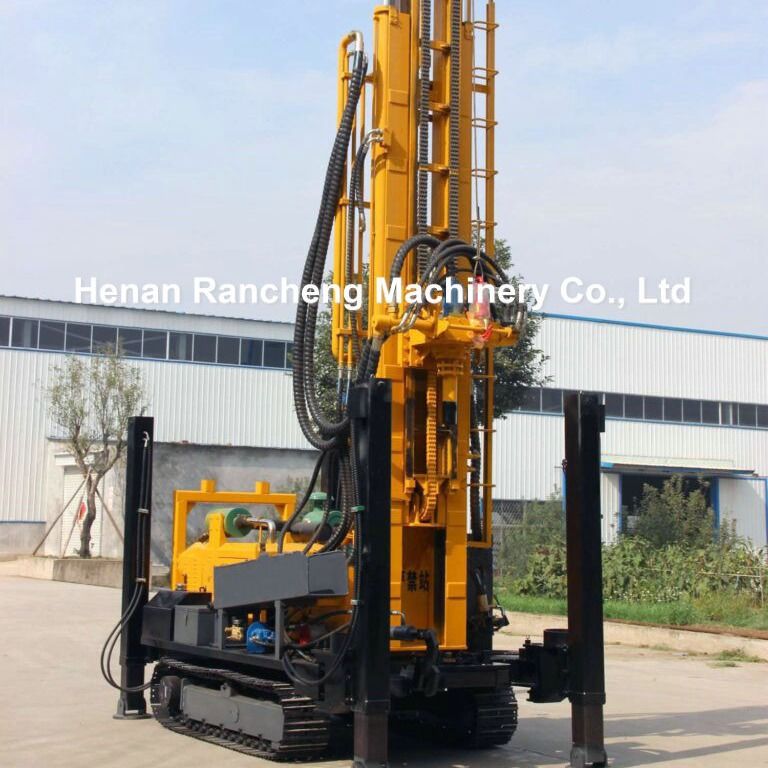

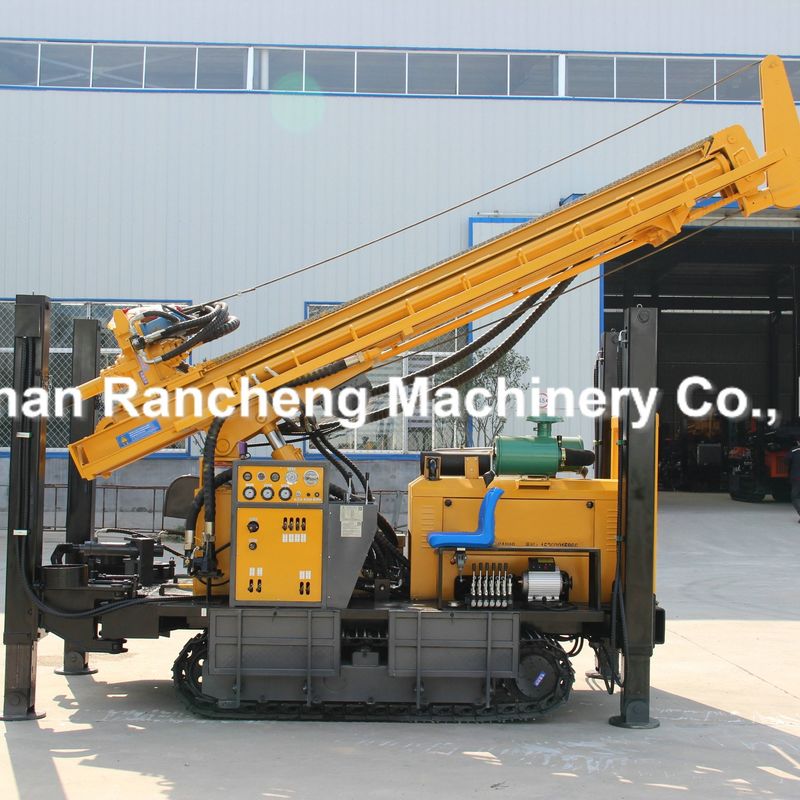

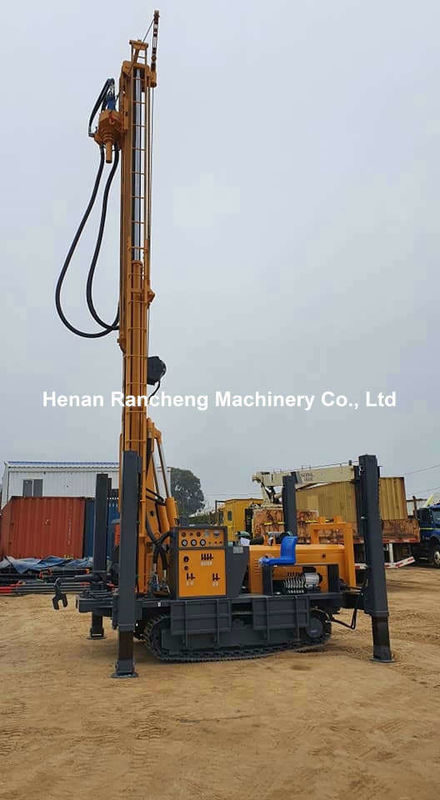

Equipment Gallery
RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters 0 RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters 1 RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters 2 RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters 3 RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters 4
Manufacturer Information
Henan Rancheng Machinery Co., LTD is a professional drilling rig supplier in China, specializing in the design and manufacture of water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools. Our products are ISO9001 and CE certified and exported to over 200 countries worldwide, receiving excellent customer feedback. We operate on the principle of "Customer First, Integrity First" and look forward to cooperating with you.
