Name: RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180C
Availability: InStock

Home > Products > Water Well Drilling Machine >

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

crawler-mounted water well drilling rig

hydraulic water well drilling machine

factory price water well drill rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180C

Request A Quote

Product Details

Name:

180m Deep Rock Drilling Rig

Model:

RCF180C

Engine:

55KW

Pipe Legth:

High Hydraulic Leg:

1.5m

Pipe Diameter:

76X2m/89mmX3m

Highlight:

crawler-mounted water well drilling rig

hydraulic water well drilling machine

factory price water well drill rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T,Western Union

Supply Ability

100sets per Month

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price

Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price

Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price

Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price

Contact Now

Product Description

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig

The RCF180C hydraulic crawler water well drilling rig is an independently developed model featuring a 55 kW Quanchai diesel engine and rubber track chassis for superior mobility across various field construction sites. This versatile equipment drills to depths of 180 meters with diameters ranging from 90-300 mm.

Advanced Drilling Capabilities

Equipped with a dual-motor rotary drill head, the RCF180C supports both mud pump and down-the-hole pneumatic drilling modes. The fully hydraulic top drive system combined with a composite mast provides a 3.4-meter stroke and dual-cylinder lifting force of 12 tons. All operational parameters including rotation speed, torque, axial thrust, and lifting speed are flexibly adjustable to accommodate different drilling tools and construction processes.

For rock formation drilling, the rig utilizes a down-the-hole hammer with compressed air flushing, achieving drilling speeds that significantly exceed traditional equipment. For soil layers, it works with dedicated drill bits and mud flushing systems to handle complex geological conditions efficiently.

Technical Specifications

Model	RCF180C
Drilling Methods	Mud pump drilling and air DTH hammer drilling
Operation System	Full hydraulic operating
Bore Diameter (Hammer)	90-300mm
Bore Depth	180m
Air Consumption	17-31m³/min
Air Pressure	1.7-2.5Mpa
Pipe Diameter	76mm/89mm
Pipe Length	3m
Push Force	4T
Lifting Force	12T
Lifting Speed	2.5m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	18m/min
Fast Feeding Speed	35m/min
Max Torque of the Rotary	3200-4600Nm
Rotary Speed	45-70r/min
Mud Pump Flow	250L/min (option)
High Hydraulic Leg	1.5m
Feeding Efficiency	10-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	3×1.5×2.2M
Weight	4500kg
Diesel Engine	55KW Quanchai

Key Advantages

Dual drilling modes (mud pump and down-the-hole pneumatic) for handling complex geological conditions including rock formations and loose soil layers
Fully adjustable drilling parameters including speed, torque, thrust, and lifting speed to adapt to different drilling tools and construction processes
Fully hydraulic top-drive system with composite mast structure providing 3.4-meter stroke and 12-ton dual-cylinder lifting capacity
Convenient drill pipe assembly and disassembly significantly reduces auxiliary operation time
Superior drilling speed in rock formations far exceeds traditional drilling rigs
High-position hydraulic outriggers facilitate easier loading, unloading, and transportation
55KW Quanchai diesel engine provides ample power and stable operation
Rubber track chassis offers strong off-road capability for complex field and rural conditions

Applications

Ideal for various drilling projects including domestic drinking water wells, agricultural irrigation wells, geothermal wells, and industrial wells. The equipment works efficiently with mud pumps and air compressors to deliver reliable performance across diverse drilling applications.

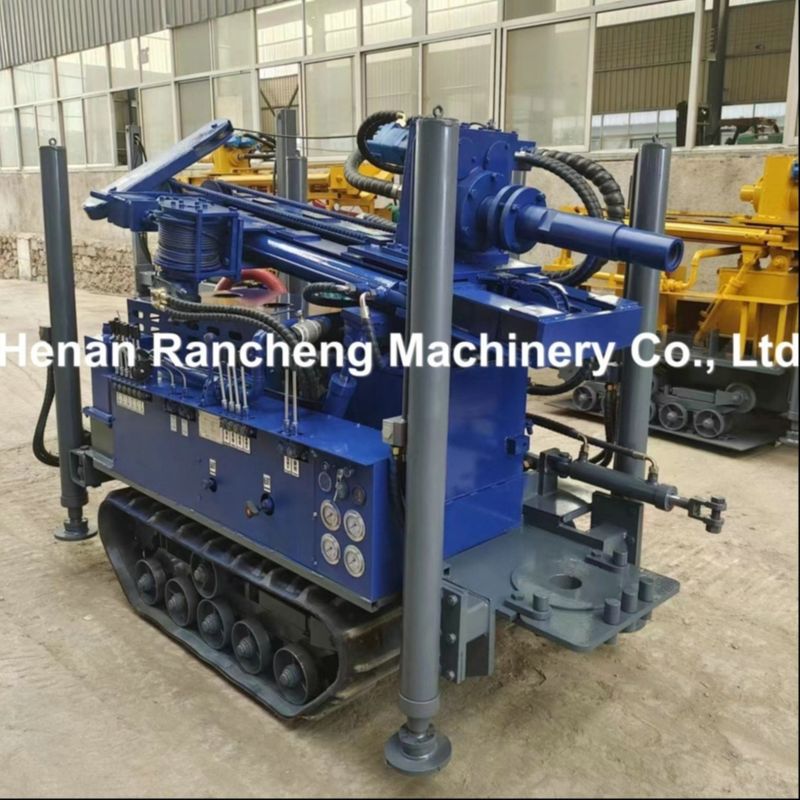

Product Images
