70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

70 KW Yuchai engine drilling rig

crawler-mounted water well rig

RCF280C water well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Contact Us
Request A Quote
70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig
70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig
Product Details
Model:
RCF280C
Drilling Depth:
280m
Drilling Diameter(mm):
100-350mm
Pipe Diameter(mm):
89/102
Pipe Length(m):
3m/6m
Weight:
7600kg
Highlight:

70 KW Yuchai engine drilling rig

,

crawler-mounted water well rig

,

RCF280C water well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price online Video

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price
Good price 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig online Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price
Good price RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters online Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price
Good price RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale online Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price
CONTACT US
Contact Now
Product Description
70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig
The RCF280C deep well drilling rig is our independently developed new generation down-the-hole drilling rig, equipped with higher air pressure power for faster drilling speeds. The equipment utilizes advanced hydraulic technology, offering advantages such as low energy consumption, high torque, and convenient hole position adjustment. It is suitable for drilling projects in resource exploration, hydrological wells, domestic water wells, and agricultural irrigation.
The entire machine is made of high-quality materials, featuring a compact structure, high efficiency, low failure rate, and economic durability, resulting in a high overall cost-performance ratio. It has gained widespread market recognition and positive customer feedback.
Technical Specifications
ModelRCF280C
Bore diameter (Hammer)100-350mm
Bore depth280m
Air consumption17-35m³/min
Air pressure1.7-3.0Mpa
Pipe diameter89mm/102mm
Pipe length3m/6m
Lifting force18T
Lifting speed3m/min
Feeding speed0.5-5m/min
Fast lifting speed30m/min
Fast feeding speed50m/min
Max torque of the rotary7000-9000Nm
Rotary speed40-70r/min
Hoist lifting capacity2T
Mud Pump flow450L/min (option)
High hydraulic leg1.5m
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension (L×W×H)4100×1900×2600mm
Weight7000Kg
Diesel engine70KW Yuchai engine
Product Advantages
  • Fully hydraulic control allows for real-time adjustment of parameters such as speed, torque, and pressure, adapting to various drilling tools and processes; the top-drive design enables quick drill pipe loading and unloading, shortens auxiliary time, supports multiple drilling methods, and offers high overall efficiency.
  • Down-the-hole drilling offers high efficiency and lower cost per meter; high outriggers facilitate loading and unloading during transportation, and the crawler-type chassis is suitable for muddy terrain. It can be equipped with a crawler or truck-mounted chassis to adapt to different working conditions.
  • Main components and hydraulic systems use well-known brands, and the main frame is made of high-strength, wear-resistant steel; the 70KW Yuchai engine provides ample power, and positive and negative axial pressure can be precisely adjusted, resulting in higher impact efficiency and excellent durability.
Machine Gallery

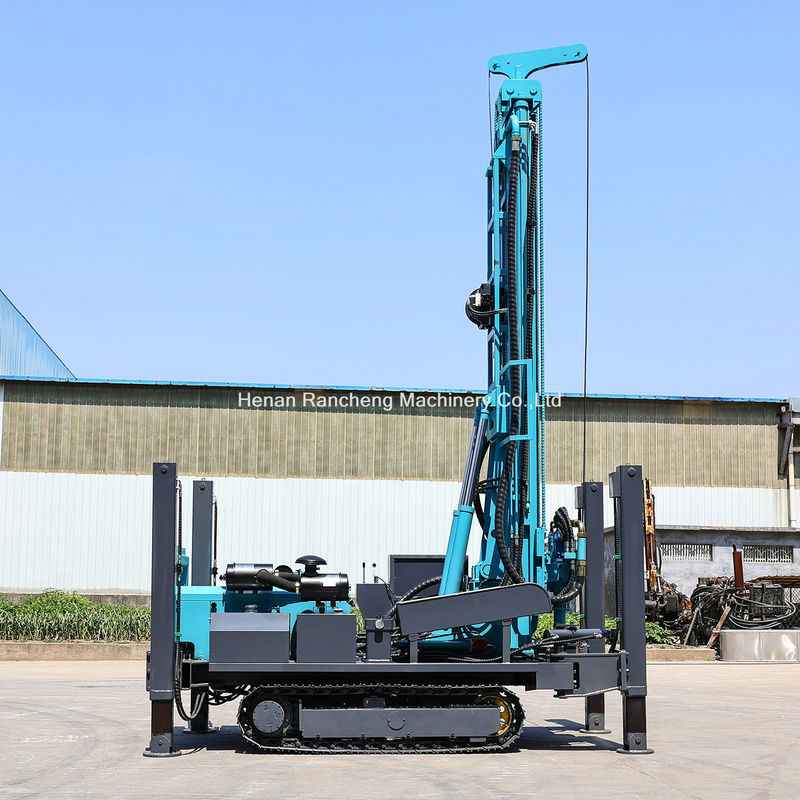

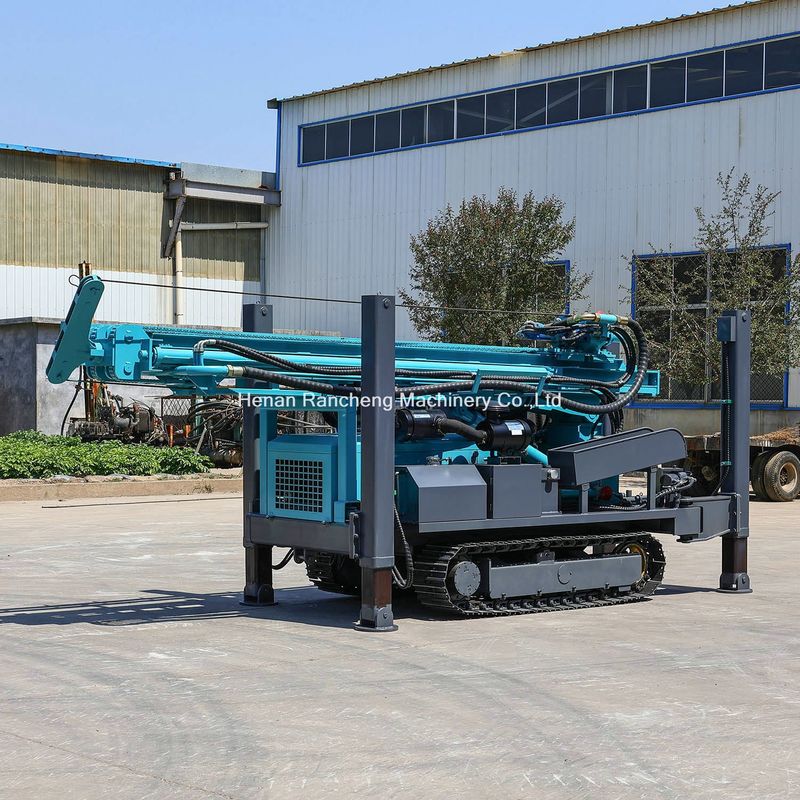

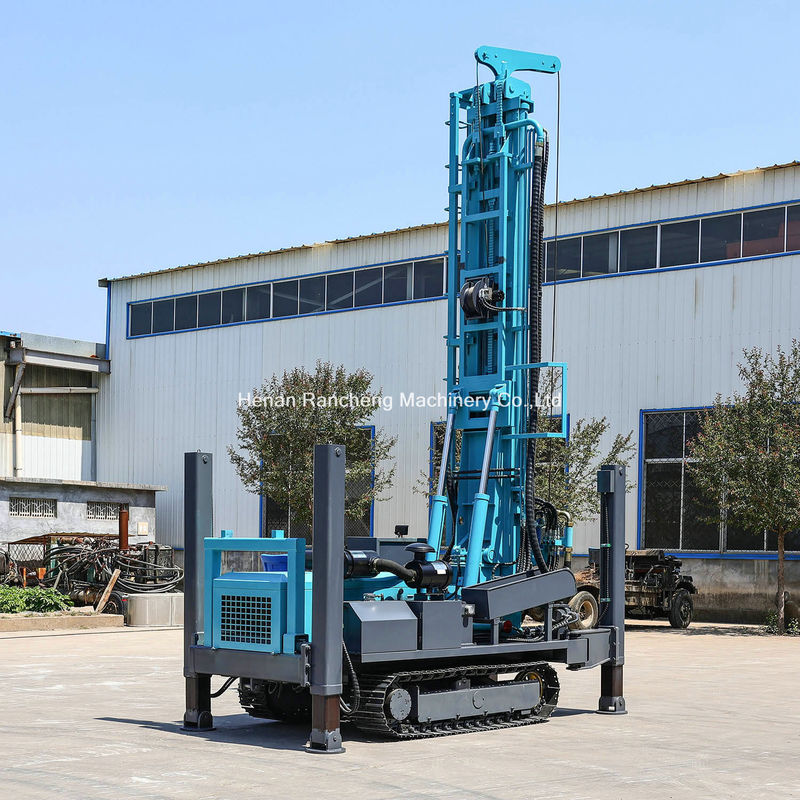

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 0 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 1 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 2 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 3 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig 4
