RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons

RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons

hydraulic water well drilling rig

rubber-tracked drilling machine

15-ton lifting capacity drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons
RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons
Product Details
Model:
RCF200C
Bore Diameter:
90-350mm
Bore Depth:
200m
Pipe Diameter:
76mm/89mm
Pipe Length:
3m
Diesel Engine:
58KW Yuchai
Highlight:

hydraulic water well drilling rig

,

rubber-tracked drilling machine

,

15-ton lifting capacity drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price online Video

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price
Good price 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig online Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price
Good price RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters online Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price
Good price RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale online Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price
CONTACT US
Contact Now
Product Description
RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig
The RCF200C deep well drilling rig utilizes advanced hydraulic technology, offering low energy consumption and high torque. Its flexible hole positioning makes it suitable for various drilling projects, including resource exploration, hydrological wells, domestic water wells, and agricultural irrigation. Constructed with high-quality materials, this rig features a compact and efficient structure, low failure rate, and excellent durability and cost-effectiveness.
Technical Specifications
ParameterSpecification
ModelRCF200C
Bore diameter (Hammer)90-350mm
Bore depth200m
Air consumption17-35m³/min
Air pressure1.7-3.0Mpa
Pipe diameter76mm/89mm
Pipe length3m
Push force4T
Lifting force12T
Lifting speed2.5m/min
Feeding speed0.5-5m/min
Fast lifting speed18m/min
Fast feeding speed35m/min
Max torque of the rotary3500-4800Nm
Rotary speed45-70r/min
Mud Pump flow250L/min (option)
High hydraulic leg1.4m
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension (L×W×H)4000×1800×2300mm
Weight5000Kg
Diesel engine58KW Yuchai
Key Advantages
  • Fully hydraulic control offers simple and flexible operation, with all parameters adjustable in real time, adapting to various drilling tools and construction techniques
  • Top-drive design facilitates quick and easy drill pipe assembly and disassembly, minimizing auxiliary time, and supports drilling with casing for multi-functional drilling processes
  • Fully hydraulic and top-drive configuration increases drilling speed and reduces auxiliary time, while down-the-hole drilling technology further lowers the cost per meter
Product Images

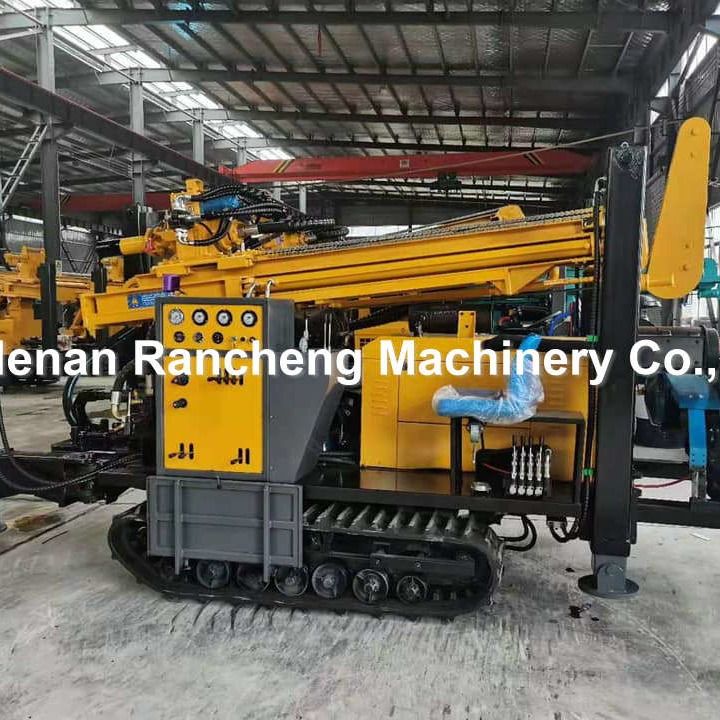

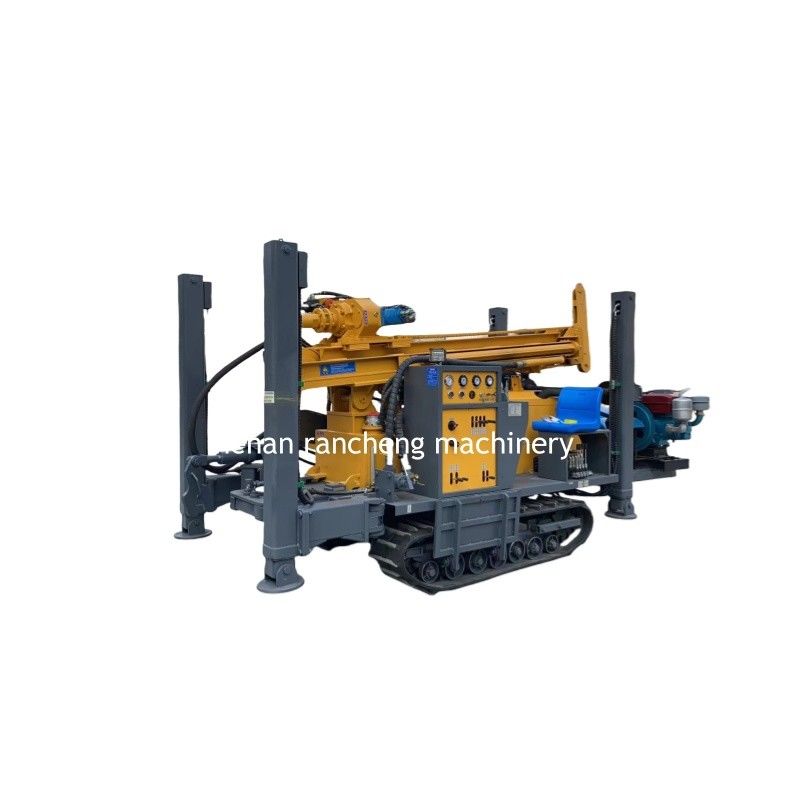

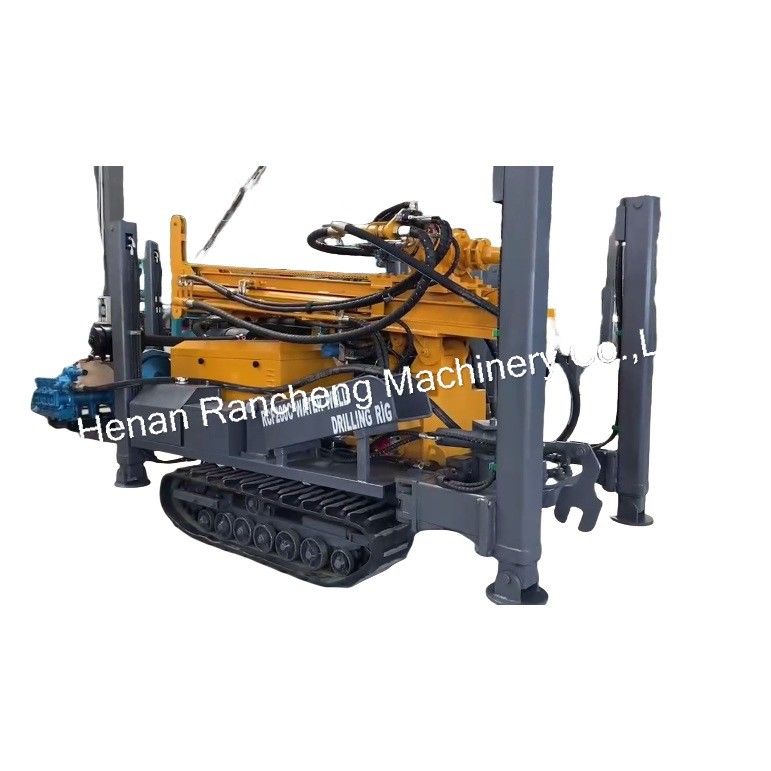

RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons 0 RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons 1 RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons 2 RCF200C Hydraulic Rubber-Tracked Water Well Drilling Rig With A Lifting Capacity Of 15 Tons 3
