High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S

High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S

hydraulic piling machine with warranty

drop hammer piling machine RCKM-30S

solar pile driver fully hydraulic

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Contact Us
Request A Quote
High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S
High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S
Product Details
Borehole Depth:
30m
Dilling Pipe Length:
3m
Engine Power:
28HP Gasoline Engine
Borehole Diameter:
50-300mm
Rotary Head Torque:
3200N.m
Hydraulic Working Pressure:
20Mpa
Highlight:

hydraulic piling machine with warranty

,

drop hammer piling machine RCKM-30S

,

solar pile driver fully hydraulic

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US$5,000.00-6,000.00
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S online Video

High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S

Get Best Price
Good price 30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine online Video

30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine

Get Best Price
Good price Solar Panel Installation Machine/Equipment To Install Solar Panels Semi-Autonomous Vehicle Helps Lift Solar Panels online Video

Solar Panel Installation Machine/Equipment To Install Solar Panels Semi-Autonomous Vehicle Helps Lift Solar Panels

Get Best Price
Good price Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig online Video

Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig

Get Best Price
CONTACT US
Contact Now
Product Description
High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S

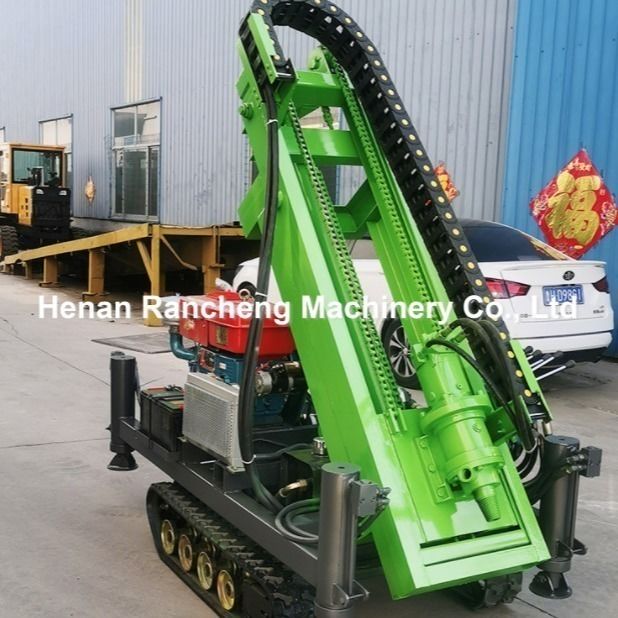

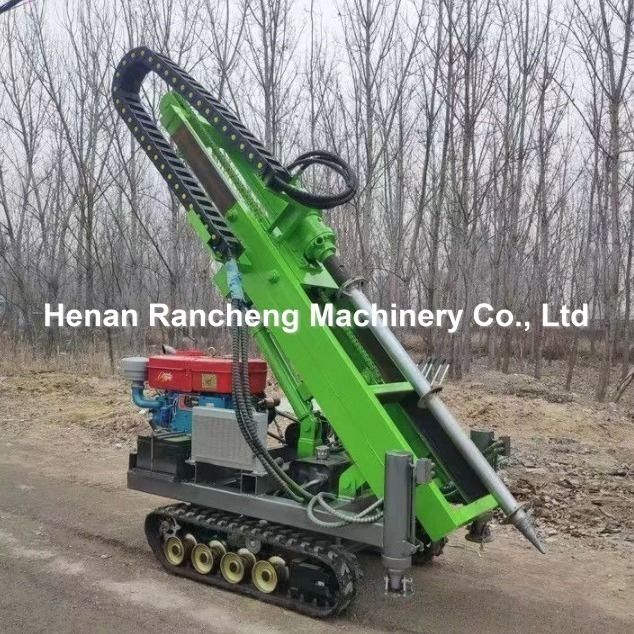

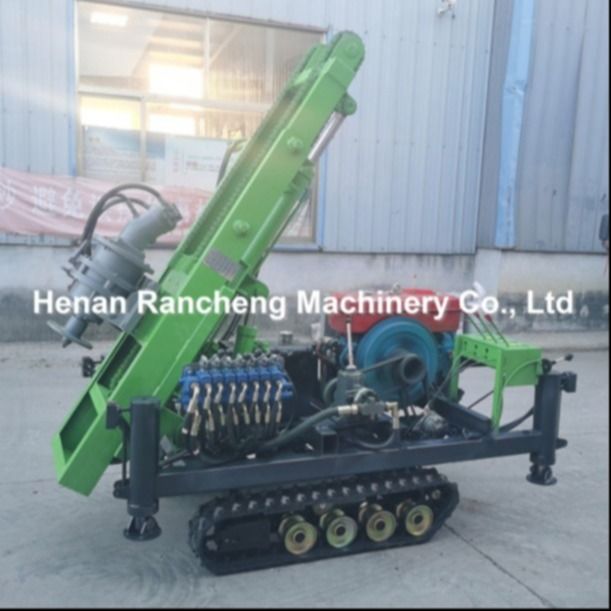

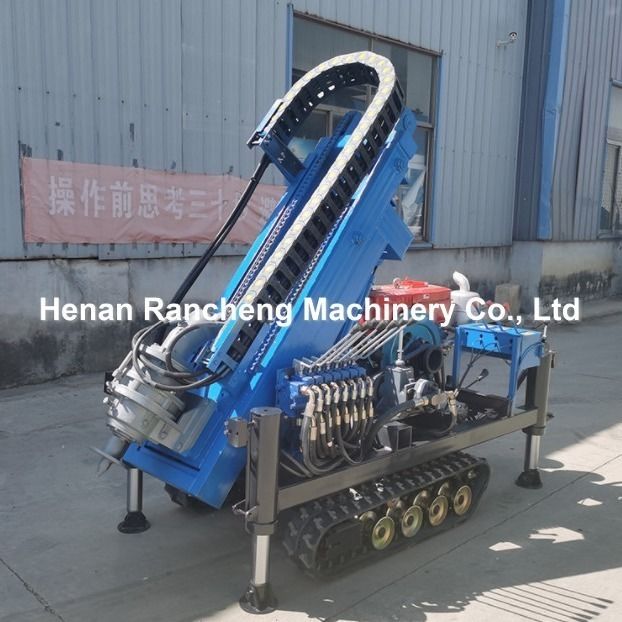

The RCKM-30S small crawler-mounted pneumatic piling rig is a multi-functional engineering equipment designed for various piling and drilling operations. This professional solar piling rig combines flexibility and stability, making it ideal for solar screw pile drilling, spiral pipe drilling, down-the-hole (DTH) drilling, solar pile installation, roadside guardrail construction, roadside fence erection, and micro-pile drilling.
Product Specifications
ModelRCKM-30S rubber crawler mounted mini pile driver
Rig weight1.2t
Dimensions (L×W×H)2300*1100*2300mm
Engine power28HP gasoline engine
Rotary head torque3200N.m
Hydraulic oil pumpSingle pump
Hydraulic loading systemCylinder chain pressure
Hydraulic working pressure20Mpa
Way of walkingCrawler gearbox walking
Walking speed7-15km/h
Cooling systemHydraulic cooler
Carriage travel2.8m
Piling height1-3m
Borehole diameter50-300mm
Borehole depth1-30m
Air consumption6m³/min
Adapt to rock typesMedium hard rock, F=8-12
Climbing ability35°
Hydraulic legs2
Product Features
  • Strong operating capabilities and wide adaptability: Drilling depth up to 30 meters with diameter range of 50-300mm. Flexible drilling angle adjustment between 45° and 90° for precise positioning. Capable of drilling through rock with added impactor to meet diverse construction requirements.
  • Excellent core configuration and stable performance: Equipped with branded single-cylinder diesel engine for strong power and reliable long-term operation. High-torque hydraulic power head ensures fast drilling speed. Advanced hydraulic technology with high-quality components extends hydraulic system service life.
  • Excellent terrain adaptability and flexible maneuverability: Rubber track chassis easily adapts to complex terrains without damaging road surfaces. Compact and flexible design provides superior site adaptability during transfer and operation.
Product Images
High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S 0 High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S 1 High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S 2 High-Quality Drop Hammer Type Fully Hydraulic Piling Machine RCKM-30S 3
