RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

portable water well drilling rig

180-meter mini drilling machine

compact well drilling rig for sale

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Product Details
Bore Depth:
180m
Pipe Diameter:
76mm/89mm
Bore Diameter(hammer):
90-300mm
Air Consumption:
17-31m³/min
Diesel Engine:
77.3kw
Once-time Advance Length:
2.4m
Highlight:

portable water well drilling rig

,

180-meter mini drilling machine

,

compact well drilling rig for sale

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$ 23000-27000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description
RCF180S Portable 180-Meter Mini Water Well Drilling Rig
The RCF180S mini water well drilling rig delivers powerful performance with its 77.3kW Yuchai diesel engine. This compact yet capable rig achieves a maximum drilling depth of 180 meters, provides 4600 N*m rotary head torque, and features a 15-ton lifting capacity.
Weighing only 2700 kg, the rig features a compact structure and flexible operation. It comes with 2-meter drill pipes for easy loading and unloading, utilizes a dual-motor top-drive system, supports both mud and air compressor drilling methods, and includes hydraulic outriggers for convenient transportation.
Ideal for various drilling applications including farmland irrigation, geothermal wells, and deep well projects.
Key Features & Upgrades
  • Powerful High-Performance Engine: Equipped with a 77.3kW Yuchai engine, capable of drilling to 180 meters depth with borehole diameters of 90-300mm. Dual-motor top-drive configuration delivers exceptional torque and efficiency.
  • Compact & Highly Adaptable Design: Small footprint and lightweight construction with rubber tracks enables operation in confined spaces, courtyards, and various terrain conditions. Suitable for farmland, geothermal fields, and deep well applications.
  • Stable Operation & Easy Transport: Fully hydraulic system with hydraulic outriggers ensures stable performance. Optimized structural design allows for truck transportation. Dual-purpose mud/air compressor operation provides maximum practicality.
Technical Specifications
Engine Power 77.3kW Yuchai Diesel Engine
Maximum Drilling Depth 180 meters
Rotary Head Torque 4600 N*m
Lifting Capacity 15 tons
Weight 2700 kg
Drill Pipe Length 2 meters
Borehole Diameter Range 90-300mm

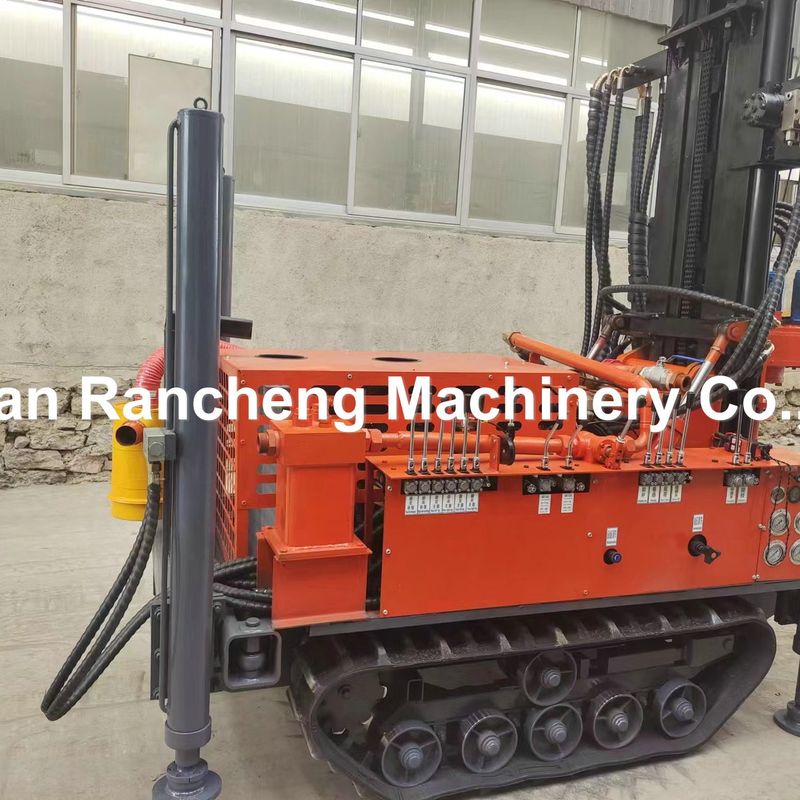

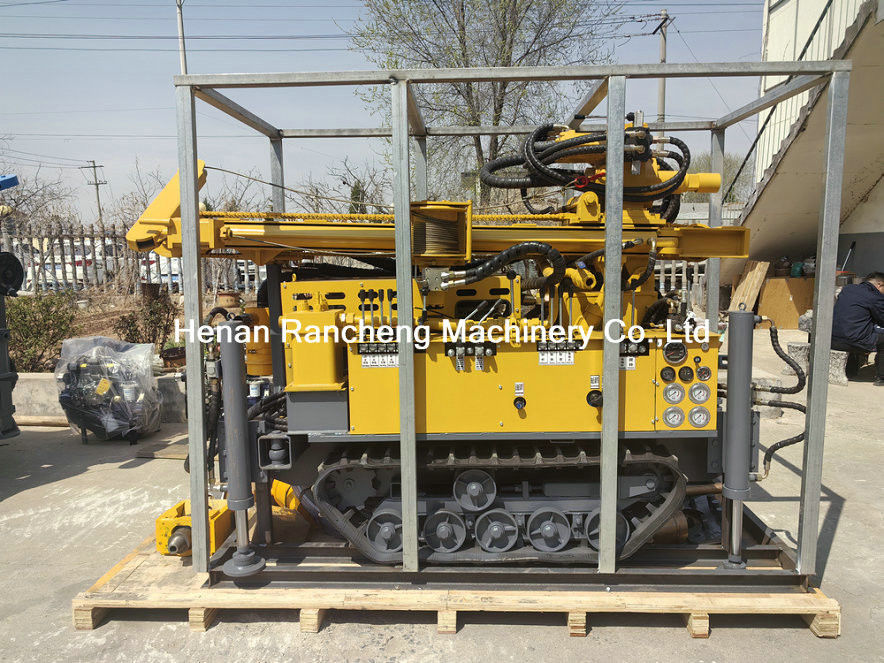

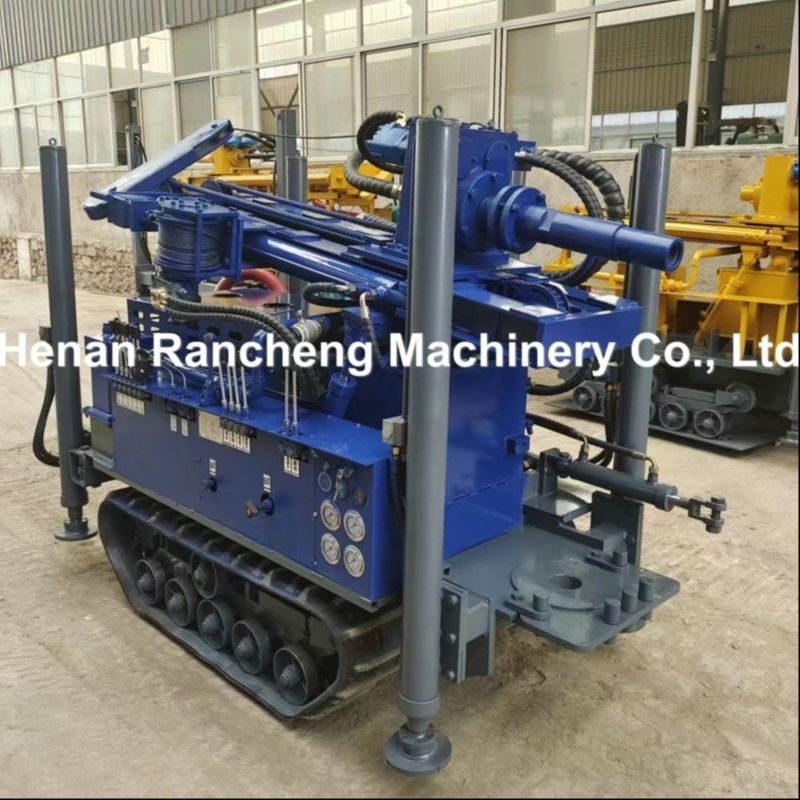

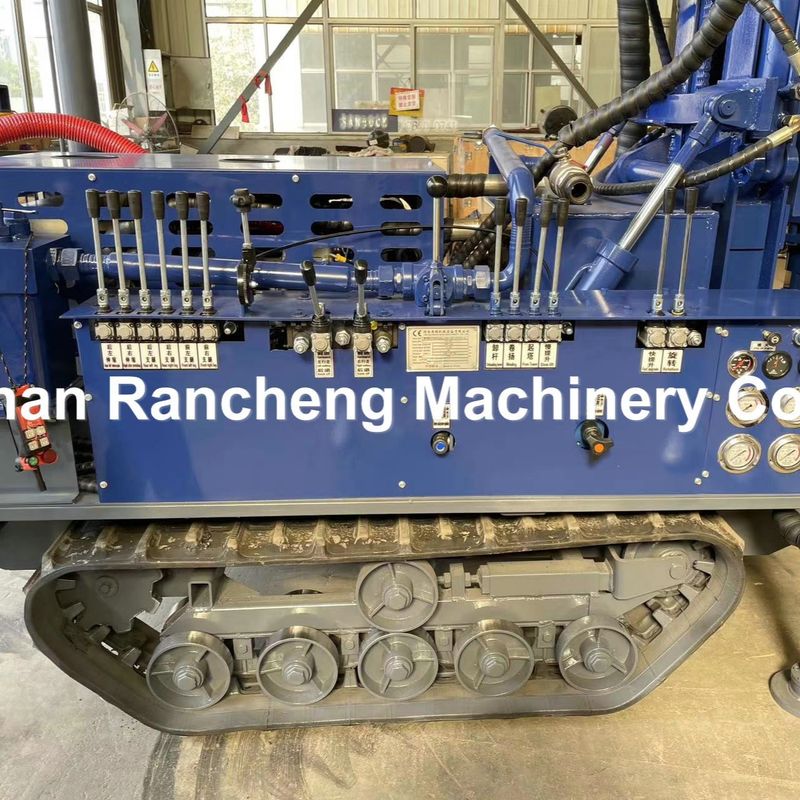

Product Images
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale 0 RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale 1 RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale 2 RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale 3 RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale 4
