Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW

Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW

Borehole Trailer Mounted Water Well Drilling Rigs

Trailer Mounted Water Well Drilling Rigs 45KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC160W

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RC160W
Drill Hole Depth:
160m
Motor:
AC Motor
Power:
45KW
Dimension:
4540X1750X1900mm
Highlight:

Borehole Trailer Mounted Water Well Drilling Rigs

,

Trailer Mounted Water Well Drilling Rigs 45KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

160m Drill Depth Hydraulic Trailer Mounted Borehole Drilling Machine 45KW Power



Machine Introduction



The RC160W water well drilling rig is based on its mature and stable trailer - mounted design and advanced Atlas technology, coupled with the use of head drive, showing unique characteristics. The rig has the ability to be equipped with both a mud pump and an air compressor, providing users with greater operational flexibility and selectivity. Its advantages of being lightweight, efficient, and multi - functional enable it to easily cope with the challenges of different geological conditions. Users can flexibly choose to use air, foam or mud for rotary impact drilling according to specific needs to meet the requirements of various drilling tasks. No matter what geological environment it faces, the RC160W water well drilling rig can perform well and provide users with efficient and reliable drilling solutions.



Technical Parameters



Geology drilled All kinds
Drill depth 160 m
Drilling Diameter 90 - 300mm
Drill system and operation Hydraulic
Rig assembly 1 complete unit, the main engine driven
Mobility 4 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 60/76 mm x 2 m
Mud pump 400 L/min@ 6 bar progressive pump
Foam pump Hydraulic-driven mounted on the rig
Weight 2177 kg
Rotaryhead&feed system
Top head drive by a hydraulic cylinder through the heavy-duty chain.
Rotation torque 2232 N-m
Speed 0 - 34 rpm.
Head travel 2.25 meter
Pull-up capacity 3813.09 kg.
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meters/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 45KW
MODEL YC2115
Drill pipe
Drill pipe length 2.00 meter
Drill pipe diameter 76 mm
Thread 2 3/8 REG API Mod
Powerpack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump
Flow capacity 400 liter/min
Max. working pressure 6 bar
Hydraulic system
Hydraulic tank capacity 140 liter
Stabilizing jack
2 front jacks and 2 rear jacks.
Bore 80 mm.
Stroke 480 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
Dimensions
Overall length 4540 mm
Overall width 1750 mm
Overall height 1900 mm



Machine Advantages



This water drill stands out with its lightweight, efficient, multi - functional design and convenient four - wheel trailer - style transfer. Its remarkable economic practicability brings considerable economic benefits to users, and it also has the ability to adapt to different geological conditions. Equipped with a mud pump and air compressor, it can drill through hard rock formations and perform well in various geological structures. As one of the most popular machines, it can meet various drilling needs and successfully complete the drilling tasks of rural water supply wells, whether in sediments or hard rock.

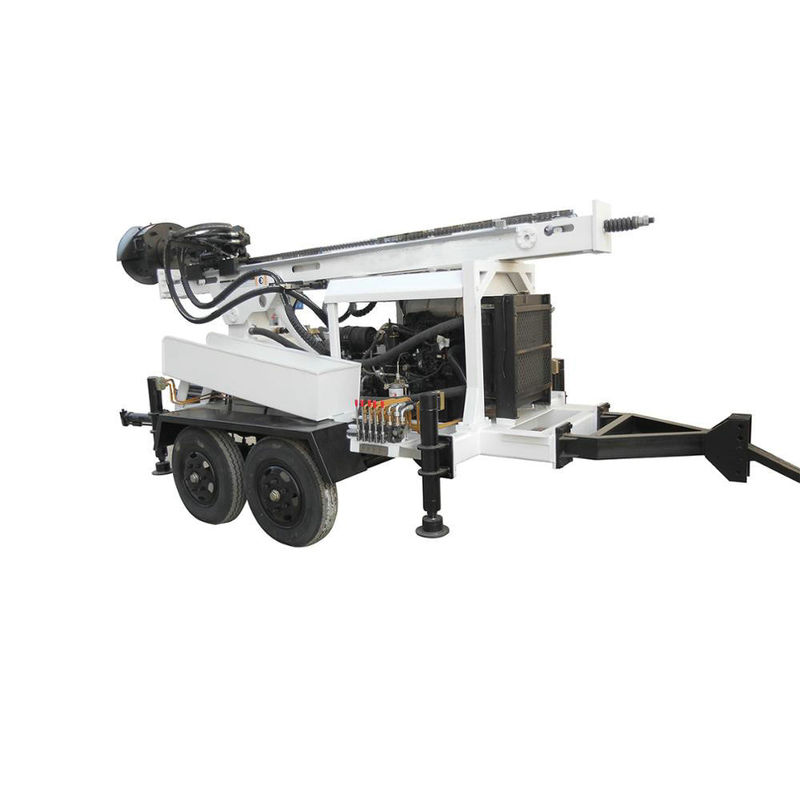

Machine Pictures



Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW 0Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW 1Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW 2Hydraulic Borehole Trailer Mounted Water Well Drilling Rigs 160m Drill Depth 45KW 3
