200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine

200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine

borehole drilling machine 65kw

65kw tricycle mounted water drilling machine

200m borehole drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200W

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200W
Aperture:
140-300mm
Drilling Deep:
200m
Gross Weight:
6T
Dimension:
4300×1700×2350mm
Highlight:

borehole drilling machine 65kw

,

65kw tricycle mounted water drilling machine

,

200m borehole drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m Drilling Depth Tricycle Borehole Drilling Machine 65KW Engine Power



Machine Introduction



The water drilling rig adopts full hydraulic control and can flexibly adjust parameters such as speed and torque to meet the needs of different working conditions. Its top-driven rotary propulsion lift is designed to facilitate the connection and removal of drill pipes, shorten auxiliary time, and is also suitable for drilling with pipes. It has multi - functional drilling technology and supports air down - the - hole drilling and mud pump circulation drilling. It is suitable for various drilling technologies and drilling tools, with high operating efficiency and low cost. The running device adopts a 22 - horsepower Foton brand tricycle with long service life. Positive and negative axial pressure adjustment ensures optimal impact efficiency, and the hydraulic oil pump parallel gearbox design is easy to maintain. The power head device adopts dual motors, which have high torque and durability. The lifting capacity is achieved by designing a combined tower with high tonnage lifting capacity. Each drilling rig is equipped with a limiter to ensure work safety, and the hydraulic oil pipe has a protective sleeve to extend its service life.



Technical Parameters



Model RCF200W
Gross weight T 6
Dimension mm 4300×1700×2350
Aperture mm 140-300
Drilling depth m 200
Feed stroke mm 3300
Travel speed km/h 20
Grade ability Max. 30°
Distance from ground mm 250
Wind pressure Mpa 1.7-2.5
Air consumption m³/min 15-27
Drill pipe diameter mm φ76 φ89
Drill pipe length m 1.5 2.0 3.0
Lifting force T 13
Engine power kw 65
Rotary speed rpm 45-70
Rotation torque N.m 4200-5600



Machine Advantages



First of all, its maximum drilling depth can reach 200 meters, which is suitable for various operating needs and provides users with greater flexibility and choice. Secondly, the machine is compact in design and small in size, making it easy to operate in various terrains, allowing the drill rig to easily cope with complex working environments. In addition, the machine has high moving speed and climbing ability, allowing it to quickly reach the job site and operate flexibly in various terrain environments. The high - power engine equipped with the machine provides sufficient power support and efficient speed and torque to ensure efficient and smooth drilling operations. In addition, the drilling rig also has a large drilling diameter range and a wide range of drill pipe length options to meet different drilling needs and provide users with more choices and convenience.



Machine Pictures

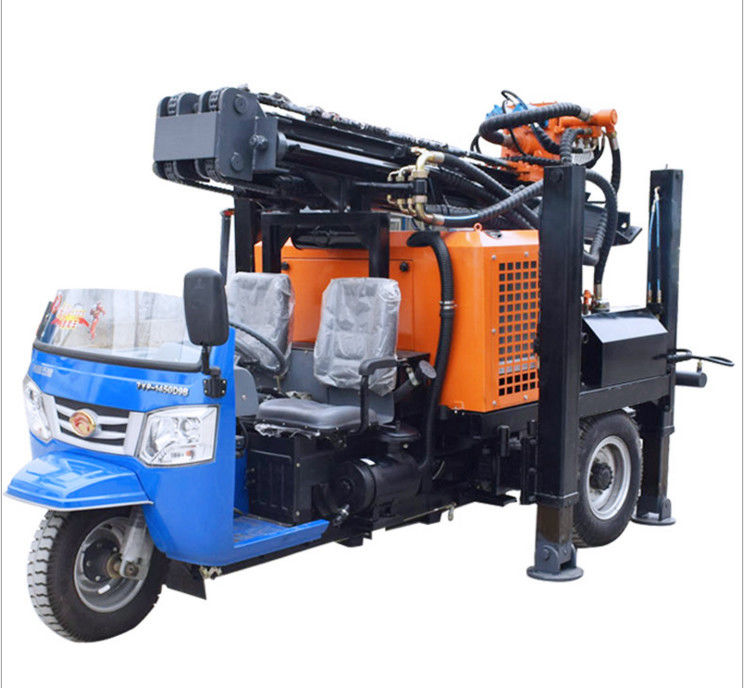

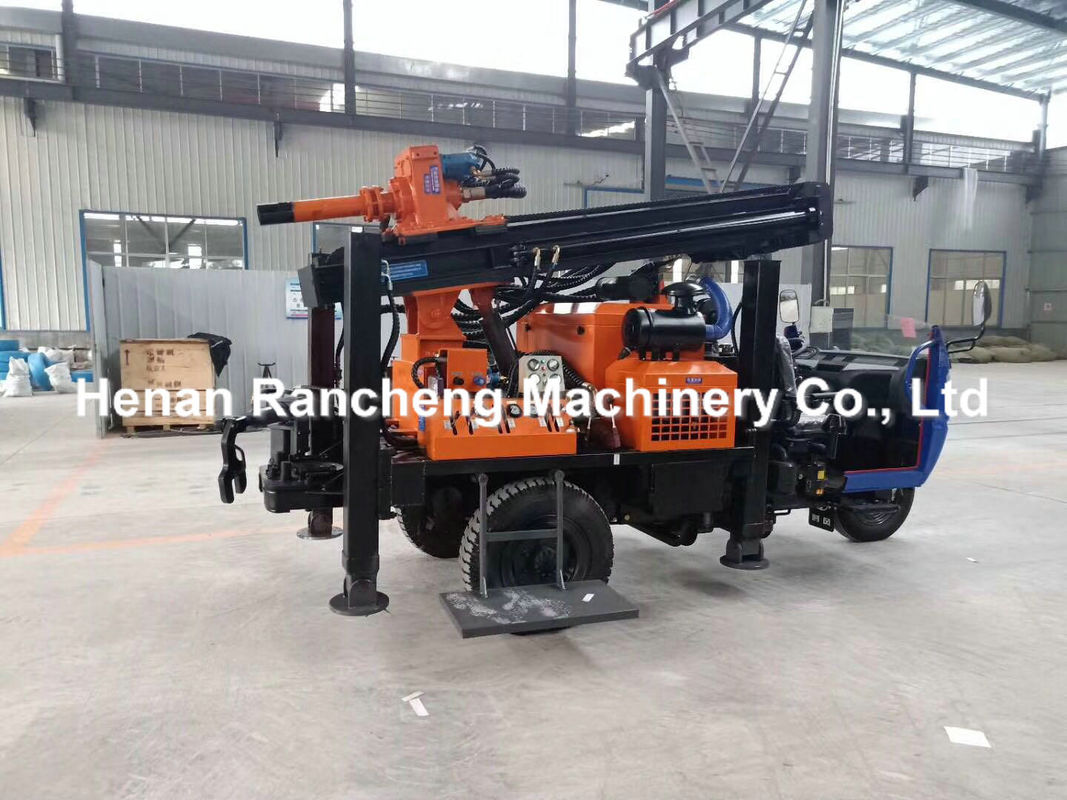

200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine 0200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine 1200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine 2

200m Depth Borehole Drilling Machine 65KW Tricycle Mounted Water Drilling Machine 3
