150m Depth Borehole Drilling Machine 30KW Four Wheel Tractor Water Well Drilling Rig

150m Depth Four - Wheel Trailer Borehole Drilling Machine 30KW Generator Power

Machine Introduction

The RC150WT wheeled drilling rig is a very good choice to drilling. First of all, its advanced top drive technology, vibration technology and full hydraulic control enable it to save 50 %  energy than similar drilling rigs and perform well in energy utilization. Secondly, the machine structure is durable, compact and stable, and does not need to be disassembled during transportation, which greatly improves the convenience and efficiency of transportation. Third, the drilling rig has a fast and stable drilling speed, maintains the vertical accuracy of drilling, and has high reliability. The power head adopts a vibration combination gear reducer with large torque, which is especially suitable for dealing with hard rock conditions and increases the drilling speed. Finally, this machine is suitable for a variety of drilling projects, including soil, sand, rock, gravel, weathered rock, building precipitation, geothermal, industrial and agricultural wells, household wells and other fields, and has broad application prospects and applicability.

Technical Parameters

Machine Advantages

This drilling rig is suitable for drilling operations with diameters ranging from 100 to 400 mm and depths ranging from 40 to 150 meters. The drilling speed can reach 40 to 50 meters per hour in soft soil strata, showing high efficiency. The electric rotary digging head has a power of 7.5 kilowatts, the tractor diesel engine has a power of 36 horsepower, and the generator has a power of 30 kilowatts, ensuring sufficient power support. The power of the sewage pump is 5.5 kW or 7.5 kW, ensuring drainage efficiency. The drilling pipe lifting speed is 30 meters per minute, and the maximum lifting capacity is 1 ton, which improves operating efficiency and safety. The machine size is 3400x1350x2200 mm and the weight is 1800 kg. It has a compact structure and light weight, making it easy to transport and operate.

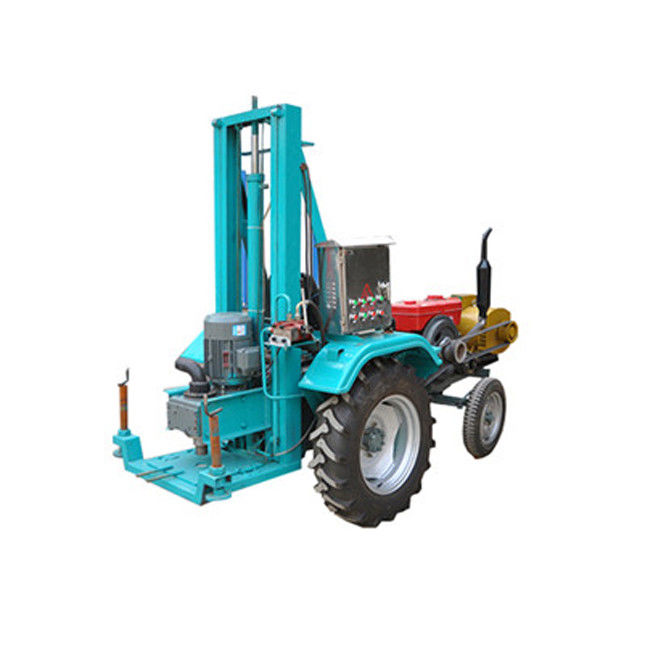

Machine Pictures
