50hp Borehole Drilling Machine With 5000-5500 Output Torque And 25 Degree Climbing Angle

50hp Borehole Drilling Machine With 5000-5500 Output Torque And 25 Degree Climbing Angle

5500 Output Torque Borehole Drilling Machine

25 Degree Borehole Drilling Machine

50hp Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260WT

Contact Us
Request A Quote
Product Details
Product Name:
50hp Borehole Drilling Machine With 5000-5500 Output Torque And 25 Degree Climbing Angle
Dimension (mm):
4000*1700*2700
Tractor Horse Power (hp):
50
Feed Stroke (mm):
2000
Travelling Speed (km/h):
30
Bore Depth:
260m
Output Torque (n.m):
5000 -5500
Rod Diameter (mm):
76 & 89
Highlight:

5500 Output Torque Borehole Drilling Machine

,

25 Degree Borehole Drilling Machine

,

50hp Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

50hp Borehole Drilling Machine with 5000-5500 Output Torque and 25 Degree Climbing Angle

Product Description:

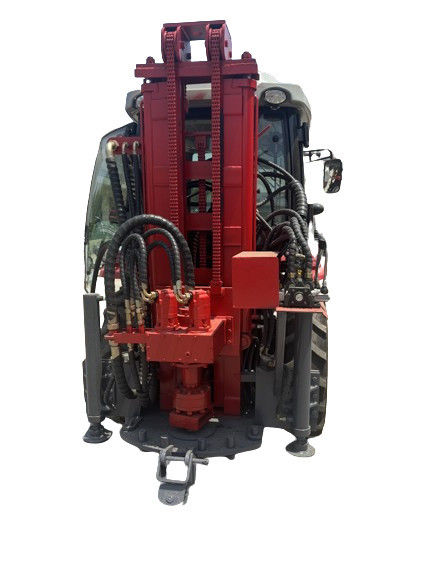

RCF260WT deep well drilling machine drills max depth of 260m. With a climbing angle of 25 degrees, it can tackle the tough terrain with ease. RCF260WT deep well drilling machine is the Integration of tractor and rig. The integrated drilling rig and tractor, with the air compressor towed behind and a three-wheeled vehicle for loading drill pipes, save on transport investment and offer flexibility for driving and operating in wild, rural areas.



Features:

  • Product Name: Borehole Drilling Machine
  • Tractor Horse Power (hp): 50
  • Dimension (mm): 4000*1700*2700
  • Hole Diameter (mm): 140 - 254
  • Rod Diameter (mm): 76 & 89
  • Weight: 4500kg


Technical Parameters:

Product Name 50hp Borehole Drilling Machine with 5000-5500 Output Torque and 25 Degree Climbing Angle
Output Torque (n.m) 5000 - 5500
Rotation Speed (rpm) 45 - 65
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 31
Travelling Speed (km/h) 30
Bore Depth 260m
Tractor Horse Power (hp) 50
Weight 4500kg
Dimension (mm) 4000*1700*2700


Applications:

The RCF260WT is designed for drilling water wells up to 260 meters deep, making it suitable for a wide range of applications. This powerful machine has a lifting force of 12t and a rotation speed of 45-65 rpm, providing the power and speed to work quickly and efficiently. With an output torque of 5000-5500 n.m and a travelling speed of 30 km/h, the RCF260WT is a versatile and dependable tool for any drilling project.

Support and Services:

1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.

FAQ:

Q:Are you the manufacturer?

A: Yes, we are the factory with more than 10 years of manufacturing experience.

Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.

Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.


Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
