220m Wheel Mounted Water Well Drilling Rig With 1.4m High Hydraulic Leg
Machine Introduction
The RCF220W tractor is an extremely flexible machine that can be adapted to a wide range of installation requirements, including a variety of hydraulic systems, providing different surface characteristics.
With its flexible structure, excellent testing capabilities, high performance for a wide range of exploration applications, special safety complex, complete geothermal system, large-scale fund management and large-scale application, high-performance demonstration capabilities and excellent efficiency, the RCF220W is a highly reliable and powerful industrial project.
Made of high-quality materials, the RCF220W has a compact and stylish design, providing a clean and comfortable fit while reducing weight and ensuring lung stability.
Technical Parameters
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
220m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
1m,2m,3m |
| Lifting force |
13T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
24m/min |
| Fast feeding speed |
35m/min |
| Max torque of rotary |
3400-4700Nm |
| Rotary speed |
45-70r/min |
| Hoisting force of winch |
1.4T |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4×1.75×2.25M |
| Weight |
5500Kg |
| Diesel engine |
65KW Quanchai engine |
Machine Advantages
1. The speed, torque, axial thrust, axial back pressure, propulsion speed and lifting speed of the water drilling rig can be adjusted at any time to meet the requirements of different drilling tool conditions and different construction processes.
2. The drilling rig is easy to connect and disassemble with the drill rod, shortening the auxiliary time and facilitating drilling with the rod.
3. The well drilling rig adopts mud pump circulation drilling process and air down-the-hole drilling. Mud pump, foam pump and generator can be optionally installed on the chassis of the drilling rig.
4. Due to the use of full hydraulic rotary drive and top drive lifting, it can adapt to a variety of drilling processes and a variety of drilling tools, with convenient and flexible control, fast drilling speed, short auxiliary time and high work efficiency.
5. Down-the-hole hammer water well drilling mainly adopts down-the-hole hammer drilling technology. DTH rock drilling efficiency is high and the cost per meter is low.

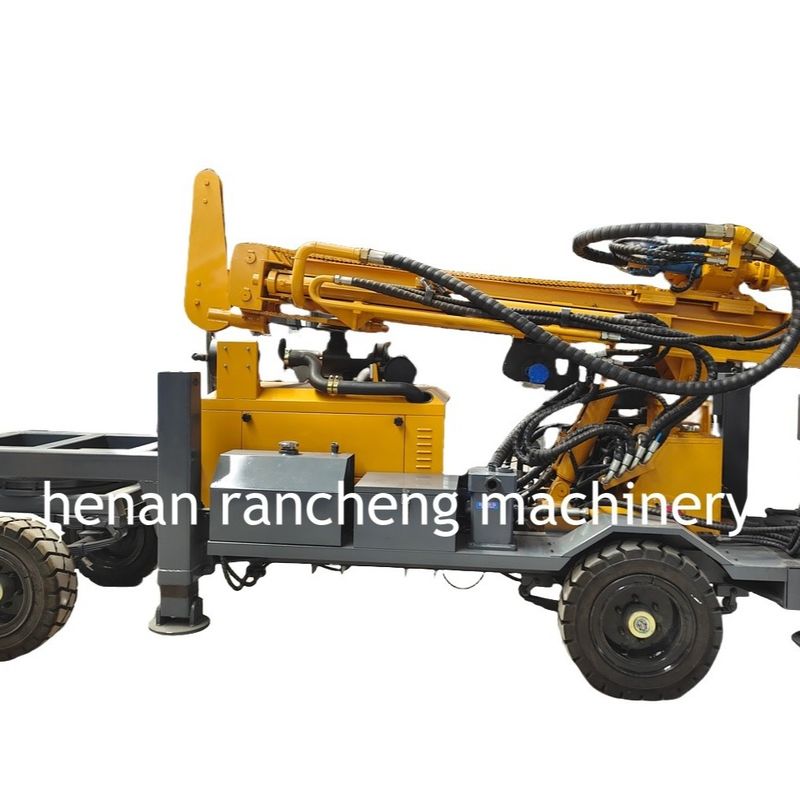

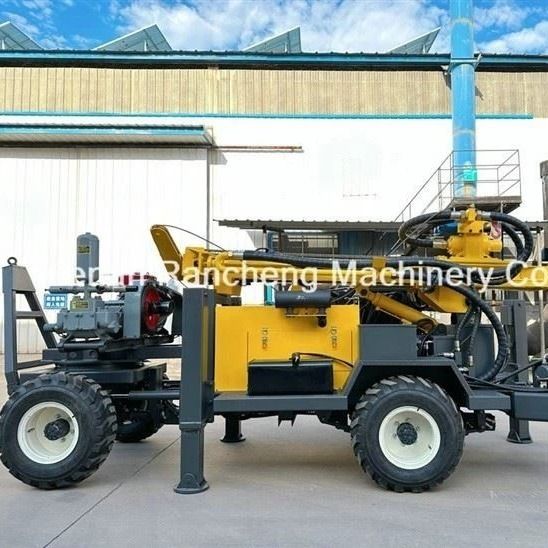

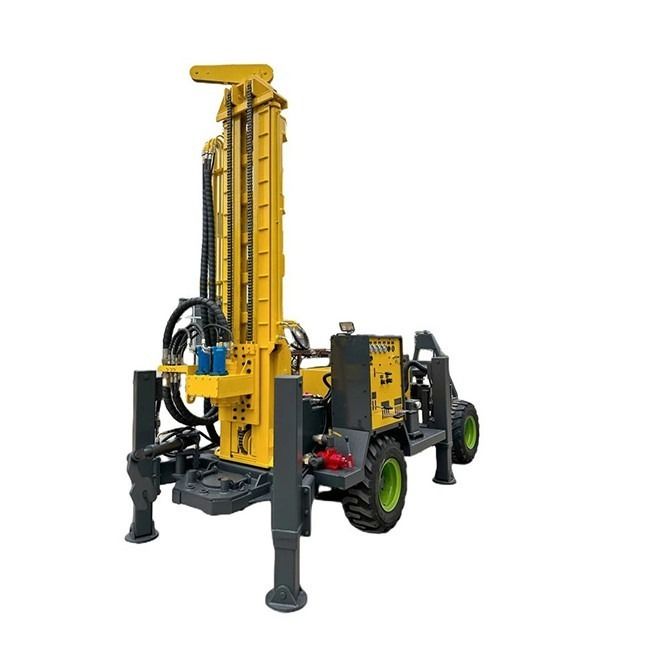

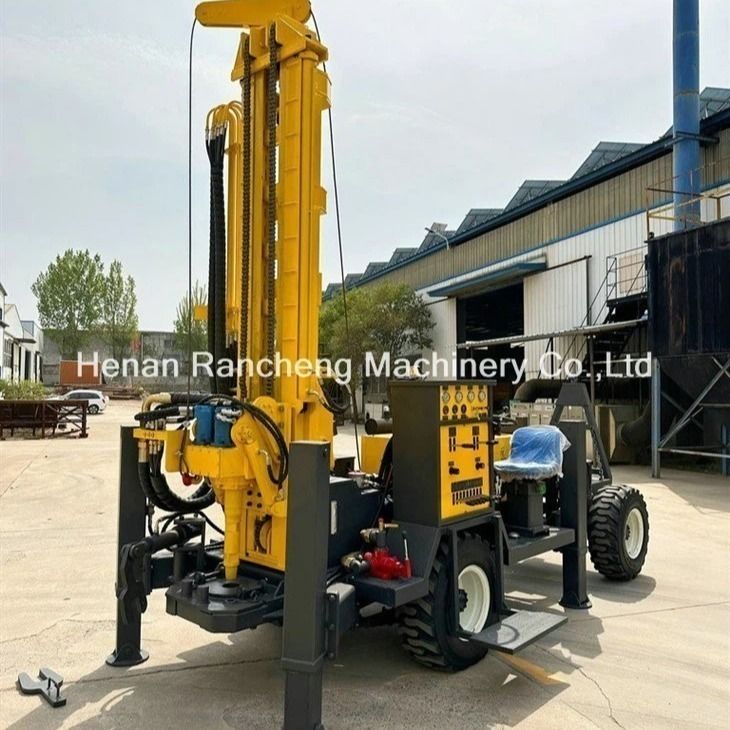

Machine Pictures
