200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power

200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power

Hydraulic DTH Drilling Rig

22 HP DTH Drilling Rig

200m DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200W

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200W
Aperture:
140-300mm
Drilling Deep:
200m
Gross Weight:
6T
Dimension:
4300×1700×2350mm
Rotary Speed:
45-70
Distance From Ground:
250
Highlight:

Hydraulic DTH Drilling Rig

,

22 HP DTH Drilling Rig

,

200m DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power



Machine Introduction



RCF200W deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.



Technical Parameters



Model RCF200W
Gross weight T 6
Dimension mm 4300×1700×2350
Aperture mm 140-300
Drilling depth m 200
Feed stroke mm 3300
Travel speed km/h 20
Grade ability Max. 30°
Distance from ground mm 250
Wind pressure Mpa 1.7-2.5
Air consumption m³/min 15-27
Drill pipe diameter mm φ76 φ89
Drill pipe length m 1.5 2.0 3.0
Lifting force T 13
Engine power kw 65
Rotary speed rpm 45-70
Rotation torque N.m 4200-5600



Machine Advantages



1.The water drilling rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.

2.This bore well rig is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.

3.This drilling rig adopt air DTH drilling and mud pump circulation drilling process .it is optional items to install mud pumps, foam pumps and generators in to the drilling machine chassis.

4.Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.

5.Each rig is equipped with a stopper to raise the boom to protect the cylinder and ensure work safety.

6.Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life.

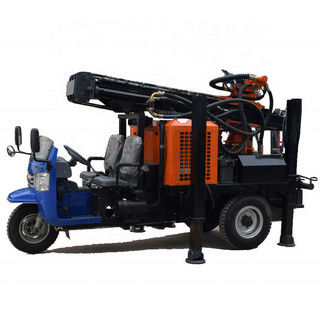

Machine Pictures



200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power 0200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power 1200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power 2

200m 22 HP Futian Brand Tricycle Mounted Hydraulic DTH Drilling Rig With Higher Air Power 3
