Wheel Trailer Mounted Borehole Drilling Machine 150m Depth 32HP Engine
Machine Introduction
The 150m wheel-mounted water well drilling rig is a high-performance machine specifically designed for drilling deep water wells. It is equipped with a powerful engine and a robust hydraulic system, enabling efficient operation even in challenging conditions.
One of the standout features of this rig is its mobility. Thanks to its wheel-mounted design, the rig can be easily transported to the drilling site, allowing for effortless movement around the job site—particularly beneficial when drilling multiple wells in the same area.
Additionally, the 150m wheel-mounted water well drilling rig boasts impressive drilling capabilities. It can reach depths of up to 150m and has a drilling diameter range of 90-220mm. This versatility makes it suitable for a variety of well types, including water wells, geothermal wells, and irrigation wells.
Technical Parameters
| Bore diameter(Hammer) |
100-220mm |
| Bore depth |
150m |
| Air consumption |
15-29m³/min |
| Air pressure |
1.45-2.5Mpa |
| Pipe diameter |
76mm |
| Pipe length |
1m,2m |
| Lifting force |
12T |
| Max torque of rotary |
4000Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Travel speed |
3Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4×1.45×2.05M |
| Weight |
3000Kg |
| Diesel engine |
32HP Diesel engine |
Machine Advantages
1. Hydraulic System: Features a renowned hydraulic pump and valve, ensuring smooth and comfortable operation.
2. Three-Wheel Mobility: Designed with three wheels for easy transport and effortless adjustment of the drilling rig's level.
3. Pressure Gauge: Displays the condition at the bottom of the drill hole, providing real-time monitoring for optimal performance.
4. Diesel Engine with Electric Starter: Offers convenience and reduces labor intensity, making operation easier.
5. Four Large Hydraulic Legs: Facilitate easy leveling adjustments, ensuring stability during drilling operations.

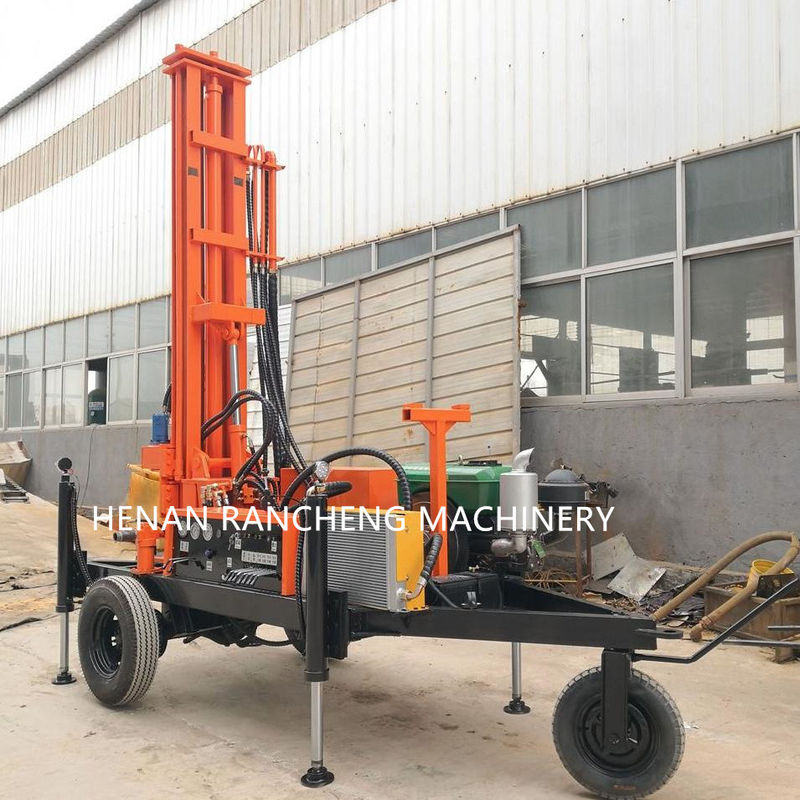

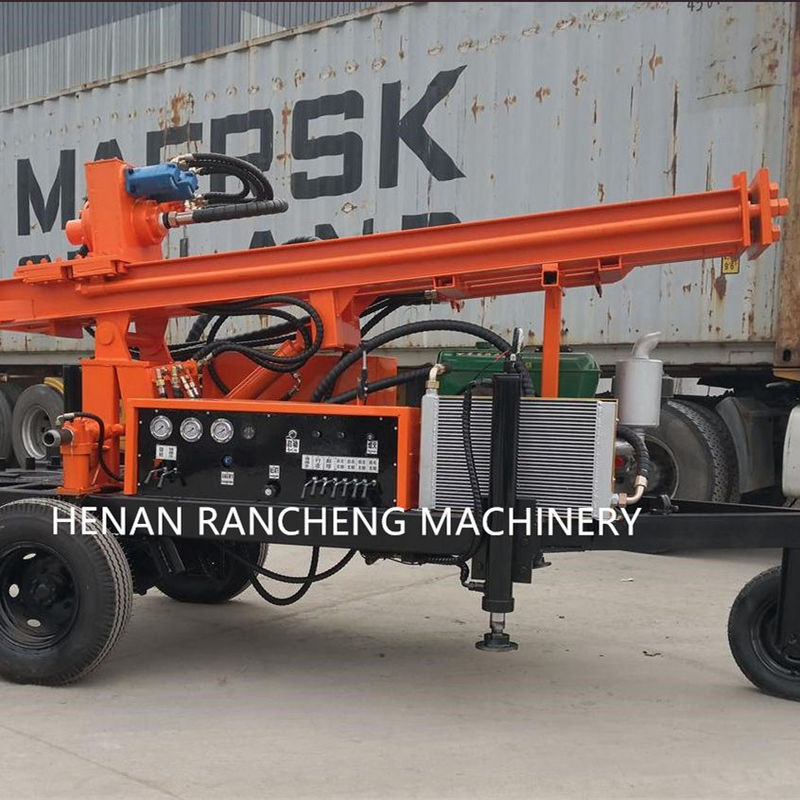

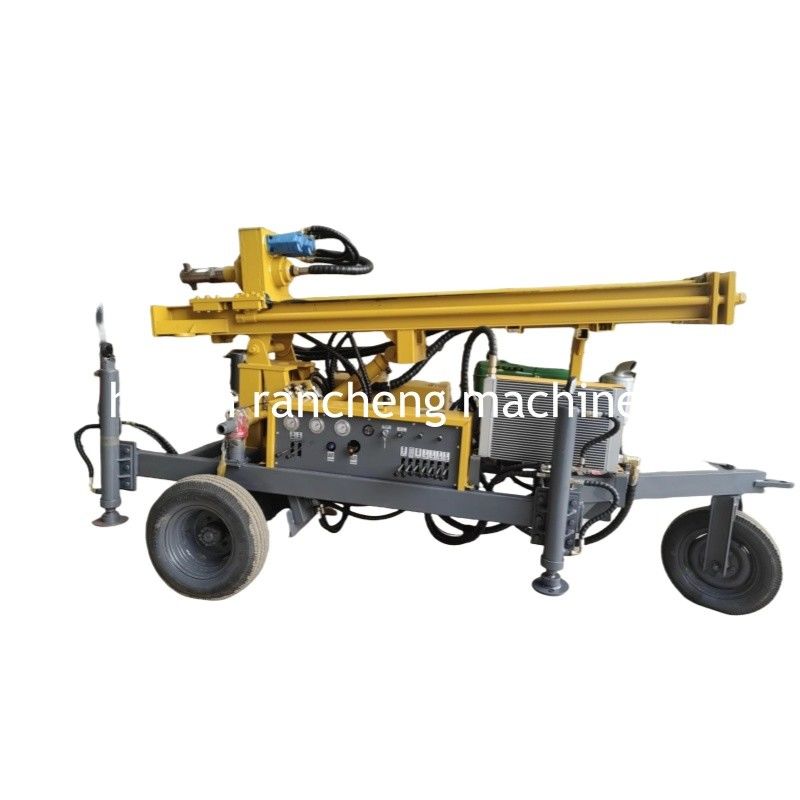

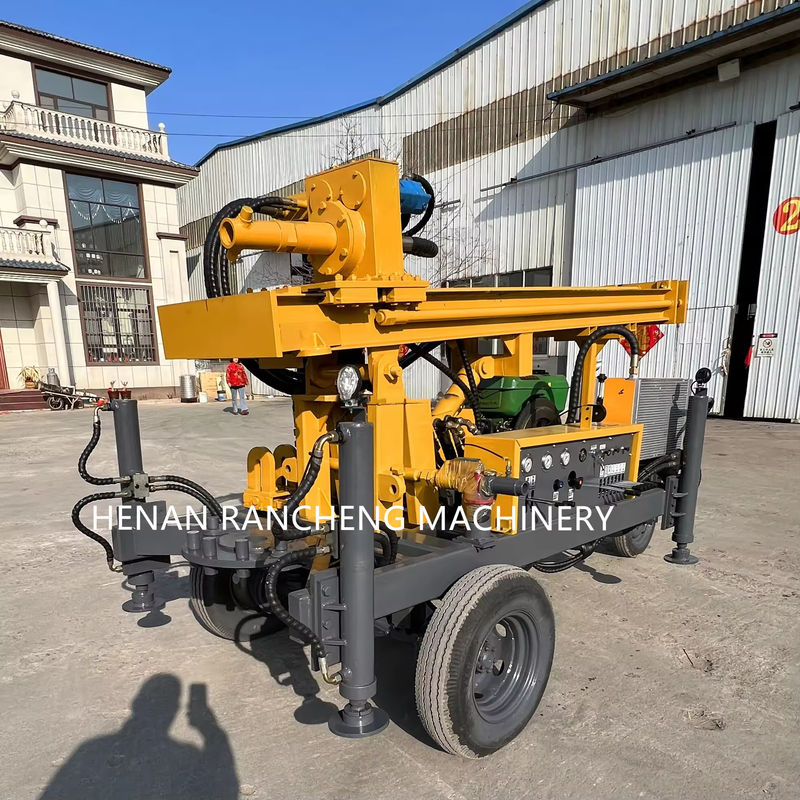

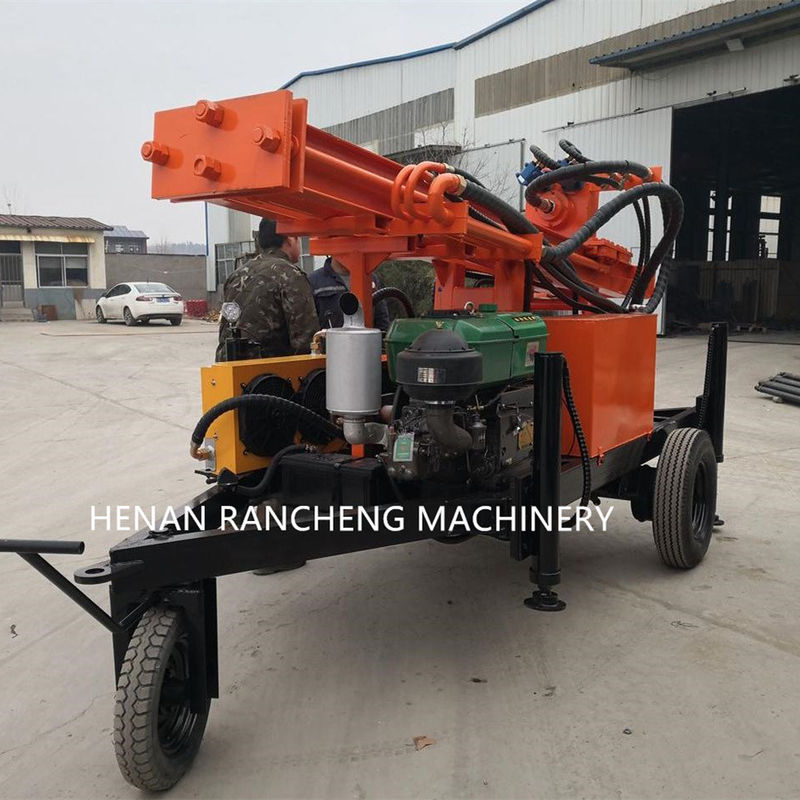

Machine Pictures
