150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine

150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine

150m Depth Borehole Drilling Machine

Trailer Mounted Borehole Drilling Machine

Wheel Trailer Mounted Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150W

Contact Us
Request A Quote
Product Details
Name:
Trailer Mounted Water Well Drilling Rig
Model:
RCF150W Trailer Mounted Water Drilling Machine
Max Drilling Depth:
150m
Drilling Diameter(mm):
90-220
Total Weight:
3000kg
L*W*H:
4000*1450*2050mm
Highlight:

150m Depth Borehole Drilling Machine

,

Trailer Mounted Borehole Drilling Machine

,

Wheel Trailer Mounted Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Hot Selling 150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine



Machine Introduction



The RCF150W borewell machine is a lightweight, efficient, and versatile drilling solution. Its three-wheeled trailer design allows for easy and quick transportation. With a compact structure, this borewell machine is convenient to carry. It features a fully hydraulic drive system, resulting in a low failure rate. Additionally, the tower assembly is equipped with a hydraulic compensation mechanism, enhancing stability and load-bearing capacity when the tower is grounded during operation.



Technical Parameters



Bore diameter(Hammer) 100-220mm
Bore depth 150m
Air consumption 15-29m³/min
Air pressure 1.45-2.5Mpa
Pipe diameter 76mm
Pipe length 1m,2m
Lifting force 12T
Max torque of rotary 4000Nm
Rotary speed 40-65r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Travel speed 3Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.45×2.05M
Weight 3000Kg
Diesel engine 32HP Diesel engine



Machine Advantages



Powerful drilling capability: The RCF150W borewell machine excels at drilling through hard rock formations and operates efficiently in various geological conditions.



Portability: Weighing approximately 3000 kg, the RCF150W can be easily towed by a pickup truck. Its three-wheeled design facilitates convenient transportation and leveling adjustments of the drilling rig.



Integrated design: This machine features a compact design that combines an on-board power pack, drill rod storage, and foam pump on a single-axle trailer, allowing for quick installation in most locations.



Hydraulic system: The RCF150W utilizes reputable hydraulic pumps and valves, ensuring straightforward operation.

Borehole monitoring: A pressure gauge provides real-time information on the borehole's condition, enabling effective monitoring and adjustments during the drilling process.



Electric starter: The diesel engine is equipped with an electric starter, enhancing usability and reducing the physical effort required for operation.



Stability: Four large hydraulic legs allow for easy leveling adjustments, ensuring stability throughout the drilling process.

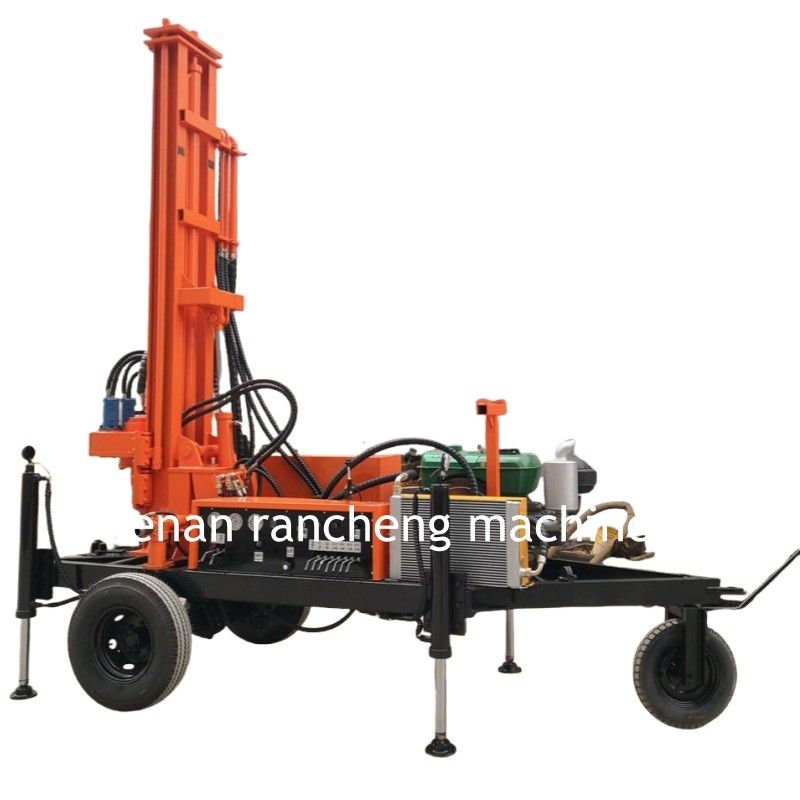

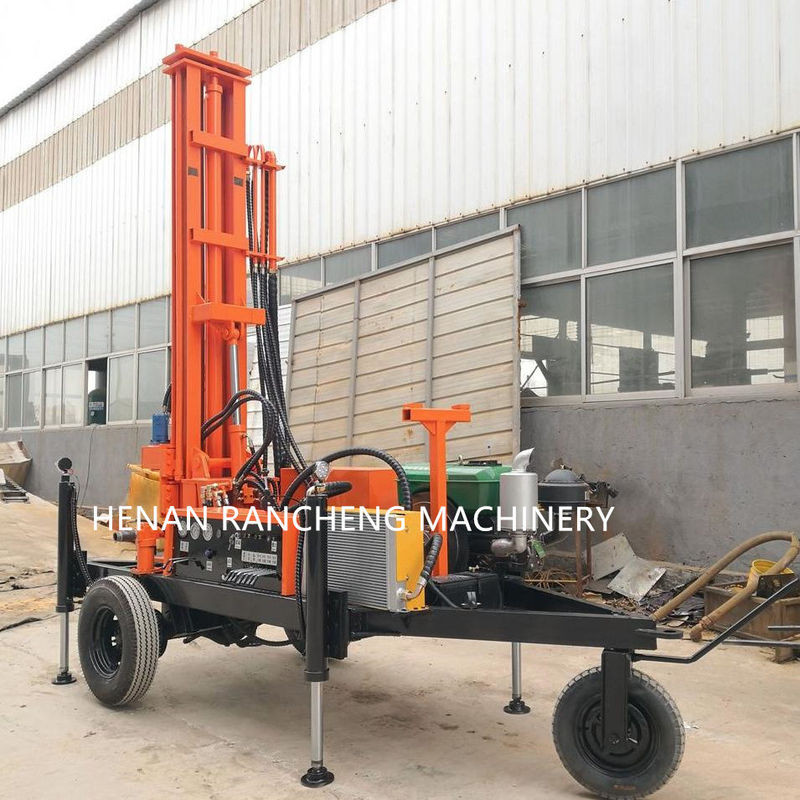

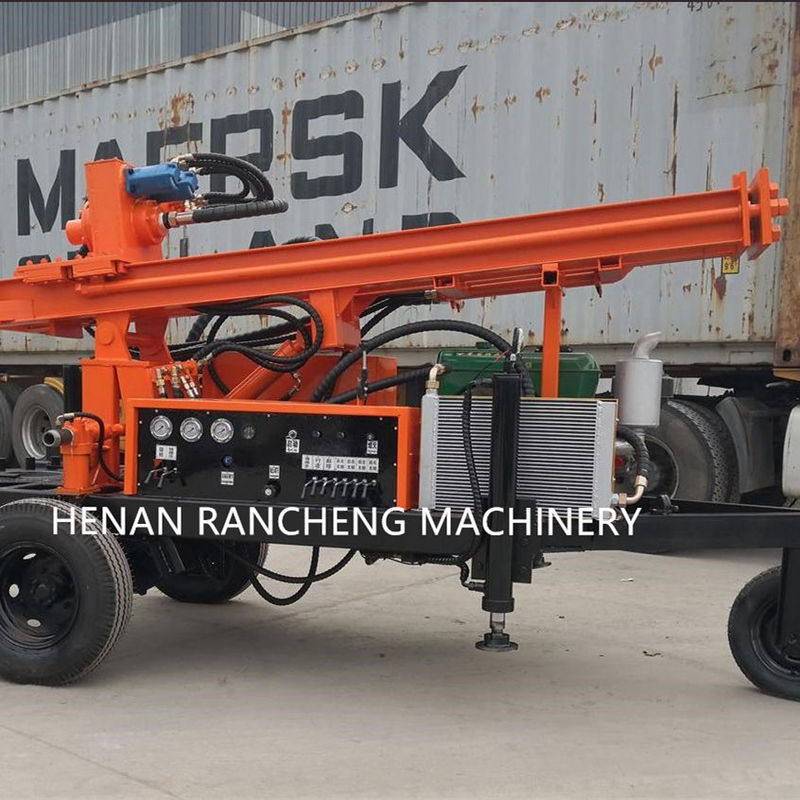

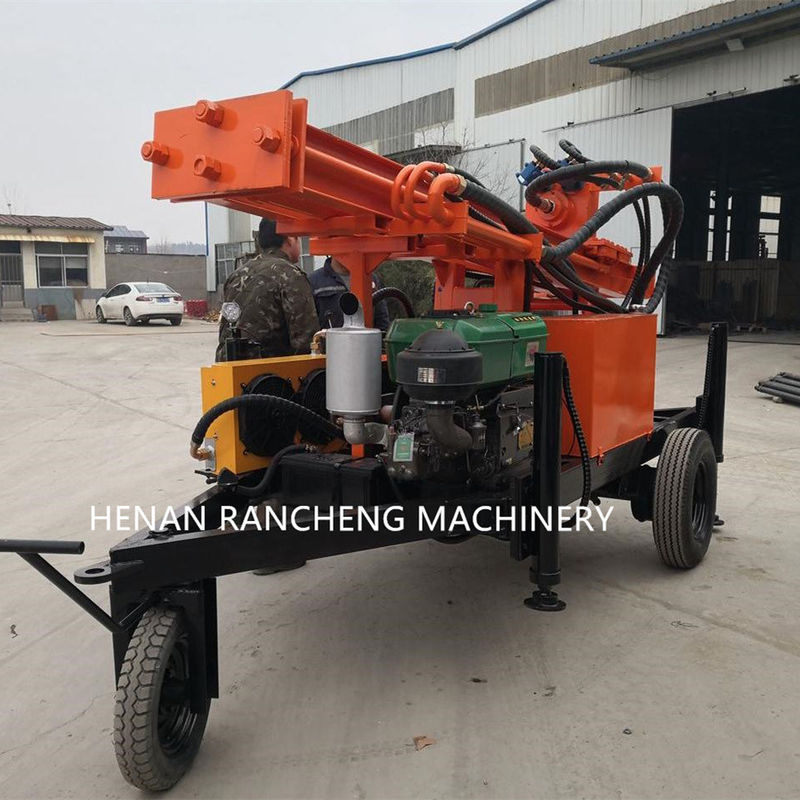

Machine Pictures



150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine 0150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine 1150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine 2150m Depth Wheel Trailer Mounted Borehole Drilling Rig Machine 3



Company Information



Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.


We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
