Low Price 150m Depth wheel-mounted water well drilling rig Machine with 32HP
Machine Introduction
The rig is designed to withstand harsh working conditions, with high-quality components and heavy-duty steel construction that ensure durability in tough drilling environments, minimizing wear and tear.
In summary, the 150m wheel-mounted water well drilling rig's mobility, high-performance drilling capabilities, ease of operation, and reliability make it a popular choice in the industry.
This type of water well drilling machine utilizes advanced reverse circulation technology, allowing for fast drilling speeds and a simple structure that is easy to operate. The operation can be mastered within an hour, making transportation and disassembly straightforward. Assembly takes only a few minutes, enabling operators to significantly reduce labor intensity and improve efficiency compared to similar rigs.
The machine is effective for drilling in clay, loam, sand, weathered rock, and limited gravel areas, showcasing its mechanical strengths. It is suitable for water well drilling and geothermal applications, offering advantages such as large diameter, deep hole depth, fast speed, flexibility, and high efficiency.
Technical Parameters
| Bore diameter(Hammer) |
100-220mm |
| Bore depth |
150m |
| Air consumption |
15-29m³/min |
| Air pressure |
1.45-2.5Mpa |
| Pipe diameter |
76mm |
| Pipe length |
1m,2m |
| Lifting force |
12T |
| Max torque of rotary |
4000Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Travel speed |
3Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4×1.45×2.05M |
| Weight |
3000Kg |
| Diesel engine |
32HP Diesel engine |
Machine Advantages
Exceptional Drilling Performance: The RCF150W borewell machine is highly effective at penetrating hard rock formations and demonstrates efficiency in a variety of geological conditions.
Easy Portability: With a weight of approximately 3000 kg, the RCF150W can be effortlessly towed by a pickup truck. Its three-wheeled design makes transportation and leveling adjustments simple and convenient.
Compact Integrated Design: This machine boasts a streamlined design that incorporates an on-board power pack, drill rod storage, and foam pump on a single-axle trailer, enabling quick setup in various locations.
Reliable Hydraulic System: The RCF150W is equipped with well-known hydraulic pumps and valves, ensuring easy and intuitive operation.
Real-time Borehole Monitoring: A pressure gauge offers immediate insights into the borehole's status, allowing for effective monitoring and necessary adjustments during the drilling process.
User-friendly Electric Starter: The diesel engine features an electric starter, improving usability and minimizing the physical effort needed for operation.
Enhanced Stability: Four robust hydraulic legs provide effortless leveling adjustments, guaranteeing stability throughout the drilling operation.

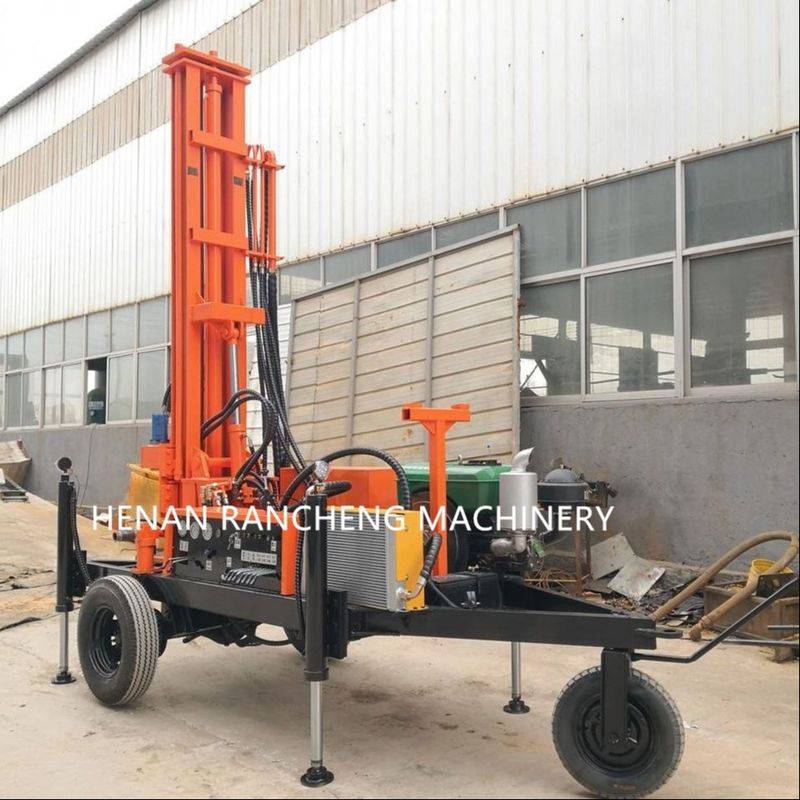

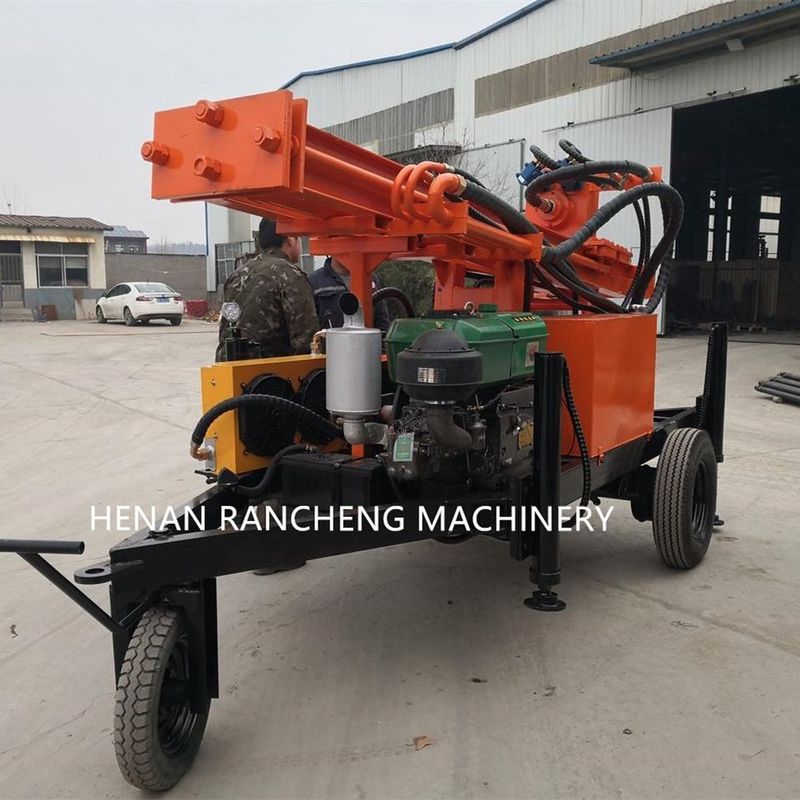

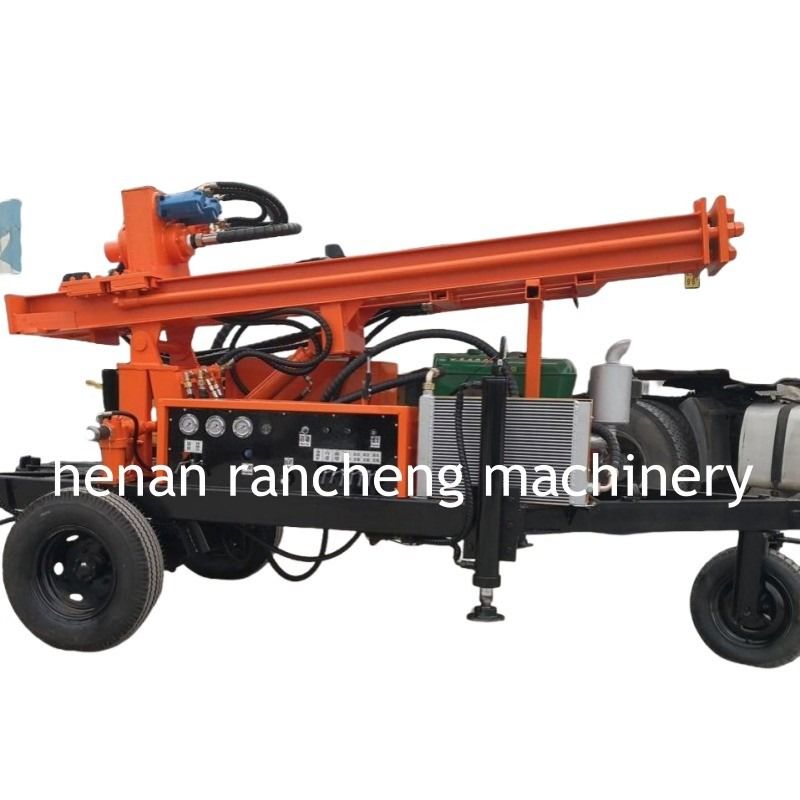

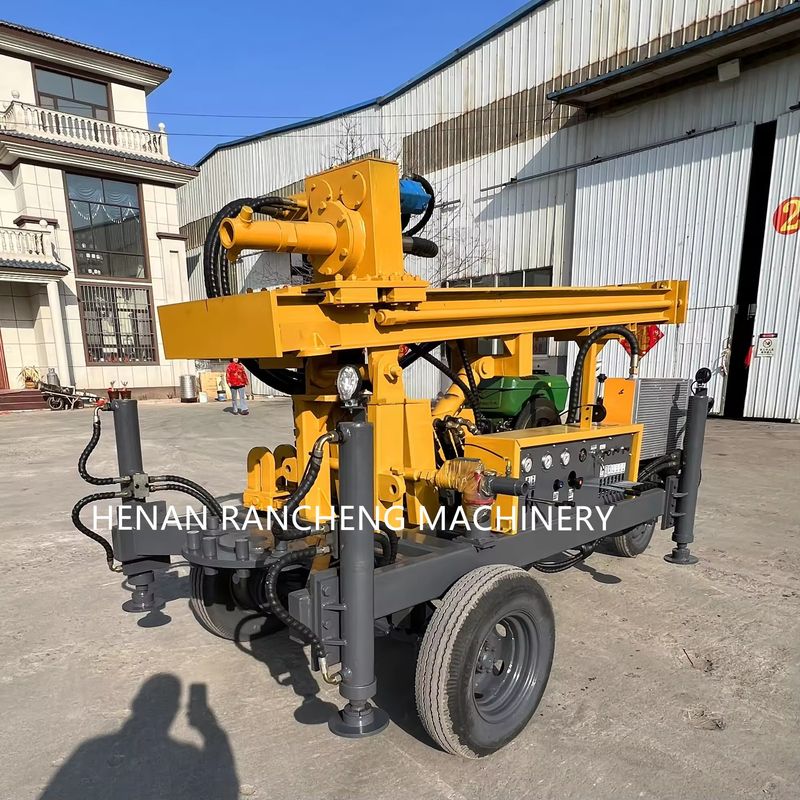

Machine Pictures
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
