130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke

200m Borehole Drilling Rig

150m Borehole Drilling Rig

130m Borehole Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ130W / RCJ150W / RCJ200W

Contact Us
Request A Quote
130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke
130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke
Product Details
Name:
Borehole Drilling Machine
Model:
RCJ130W / RCJ150W / RCJ200W
Drilling Depth:
130m / 200m
End Hole Dia:
75mm
Drill Rod Dia:
42-60mm
Stroke:
450mm
Rated Load:
18T
Height:
6.5m
Highlight:

200m Borehole Drilling Rig

,

150m Borehole Drilling Rig

,

130m Borehole Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke



Machine Introduction



RCJ130W, RCJ150W, RCJ200W small hydraulic drills are multifunctional equipment designed for drilling water wells. Their advanced design and hydraulic technology enable them to meet drilling needs in various geological conditions. For hard rock formations, these drills are usually equipped with diamond drill bits to ensure efficient drilling and high-quality core samples. For softer formations, such as clay, alloy drill bits are more suitable and can achieve stable drilling.



In addition to the flexibility of drill bit selection, these small hydraulic drills are also easy to use and have a sturdy structure. Their operating efficiency is very good, and the drilling work is practical and efficient. Whether used for geological exploration or water well drilling, these drills have demonstrated excellent performance and reliability and are indispensable equipment for drilling operations.



Machine Parameters



Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38



Machine Characteristics



1. Hydraulic control system, easy to use.



2. Diesel engine power, easy to use, electric is especially suitable for remote areas.



3. Install two wheels, can be transported by pickup truck or tractor, easy to move to any place.



4. Can drill through any hard ground such as soil, sand, gravel, thick stone, marble, etc.



Machine Pictures

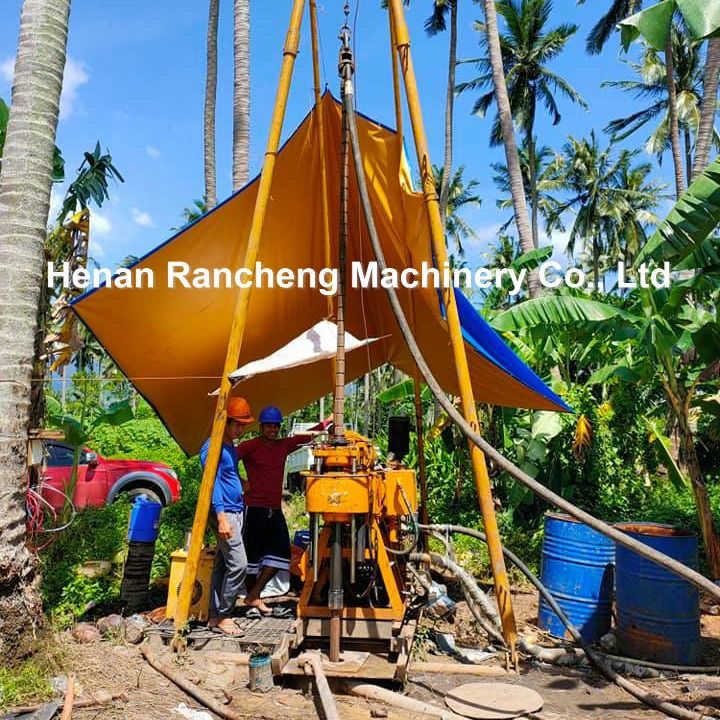

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 0

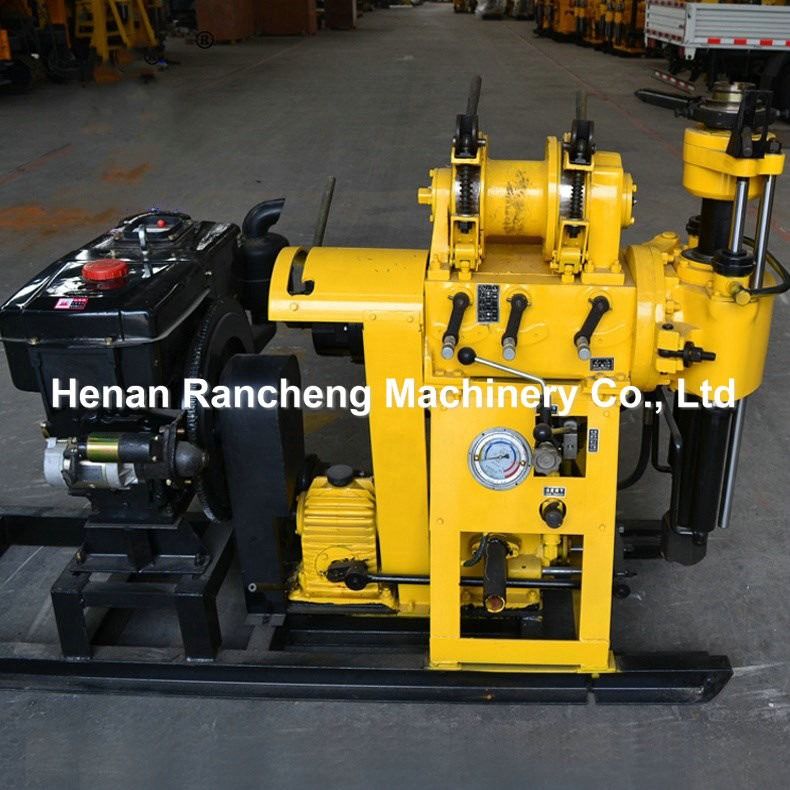

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 1

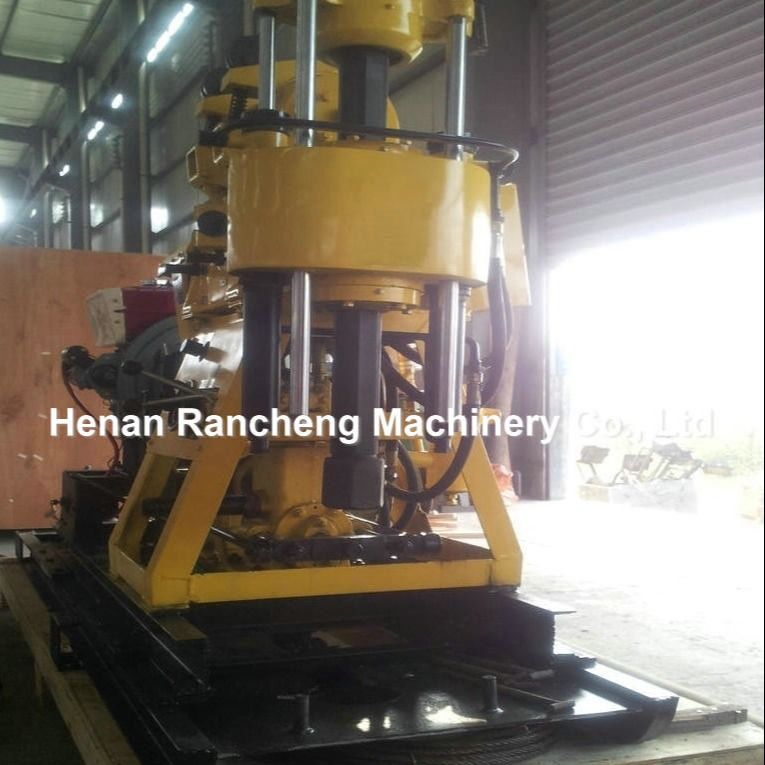

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 2

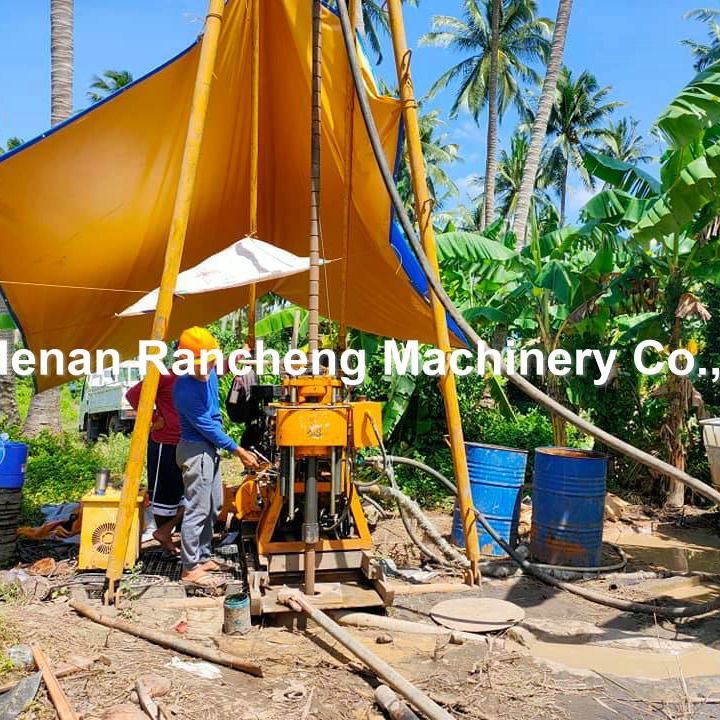

130m / 150m / 200m Depth Small Borehole Drilling Rig With 450mm Stroke 3
