RCF220W Hydraulic Wheel Mounted Water Well Drilling Machine with 65KW Diesel Engine
Machine Introduction
The RCF220W wheeled water well drilling rig uses high-quality materials and has a stylish and compact design, making the drilling rig more efficient, with a lower failure rate, more economical and durable, and with a high overall cost-effectiveness. Our water well drilling rigs have been truly verified by the market and have received positive feedback from our customers.
This is a lightweight, efficient and versatile drilling equipment. The water well drilling rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast propulsion speed, flexible maneuverability, and a wide range of applications. Pneumatic water well drilling rigs are particularly suitable for water extraction in mountainous areas and rock formations.
Technical Parameters
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
220m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
1m,2m,3m |
| Lifting force |
13T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
24m/min |
| Fast feeding speed |
35m/min |
| Max torque of rotary |
3400-4700Nm |
| Rotary speed |
45-70r/min |
| Hoisting force of winch |
1.4T |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4×1.75×2.25M |
| Weight |
5500Kg |
| Diesel engine |
65KW Quanchai engine |
Machine Advantages
1. Centralized control console, suitable for various operations and controls, fast traction and lifting, reducing auxiliary time and improving work efficiency.
2. The main transmission system, transfer case, gearbox, double winch group, mud pump, turntable, drilling tower, feeding system, etc. are all set on the chassis.
3. RCF220W deep rock water well drilling rig is a directional circulation hydraulic rotary drilling rig, which can be equipped with BW250 mud pump, mud as flushing fluid, and suitable drill bit, which can drill holes in clay, sand and rock.
4. The power of deep rock water well drilling rig comes from diesel engine. The high-power diesel engine drives a large-displacement high-pressure plunger pump with strong power and stable performance.
5. The traction force can be adjusted and controlled to make the machine suitable for deep hole drilling.
6. The deep rock water well drilling rig is equipped with a main winch, which is very efficient when drilling in mudstone and weathered layer.
7. A generator can be set to facilitate welding or night lighting operations.

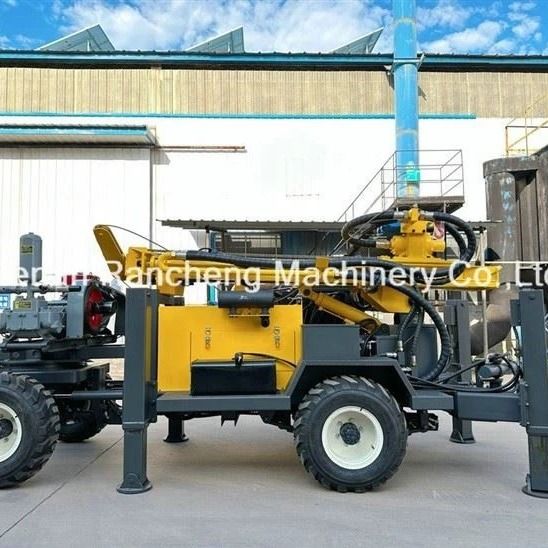

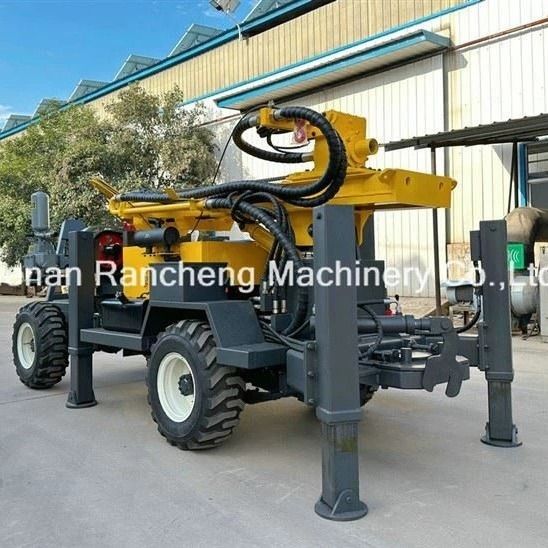

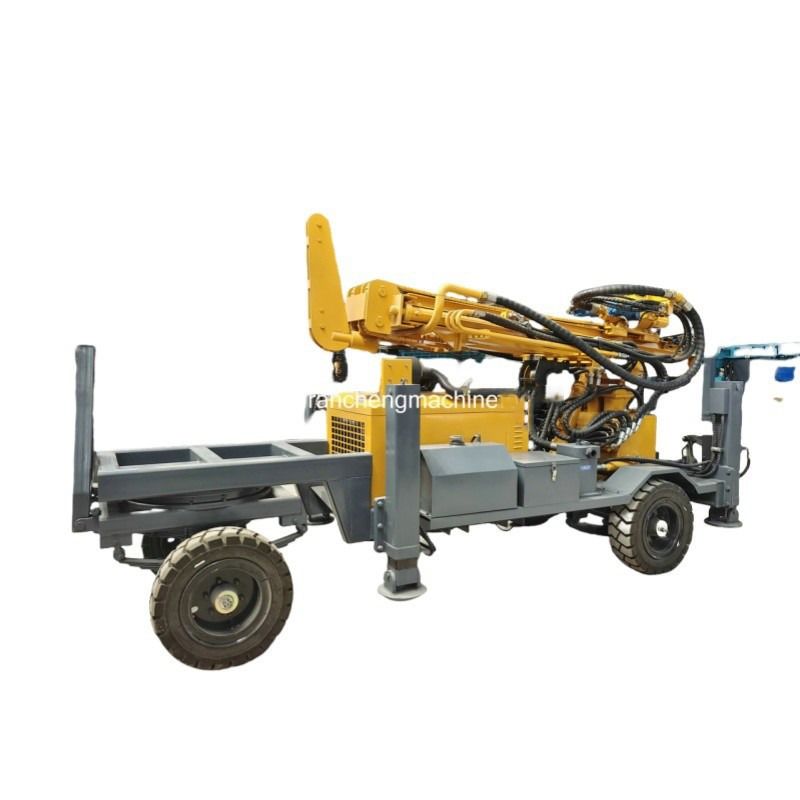

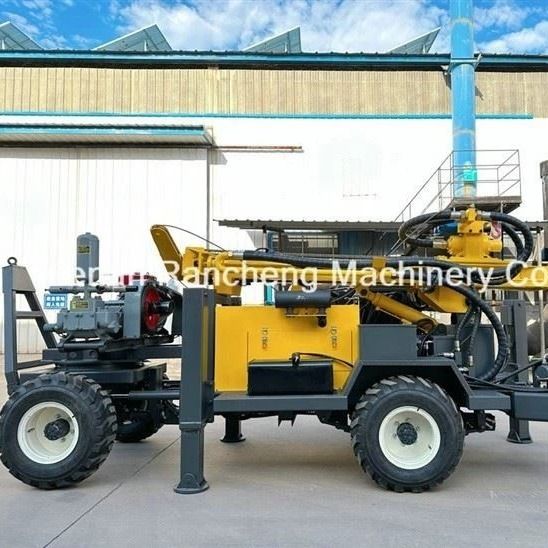

Machine Pictures
