RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine

RCJ130W Borehole Drilling Machine

20HP Borehole Drilling Machine

Hydraulic Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ130W / RCJ150W / RCJ200W

Contact Us
Request A Quote
Product Details
Name:
Mutil Functional Drilling Machine
Model:
RCJ130W
Drilling Depth:
130m
End Hole Dia:
75-300mm
Drill Rod Dia:
42-60mm
Stroke:
450mm
Drilling Angle:
90°~75°
Height:
6.5m
Highlight:

RCJ130W Borehole Drilling Machine

,

20HP Borehole Drilling Machine

,

Hydraulic Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine



Machine Introduction



RCJ130W hydraulic small hole drilling rig is a multifunctional drilling rig, mainly used for water well drilling. Diamond drill bits are generally used for hard rock, and alloy drill bits are generally used for clay. It is an economical and practical drilling machine.



This drilling machine is mainly used for geological survey and exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, roadbed grouting holes, direct grouting, civil wells, ground temperature central air conditioning, etc.



Machine Parameters



Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38



Machine Characteristics



1.RCJ130W/RCJ150W/RCJ200W mobile drilling rigs have an oil pressure automatic feeding mechanism, which can improve drilling efficiency and reduce the labor intensity of workers.



2.The mobile drilling rig is driven by a diesel engine, which is easy to use and is particularly suitable for areas without electricity and remote areas.



3.The mobile drilling rig uses a ball head clamping mechanism instead of a chuck, and the rod can be reversed without stopping the machine, which is convenient, safe and reliable.



4.The capstan adopts a retaining frame to form a double-sided support star wheel structure that can withstand strong impact.



5.The four sets of bearings in the vertical shaft box are positioned to ensure that the rotor has sufficient rigidity to cope with complex geological conditions such as gravel layers and pebble layers.



6.The mobile drilling rig adopts a cone clutch, which has a large torque transmission, is easy to operate and maintenance-free.



7.It is installed on two wheels and can be towed by a pickup truck or tractor, making it easy to move to any place. The mobile drilling rig can drill holes in soil, sand, gravel, thick hard rock, marble and any other hard ground.



Machine Pictures

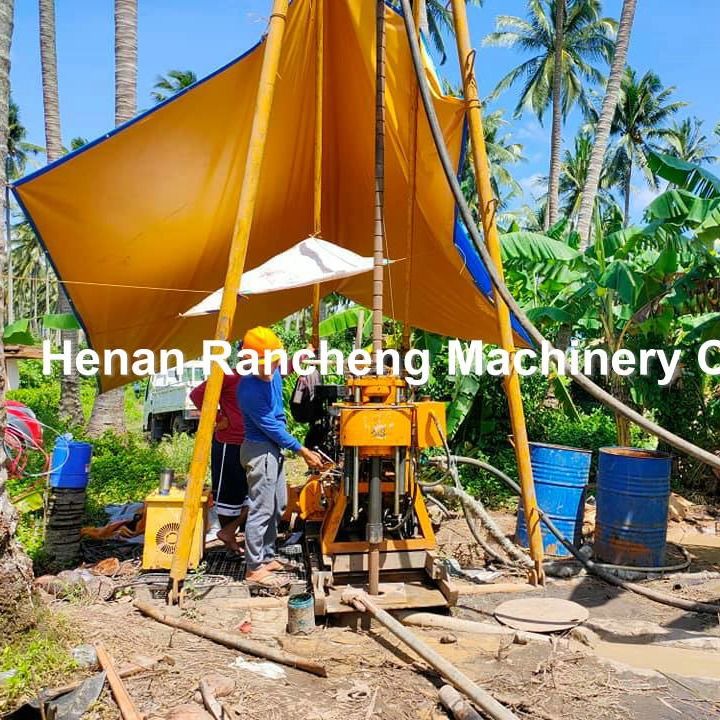

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine 0

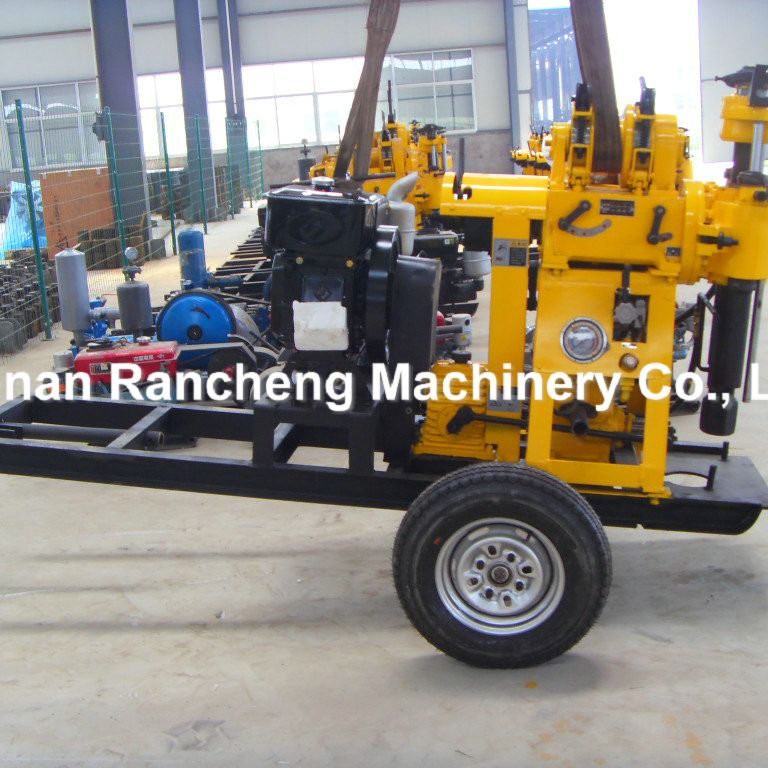

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine 1

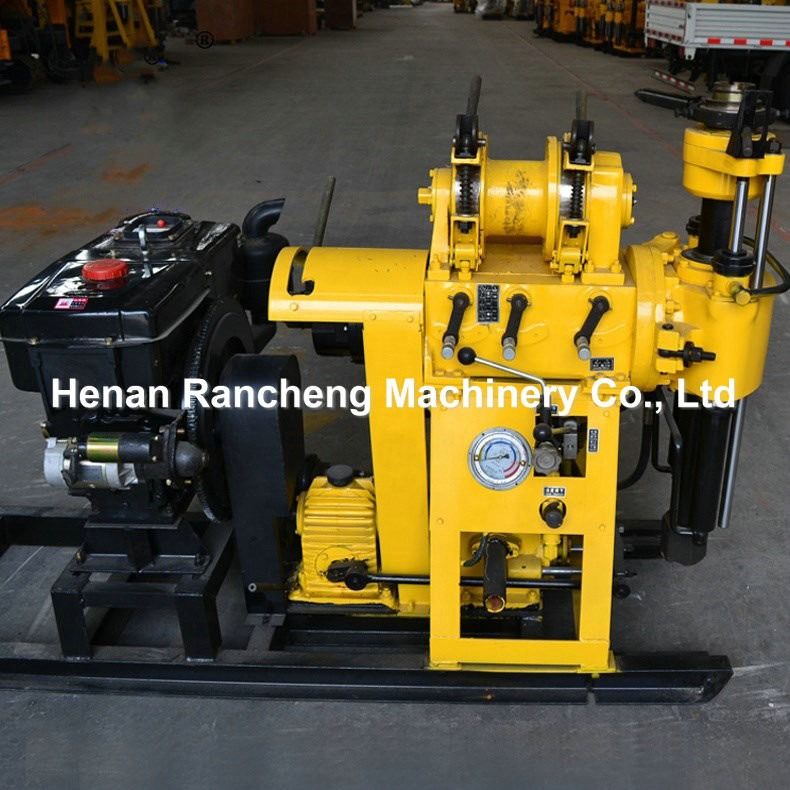

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine 2

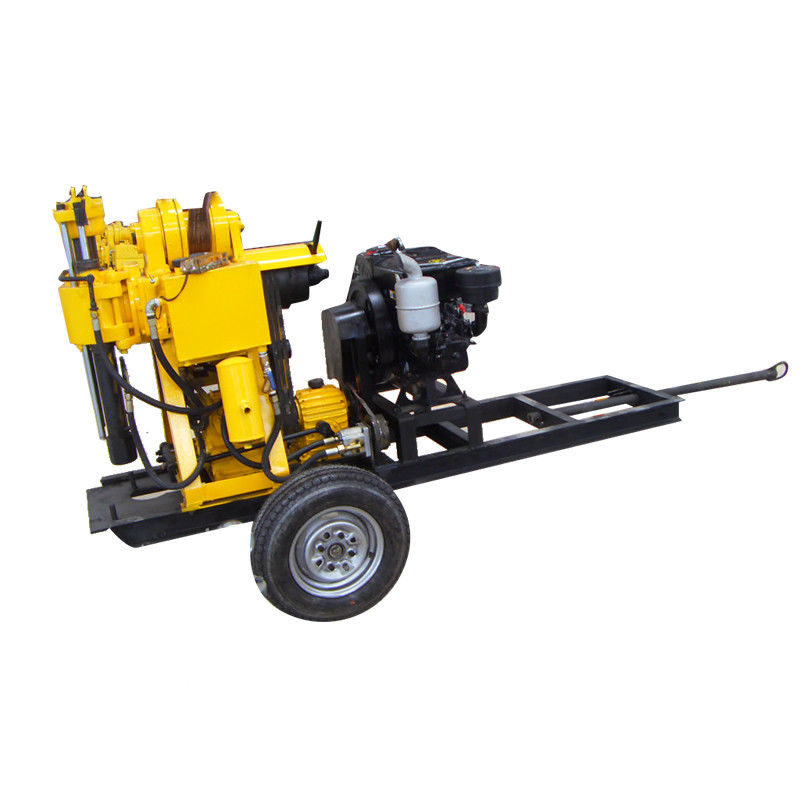

RCJ130W Hydraulic Small Borehole Mutil Functional Drilling Machine with 20HP Diesel Engine 3
