200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig

200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig

Big Power Borehole Drilling Machine

Tractor Mounted Borehole Drilling Machine

200m Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200WT
Hole Diameter:
140-254mm
Depth:
200m
Weight:
4T
Dimension:
3400*1500*2200mm
Highlight:

Big Power Borehole Drilling Machine

,

Tractor Mounted Borehole Drilling Machine

,

200m Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig


Machine Introduction



The rig uses the tractor diesel engine as its working power. The rig working part is integrated with the tractor. The tractor serves as the rig's transportation machine and provides the working power necessary for the rig's operations. The air compressor can be mounted, saving the vehicle's investment, lowering the cost and making the work more convenient. It is also equipped with a tricycle to load the drill pipe.



Due to its small and flexible fuselage, the tractor is better suited for driving and operating in various road conditions and environments, such as rural areas, villages, and farmyards.


Technical Parameters


Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200


Machine Advantages

1. It can drill through hard rock layers and operates efficiently under various geological conditions.



2. It is the most popular machine that meets the diverse requirements for a combination drilling device, capable of completing rural water supply wells in both sediments and hard rock.



3. Weighing about 4,000 kg, it can be easily towed by a pickup truck and has numerous features.

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.


Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

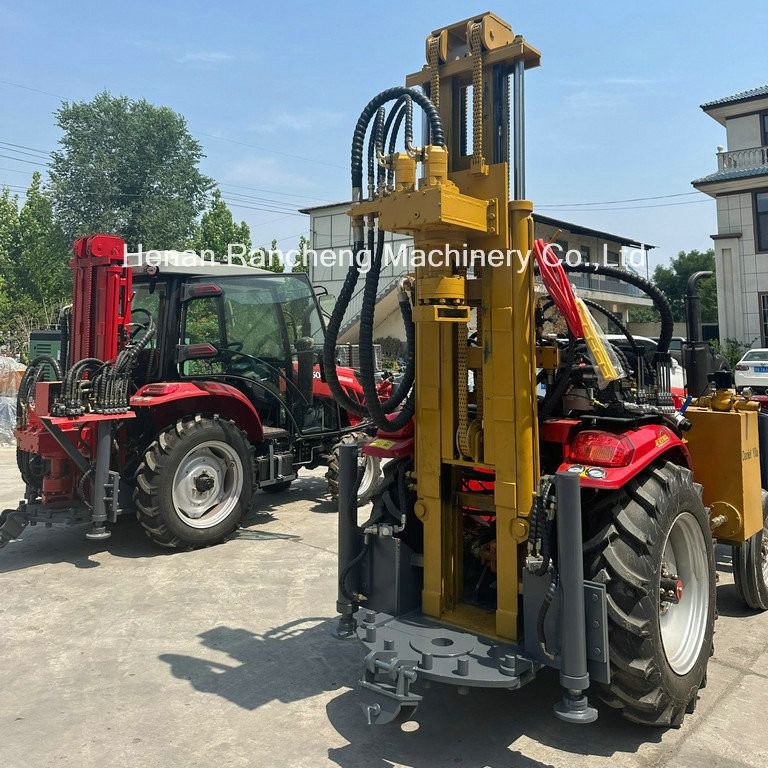

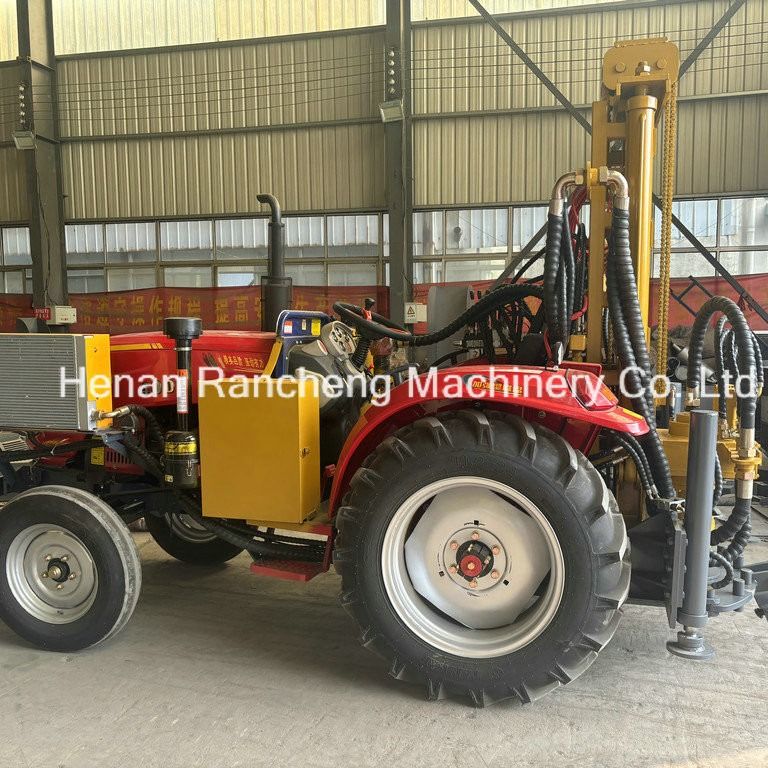

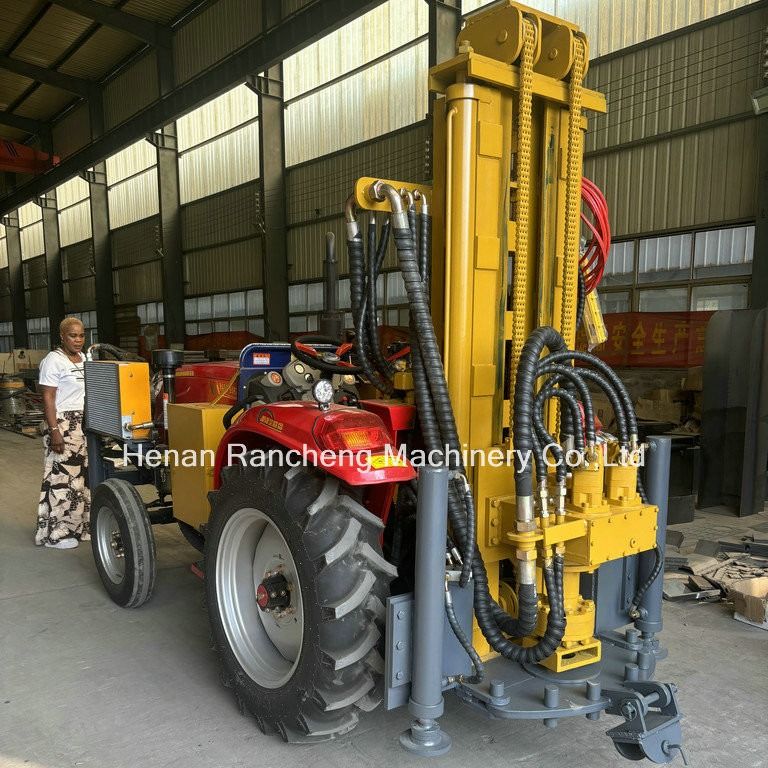

Machine Pictures

200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig 0
200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig 1200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig 2
200m Tractor Mounted Big Power Water Well Drilling Machine Tractor Deep Borehole Drill Rig 3
