200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine

200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine

Tractor Mounted Pneumatic Drill Machine

260m Depth Pneumatic Drill Machine

Portable Tractor Mounted Drill Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200WT
Hole Diameter:
140-254mm
Depth:
200m
Weight:
4T
Dimension:
3400*1500*2200mm
Highlight:

Tractor Mounted Pneumatic Drill Machine

,

260m Depth Pneumatic Drill Machine

,

Portable Tractor Mounted Drill Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine



Machine Introduction



The drilling rig is integrated with the tractor, and the tractor is both a transport machine and a rig. When going to the work site, the air compressor can be towed behind the rig. It is only necessary to equip a three-wheeled vehicle to load the drill pipe. This saves the investment of the transportation vehicle and makes it easier to go out. Since the the tractor is small and the design is flexible, the tractor is more suitable for driving and operating in the wild, outside the village, etc.,


Technical Parameters


Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200


Machine Advantages



1. The high torque, high power configuration, reasonable structural design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig.


2. The low pollution emission and professional noise reduction design of the drilling rig diesel engine make the drilling rig fully suitable for various construction sites.


3. The whole machine has beautiful appearance, compact structure, reliable performance and flexible operation. It is the first choice for medium-sized projects in the current domestic tractor drilling rig market.


FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.


Q: How long does it take to produce?

A:Normally, our production takes about 15 days.


Machine Pictures

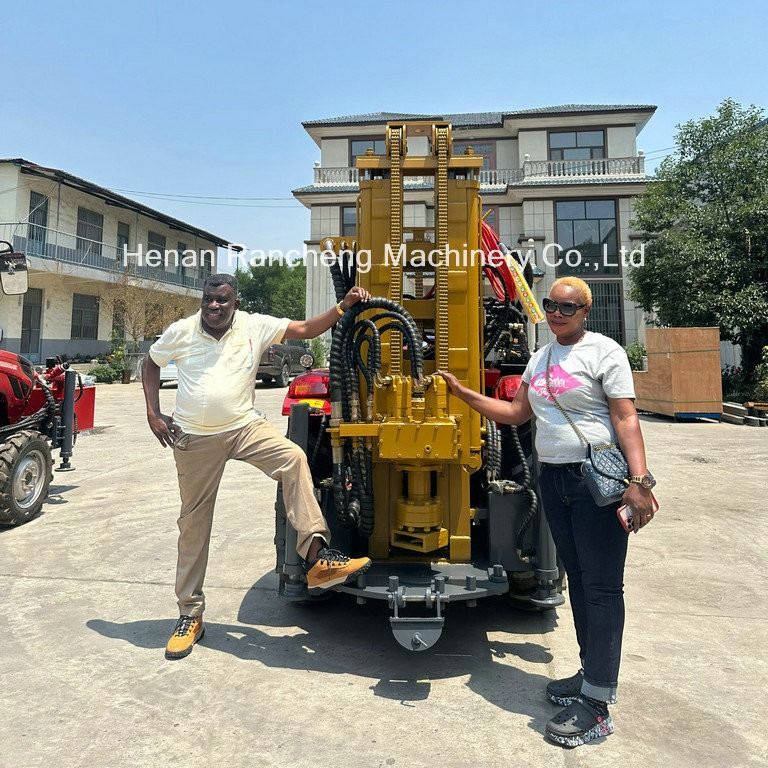

200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine 0

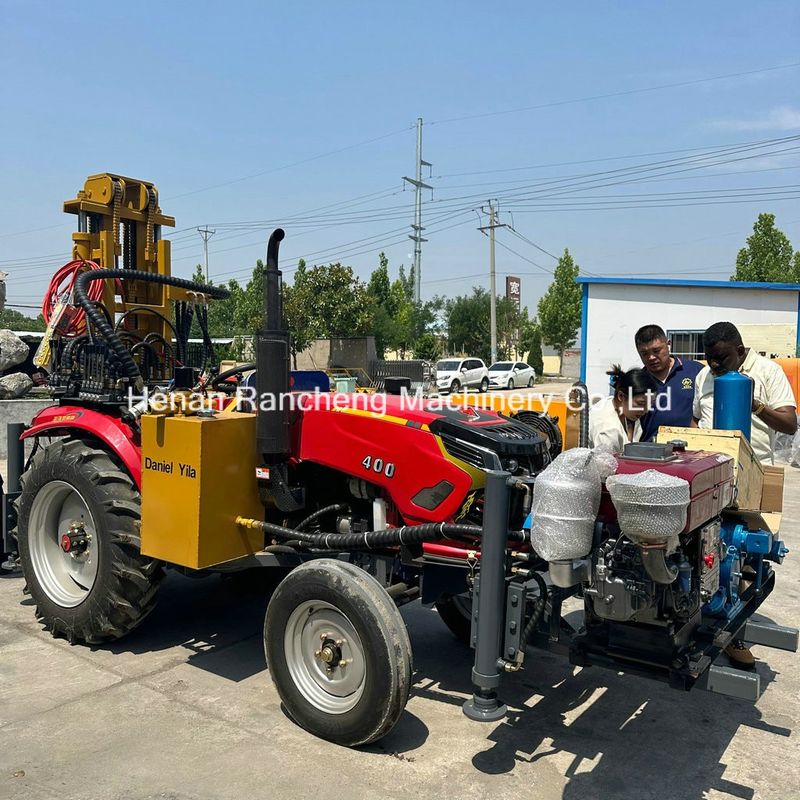

200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine 1200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine 2

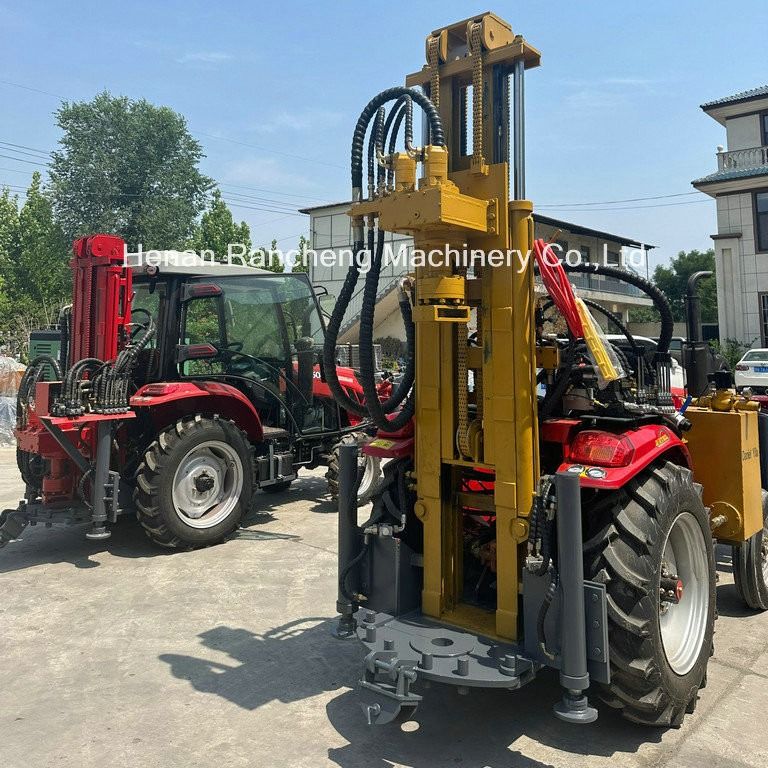

200/260m Depth Pneumatic Drill Machine Portable Tractor Mounted Drill Machine 3
