200/260m 254mm Tractor Mounted Four Wheels Big Power Water Well Drilling Rig
Machine Introduction
The new RCF200WT drilling rig is specially designed for complex terrains. It has stronger four-wheel drive off-road performance and is equipped with off-road tires, which makes it more advantageous in muddy road conditions. The drilling rig is supported by hydraulic cylinders to increase stability and prevent the drill bit from falling off during drilling. The water-gas dual-purpose drilling rig can select different power sources (mud pump, air compressor) for drilling according to different geological conditions. Our company has upgraded the configuration of the drilling rig, which can remotely control drilling, lifting, propulsion, gas source opening and closing, etc.
Technical Parameters
Model | RCF200WT |
Weight (t) | 4 |
Hole Diameter (mm) | 140 - 254 |
Depth (m) | 200 |
Feed Stroke (mm) | 2000 |
Travelling Speed (km/h) | 30 |
Climbing Angle | 25 Degree |
Tractor Horse Power (hp) | 40 |
Air Pressure (Mpa) | 1.7 - 2.5 |
Air Consumption (m^3/min) | 17 - 30 |
Rod Diameter (mm) | 76 & 89 |
Rod Length (mm) | 2000 |
Lifting Force (t) | 12 |
Rotation Speed (rpm) | 45 -65 |
Output Torque (n.m) | 4500 -5000 |
Dimension (mm) | 3400*1500*2200 |
Machine Advantages
1. The high torque, high power configuration, reasonable structural design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig.
2. The low pollution emission and professional noise reduction design of the drilling rig diesel engine make the drilling rig fully suitable for various construction sites.
3. The whole machine has beautiful appearance, compact structure, reliable performance and flexible operation. It is the first choice for medium-sized projects in the current domestic tractor drilling rig market.
FAQ
Q: What are the advantages of your company?
A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.
Q: Can I find similar machines. Are they the same?
A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.
Q: How long does it take to produce?
A:Normally, our production takes about 15 days.

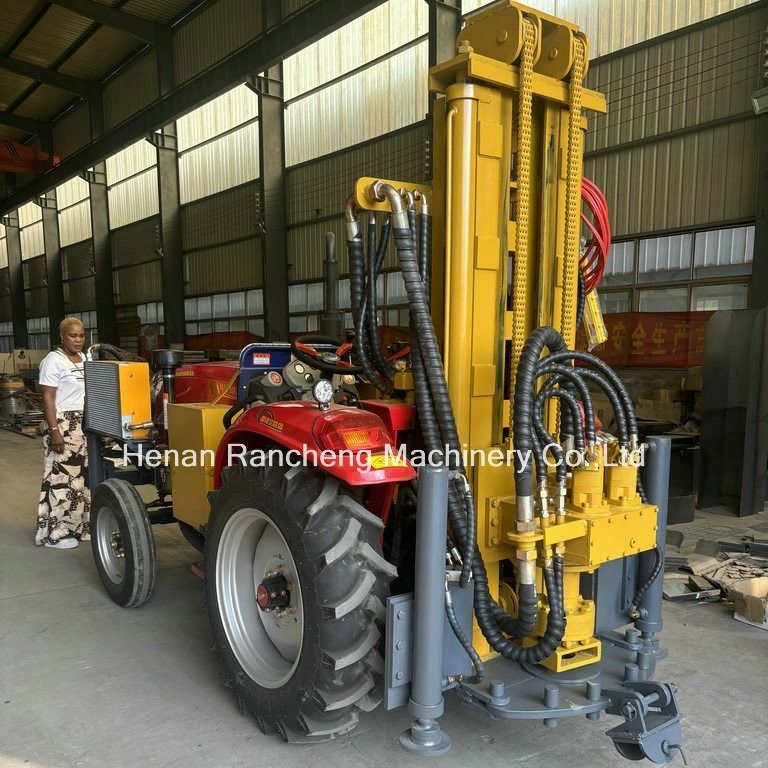

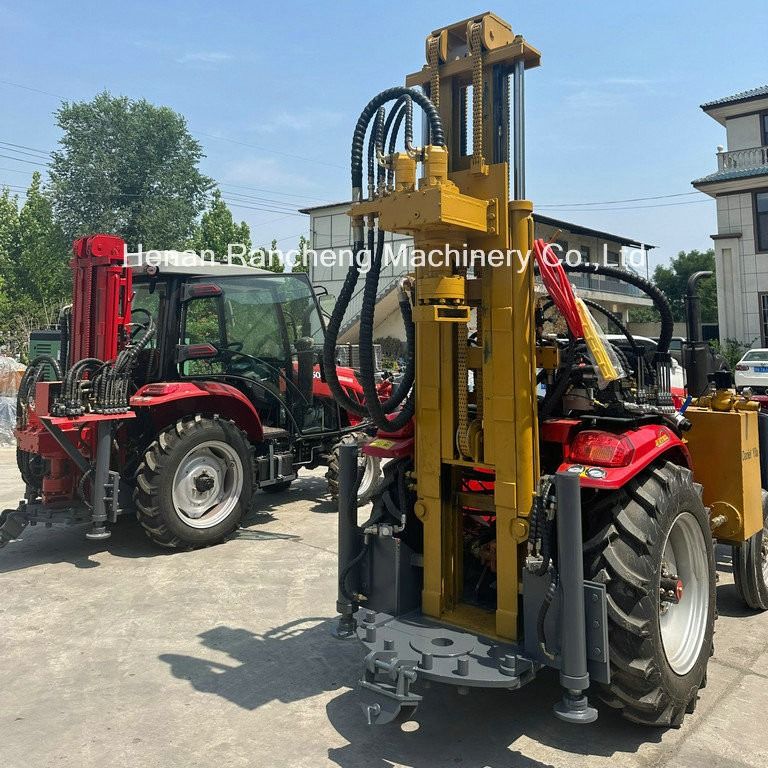

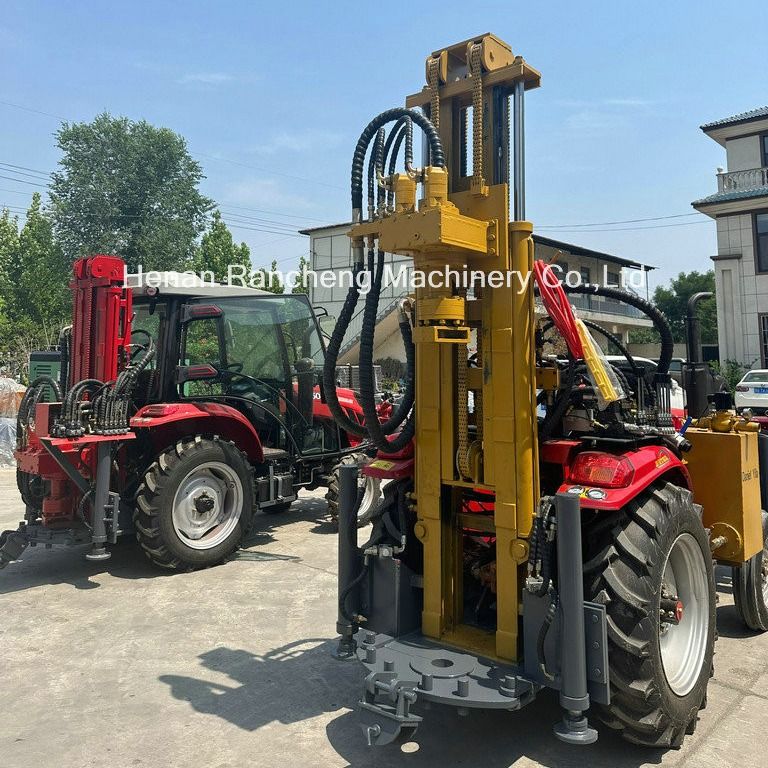

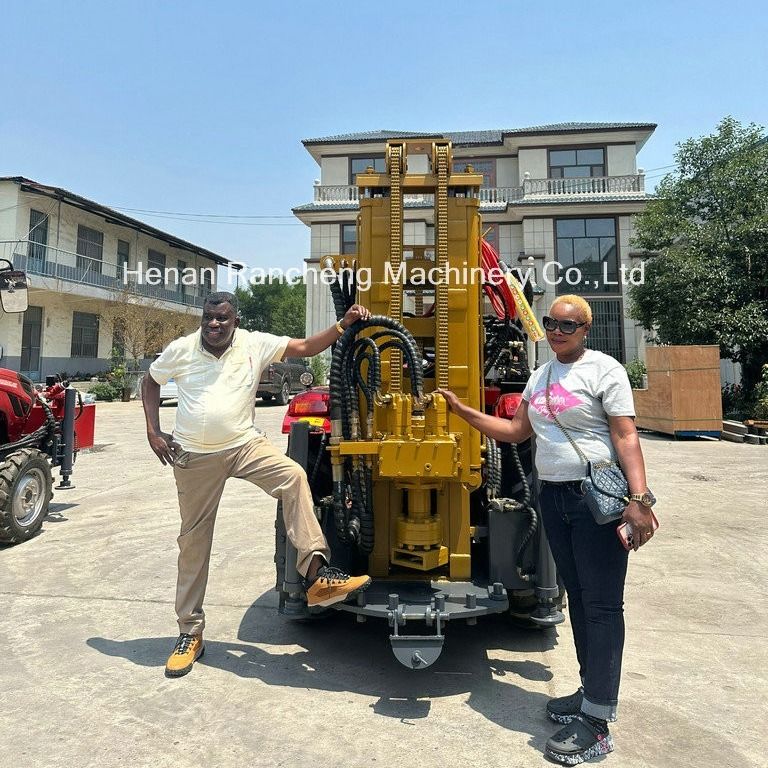

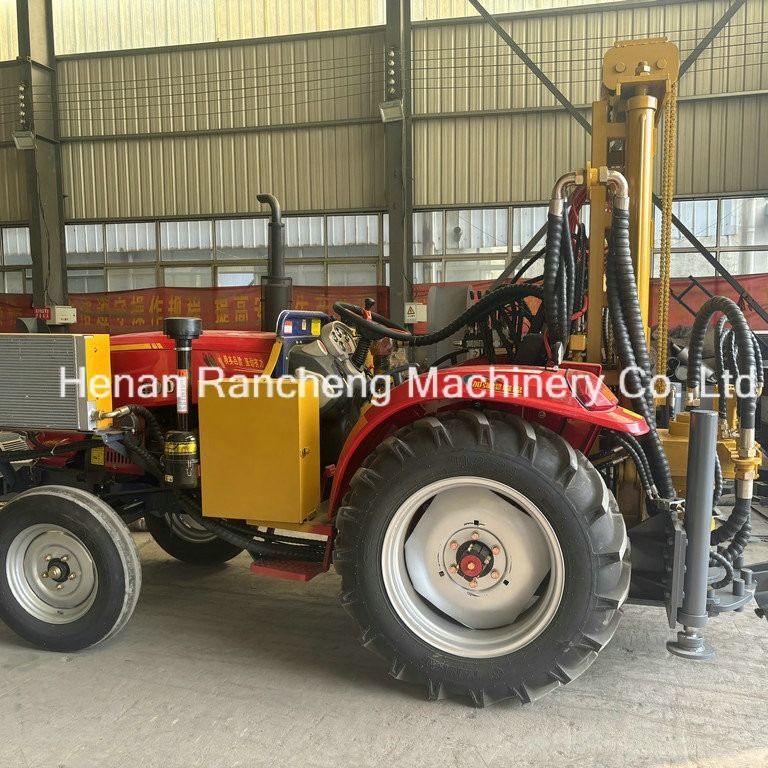

Machine Pictures
