Name: Portable Tractor Mounted Hydraulic Drilling Rig For Water Well Rock Drill
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200WT
Availability: InStock

Home > products > Borehole Drilling Machine >

Portable Tractor Mounted Hydraulic Drilling Rig For Water Well Rock Drill

Portable Tractor Mounted Hydraulic Drilling Rig

Tractor Mounted Hydraulic Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Request A Quote

Product Details

Name:

Borehole Drilling Machine

Model:

RCF200WT

Hole Diameter:

140-254mm

Depth:

200m

Weight:

Dimension:

3400*1500*2200mm

Highlight:

Portable Tractor Mounted Hydraulic Drilling Rig

Tractor Mounted Hydraulic Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

Factory Price Portable Tractor Mounted Hydraulic Drilling Rig For Water Well Rock Drill

Machine Introduction

The main accessories of the drilling rig adopt the policy of optimizing procurement at home and abroad, and the diesel engine, hydraulic pump, main valve, motor, and key hydraulic accessories are all selected from well-known brand products;
The large torque, high power configuration, reasonable structure design, and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig; The low pollution emission and professional noise reduction design of the drilling rig diesel engine make the drilling rig fully suitable for various construction sites;

Technical Parameters

Model	RCF200WT
Weight (t)	4
Hole Diameter (mm)	140 - 254
Depth (m)	200
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	40
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 30
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	4500 -5000
Dimension (mm)	340015002200

Our Advantages

1) Good quality control

2) Highly competitive prices

3) state-of-art technology products

4)Our well drilling rig sales in China first, China's largest well drilling rig manufacturer

5) Smooth communication

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.

Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

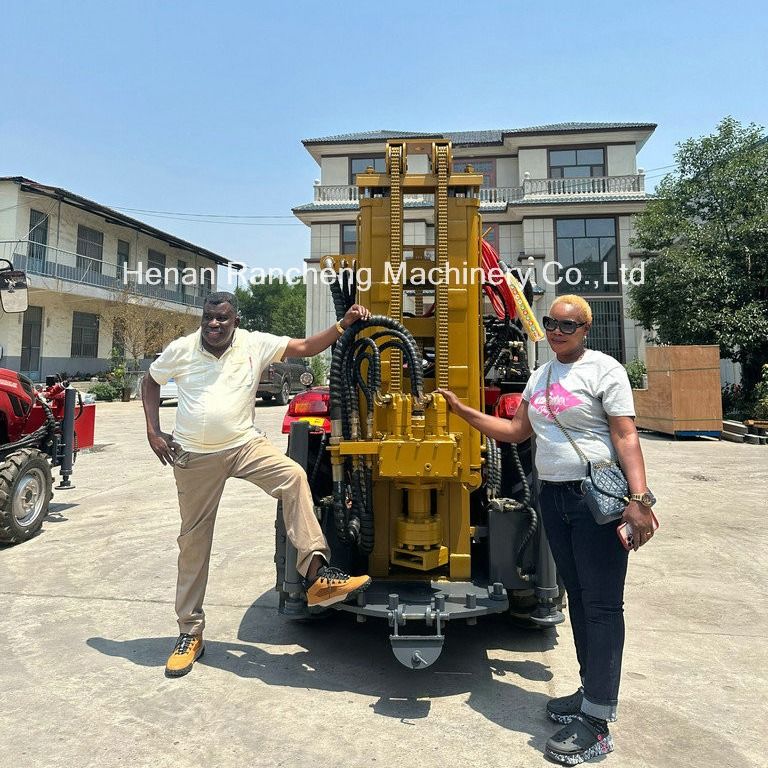

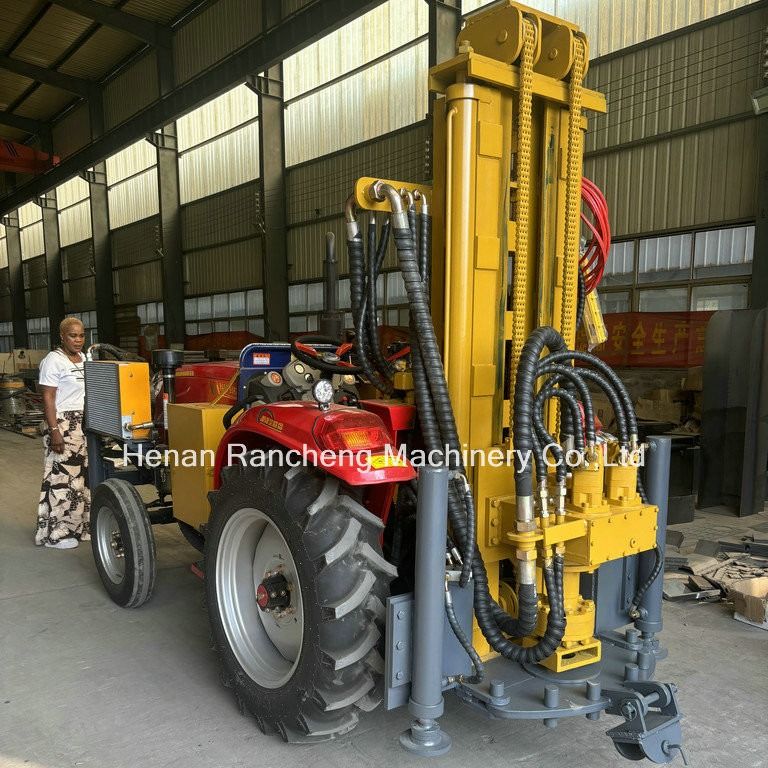

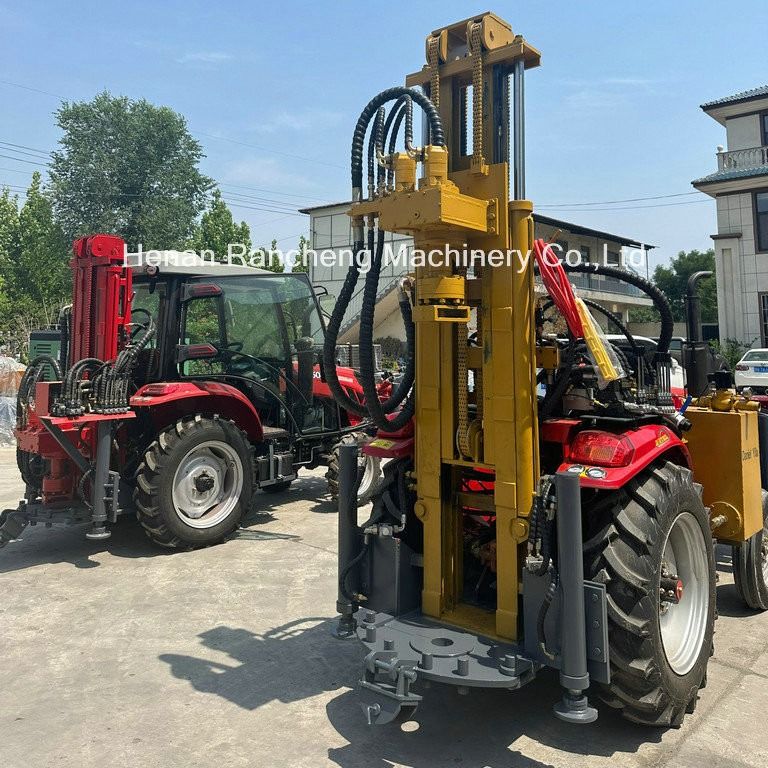

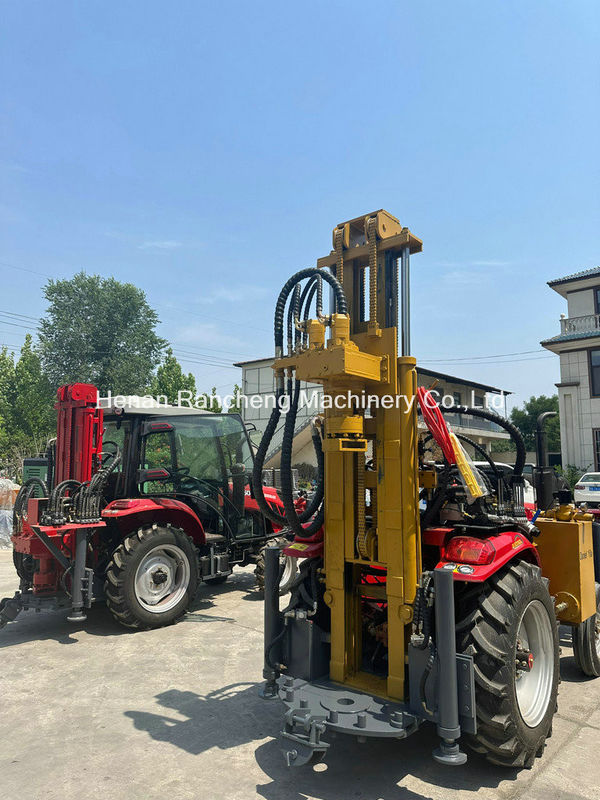

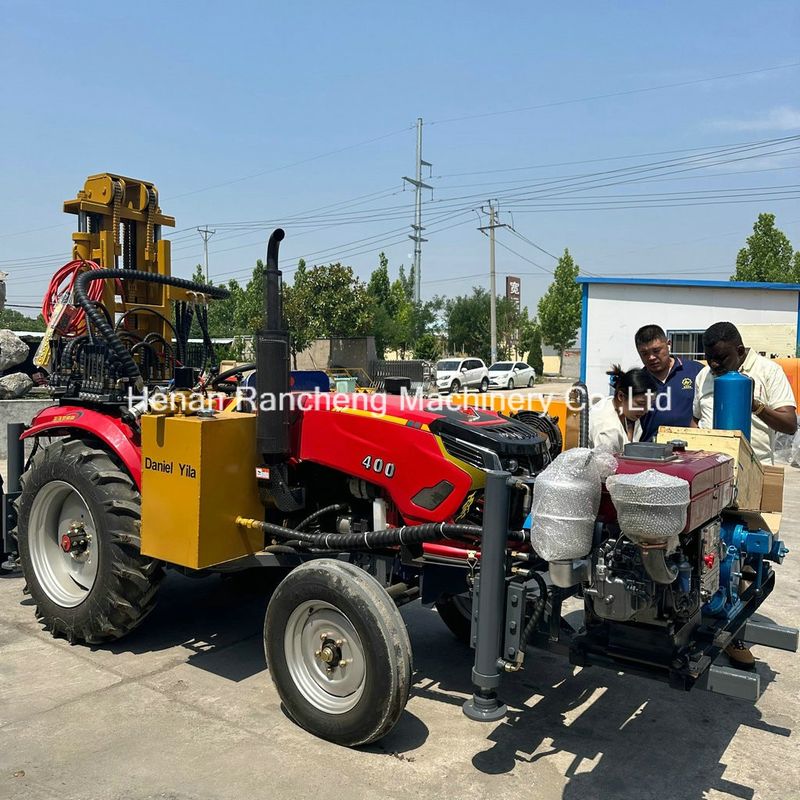

Machine Pictures
