Name: Tractor Mounted Big Water Borehole Drill Rig Able To Drill 300m Depth
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200WT
Availability: InStock

Home > products > Borehole Drilling Machine >

Tractor Mounted Big Water Borehole Drill Rig Able To Drill 300m Depth

Tractor Mounted Borehole Drill Rig

Big Water Borehole Drill Rig

300m Depth Borehole Drill Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Request A Quote

Product Details

Name:

Borehole Drilling Machine

Model:

RCF200WT

Hole Diameter:

140-254mm

Depth:

200m

Weight:

Dimension:

3400*1500*2200mm

Highlight:

Tractor Mounted Borehole Drill Rig

Big Water Borehole Drill Rig

300m Depth Borehole Drill Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

Tractor Mounted Big Water Borehole Drill Rig Able To Drill 300m Depth For Sale

Machine Introduction

The rig uses a tractor diesel engine as its primary power source. The working components of the rig are integrated with the tractor itself, which serves as both the rig and the transportation vehicle. When heading to a work site, the tractor has the capability to transport equipment. An air compressor can also be mounted on the rig, which reduces the need for an additional transportation vehicle, lowers costs, and enhances convenience during operations. Additionally, it is equipped with a tricycle for transporting drill pipes. Due to its compact and flexible design, the tractor is well-suited for navigating and operating in various road conditions, including rural areas and village settings. It can easily access narrow pathways and farmyards to reach drilling locations.

Technical Parameters

Model	RCF200WT
Weight (t)	4
Hole Diameter (mm)	140 - 254
Depth (m)	200
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	40
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 30
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	4500 -5000
Dimension (mm)	340015002200

Our Advantages

1. It can drill into hard rock layers and operate efficiently under various geological conditions.

2. This machine is the most popular choice for a combination drilling machine, capable of completing rural water supply boreholes in sedimentary and hard rock formations.

3. Weighing approximately 2,200 kg, it can be towed by a pickup truck and has a range of features.

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.

Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

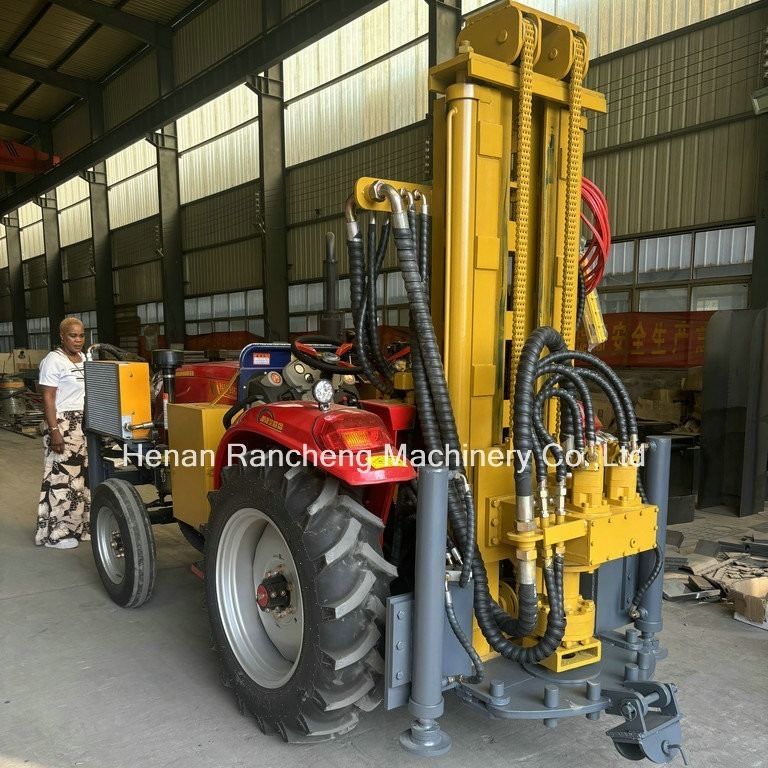

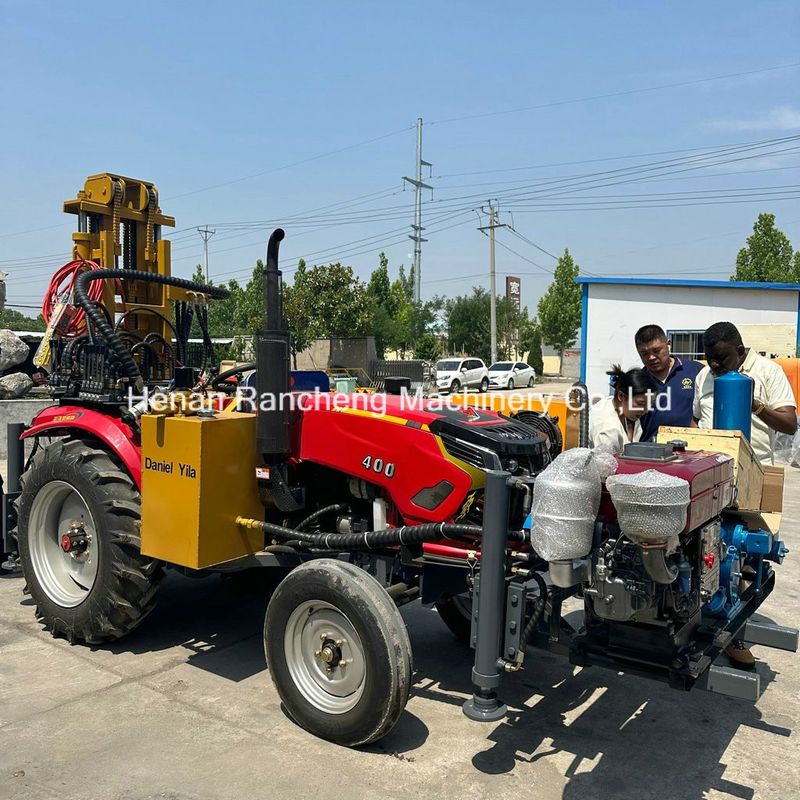

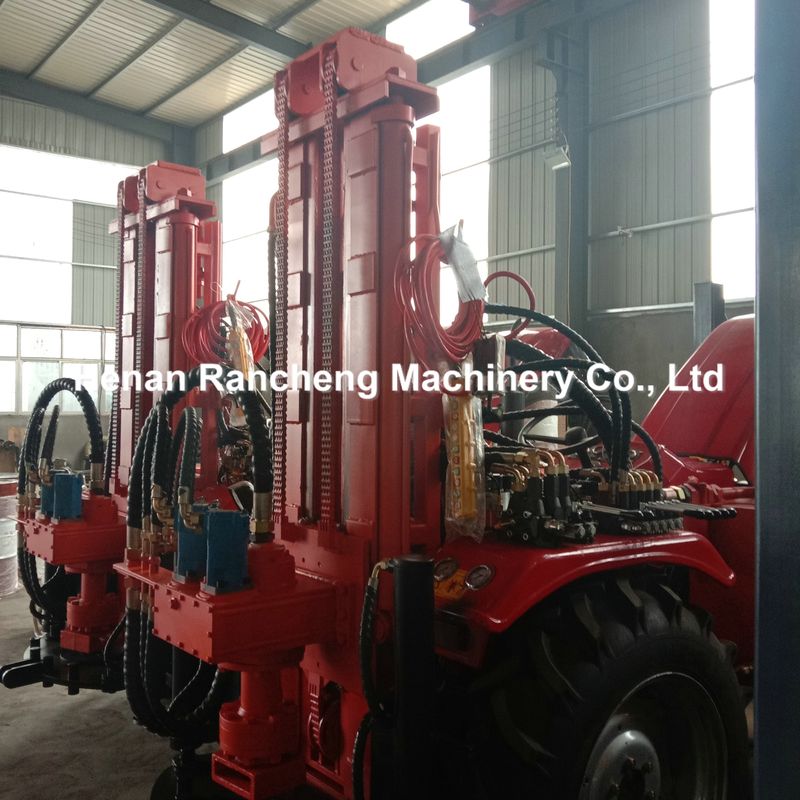

Machine Pictures
