Versatile Small Borehole Drilling Rig For Depths Up To 200m With Hydraulic System
Machine Introduction
Introducing the RCJ Series Small Hydraulic Drilling Rigs: RCJ130W, RCJ150W, and RCJ200W—the ultimate solution for your water well drilling and exploration needs. Engineered with advanced hydraulic technology, these multi-purpose drilling rigs are designed to handle a variety of geological conditions, ensuring efficiency and reliability in every project.
The RCJ series stands out for its versatility, making it an ideal choice for both hard rock formations and softer terrains. For challenging hard rock environments, our rigs are equipped with advanced diamond-tipped drill bits, which guarantee a swift and effective drilling process while maintaining the integrity of core samples. This feature is crucial for geologists and engineers who require high-quality core samples for analysis and decision-making.
Conversely, when working with softer formations such as clay, the RCJ series utilizes alloy coring drill bits. These specialized bits are designed to provide stable and consistent drilling performance, ensuring that your operations run smoothly without interruptions. The adaptability of the RCJ130W, RCJ150W, and RCJ200W makes them suitable for a wide range of applications, from water well drilling to geological exploration.
In addition to their robust performance, these rigs are built with user-friendly controls and a compact design, allowing for easy transportation and setup in various locations. Whether you are a seasoned professional or a newcomer to the drilling industry, the RCJ series offers the reliability and efficiency you need to get the job done right.
Invest in the future of drilling with the RCJ130W, RCJ150W, and RCJ200W small hydraulic drilling rigs – where advanced technology meets exceptional performance. Experience the difference today!
Machine Parameters
| Tech parameter |
Model |
RCJ130W |
RCJ150W |
RCJ200W |
| Drilling depth(m) |
130 |
200 |
200 |
| Open hole dia(mm) |
220 |
220 |
325 |
| End hole dia(mm) |
75 |
75 |
75 |
| Drill rod dia(mm) |
42-60 |
42-60 |
42-60 |
| Drill angle |
90-75 |
90-75 |
90-75 |
| Matching power(KW) |
13.2 |
13.2 |
14.7 |
| Dimension(m) |
2.4*0.8*1.4 |
2.4*0.8*1.3 |
2.7*0.9*1.5 |
| Spindle |
Speed(r/min) |
142/285/570 |
130/300/48/730/830/1045
|
64/128/287/557 |
| Stroke(mm) |
450 |
450 |
450 |
| Winch |
Max pull force(kg) |
2000 |
2100 |
2500 |
| Pull speed(m/s) |
0.41-1.64 |
0.35-2.23 |
0.12-0.95 |
| Rope dia(mm) |
9.3 |
9.3 |
/ |
| Roll capacity(m) |
27 |
27 |
35 |
| Drill Mast |
Rated load(Ton) |
18 |
18 |
18 |
| Height(m) |
6.5 |
6.5 |
6.5 |
| Mud Pump |
Flow(L/min) |
95 |
95 |
145 |
| Max Pressure(MPa) |
1.2 |
1.2 |
2 |
| Times/min |
93 |
93 |
93 |
| Inlet hose |
Dia(mm) |
51 |
51 |
51 |
| Outlet hose |
Dia(mm) |
32 |
32 |
38 |
Machine Characteristics
1. Hydraulic control system, easy to use.
2. Diesel engine power, easy to use, electric is especially suitable for remote areas.
3. Install two wheels, can be transported by pickup truck or tractor, easy to move to any place.
4. Can drill through any hard ground such as soil, sand, gravel, thick stone, marble, etc.
5. Mainly used for agricultural/industrial irrigation well drilling, soil testing, SPT testing, soil sampling, geotechnical exploration, land survey, etc.

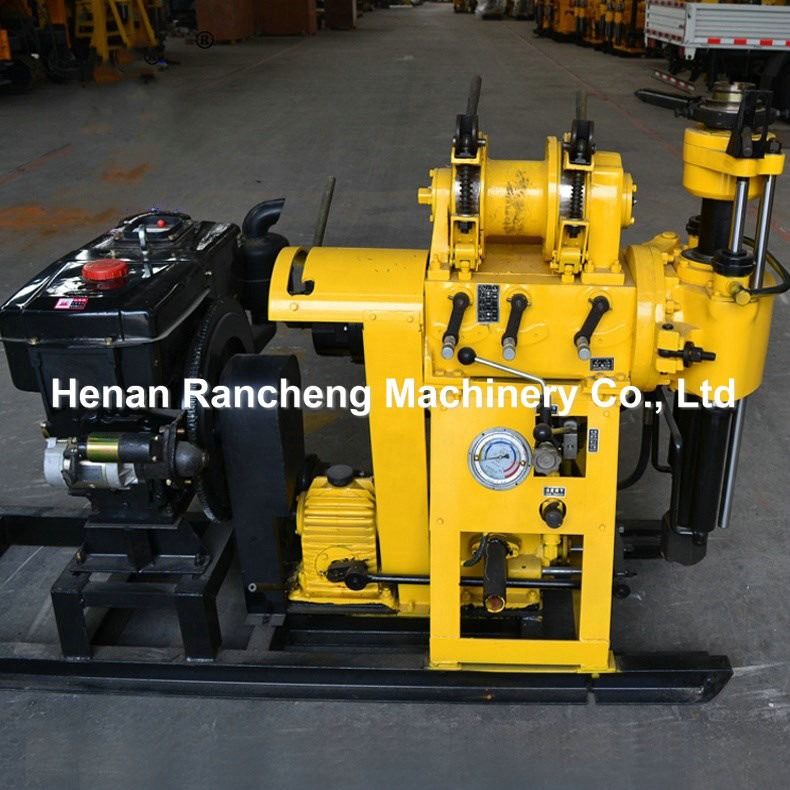

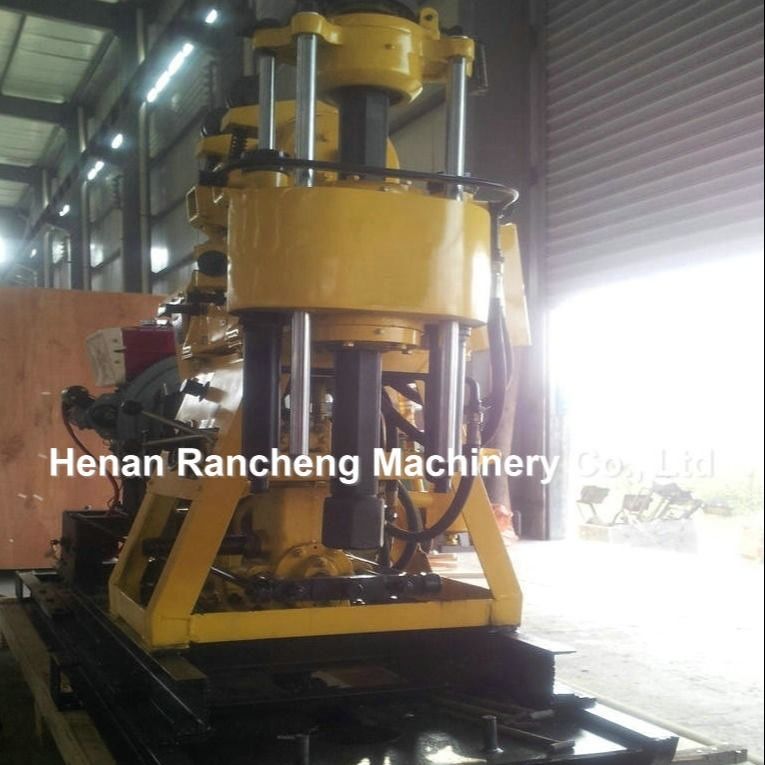

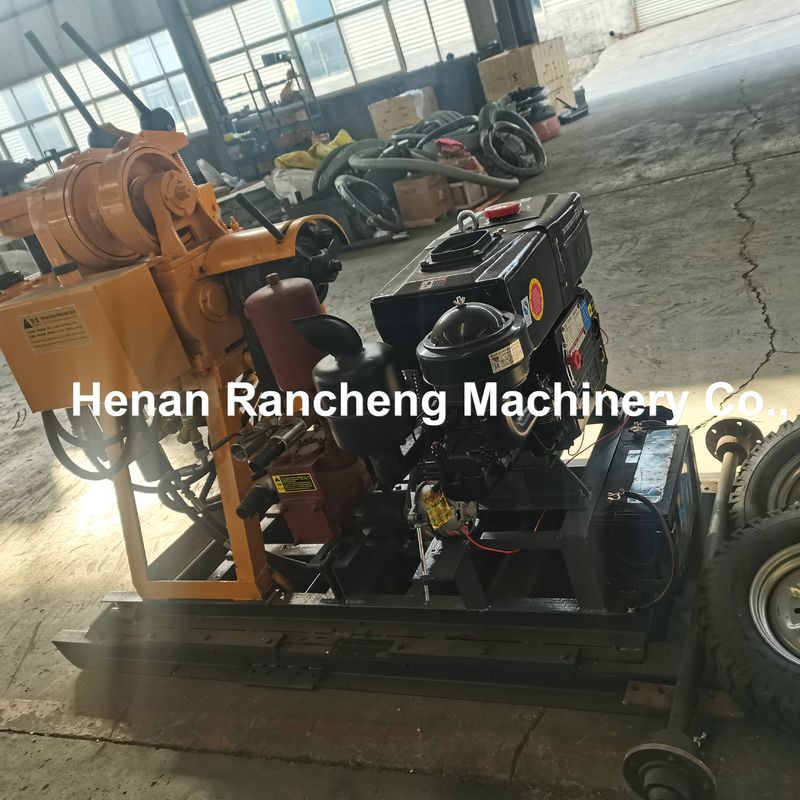

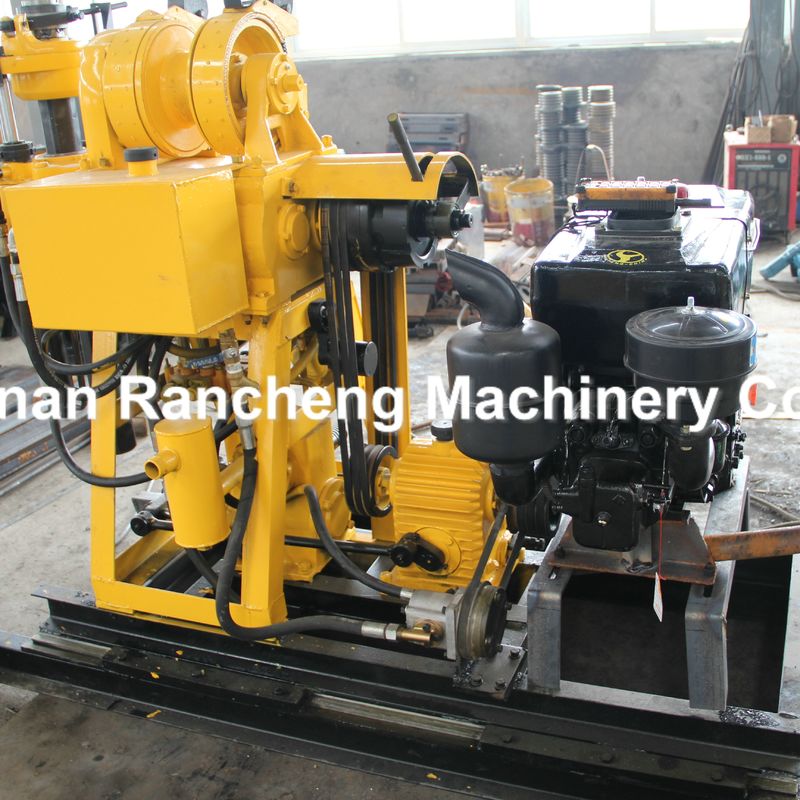

Machine Pictures
