200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig

200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig

Tractor Mounted Borehole Drill Rig

200m Borehole Drill Rig

Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200WT
Hole Diameter:
140-254mm
Depth:
200m
Weight:
4T
Dimension:
3400*1500*2200mm
Highlight:

Tractor Mounted Borehole Drill Rig

,

200m Borehole Drill Rig

,

Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Wholesale Price 200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig





Machine Introduction



This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.


Technical Parameters


Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200


Our Advantages



1. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.



2.Weighing about 2200kg that allows it to be pulled by a pick-up it is packed with features.


3.The machine is compact in structure and convenient to carry.


4.The whole machine adopts full hydraulic drive and has low failure rate.


FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.


Q: How long does it take to produce?

A:Normally, our production takes about 15 days.


Machine Pictures

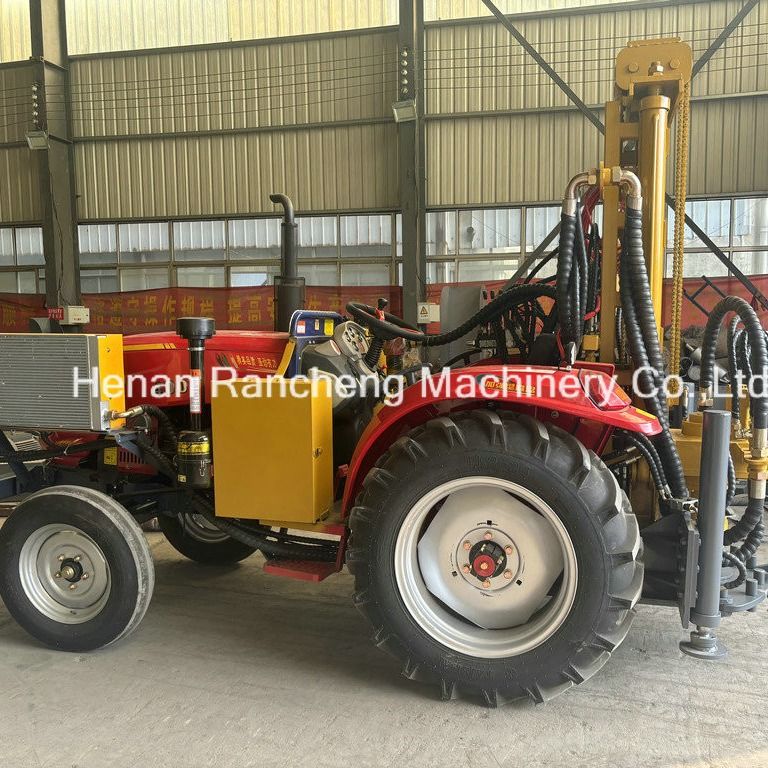

200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig 0

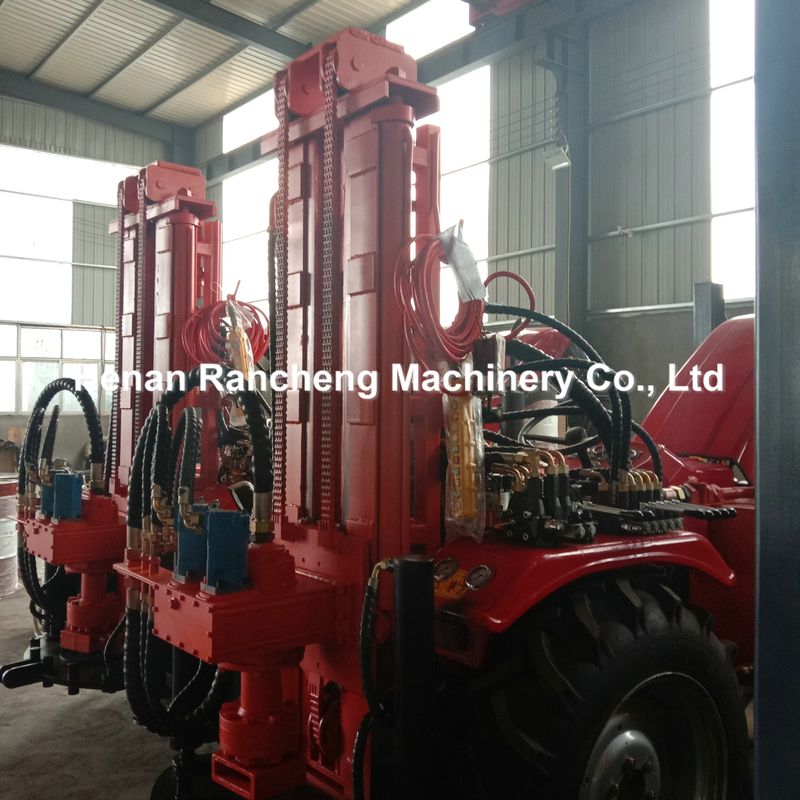

200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig 1200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig 2

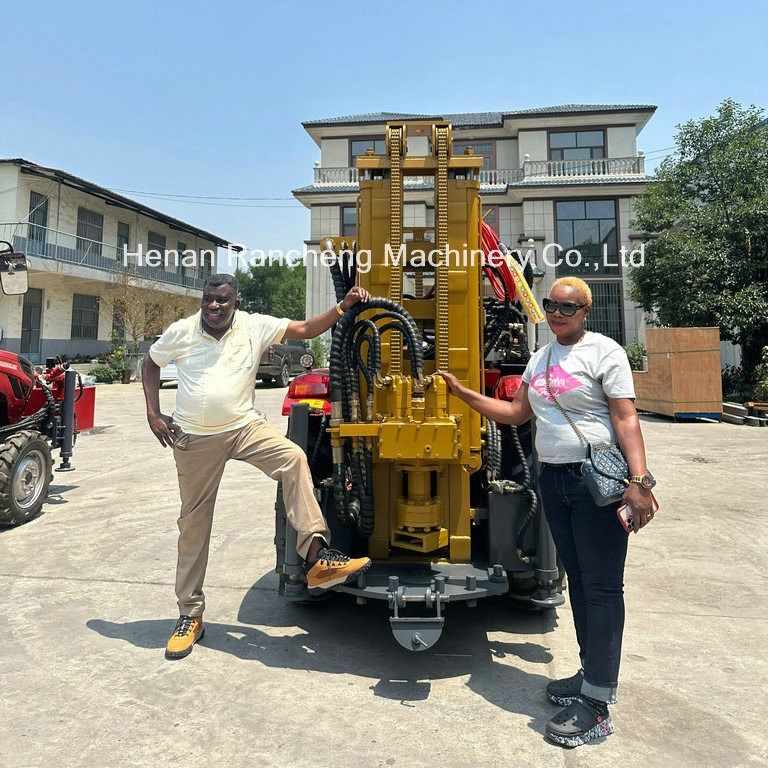

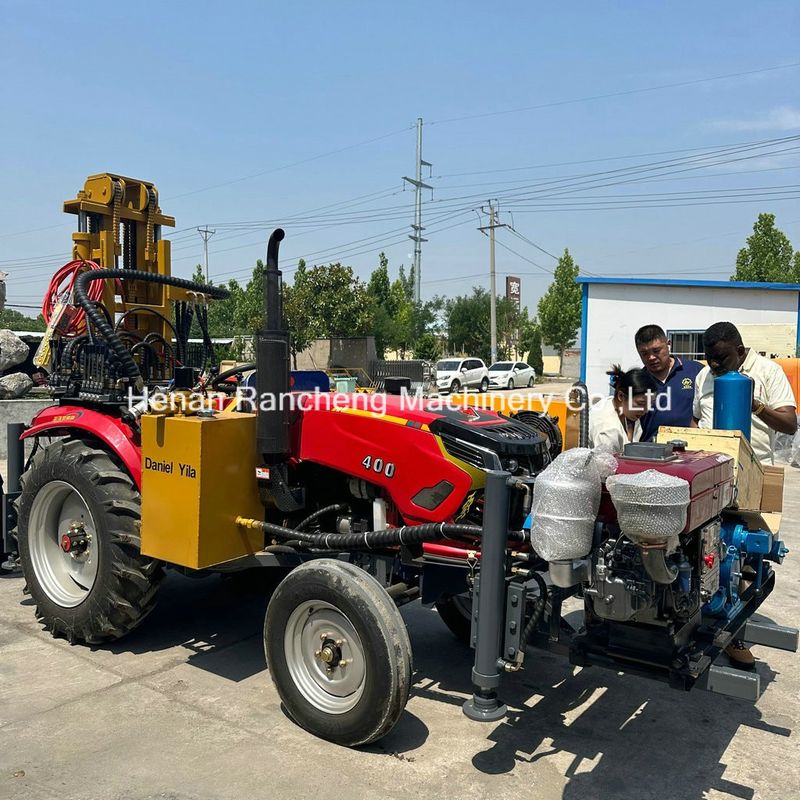

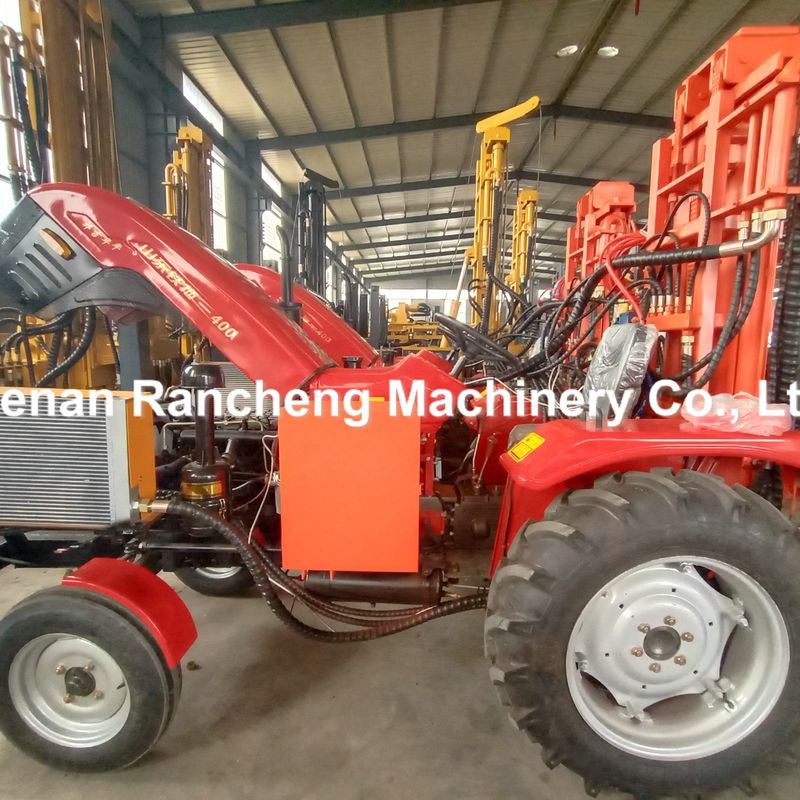

200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig 3
