Name: Deep Tractor Mounted Diesel Water Well Rock Drilling Machine Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200WT
Availability: InStock

Home > products > Borehole Drilling Machine >

Deep Tractor Mounted Diesel Water Well Rock Drilling Machine Well Drilling Rig

Deep Tractor Mounted Drilling Machine

Diesel Water Well Drilling Machine

Rock Drilling Machine Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Request A Quote

Product Details

Name:

Borehole Drilling Machine

Model:

RCF200WT

Hole Diameter:

140-254mm

Depth:

200m

Weight:

Dimension:

3400*1500*2200mm

Highlight:

Deep Tractor Mounted Drilling Machine

Diesel Water Well Drilling Machine

Rock Drilling Machine Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

Deep Tractor Mounted Diesel Water Well Rock Drilling Machine Well Drilling Rig

Machine Introduction

The new rcf200wt drilling rig is specially designed for complex terrains. It has stronger four-wheel drive off-road performance and is equipped with off-road tires, which is more advantageous in muddy road conditions.

Our company has upgraded the configuration of the drilling rig, which can remotely control drilling, lifting, propulsion, and gas source opening and closing.

Technical Parameters

Model	RCF200WT
Weight (t)	4
Hole Diameter (mm)	140 - 254
Depth (m)	200
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	40
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 30
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	4500 -5000
Dimension (mm)	340015002200

Our Advantages

1. The drilling rig uses the tractor diesel engine as the working power of the drilling rig, and the drilling rig and the tractor are integrated into one.

2. The air compressor can be installed on the tractor to save transportation costs and make work more convenient.

3. Because the body is small and light, it is suitable for roads, villages and other road conditions.

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.

Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

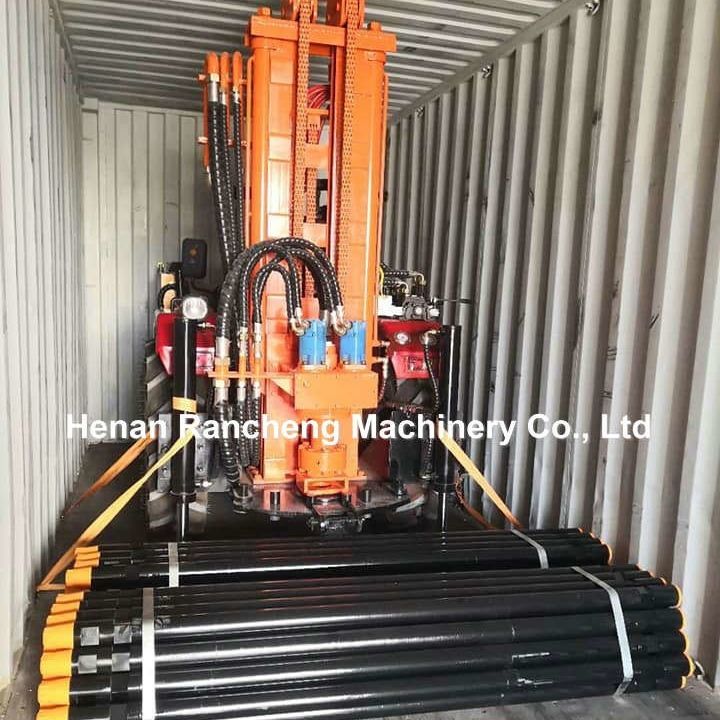

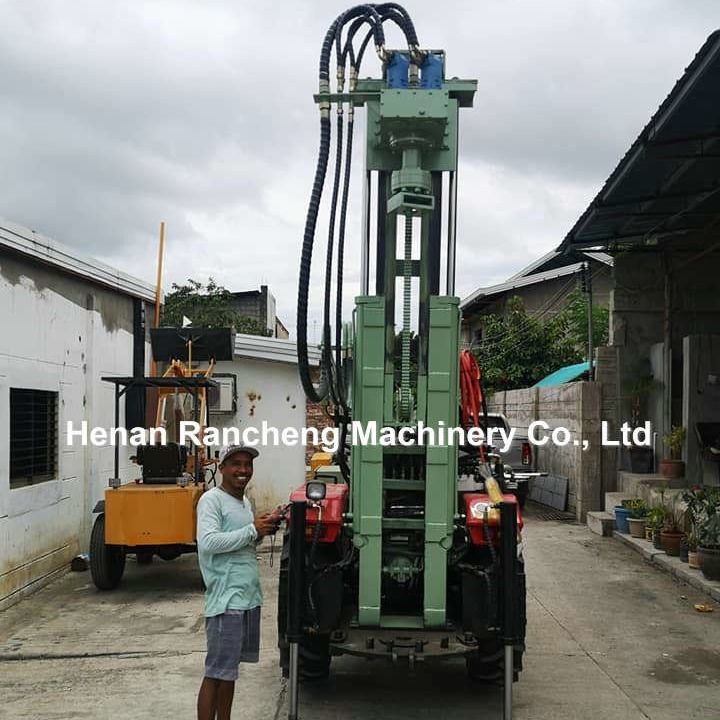

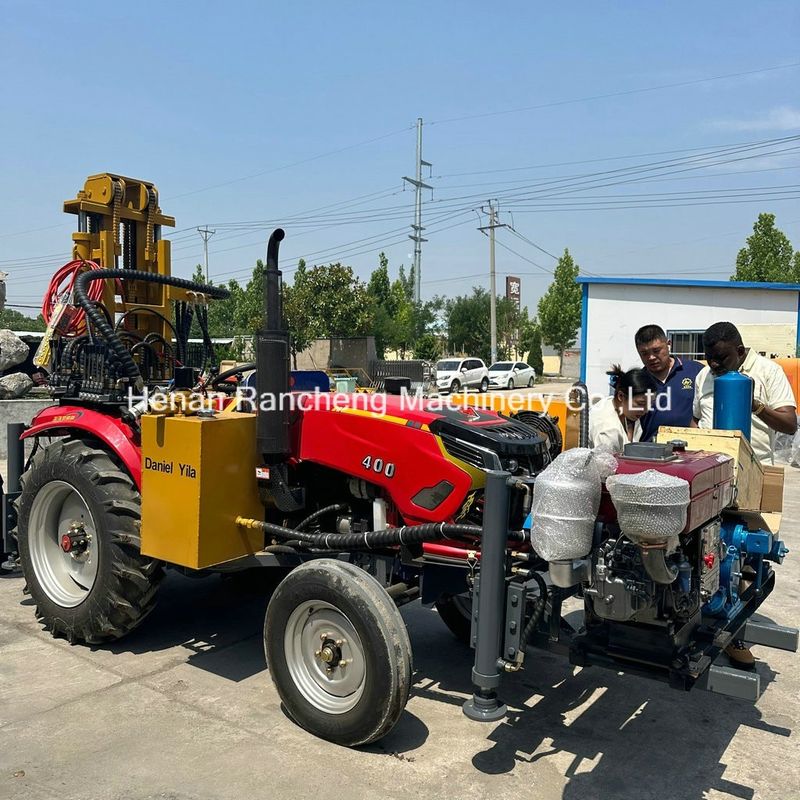

Machine Pictures
